HTSC8.0
Compact, Flexible & Powerful Lifting Solution for Confined Workspaces

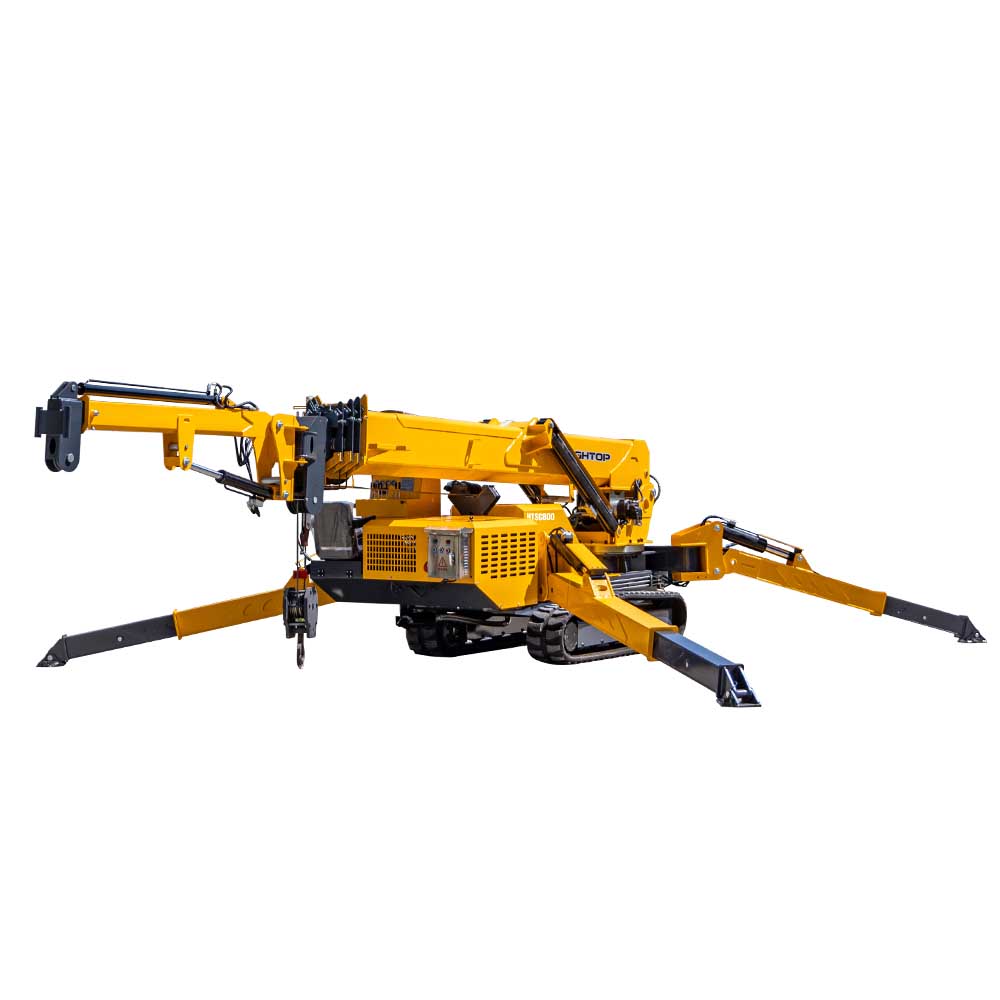

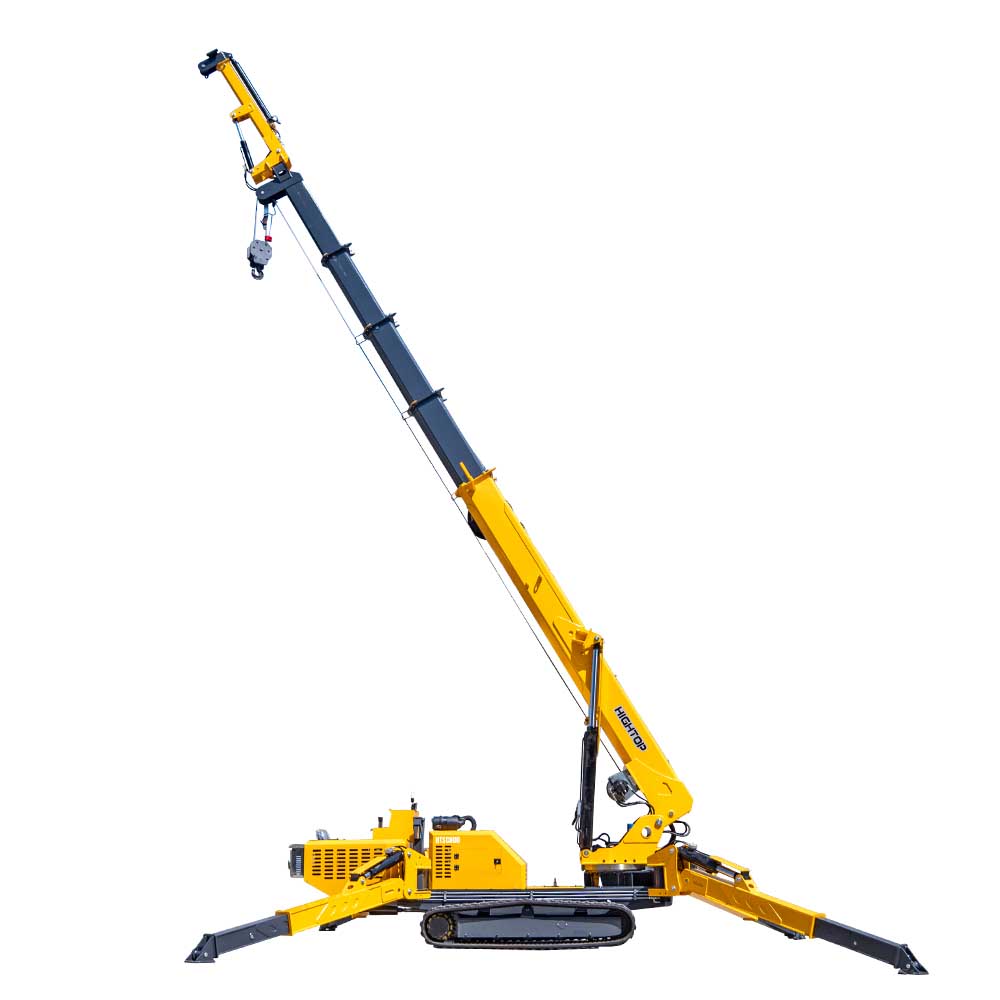

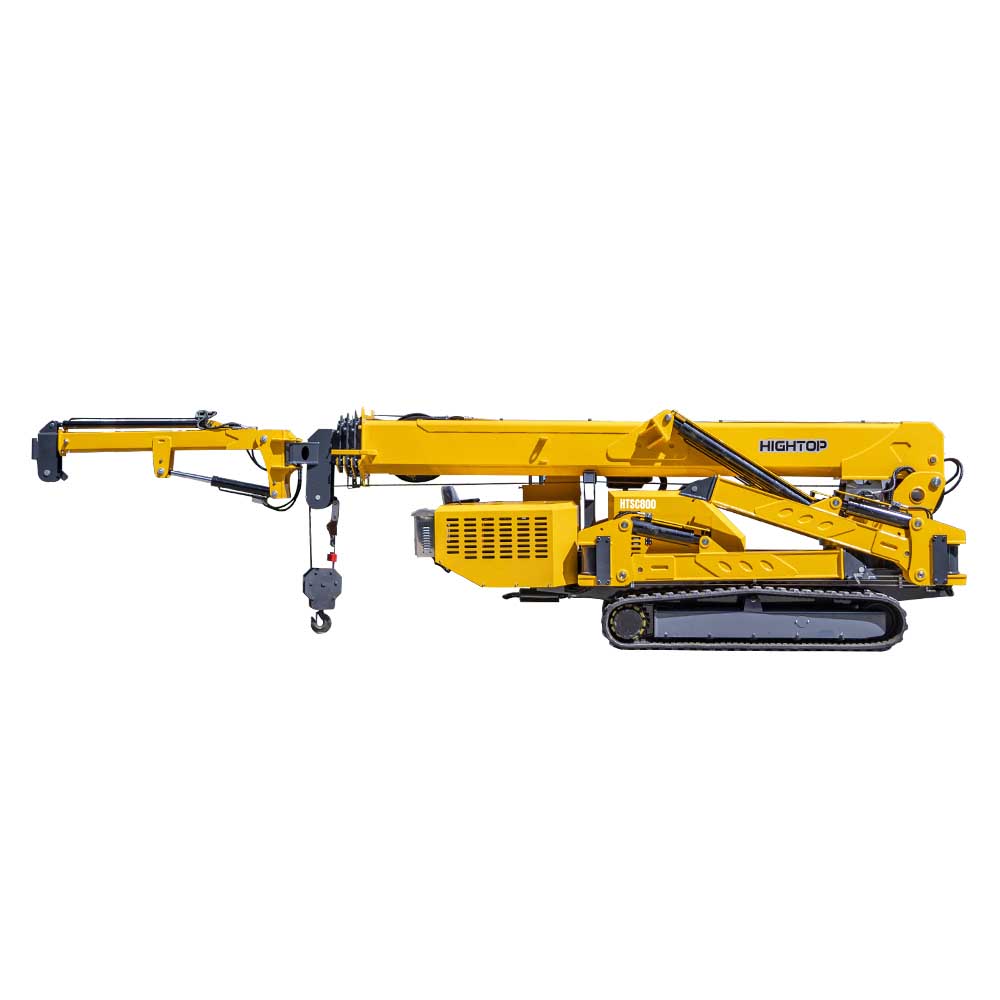

The HTSC8.0 crawler spider crane is our heavy-duty 8-ton mini spider crane, specially engineered to solve lifting challenges in narrow, limited-access areas where standard truck cranes cannot reach.
Thanks to its compact body and rubber crawler chassis, this tracked spider crane can travel smoothly on uneven ground, indoor floors and soft terrain without damaging the ground surface. The multi-section telescopic boom adopts high-strength manganese steel material, delivering stable lifting performance and long service life. It supports 360° continuous rotation with no dead working angle, greatly improving operation flexibility.
Adjustable hydraulic outriggers provide strong and balanced support on uneven ground to guarantee operational safety. Multiple optional attachments are available to expand machine functions: hydraulic flying arm, torque indicator, lifting basket and wireless remote control. Custom color and OEM service are supported to meet your personalized requirements.
Building decoration & indoor installation
House construction
Municipal engineering
Railway construction
Narrow space material lifting

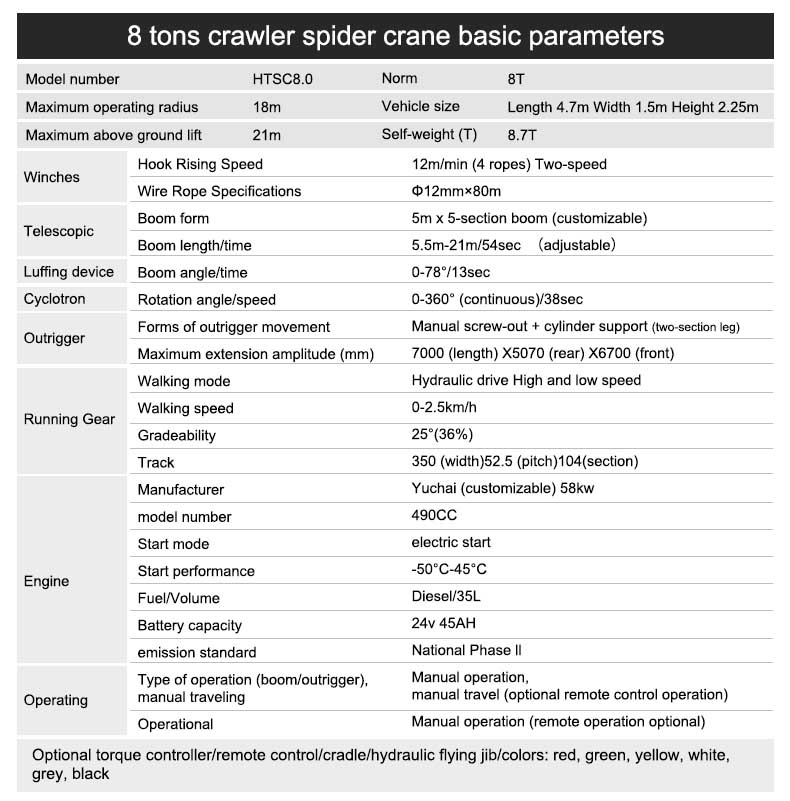

8 tons crawler spider crane basic parameters | ||
norm | 8T | |

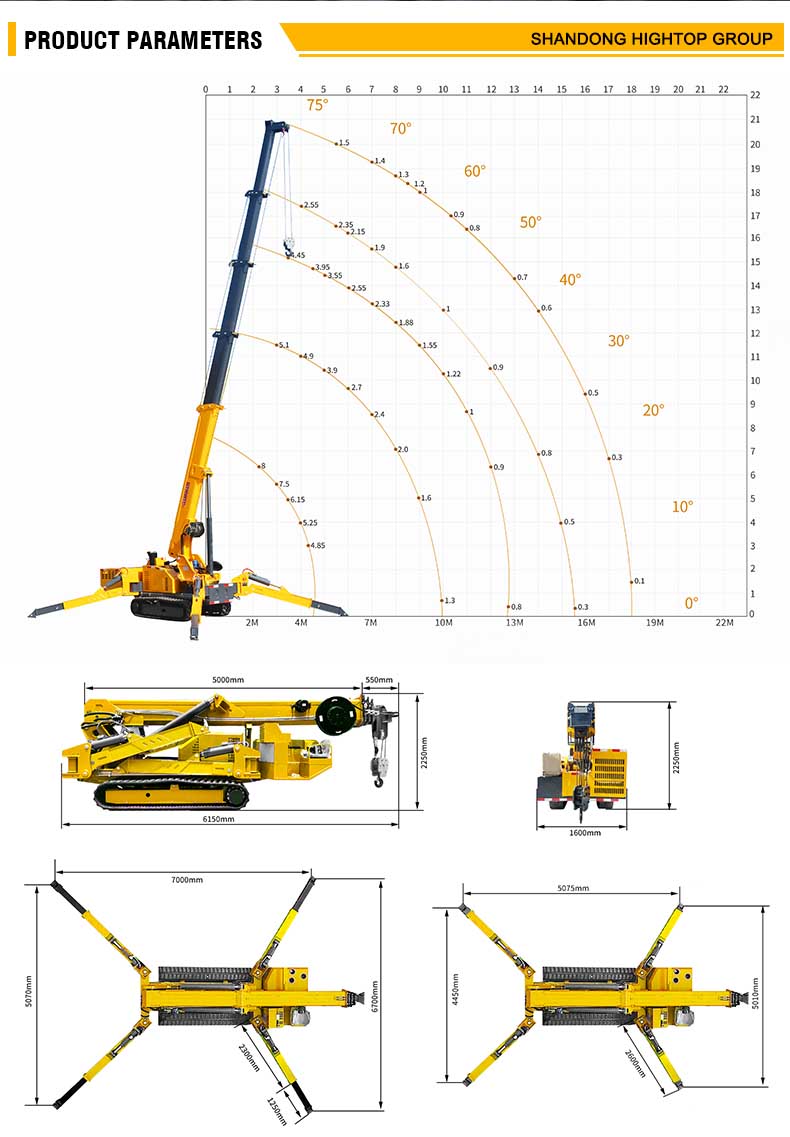

Maximum operating radius | 18m | |
Maximum above ground lift | 21m | |
winches | Hook Rising Speed | 12m/min (4 ropes) Two-speed |
Wire Rope Specifications | Φ12mm×80m | |
Telescopic | Boom form | 5m x 5-section boom (customizable) |
Boom length/time | 5.5m-21m/54sec （adjustable） | |
luffing device | Boom angle/time | 0-78°/13sec |
cyclotron | Rotation angle/speed | 0-360° (continuous)/38sec |
Outrigger | Forms of outrigger movement | Manual screw-out + cylinder support (two-section leg) |
Maximum extension amplitude (mm) | 7000 (length) X5070 (rear) X6700 (front) | |
Running Gear | Walking mode | Hydraulic drive High and low speed |
Walking speed | 0-2.5km/h | |
Gradeability | 25°(36%) | |
Track | 350 (width)52.5 (pitch)104(section) | |
Engine | Manufacturer | Yuchai (customizable) 58kw |
model number | 490CC | |
Start mode | electric start | |
Start performance | -50°C-45°C | |
Fuel/Volume | Diesel/ 35L | |
Battery capacity | 24v 45AH | |
emission standard | National Phase ll | |
Operating | Type of operation (boom/outrigger), | Manual operation, manual travel |
Operational | Manual operation (remote operation optional) | |
Vehicle size | Length 6.15m Width 1.6m Height 2.25m | |
Self-weight (T) | 8.7T | |
Optional | Optional torque controller/remote control/cradle/hydraulic flying jib/colors: red, green, yellow, white, grey, black | |
Compact Size for Narrow Space: Small footprint design, pass through narrow gateways and indoor work zones.
All-terrain Rubber Track: Protect floor, adapt to rough, soft and uneven ground.
High Strength Telescopic Boom: Manganese steel boom, stable load bearing and anti-bending performance.
Adjustable Hydraulic Outriggers: Multi-angle adjustment for stable support on uneven ground.
Multiple Optional Configurations: Expand functions for aerial work and safer lifting monitoring.
Customization Available: Accept OEM order, different body colors and function options.
We are a professional manufacturer of crawler spider cranes. All machines will be well packed before shipment. We provide after-sales support and technical guidance for global customers. Welcome to contact us for quotation and machine specification consultation.
