HTM-1200

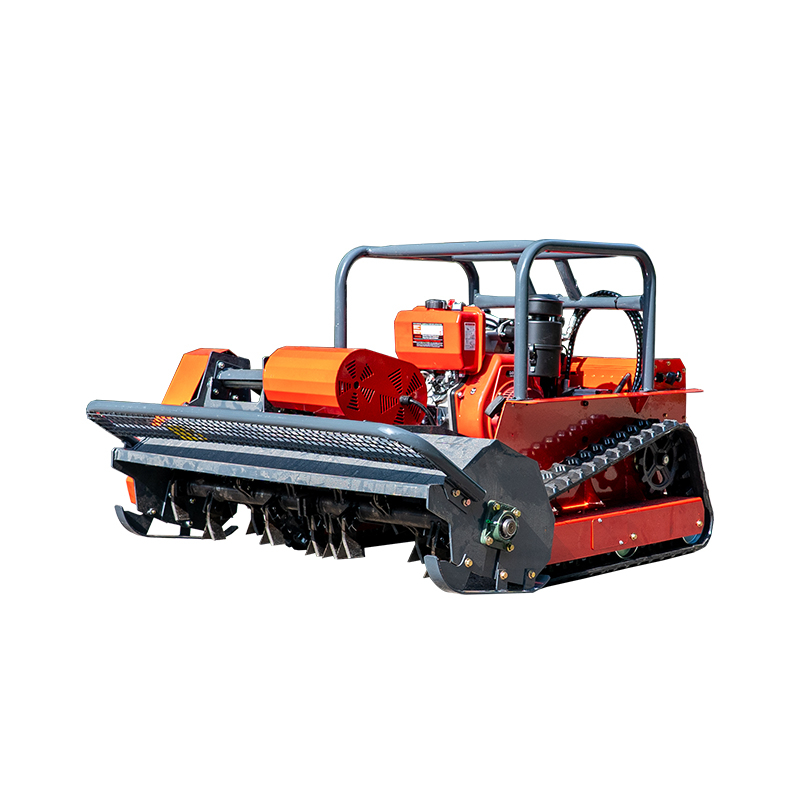

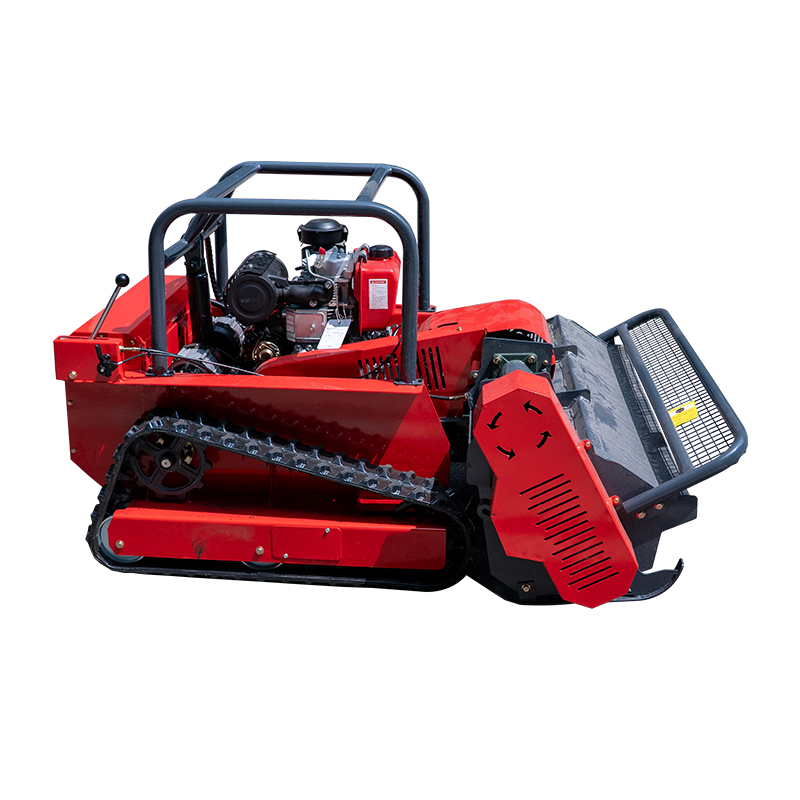

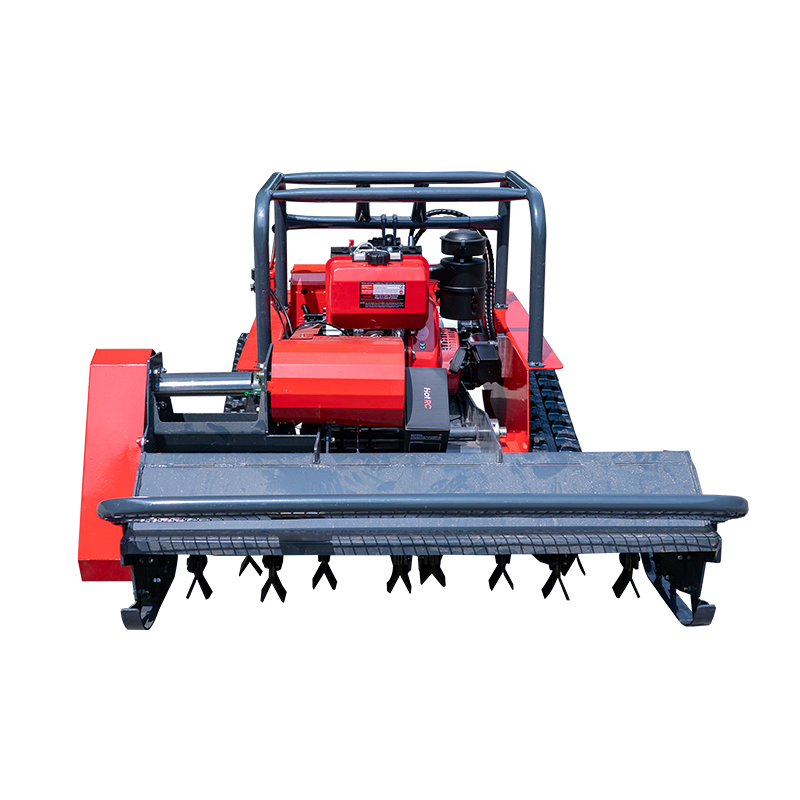

The HTM-1200 Remote Control Crawler Lawn Mower is a heavy-duty all-terrain intelligent grass cutting machine independently developed by HIGHTOP. It adopts full crawler walking structure + long-distance wireless remote control system, solving three major pain points of traditional manual lawn mowers: low working efficiency, inability to adapt to complex sloped terrain, and high safety risks when operating on steep hills.
Equipped with wide 1200mm cutting deck, powerful multi-standard diesel engine and dual brushless walking drive motors, this mower supports stable operation on slopes up to 40°, with adjustable cutting height from 20mm to 150mm. Widely used in fruit orchards, mountain hillsides, villa green belts, municipal road slopes, scenic parks and farm vegetation trimming. Multiple body color customization and OEM brand printing services are supported, ideal for greening engineering companies, agricultural growers and landscape contractors worldwide.
Max remote control operating distance up to 300 meters, operators can stand on flat safe ground to remotely control cutting on steep slopes, completely avoiding fall safety hazards.
24V power supply system, dual 1kW brushless walking motors, stable forward, backward, left/right steering and climbing response.
Simple remote controller operation panel, easy to learn for new workers, reduces labor intensity greatly.
Full rubber crawler track design, large ground contact area, strong ground grip, not easy to slip on wet, muddy, grassy sloped ground.
Max safe climbing angle reaches 40°, max working operating angle within 35°, can handle mountain slopes, orchard terraces, river bank steep embankments that ordinary wheel mowers cannot pass.
Stable body balance during uphill/downhill cutting, no tipping risk.
Ultra-wide 1200mm cutting width, single pass covers larger area, greatly improve daily mowing efficiency compared to narrow small mowers.
Stepless adjustable cutting height: 20mm ~ 150mm, freely adjust grass residue height according to orchard, park and landscape maintenance demands.
Sharp high-hardness cutting blades, clean cutting without tangled grass, uniform lawn finishing effect.
Optional Euro V Ducar457 or EPA Koop 192/195 diesel engine, meet emission standards of European, American and global markets.
Large 5.5L fuel tank + 1.5L engine oil capacity, long continuous working endurance, reduce frequent refueling downtime.
Manual & electric dual startup modes available, adapt to different low-temperature and field working environments, strong power output, low fuel consumption.
Modular integrated body structure, all wearing parts (blades, filter elements, drive belts) are exposed and easy to disassemble & replace, lower daily maintenance cost.
Multiple optional body colors: Orange, Red, Blue, Yellow, Green, Purple; support custom color matching and customer brand LOGO printing OEM service.
Complete international certifications: CE, ISO, SGS, TÜV, smooth customs clearance for global export.

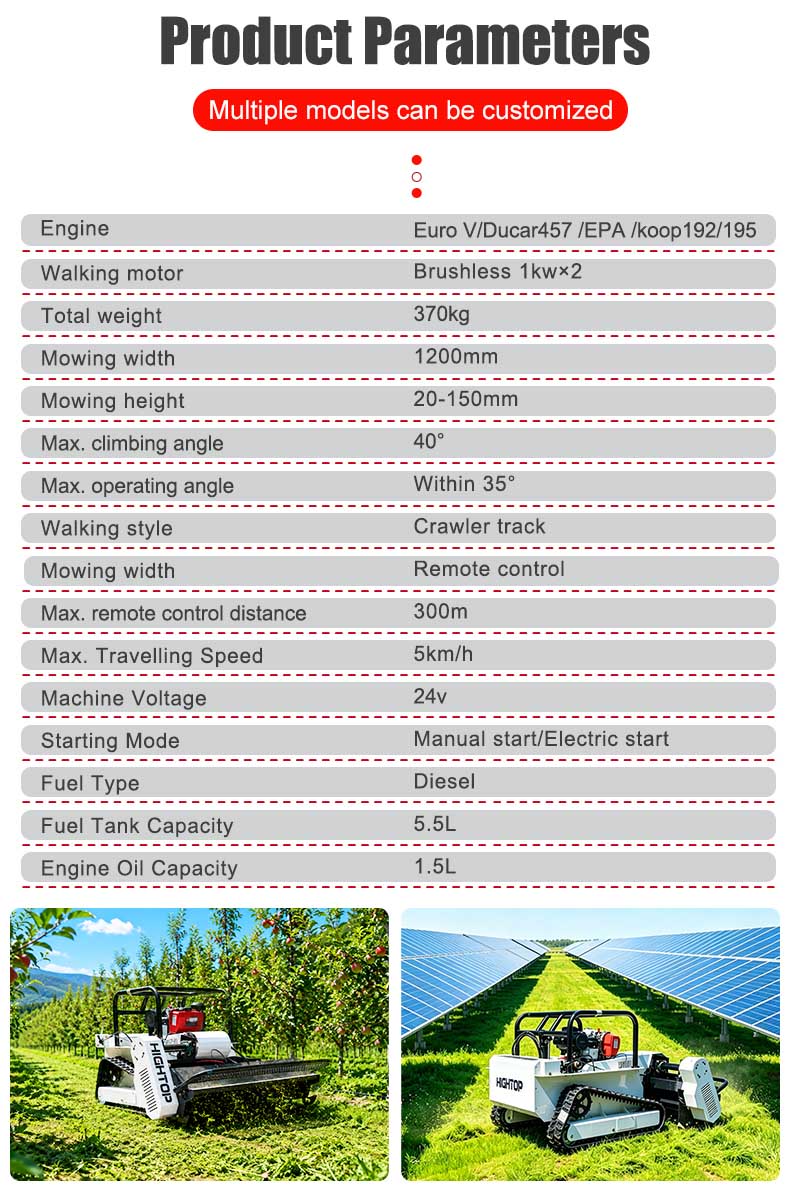

Parameter Item | Standard Specification |
|---|---|
Model | HTM-1200 Remote Crawler Lawn Mower |
Supporting Engine | Euro V Ducar457 / EPA Koop192/195 Diesel Engine |
Walking Motor | Dual Brushless 1kW Motors (24V) |
Total Machine Weight | 370 Kg |
Cutting Working Width | 1200 mm |
Adjustable Mowing Height | 20 ~ 150 mm |
Maximum Safe Climbing Angle | 40° |
Max Allowable Working Angle | ≤35° |
Walking Mode | Rubber Crawler Track |
Control Mode | Wireless Remote Control |
Max Remote Control Distance | 300 m |
Max Travel Speed | 5 km/h |
Machine Voltage | 24V DC |
Startup Mode | Manual Start / Electric Start Optional |
Fuel Type | Diesel |
Fuel Tank Capacity | 5.5 L |
Engine Oil Capacity | 1.5 L |
✔ Fruit & citrus orchard slope grass trimming, orchard ground vegetation management
✔ Mountain, hillside, hilly complex terrain lawn maintenance
✔ Villa community, private garden large green belt mowing
✔ Municipal road side slope greening upkeep
✔ Scenic park, tourist attraction large area lawn cleaning
✔ Farmland, river embankment, reservoir bank vegetation thinning
Factory Direct Wholesale: Professional agricultural & green machinery manufacturer with standardized production lines, no intermediate agents, competitive ex-factory prices for global dealers.
Strict Pre-Delivery Inspection: Every HTM-1200 lawn mower passes full power, climbing, remote control and cutting performance testing before shipment, stable consistent quality.
Global Standard Certification: Equipped with CE, ISO, SGS, TÜV certificates, meets import inspection requirements of most countries, no customs clearance obstacles.
Full Customization Support: Custom body color, OEM brand logo, optional engine emission standards and startup modes to match regional market demands.
Complete Global After-Sales Service: Full spare parts inventory, remote online technical training & fault guidance, long-term spare parts supply guarantee for overseas customers and agents.
If you need customized quotation, full technical datasheet, bulk order discount or agent cooperation policy for HTM-1200 remote control crawler lawn mower, please contact our international sales team. We will recommend matching engine versions and optional configurations according to your local terrain, emission standards and daily mowing workload!
