HTSC2.0

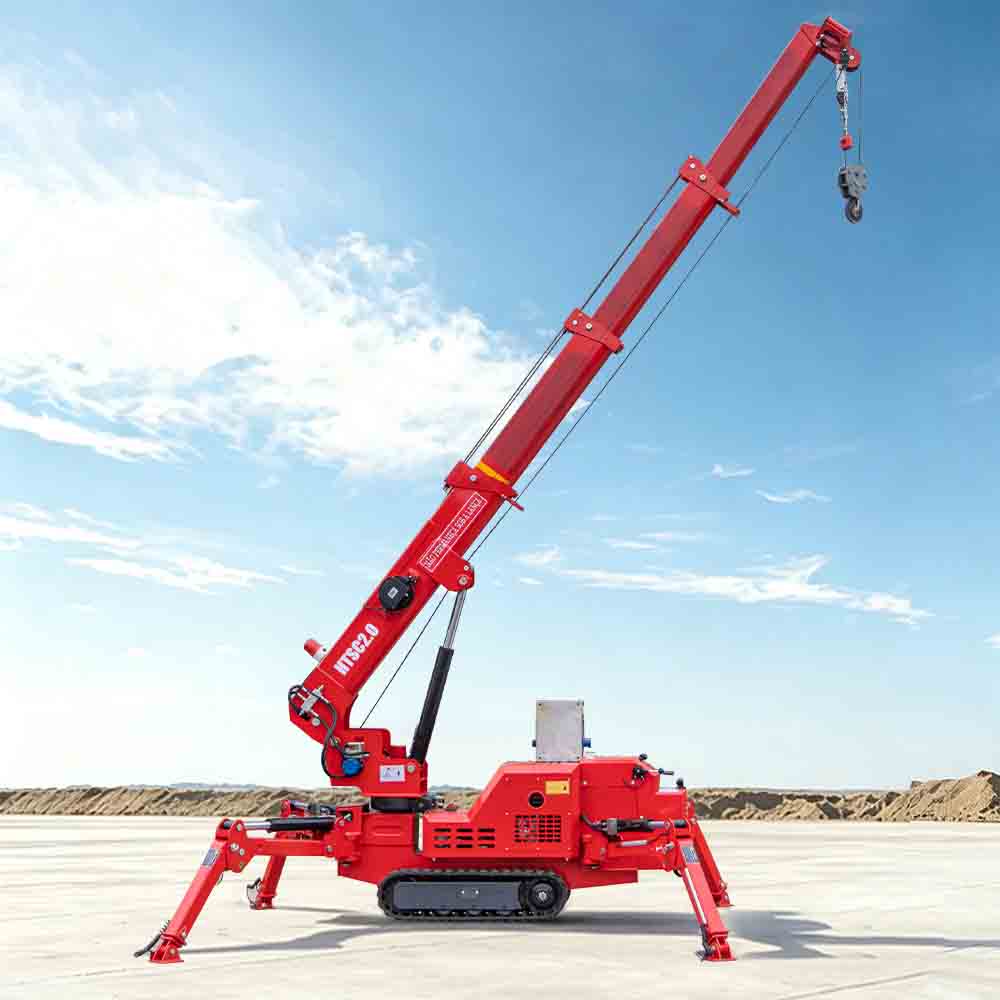

The HTSC2.0 spider crane is a 2‑ton class compact crawler lifting machine, specially engineered for narrow‑space, indoor and complex‑terrain lifting assignments. Thanks to its compact body size and rubber track chassis, this mini spider crane can access narrow passages, indoor workshops, rooftop construction sites and other locations where conventional large cranes cannot reach.
This spider crane supports 360‑degree full rotation. It adopts multi‑section telescopic boom, max operating radius reaches 6m and max lifting height hits 6.5m. The stable spider‑type hydraulic outriggers can be flexibly adjusted to build solid working foundation on uneven ground. It can be equipped with gasoline engine, and optional diesel engine is available for different market demands. Wireless remote control is an optional configuration to improve operation safety and convenience.
The rubber track travelling system offers good gradeability, adapts to rough ground without damaging ground surface. Multiple color options are supported for customization. Widely used for elevator installation, bridge project, mall interior renovation, rooftop construction, glass curtain wall installation and building maintenance.
‑ Indoor lifting, elevator equipment installation ‑ Rooftop, high‑altitude narrow‑site construction ‑ Shopping mall, workshop interior renovation project ‑ Bridge auxiliary construction, building curtain‑wall installation ‑ Complex terrain projects where large cranes cannot enter
Item | Parameter |
|---|---|
Rated Lifting Capacity | 2 Ton |
Max Operating Radius | 6 m |
Max Lifting Height | 6.5 m |
Rotation Angle | 0‑360° |
Travel Speed | 0‑2.5 km/h |
Gradeability | 25° |
Power Source | Gasoline engine (diesel optional) |
Voltage | AC380V |
Overall Dimension(L×W×H) | 2780×710×1620 mm |
Self‑weight | 1.8 T |
Outrigger Max Extension | 3620 mm |
Boom | 4‑section telescopic boom |
Control Mode | Manual operation, remote control optional |
Compact Crawler Structure: Small body dimension, rubber track, easy to transport and enter narrow indoor space.
360° Full Rotation: Flexible rotation for multi‑direction lifting work, improve working efficiency.
Adjustable Hydraulic Spider Outriggers: Stable supporting performance, adapt to uneven working ground.
Diversified Power Options: Standard gasoline engine, optional diesel power to satisfy different regional requirements.
Optional Remote Control: Wireless remote operation reduces on‑site risk; multiple colors for custom selection.
Wide Application: Perfect for indoor installation, rooftop renovation, mall and bridge auxiliary lifting work.
If you are searching for compact mini lifting equipment for narrow‑site construction, HTSC2.0 2 ton spider crawler crane is your reliable solution. Welcome to send inquiry for detailed quotation and configuration list.
