HTSC5.0

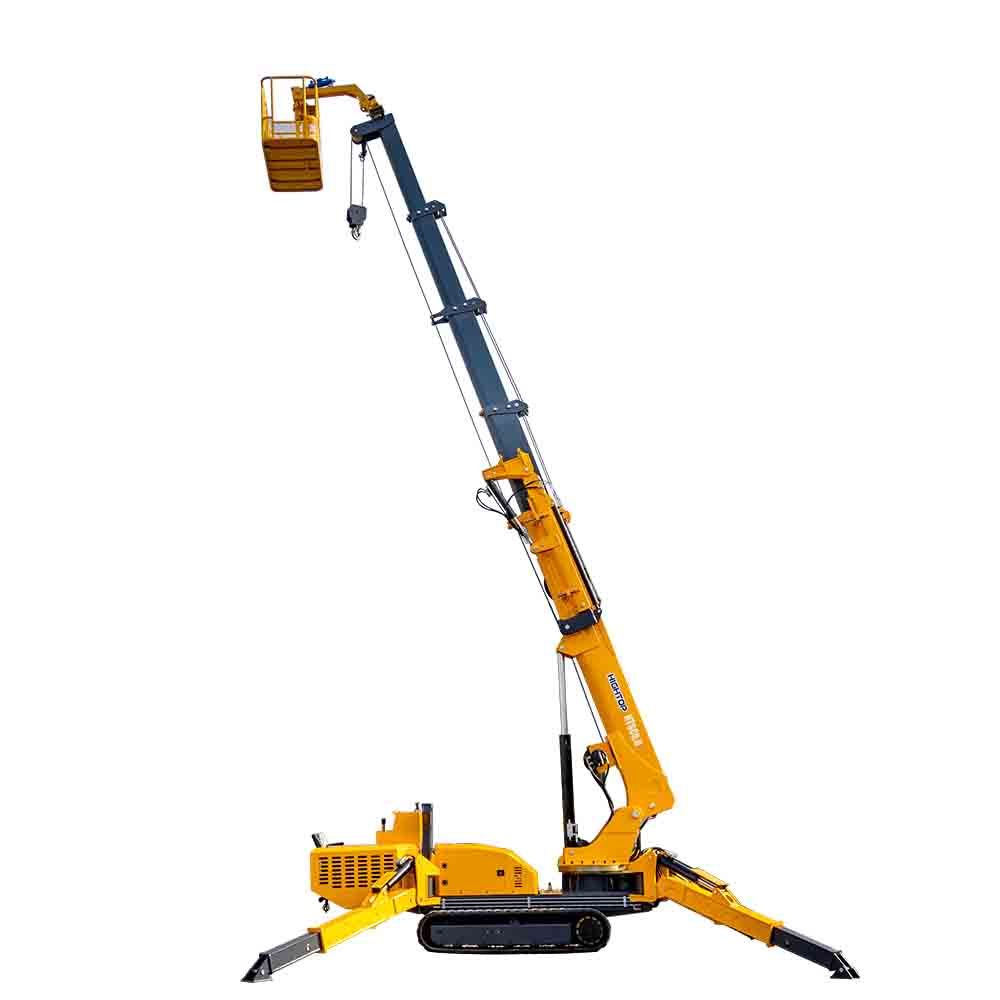

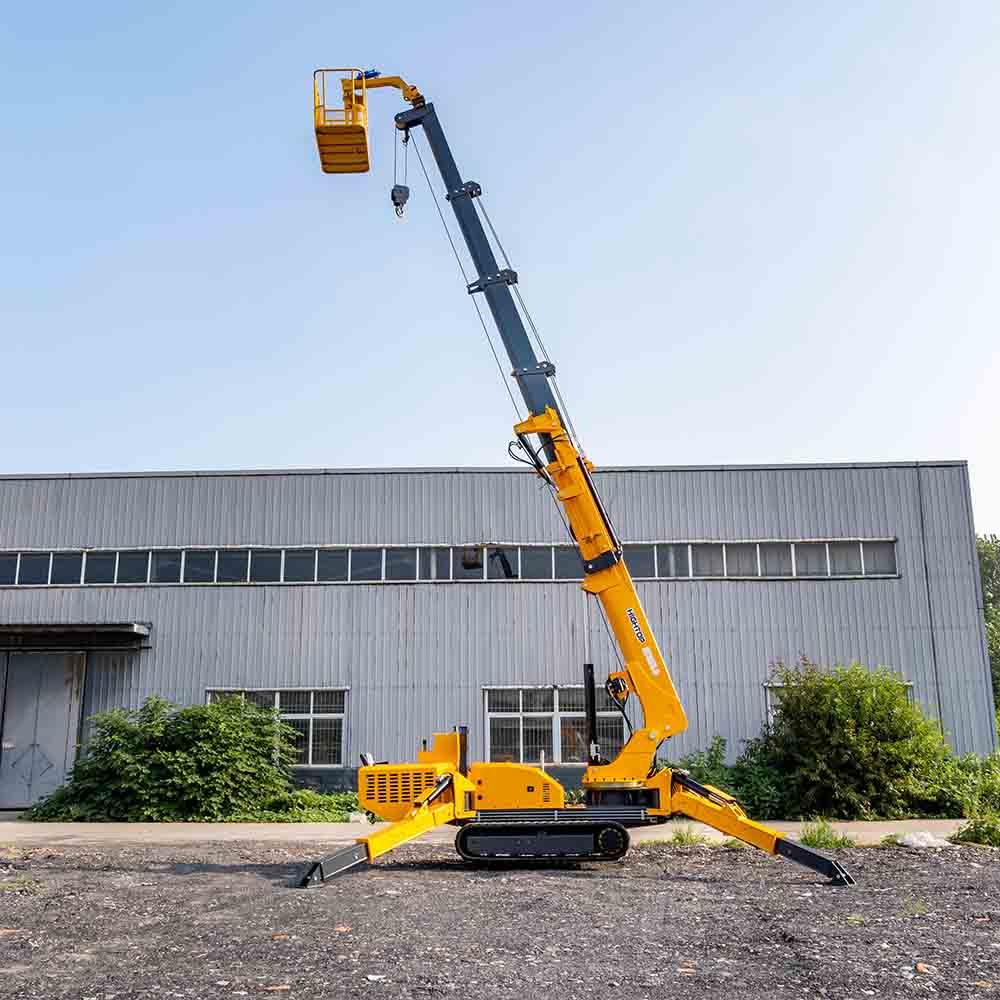

The HTSC5.0 crawler spider crane is a heavy-duty 5-ton compact lifting machine, designed specifically for lifting jobs in narrow, confined and hard-to-reach construction sites. Equipped with rubber crawler tracks and adjustable spider outriggers, this mini crane delivers stable lifting performance while keeping a compact footprint.
This spider crane adopts dual power system: diesel engine for outdoor heavy-duty work and electric motor mode for zero-emission indoor operation. It supports full 360° rotation, max lifting height reaches 17m and rated lifting capacity is 5 ton. Multiple optional attachments are available, including hydraulic flying jib, lifting basket, torque indicator and wireless remote control. Custom machine colors are also supported.
The adjustable multi-section outriggers provide solid support on uneven ground. The manganese steel telescopic boom ensures long service life and high loading performance. Rubber track chassis enables the machine to travel over rough terrain without damaging ground surfaces. Widely used for building decoration, glass curtain wall installation, railway construction, indoor equipment installation and rooftop maintenance projects.
Indoor confined space equipment installation
Building renovation & glass curtain wall installation
Railway, bridge and rooftop construction projects
Factory equipment handling and maintenance
Narrow job sites where standard large cranes cannot access

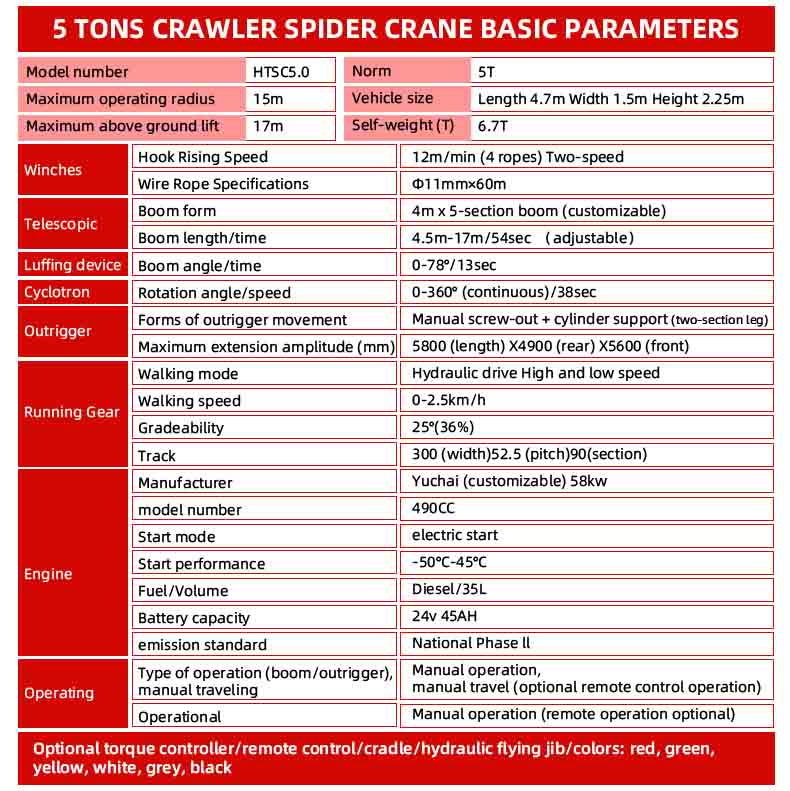

Item | Parameter |
|---|---|
Model | HTSC5.0 |
Rated Lifting Capacity | 5 Ton |
Max Lifting Height | 17 m |
Max Operating Radius | 15.5 m |
Rotation Angle | 0-360° |
Power System | Diesel + Electric Dual Power |
Travel Speed | 0-2.5 km/h |
Gradeability | 25° |
Overall Dimension(L×W×H) | 4.7m ×1.5m ×2.25m |
Self-weight | 6 Ton |
Boom | Multi-section telescopic manganese steel boom |
Control Mode | Manual operation, wireless remote control optional |
Optional Accessories | Hydraulic flying jib, lifting basket, torque indicator |
Dual Power Design: Diesel mode for outdoor sites; electric mode with zero emission for indoor lifting.
Strong Lifting Performance: 5 ton rated load, max 17m lifting height, 360° full rotation.
Stable Spider Outriggers: Multi-angle adjustable outriggers, stable support on uneven ground.
Rubber Crawler Chassis: Good cross-country ability, protects pavement during movement.
Rich Optional Configurations: Hydraulic flying jib, work basket, remote control and custom colors available.
Compact Body: Small footprint, suitable for narrow and confined working spaces.
If you are looking for reliable compact lifting equipment for limited-access construction projects, the HTSC5.0 5 ton crawler spider crane is your ideal solution. Contact us for detailed quotation and configuration consultation.
