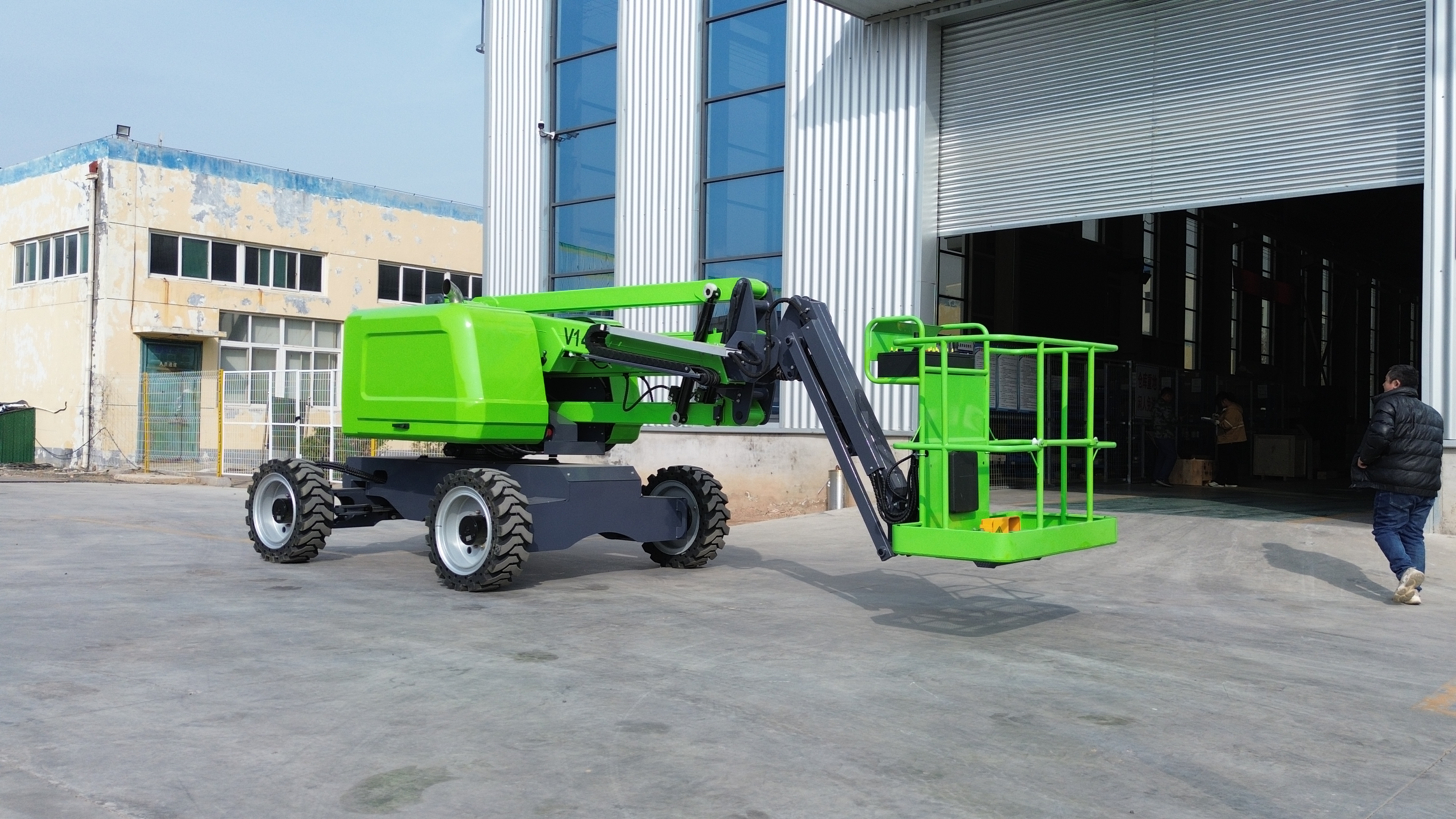

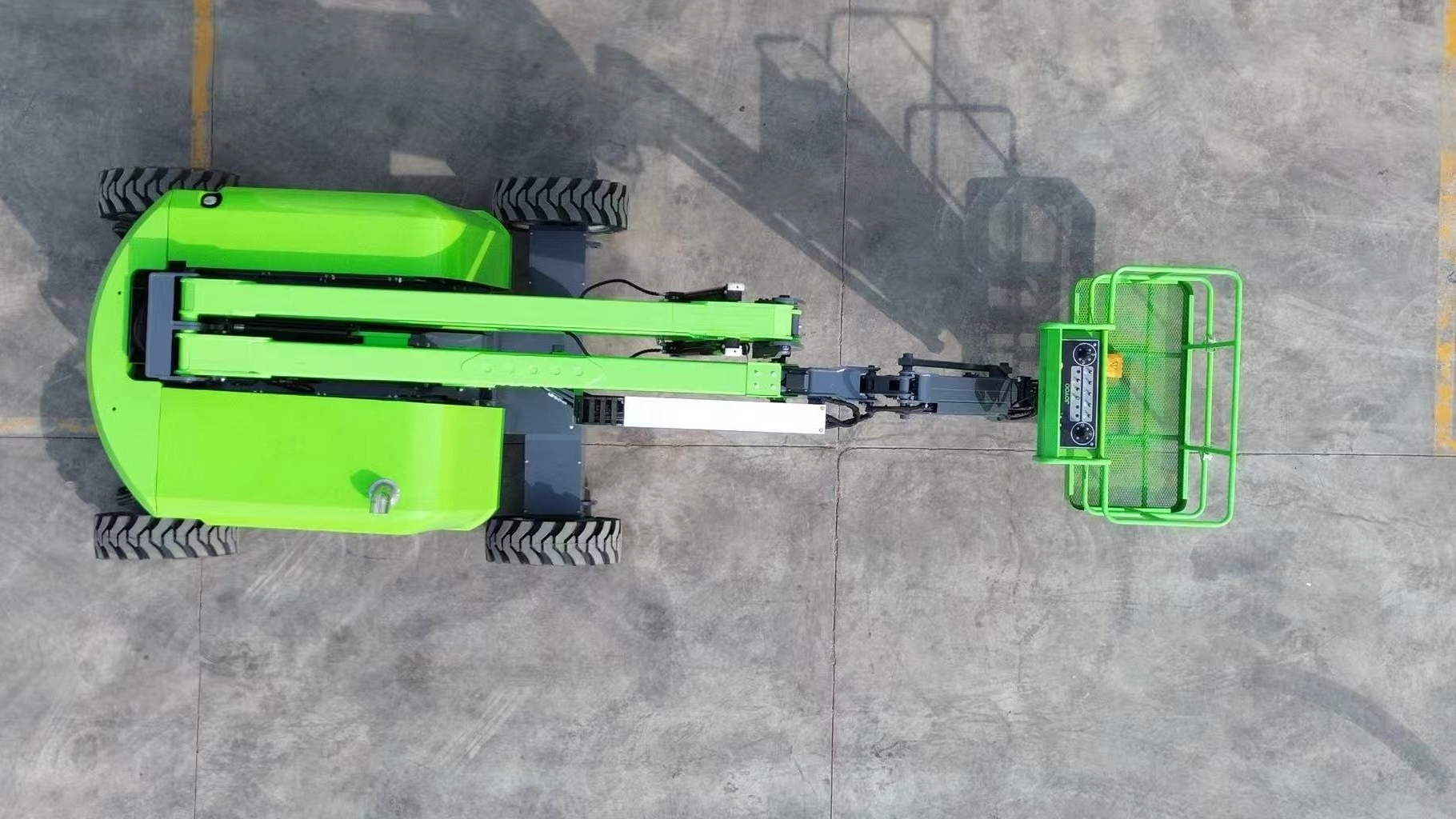

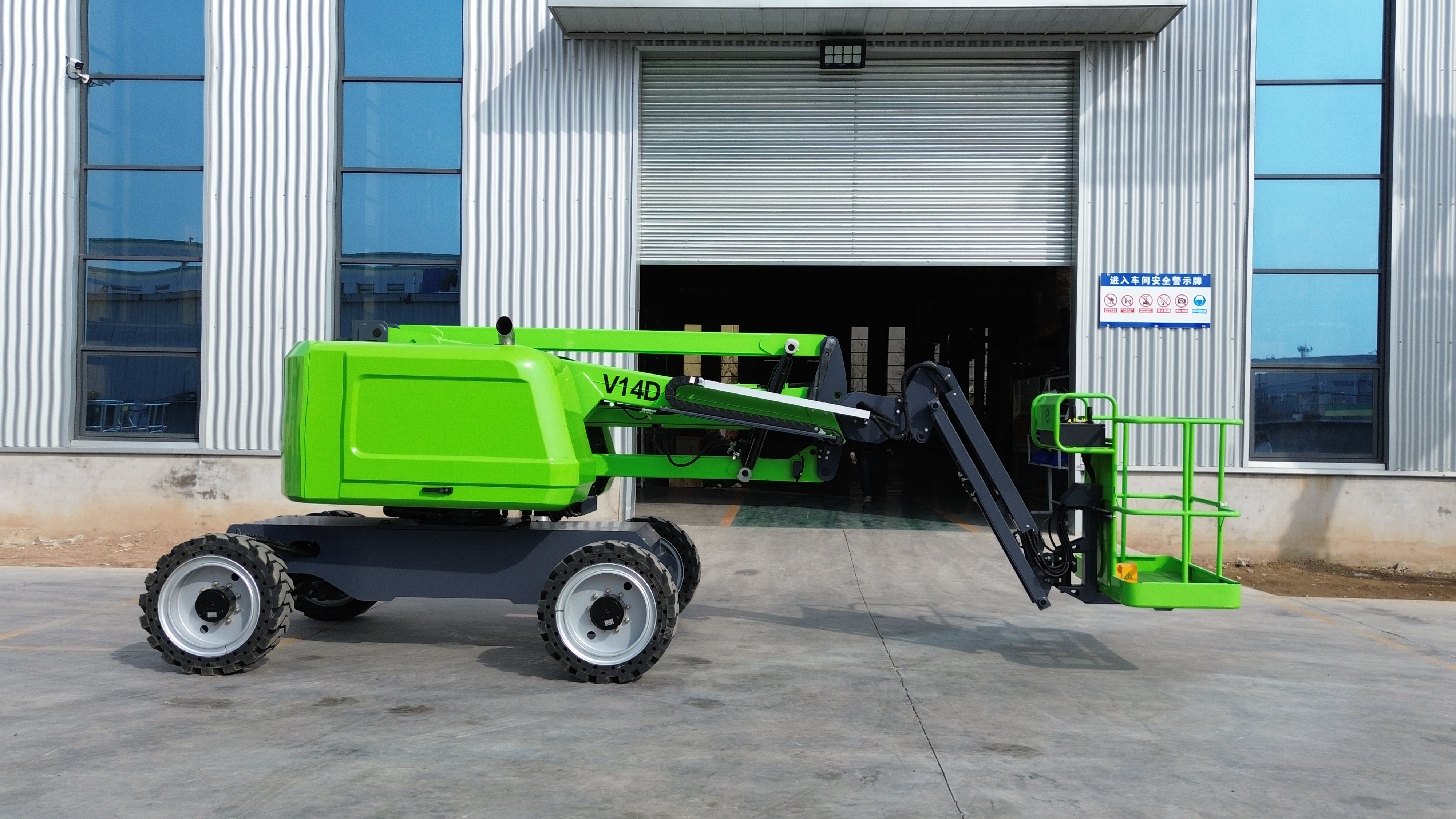

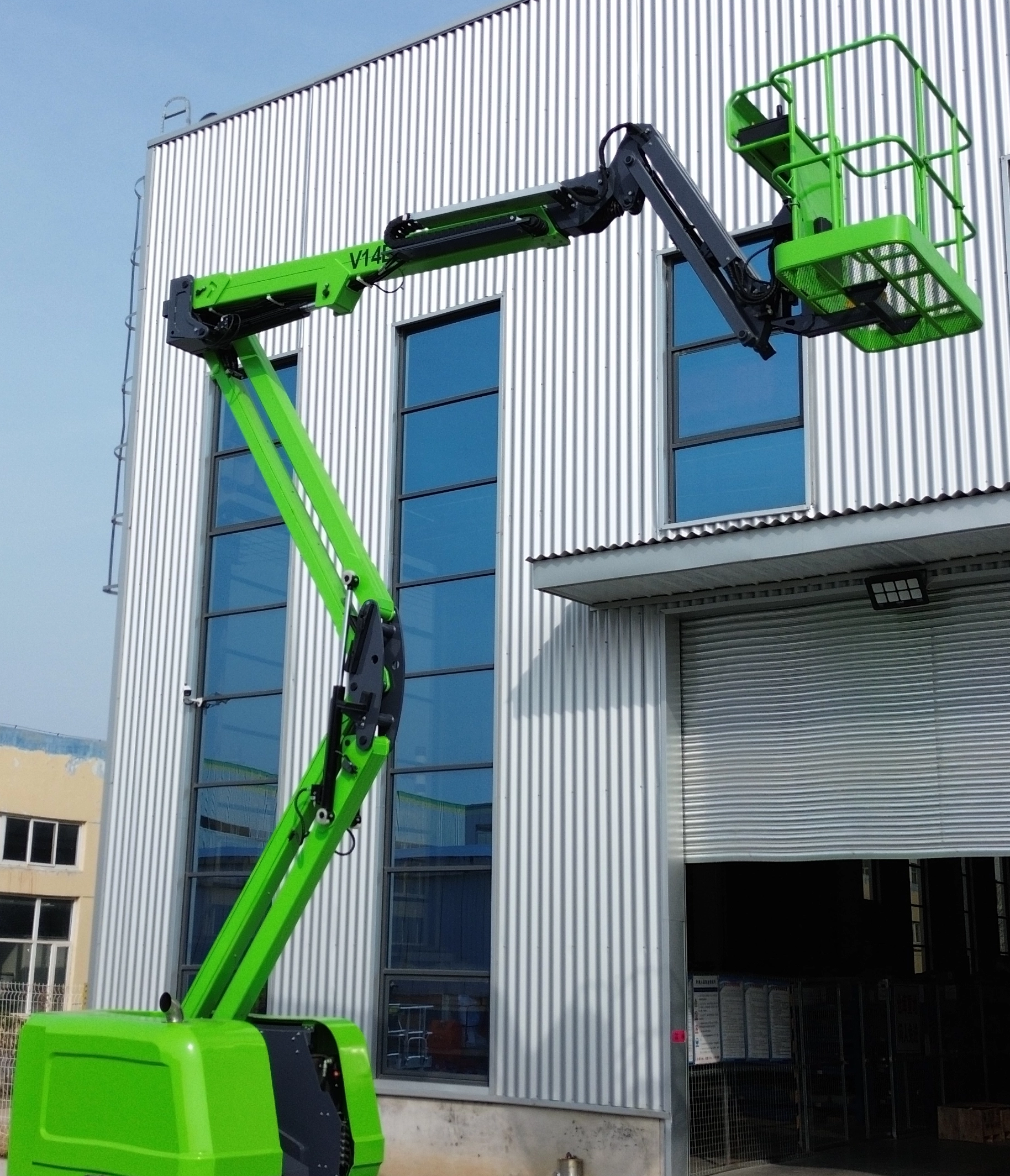

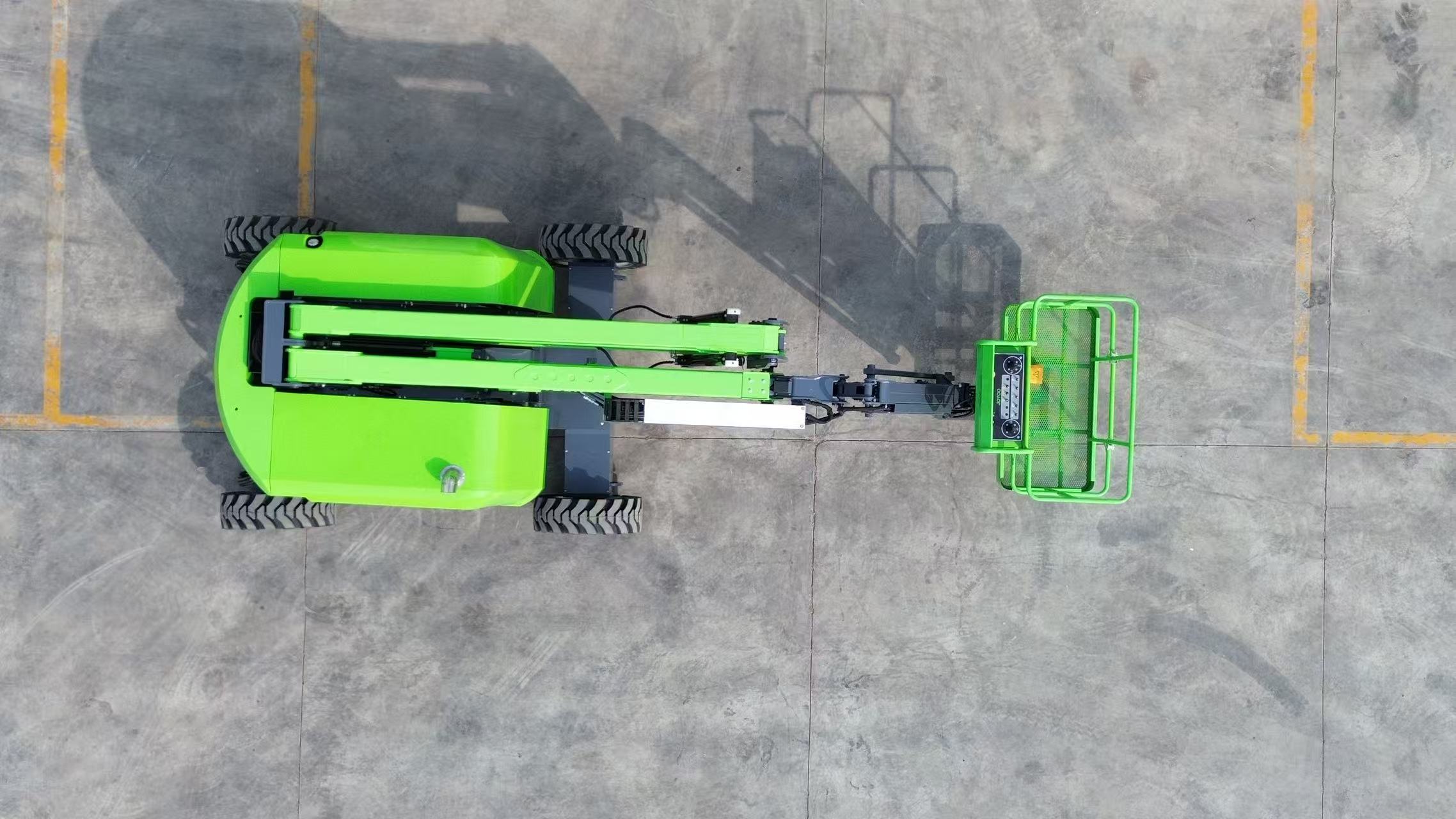

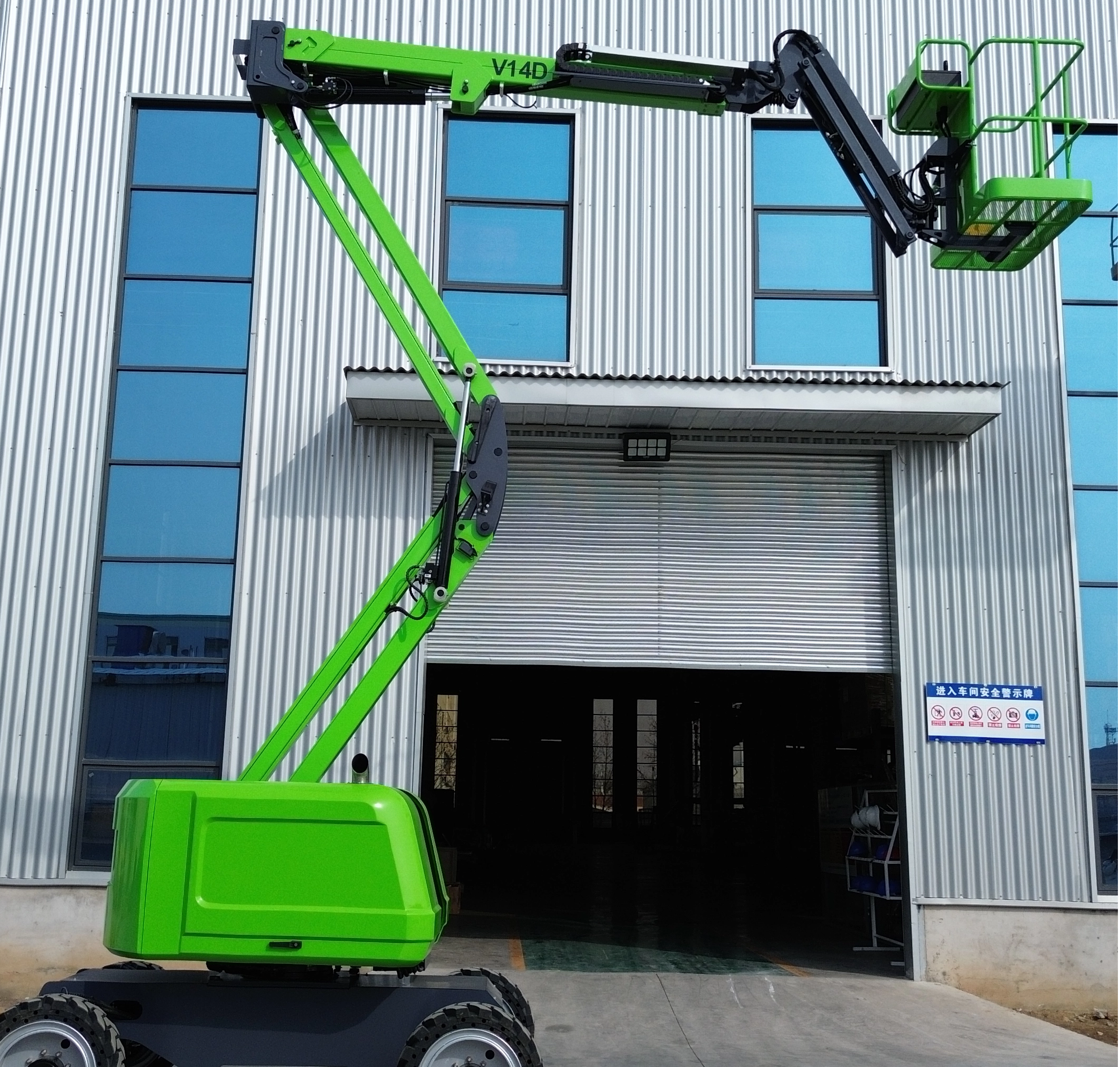

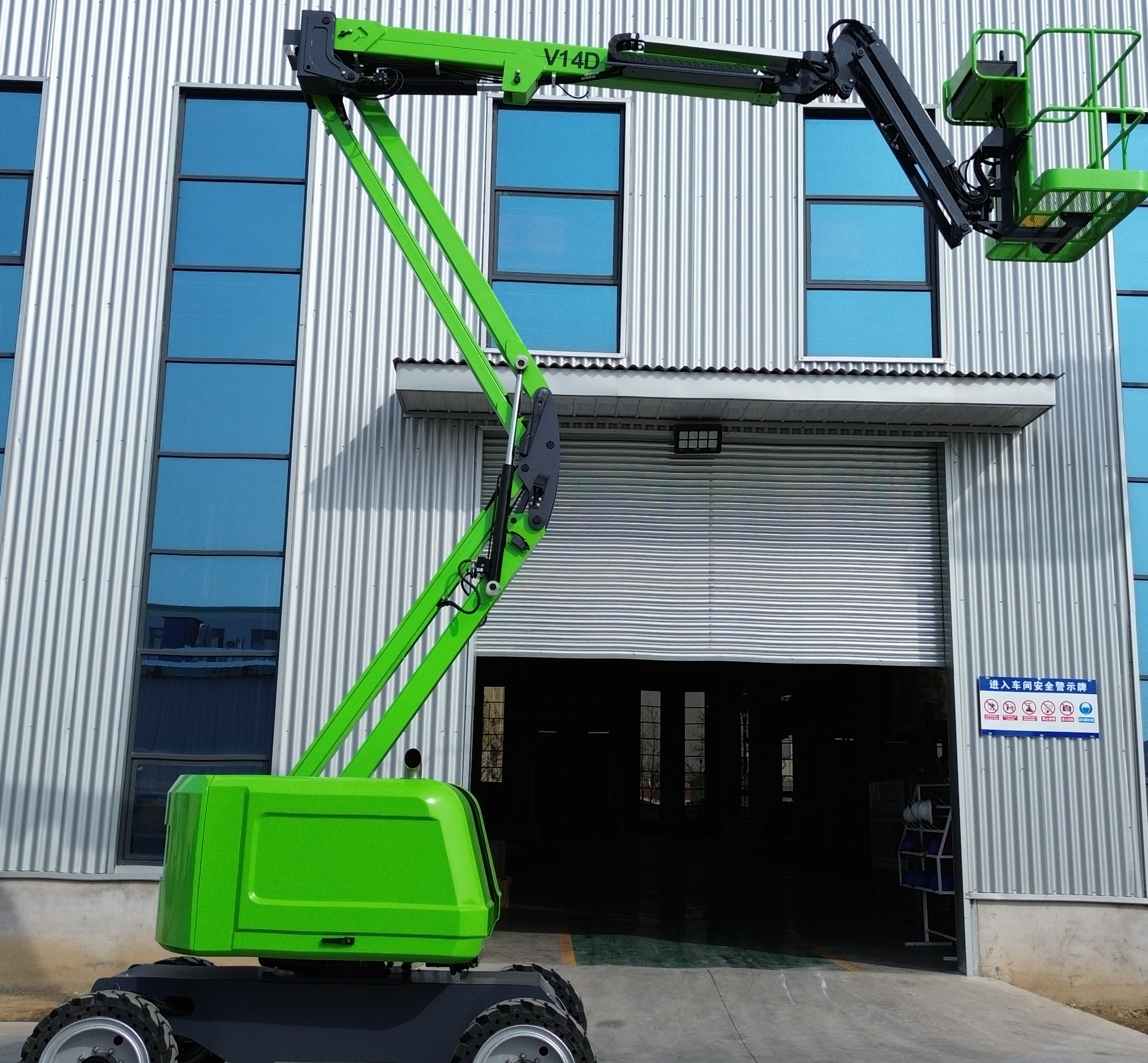

V14D
The functional features of lifting platforms include:
High load capacity: Hydraulic lifting platforms offer substantial load-bearing capabilities, making them suitable for handling heavy materials.
Easy operation: Lifting platforms feature straightforward operation, typically powered electrically or manually, with controllers offering manual or automatic modes.
Stable structure: Fixed lifting platforms are constructed from robust, durable materials to ensure no deformation under load.
Wide applicability: Lift platforms are available in multiple configurations to meet diverse requirements, serving industries such as manufacturing and construction.
Low maintenance costs: Hydraulic lift platforms require relatively simple upkeep, reducing operational expenses.
These characteristics enable lift platforms to enhance both efficiency and safety across various lifting operations.
Model | V14D |
Max. Working Height | 16m |
Max. Platform Height | 14m |
Max. Up and Over Clearance | 7.4m |
Max. Working Radius | 8.22m |
Platform Length | 1.4m |
Platform Width | 0.76m |
Length | 6.69m |
Width | 2.26m |
Height | 2.13m |
Wheelbase | 2.1m |
Ground Clearance -Center | 0.41m |
Standard container transportation | |
Max. Lift Capacity | 230kg |
Platform Occupancy | 2 |
Platform Rotation | 160° |
Vertical Jib Rotation | 士70° |
Turntable Rotation | 360° continuous |
Platform Leveling | Automatic leveling |
Drive Speed (stowed) | 5.5km/h |
Drive Speed (extended) | 0.8km/h |
Drive Gradeability | 45% |
Turning Radius (inside) | ≤2m |
Turning Radius (outside) | ≤4.5m |
Drive & Steer Mode | 4×2 |
Tire Type | 33×12 |
Weight | 6800kg |
Engine | KUBOTA/YANMAR |
Power | 36.5kw/3000rpm |
Fuel Tank Volume | 150L |
Control Voltage | 12V DC |
Emergency Power System | 12V Electric |
Hydraulic Tank | 85L |
