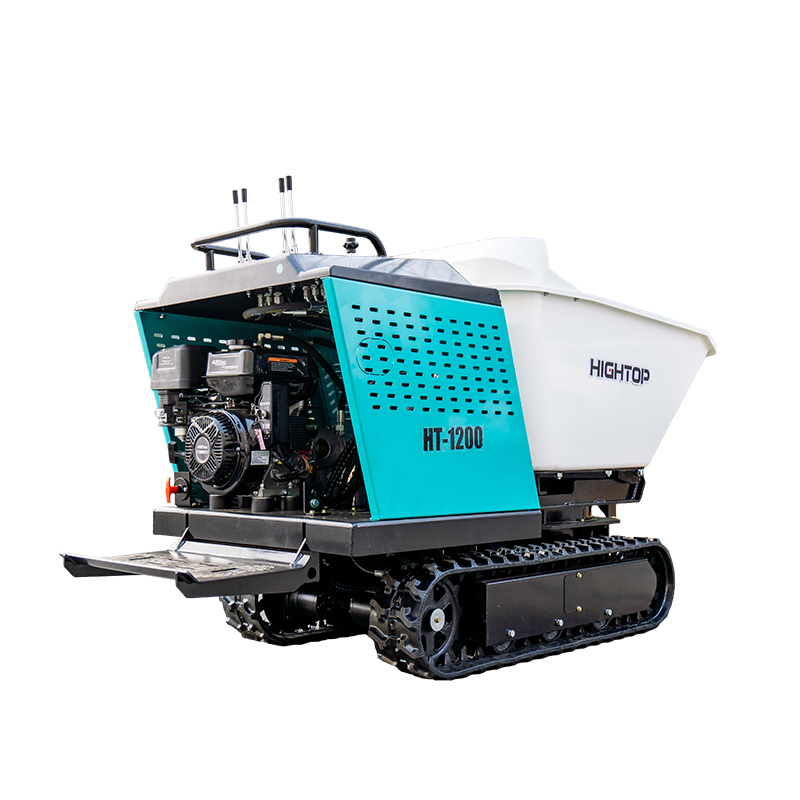

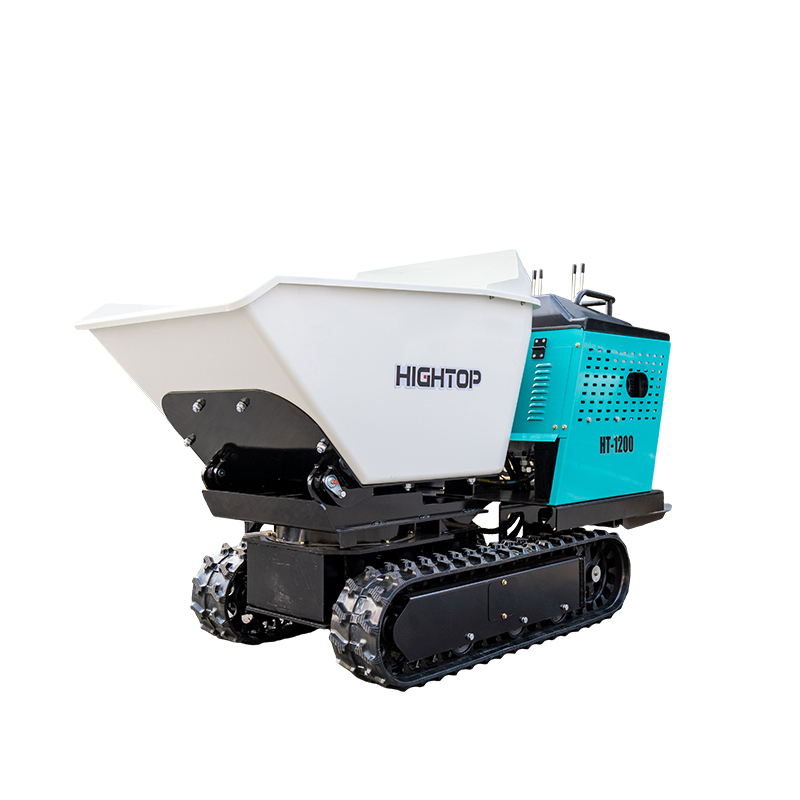

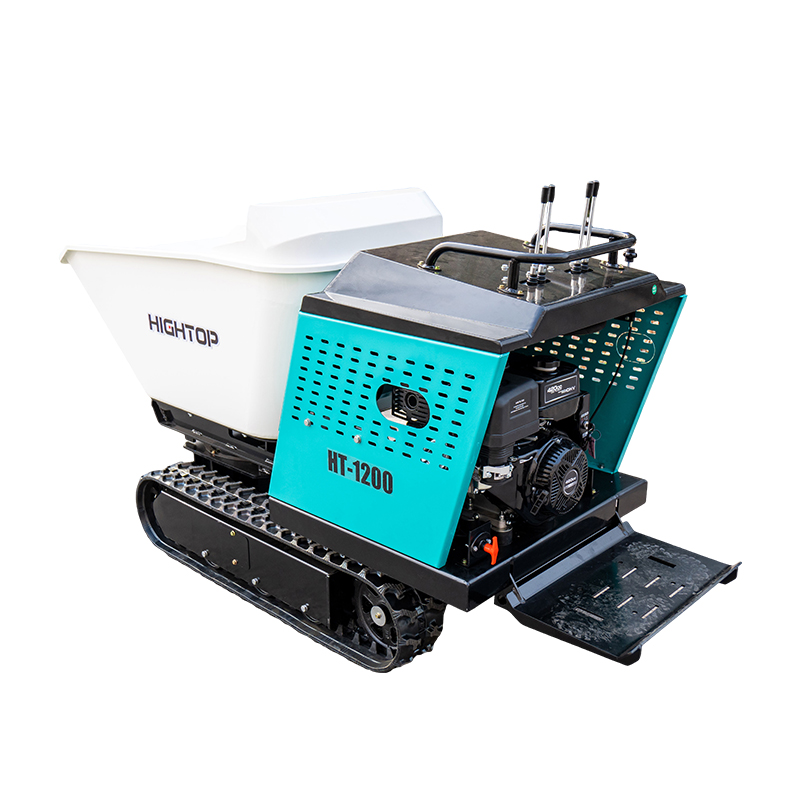

HT1200
Can be used to transport cement, sand, fruit, wood and so on.

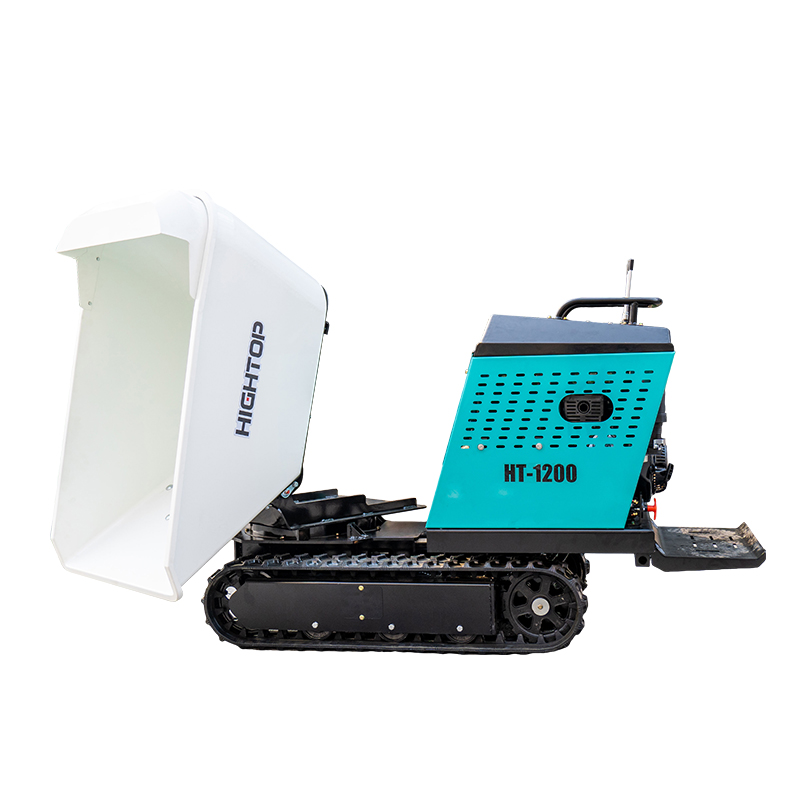

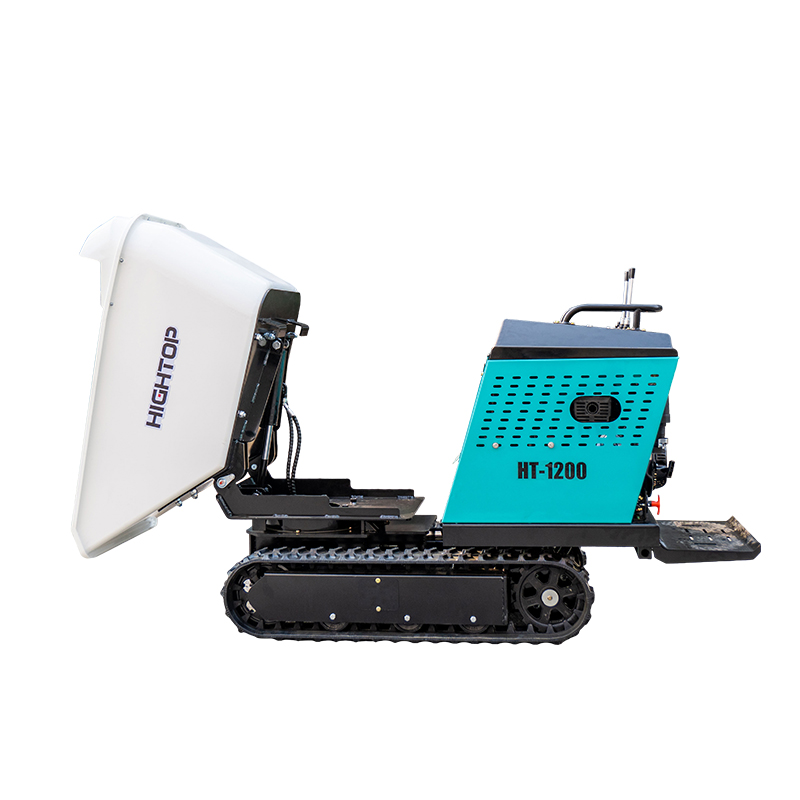

The hopper can be turnedup and down 90°

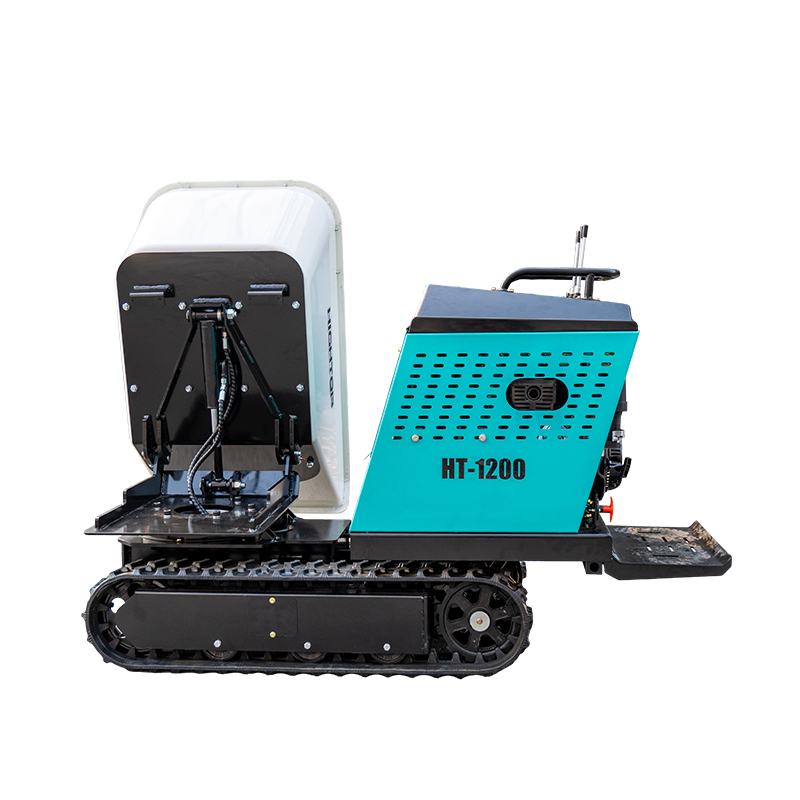

The hopper can be rotated 180°left and right
Separate tipping and rotation controls can be operated simultaneously
Maximum rotation Angleup to 260°

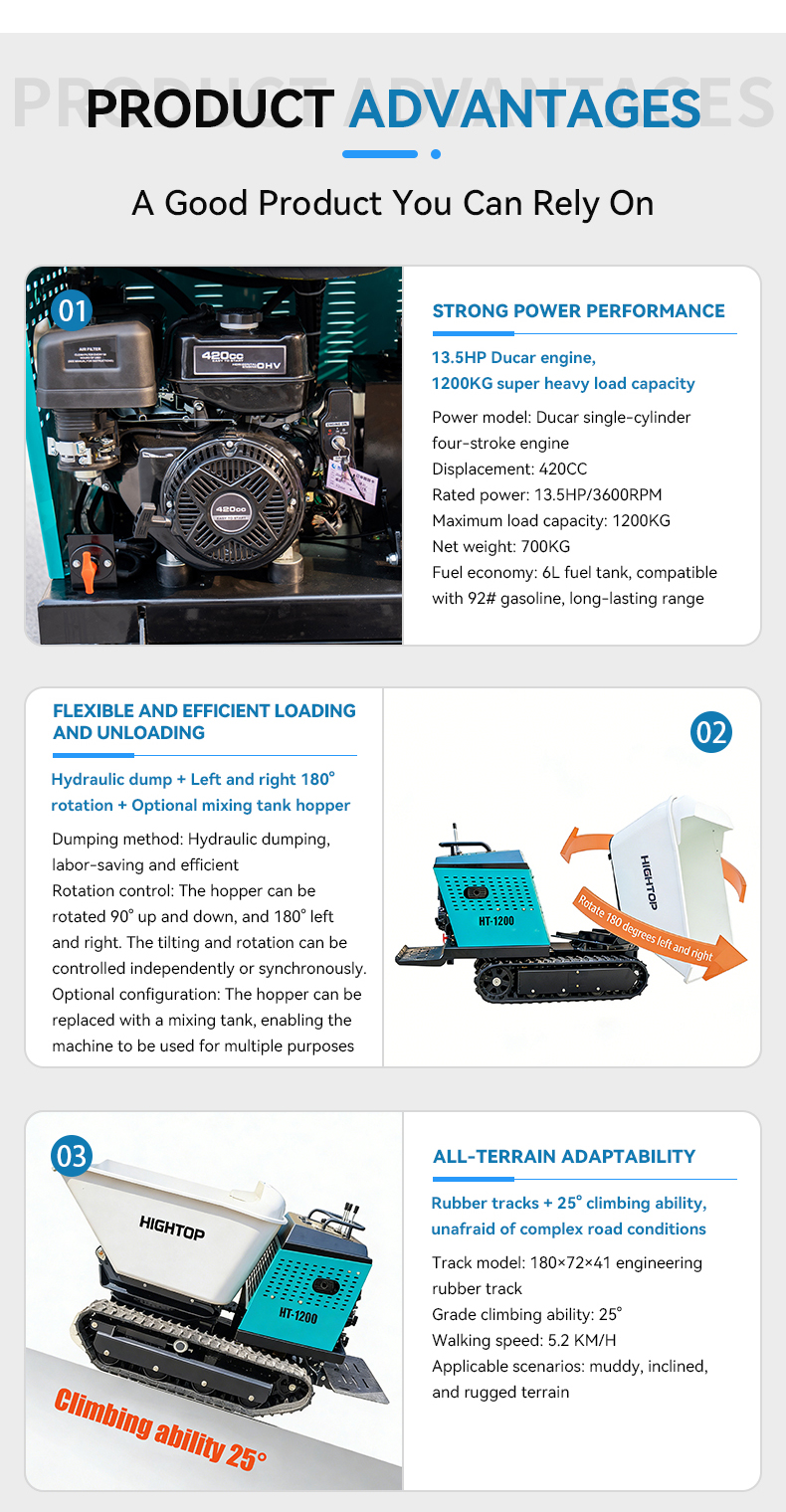

product features
1.rubber track
Engineering rubber track Strong grip.Good climbing performance wear-resistant
2.hydraulic self-discharce
Hydraulic lifting,Not easy to rust,One-click start,Easy loading and unloading
3.a thickened carriage
Made of thick steel plate.Strong bearing capacity
4.centralized control
The function of the operation panel is clear.
Centralized control Easy operation
| Engine data | |
| Engine Model | Briggs & Stratton Engine Pioneer |
| Engine Type | Single cylinder, OHV, 4-stroke, air cooling |
| displacement | 420CC |
| Rated Power | 13.5HP/3600rpm |
| Fuel Type | 92 # Gasoline |
| Fuel Tank capacity | 6.5L |
| Weight data | |
| Net weight: | 850kg |
| Maximum load capacity | 1200kg |
| Body size : (Footboard not included) | 2060*900*1400mm |
| Pedal machine size included | 2470*900*1400mm |
| Container size： | 1400*800*600mm |
| Chassis width： | 900mm |
| Rotating data | |
| Maximum rotation Angle | 260° |
| Rotation mode: | Hydraulic rotation |
| Tipping interval | 320mm |
| Track data | |
| track width： | 180mm |
| Track grounding length： | 1000mm |
| Chassis ground clearance: | 140mm |
| Hopper data | |
| Cargo box Capacity | 594dm³ |
| Tipping Systme | Hydraulic Tipper |
| Tilting Angle | 90° |
| Clearance after tipping container | 300mm |
| Walk data | |
| Walking Speed | 5km/h |
| Climbing abillty | 25° |
