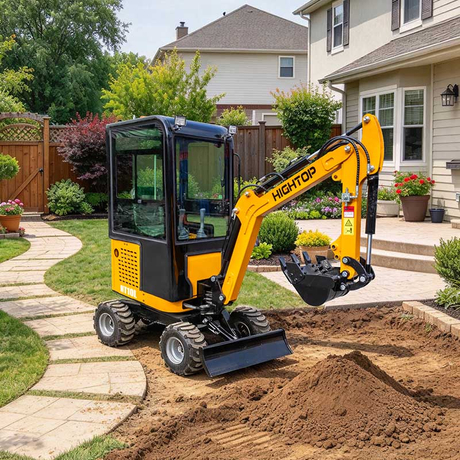

A new compact wheel excavator HT-10W has been officially released, targeting the rapidly growing market demand for flexible, transfer-friendly mini construction machinery. This 1-ton wheeled excavator is specially built for narrow, space-limited work sites, solving the pain point that traditional tracked mini excavators are time-consuming to transport between projects.
Different from crawler-type mini diggers, the HT-10W adopts wheeled chassis design. It can travel directly on paved roads without trailer transport, greatly cutting down relocation time for landscaping teams, renovation contractors and equipment rental businesses. The optional fully enclosed cabin brings another core upgrade: it shields operators from wind, rain, dust and strong sunlight, supporting stable operation in all weather conditions.
The new model keeps ultra-narrow body dimensions. With a total width of only 1030 mm, it can easily pass through narrow doorways, backyard alleys and indoor construction zones. Multiple engine options are available, to adapt to different regional emission standards and customer budget plans. Buyers can also select side-swing arm, three-way throttle valve and other functional upgrades.
To maximize multi-scene adaptability, the HT-10W supports a full lineup of interchangeable attachments, including standard bucket, tilt bucket, hydraulic grapple, auger drill, breaker hammer, rake, hedge trimmer, pallet fork and more. Custom paint color following RAL color code is also available.
Core Technical Specifications
Item | Specification |
|---|---|
Model | HT-10W |
Operating Weight | 1 Ton |
Overall Width | 1030 mm |
Total Height (Cabin Version) | 2260 mm |
Rated Power | 10kW / 3600rpm |
Max Excavation Depth | 1630 mm |
Travel Speed | 0-6.2 km/h |
Bucket Capacity | 0.02 m³ |
Gradeability | 30° |
The new wheeled mini excavator is widely applicable for garden landscaping, residential renovation, orchard maintenance, indoor demolition, small municipal pipeline works and rental service. It balances compact size, mobility and reliable digging performance, becoming a cost-effective option for small contractors and rental fleets.
The machine has passed pre-delivery performance testing and quality inspection. Orders are now open for global customers. For detailed quotation, configuration selection and attachment packages, please send inquiry for full catalog.
This new wheel excavator supplements the compact machinery portfolio, focusing on high mobility and low maintenance cost. It is developed to fill the gap for light-duty digging equipment that needs frequent moving between scattered job sites.
