Fork Instruction

The skid steer loader itself has the characteristics of compact and flexible, small turning radius, after installing the fork attachment, in some places with narrow space, such as indoor small warehouses, workshop aisles, etc., compared with the traditional forklift trucks, it can shuttle more freely to carry goods, and it can realize accurate goods alignment and placement in the limited space, solving the problem of large-scale handling equipment is difficult to enter the operation.

The low center of gravity design of the skid steer loader and the vertical lifting characteristics of the forks can reduce the risk of swaying or tipping of the goods during the handling process. Combined with the anti-roll-over protection structure (ROPS) in the cab, it significantly improves operation safety.

Optimized visibility and ease of operation

The fork bracket adopts narrow design or hollow structure, which reduces the blockage of the driver's front view; the hydraulic control handle is integrated in the cab, the operation logic is intuitive, and novices can quickly master it, reducing the probability of human error.

Fork Parameter

dimention:1125mm*895mm*715mm

length:920mm

weight:88kg

max. fork width:841mm

rated load capacity:120kg

package size:880*720*220mm

package weight:68kg

package size:900mm*860mm*220mm(with side-shift)

package weight:128kg(with side-shift)

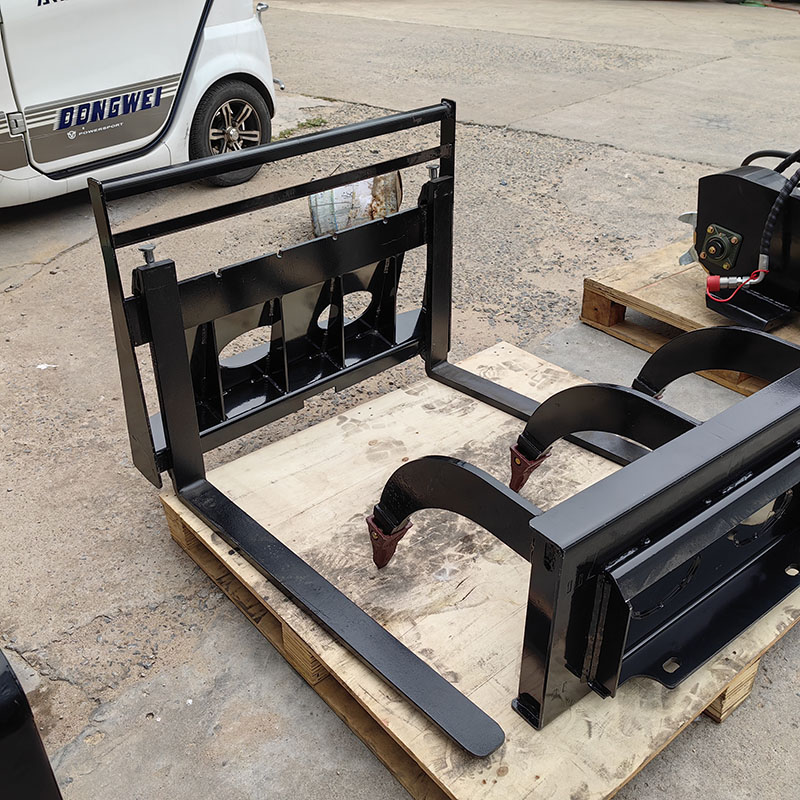

Fork Images
