Snow Blade Instruction
Looking forthe best price? Contact us now for acompetitive quote!
Efficient snow removal: Quickly clears light to moderate snow accumulation from areas such as sidewalks, driveways, and parking lots. The blade can be angled up to 30° to the left or right, and with the help of powerful hydraulic cylinders, snow can be easily moved to the desired location.
Easy to operate: The operator can adjust the angle of the blade from the cab using the control device, making operation convenient and easy to control with one hand.
Protective Design: The plow features a spring-loaded obstacle avoidance function, protecting components from damage when encountering obstacles such as sidewalks or large rocks; it comes standard with adjustable depth boots, allowing operators to adjust the snow-clearing depth according to actual conditions.
Clear Visibility: The mast is clearly visible, aiding operators in accurately positioning the plow blade angle and clearly identifying the plow blade location, thereby enhancing the precision of snow-clearing operations.
Durable Materials: Constructed with high-carbon steel blades for extended service life. Some models also offer optional rubber blades to protect the road surface while clearing snow.
Installation System: Typically equipped with a dedicated installation system, such as a quick-connect mechanism, enabling seamless integration between the skid steer loader and snow plow for quick and easy installat
Snow Blade Parameter
| Dimention | 1100*650*520mm |
| Weight | 120 Kg |
| Tilting angle | ±30° |
| Blade width at maximum tilt angle | 870mm |

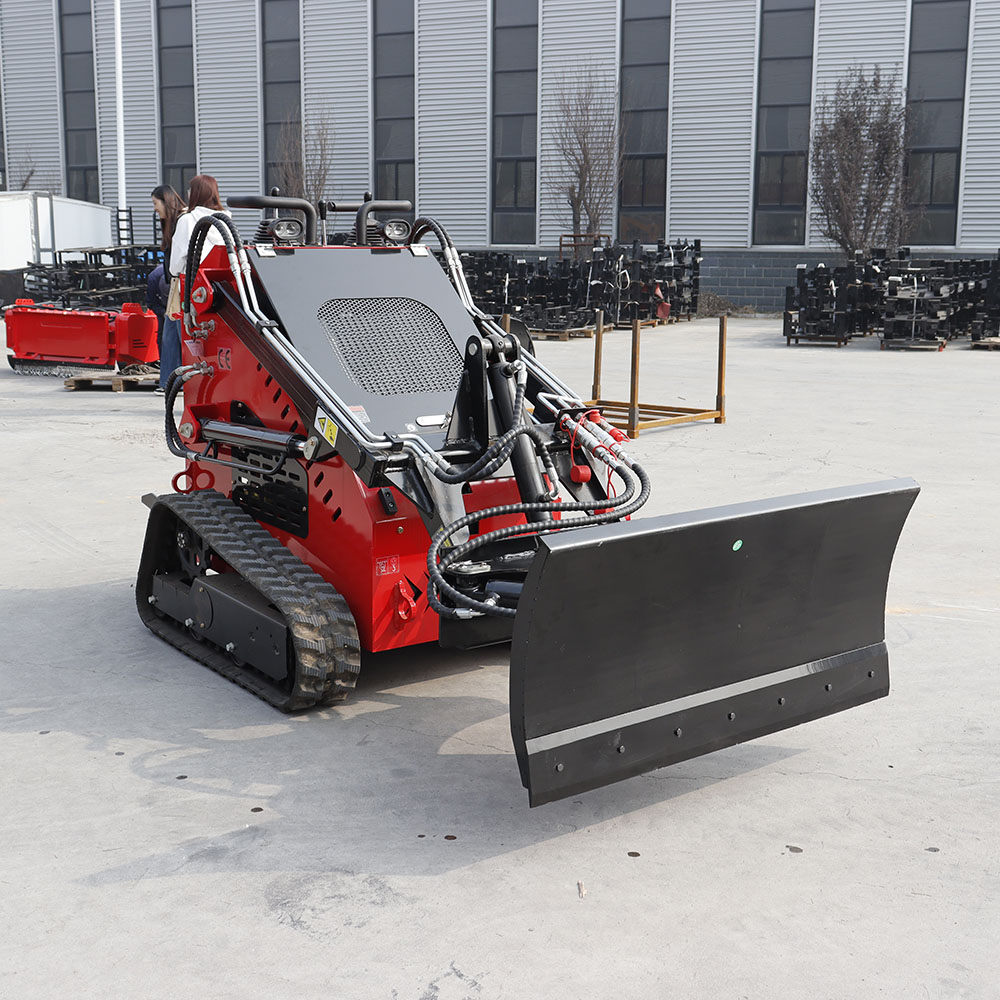

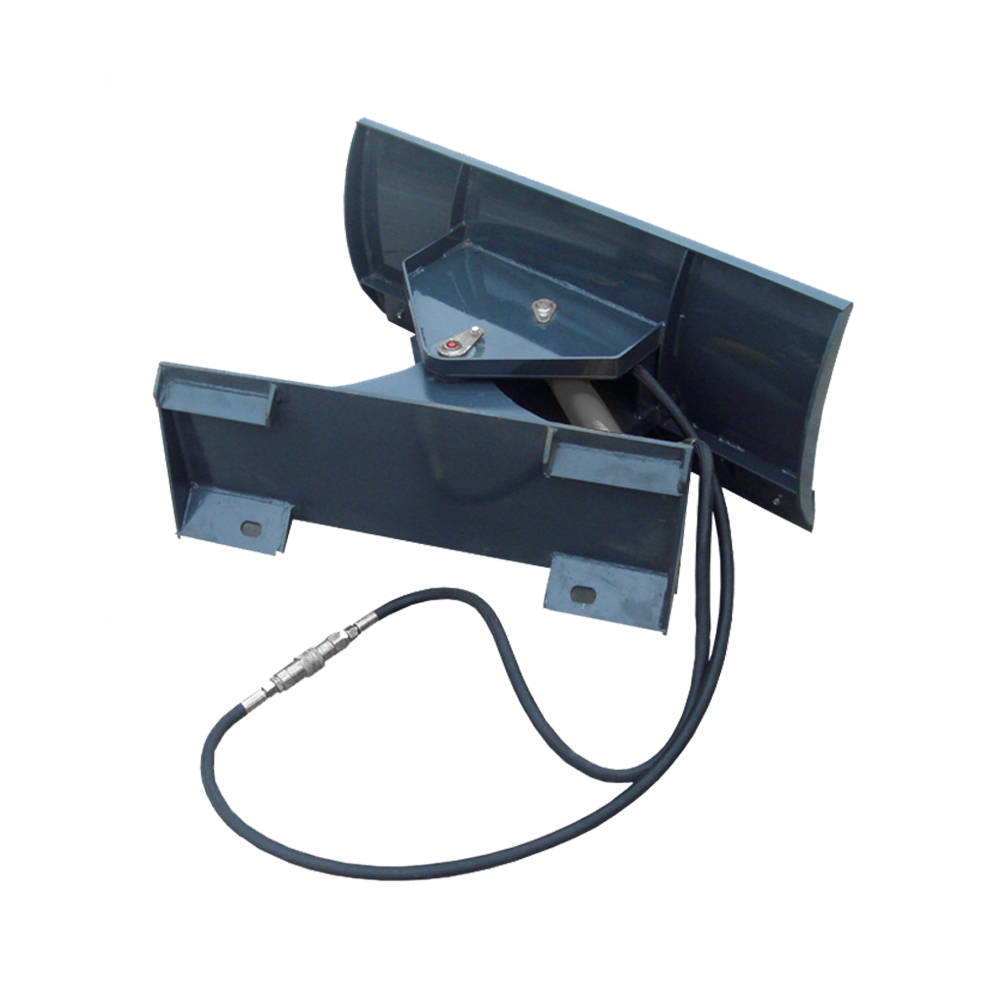

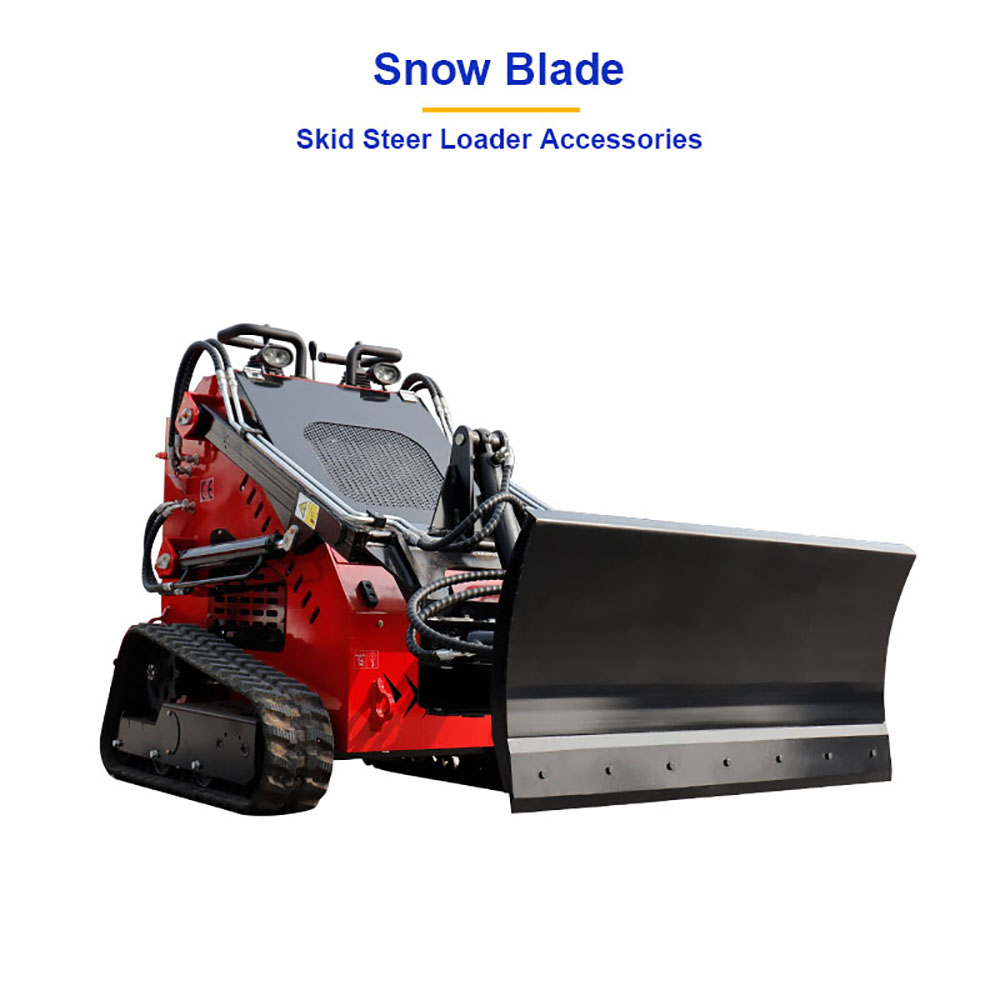

Snow Blade Images
