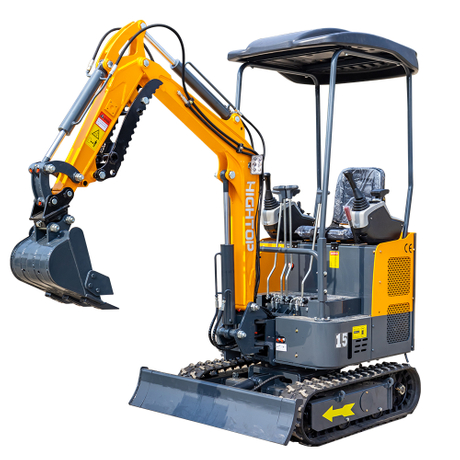

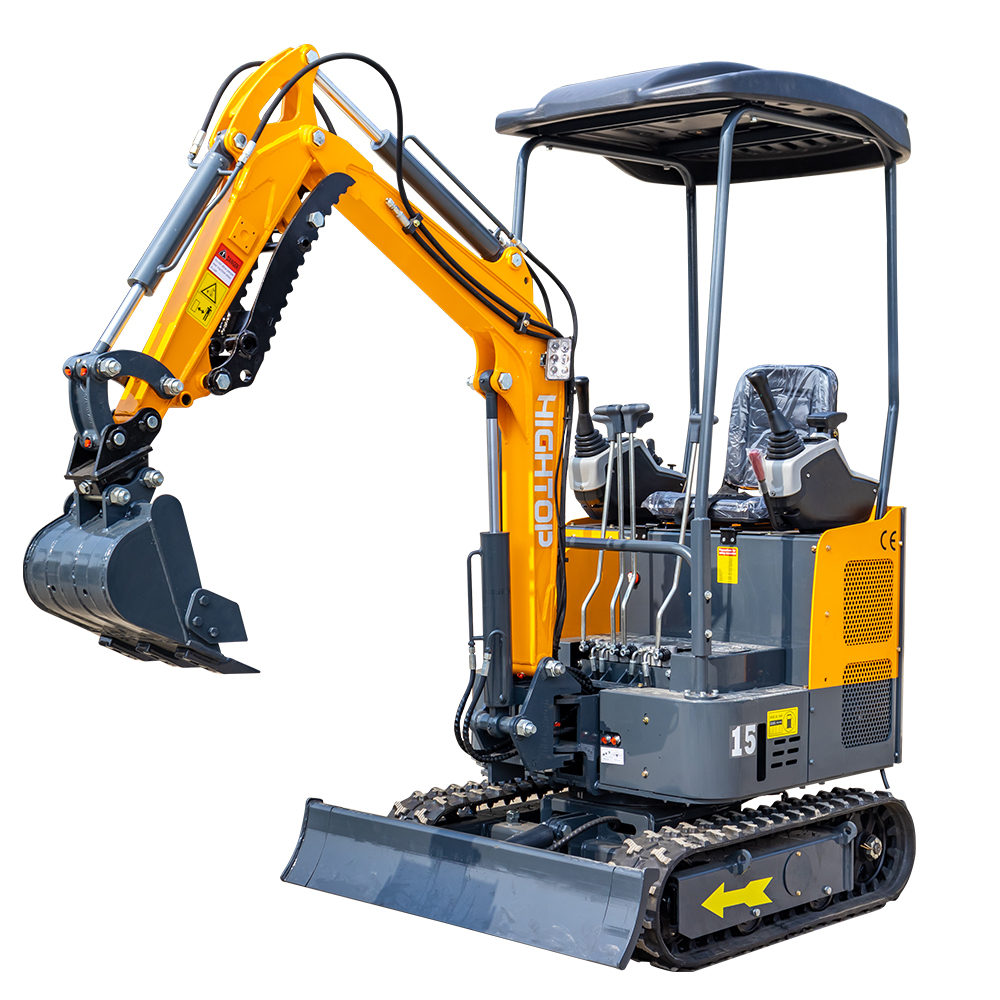

Meet the HT15 Mini Excavator – your ultimate compact workhorse designed for precision and versatility in confined spaces. Built to navigate narrow alleys, indoor sites, and courtyards, this 1.5-ton excavator combines a 1000mm ultra-narrow width, powerful engine options, and side-swing functionality to tackle earthmoving, landscaping, and demolition tasks with ease.
With a total width of just 1000mm and a tail turning radius of 890mm, the HT15 easily accesses tight spaces where larger machines cannot operate. Its compact footprint makes it perfect for indoor demolition, backyard projects, and urban construction sites, while the 2390mm transport length fits standard pickup trucks for hassle-free relocation.
Choose between Koop, Briggs & Stratton, or Laidong engines for dependable power and efficiency. The HT15 delivers a 1710mm maximum digging depth, 2675mm digging height, and 2920mm digging distance, with a 30° gradeability to handle steep slopes, hilly terrain, and construction site ramps without frequent repositioning.
The HT15 features a side-swing working device that eliminates the need for frequent machine relocation. This allows precise operations at corners, along ditches, and in hard-to-reach areas, reducing rework and improving efficiency on complex job sites.
Equipped with quick-change connectors, the HT15 supports a full lineup of attachments to transform into a multi-tasking tool:
Buckets: Narrow, plain, tilting, and sand buckets
Hydraulic tools: Thumb clips, augers, break hammers, rakes, hedge trimmers, and log splitters
Quick hitch systems for fast tool changes
Specialized tools like grapples, grass trimmers, fork pallets, and root toppers
Comfortable Operator Environment: New ergonomic armrest box with stable support, reducing fatigue during long shifts
High-Quality Components: Tengfei main valve and wear-resistant pins ensure long service life
Easy Maintenance: Quick access to key components simplifies routine upkeep
Full Certifications: ISO, CE, SGS, and TÜV certified for global market compliance
Category | Specification |
|---|---|
Dimensions | |
Transportation Length | 2390mm |
Total Width | 1000mm |
Total Height (Cab Top) | 2290mm |
Standard Track Width | 180mm |
Track Gauge | 820mm |
Tail Turning Radius | 890mm |
Track Ground Length | 1235mm |
Working Range | |
Max Digging Height | 2675mm |
Max Digging Depth | 1710mm |
Max Digging Distance | 2920mm |
Max Unloading Height | 1815mm |
Min Turning Radius | 1505mm |
Performance | |
Working Weight | 1500kg |
Bucket Capacity | 0.02m³ |
Gradeability | 30° |
Engine Options | Koop / Briggs & Stratton / Laidong |
Main Valve | Tengfei |
The HT15 excels in diverse scenarios:
Earthwork excavation and ditch maintenance
Landscaping, gardening, and yard renovation
Indoor demolition and basement construction
Agricultural tasks like trenching, planting, and orchard maintenance
Small construction projects and utility installation
Rental businesses and DIY home improvement projects
Factory Direct Pricing: Competitive rates with no middleman markup
OEM/ODM Support: Customizable colors, logos, and configurations
International Certifications: ISO, CE, SGS, and TÜV compliant for global markets
Comprehensive Attachments: Ready-to-use tool kit included for diverse tasks
Reliable After-Sales Service: Technical support and maintenance guidance included
Ready to upgrade your projects with the versatile HT15 Mini Excavator? Contact our sales team today for a personalized quote, full product catalog, and shipping details. We’re here to help you find the perfect solution for your business needs.
