HTCT35S HTCT38H
When regular wheel tractors struggle on complex farm terrain, our HTCT35S and HTCT38H crawler tractors deliver reliable performance for diverse farming projects. This compact track‑type agricultural machine integrates excavation, tillage, soil preparation and land leveling in one unit. It supports a wide range of interchangeable attachments to meet different farm work demands.
Designed for tough field conditions, the crawler chassis brings large ground contact area. It reduces ground pressure, improves grip and realizes up to 30‑degree climbing capacity. The machine works steadily on hilly terraces, sloped land, muddy paddy fields and loose sandy soil. Compact overall size allows operation in narrow working spaces where large farm machinery cannot enter.
Orchard Farming: Perfect for fruit orchards, complete soil tilling, weeding, fertilizing and land leveling between tree rows.
Greenhouse Planting: Compact body fits inside greenhouses, suitable for vegetable bed preparation and small‑scale cultivation.
Hilly & Mountainous Farmland: Strong climbing ability handles sloped fields and terraced farmland for tillage and ditching work.
Paddy & Muddy Fields: Crawler design prevents slipping on wet muddy ground for paddy field cultivation.
Small Farm & Rural Land Projects: Match with different attachments for digging, ditching, harvesting and other farm tasks.

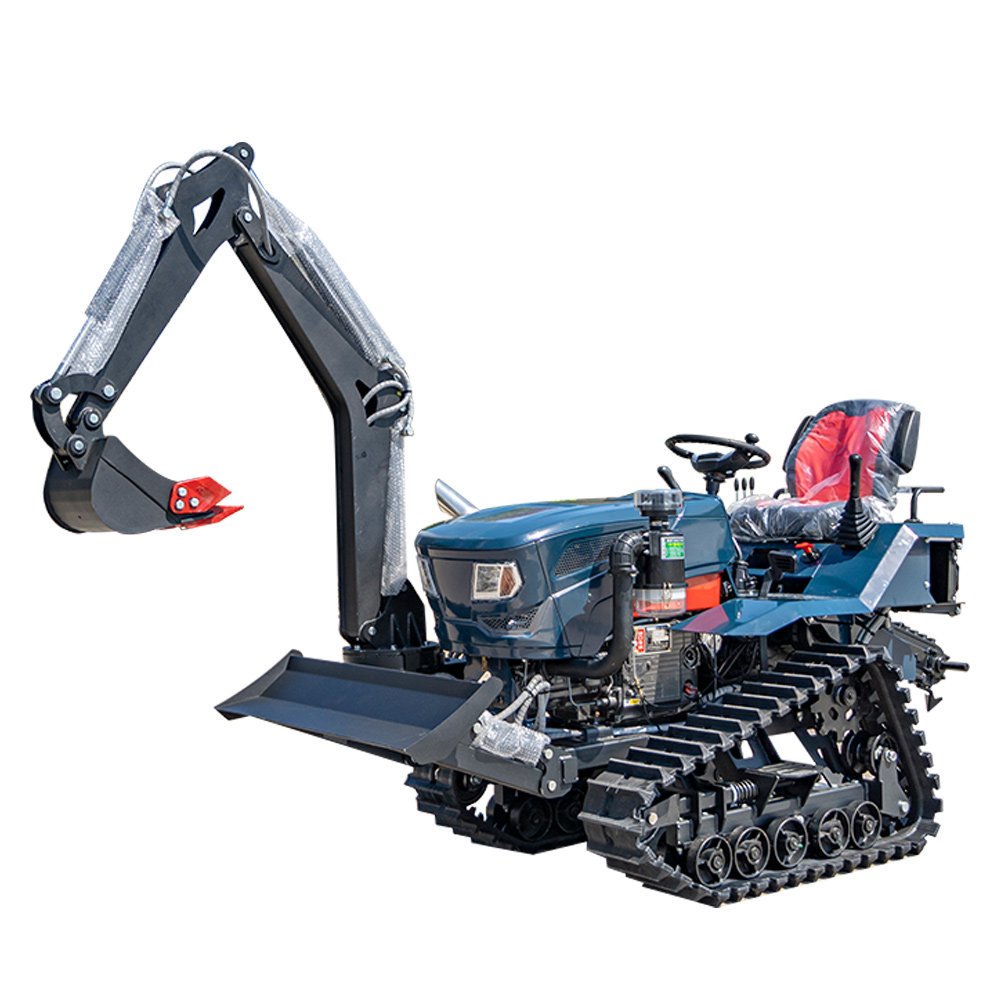

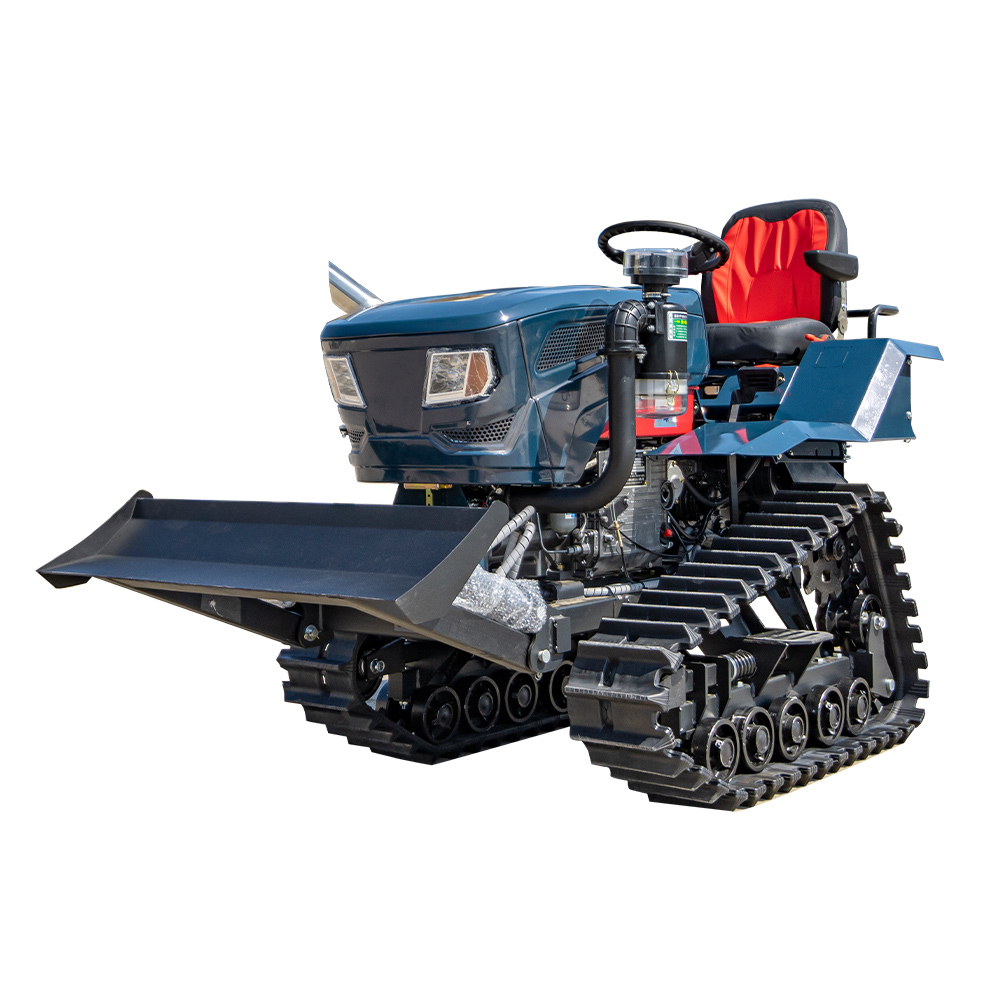

Multiple optional attachments can be installed on front and rear position including backhoe arm, rotary tiller, dozer blade, ditching machine, seeder, harvester and more. Remote control operation is optional for special working environments. Custom service covers color, logo and configuration to satisfy different buyer requirements.
Item | HTCT35S | HTCT38H |
|---|---|---|
Overall Dimensions L W H(mm) | 2300*1120*1500 | 2400*1300*1300 |
Engine Model | KM3V‑T | KM3V85B(China Stage III) |
Engine Power | 26.4kw‑2200rpm | 18.4kw‑2400rpm /29kw‑2200rpm |
Starting Mode | Electric Starting | Electric Starting |
Net Weight | 880kg | 880kg |
Ground Clearance | 420mm | 750mm |
Track Ground Contact Length | 1000mm | 1000mm |
Track Width | 250mm | 200mm |
Max Climbing Angle | 25° | 30° |
Max Travel Speed | 25km/h | 20km/h |
Transmission Gears | 6 Forward Gears 2 Reverse Gears | 6 Forward Gears 2 Reverse Gears |
Steering Method | Mechanical Steering Wheel | Mechanical Steering Wheel |
Hydraulic System Displacement | 10ml/r | 10ml/r |
Max Traction Force | 18KN | 18KN |
Rear Output Speed | 330rpm | 330rpm |
Rear Interface Hole Spacing | 110mm*170mm | 110mm*170mm |
Strong Terrain Adaptability: Rubber crawler chassis ensures stable running on slope, muddy and soft soil ground.
Multi‑attachment Compatibility: Rich optional accessories realize one machine for multiple farming jobs to cut equipment investment cost.
Compact Structure: Small footprint to access narrow orchard rows and greenhouse space.
Customizable Support: OEM ODM service for color, logo and functional configuration.
Flexible Operation Choice: Manual riding operation as standard, remote control function optional.
This series crawler tractor is widely welcomed by farm owners, agricultural contractors and farm equipment resellers. If you are looking for high‑performance compact crawler tractor for complex farm conditions, HTCT35S and HTCT38H are practical solutions worth your consideration.
