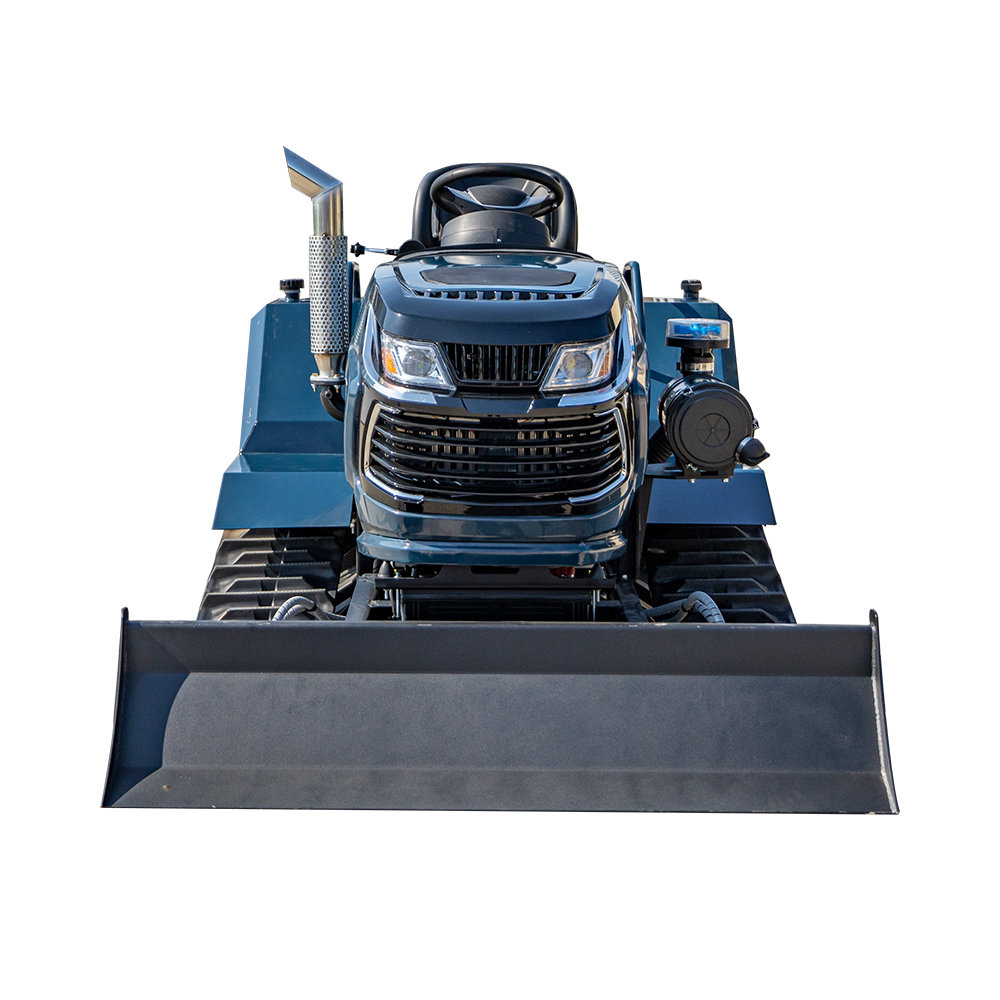

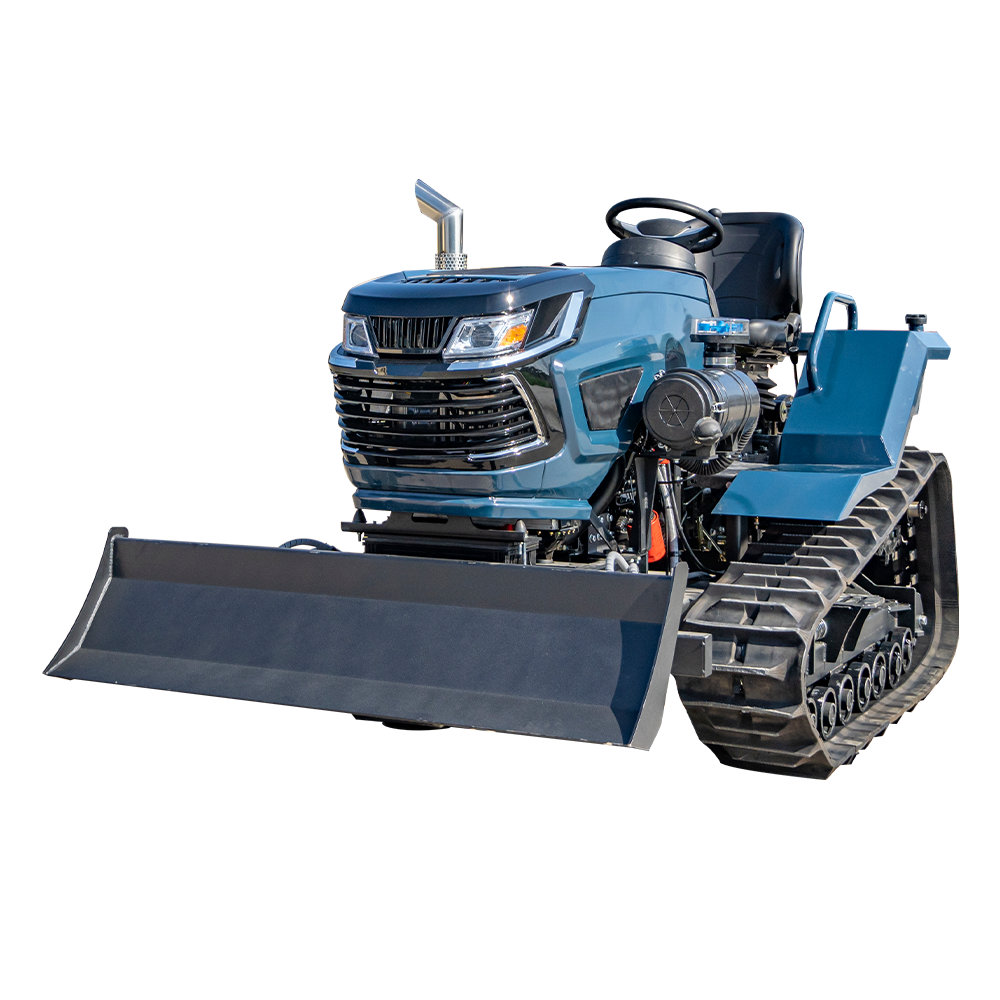

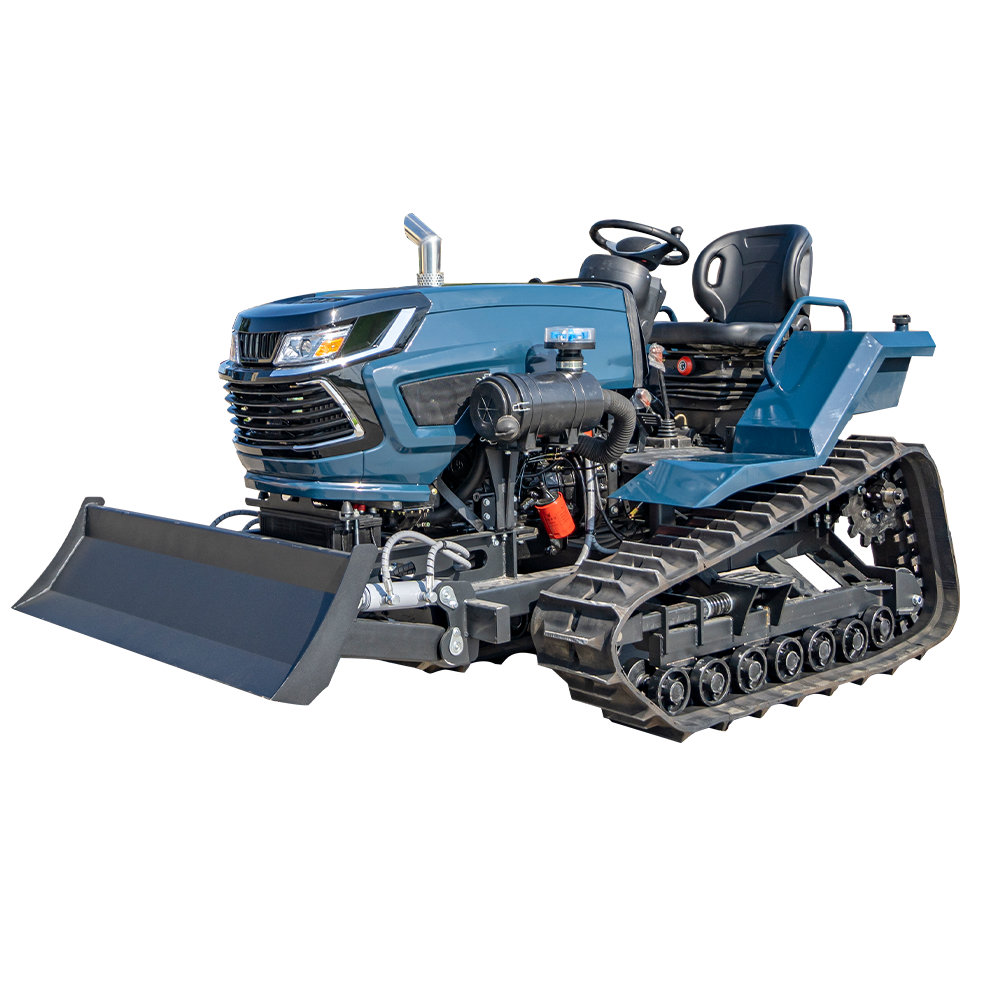

HTCT50 HTCT60 HTCT80
Modern farm operations face various challenging terrains including hilly slopes, muddy paddies, narrow orchard paths and greenhouse spaces. Traditional wheel tractors struggle to pass and work efficiently in these areas. The HTCT series crawler tractor covers HTCT50 HTCT60 and HTCT80 models, built with durable rubber track system to adapt to uneven ground. One machine can match different attachments to finish plowing, digging, bulldozing, land levelling and farm maintenance tasks.
This compact crawler tractor is designed for limited‑space operation. It can enter narrow orchard rows, greenhouses and small farm plots where large size agricultural machines cannot access. Optional remote‑control operation is available for special working scenarios where manual riding operation is not suitable.
The whole series supports OEM and ODM customization. Buyers can choose different colors, logos and configuration combinations according to local market requirements. Rich optional attachments expand machine capability greatly, helping farmers and farm contractors cut equipment investment cost with one multi‑purpose unit.
Orchard Management Work inside narrow fruit orchard lanes. Complete soil tillage, weeding, ditching and fertilizer application. Rubber tracks protect orchard ground from heavy compaction.
Greenhouse Farming Compact body fits inside greenhouse. Finish land preparation, soil loosening and bed finishing for vegetable and crop planting.
Hilly & Sloped Farmland Stable rubber track design offers strong grip on terraced fields and sloped land. Normal wheel tractors easily slip on such terrain.
Muddy Paddy & Wet Farmland Low ground pressure reduces sinking risk, reliable performance on wet muddy soil.

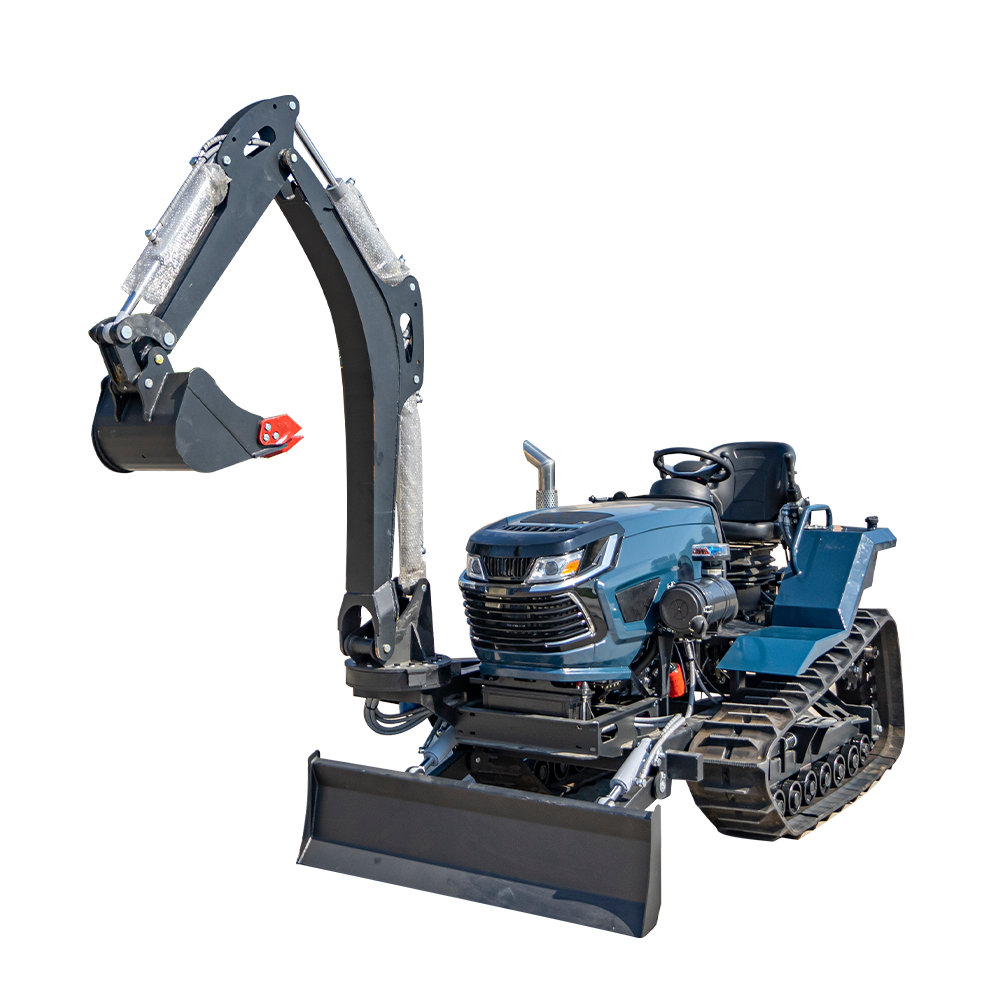

Small Construction & Site Preparation With bulldozer blade and excavator arm, it can handle small site levelling, trench digging and earth moving work for farm yards.
Durable rubber track chassis, good terrain adaptability, low ground pressure
Multiple replaceable attachments realize one‑machine multi‑use
Compact dimension for narrow space access
Optional remote control function for complex working environment
Powerful matched engine, stable output for heavy‑duty farm work
Support OEM ODM customization for different regional market demands
Item | HTCT50 | HTCT60 | HTCT80 |
|---|---|---|---|
Engine Model | KM490B | KM495 | KM495ZT4 |
Engine Power | 36.8kw 2400rpm | 44kw 2400rpm | 59kw 2400rpm |
Overall Dimension(L×W×H) | 2600×1500×1600mm | 2600×1500×1600mm | 2600×1500×1600mm |
Ground Clearance | 350mm | 350mm | 350mm |
Net Machine Weight | 1400kg | 1450kg | 1500kg |
Track Gauge | 1300mm | 1300mm | 1300mm |
Track Ground Contact Length | 1550mm | 1550mm | 1550mm |
Max Travel Speed | 30km/h | 30km/h | 30km/h |
Transmission Gears | 8 Forward / 2 Reverse | 8 Forward / 2 Reverse | 8 Forward / 2 Reverse |
Steering System | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering |
Hydraulic System Flow Rate | 24L/min | 24L/min | 24L/min |
Hydraulic System Pressure | 18MPa | 18MPa | 18MPa |
Fuel Tank Capacity | 45L | 45L | 45L |
Rear PTO Speed | 540/720rpm | 540/720rpm | 540/720rpm |
Max Lifting Force | 50kN | 50kN | 50kN |
Max Load of Excavator Arm | 300kg | 300kg | 300kg |
Note:Above parameters are reference data, actual parameters subject to real machine.
This crawler tractor supports a wide range of working attachments including bulldozer blade, excavator arm, rotary tiller, ditcher, seeder, sprayer, mower and other farm implements. Users can configure according to actual local working needs.
