HTS380

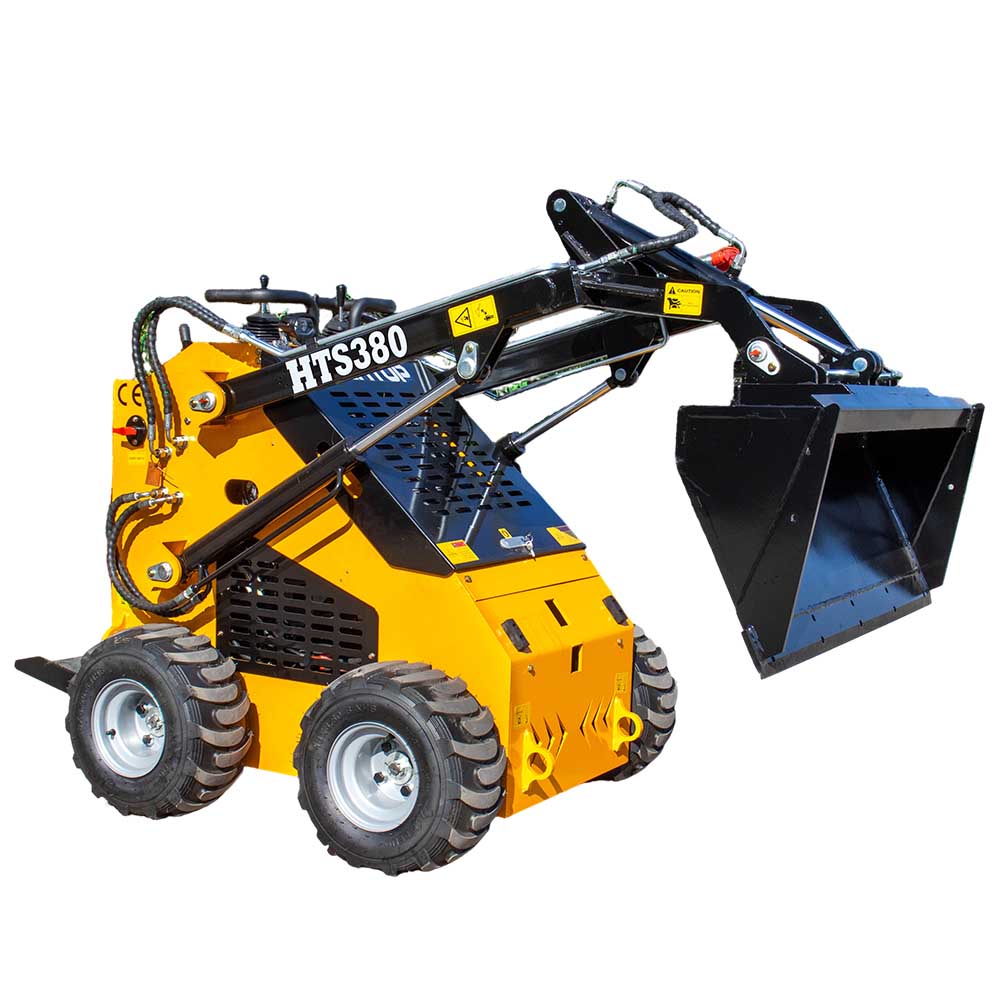

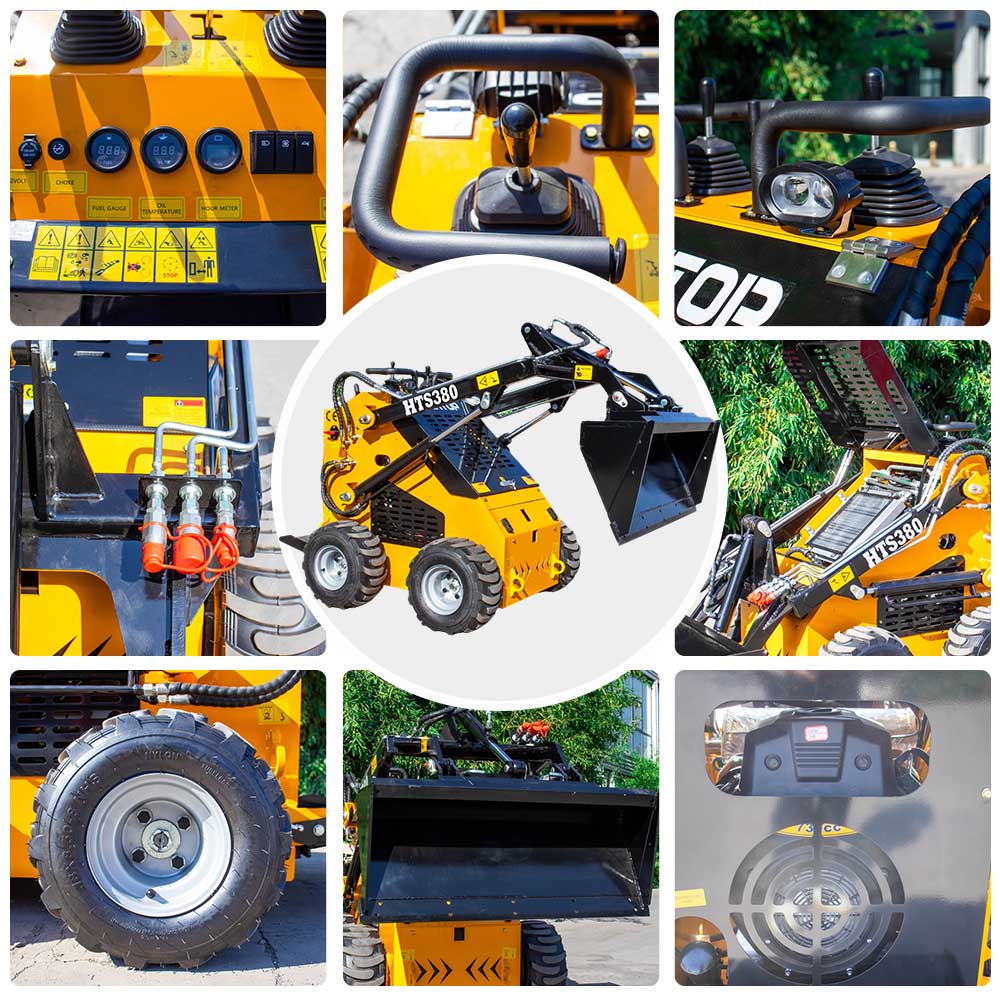

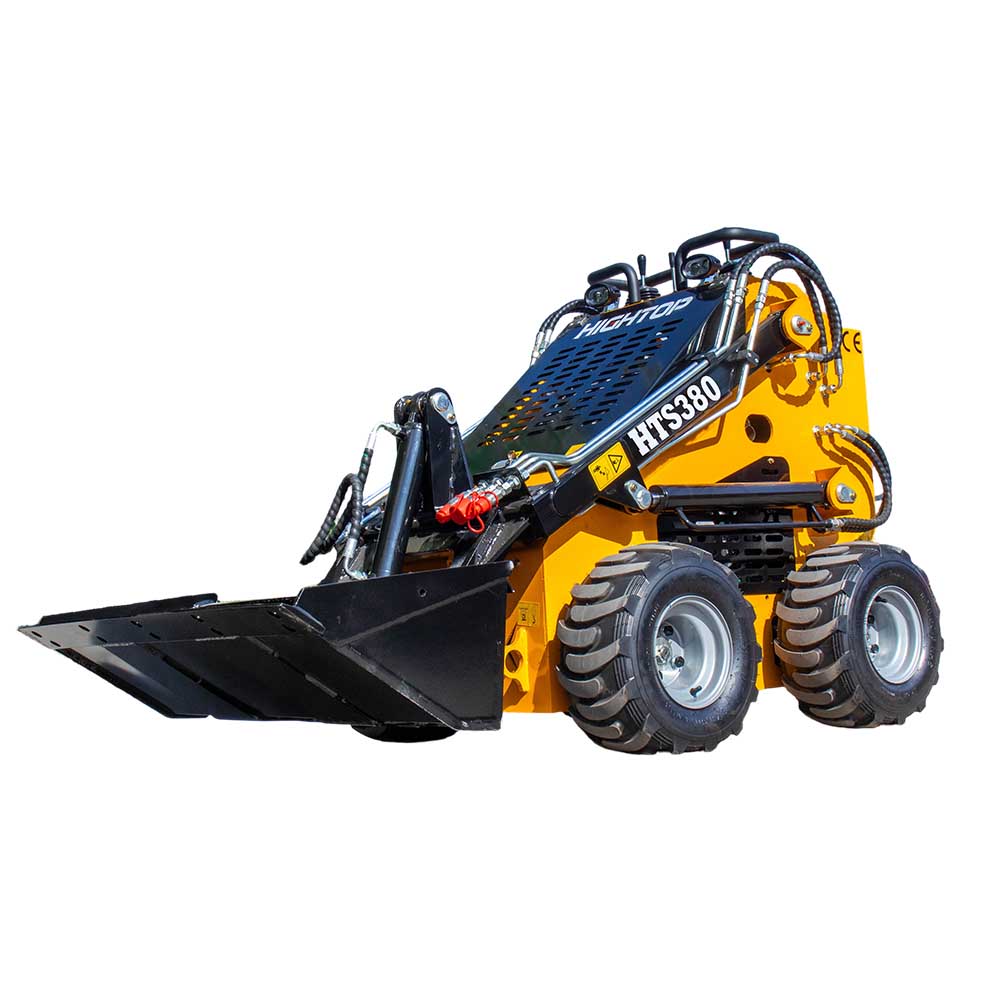

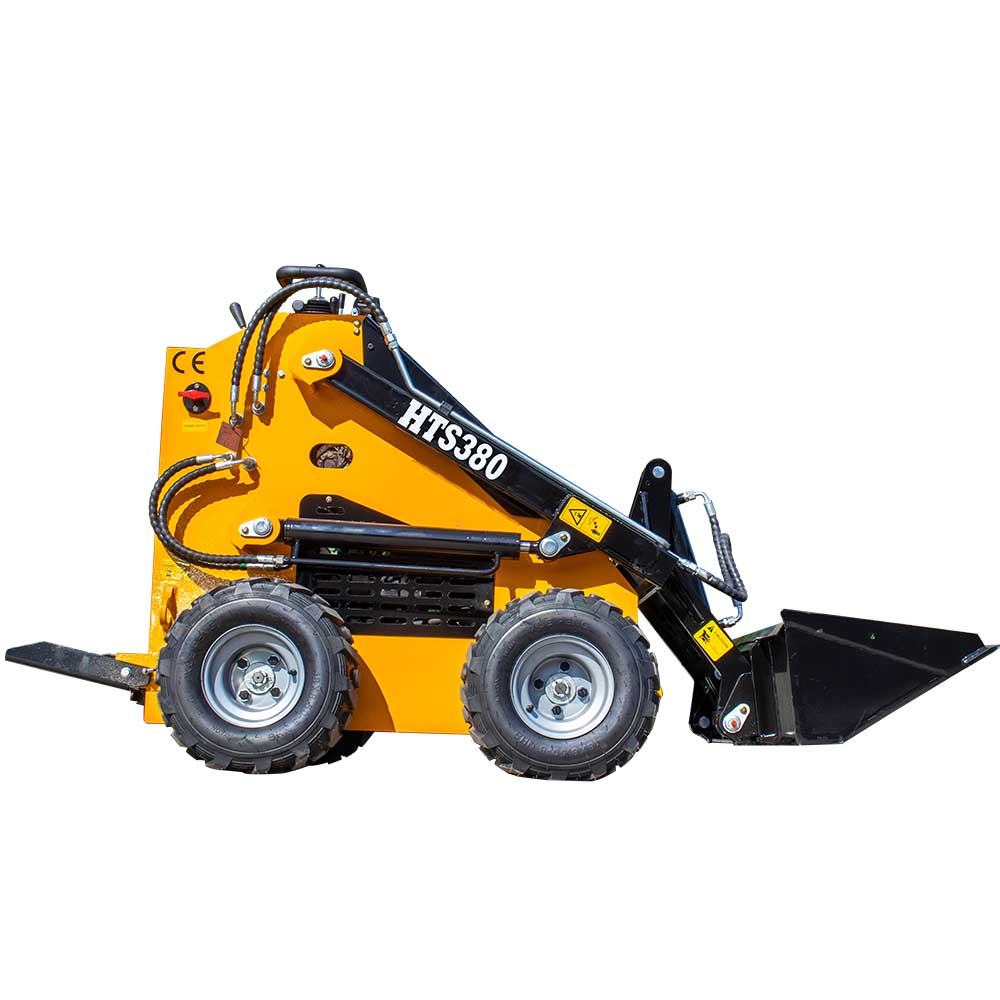

The HTS380 is a wheeled mini skid steer loader built for contractors, landscapers and farm owners who need a compact, powerful machine that can enter gates, alleys, backyards and indoor sites where full-size skid steers cannot go. With an operating weight of 750 kg and a rated operating load of 200 kg, this stand-on skid loader delivers reliable material handling, digging and site cleanup performance without sacrificing maneuverability.
Measuring only 1120 mm wide and 1315 mm tall, the HTS380 slips through standard garden gates and narrow construction entrances. Its wheeled chassis is well suited to hard, flat surfaces such as concrete, asphalt and compacted gravel, with a travel speed of 0–4.5 km/h for efficient movement between nearby task locations. A tracked version is also available for muddy, sloped or ground-sensitive terrain.
Four engine options are offered to match different market emission requirements and budget levels: RATO R740-1, Briggs & Stratton, KOOP 292 and Honda GX690. The hydraulic system works at up to 17 MPa pressure, providing smooth boom lifting and attachment flow. The standard 0.15 m³ bucket handles everyday soil, sand and debris moving, while the quick-attach mounting plate lets operators swap tools in minutes.
Custom body color is supported, and the machine can be configured with a wide range of hydraulic attachments to turn one compact loader into a multi-purpose work tool.
Item | Specification |
|---|---|
Model | HTS380 (Wheeled) |
Operating Weight | 750 kg |
Rated Operating Load | 200 kg |
Max Lifting Force | 250 kg |
Bucket Capacity | 0.15 m³ |
Bucket Width | 1150 mm |
Max Working Height | 2120 mm |
Max Loading Height | 1890 mm |
Max Dumping Height | 1465 mm |
Max Dumping Distance | 485 mm |
Max Dumping Angle | 35° |
Travel Speed | 0–4.5 km/h |
Hydraulic Pressure | 0–17 MPa |
Flow Rate | 0–21.6 L/min |
Noise Level | ≤ 95 dB |
Total Width | 1120 mm |
Total Height | 1315 mm |
Wheel Base | 680 mm |
Ground Clearance | 115 mm |
Overall Length (without bucket) | 1650 mm |
Overall Length (with bucket) | 2085 mm |
Fuel Tank | 15 L |
Engine Oil | 1.7 L |
Hydraulic Tank | 35 L |
Engine | Rated Power | Rated Speed |
|---|---|---|
RATO R740-1 | 15 kW (20.1 HP) | 3600 rpm |
Briggs & Stratton | 17.2 kW (23 HP) | 3600 rpm |
KOOP 292 | 14 kW (18.7 HP) | 3000 rpm |
Honda GX690 | 16.5 kW (22.1 HP) | 3600 rpm |
Compact Footprint — 1120 mm width and low overall height allow access through narrow gates, doorways and confined job sites.
Four Engine Choices — Select RATO, Briggs & Stratton, KOOP or Honda power to fit local regulations and application needs.
17 MPa Hydraulic System — Stable pressure supports smooth lifting, digging and attachment operation.
Quick Attach Mount — Fast tool change without extra tools, compatible with a broad attachment lineup.
Durable Wheel Chassis — Wear-resistant tires built for hard-surface loading, cleanup and yard maintenance.
Custom Color Service — Full-unit body color customization available for brand and rental fleets.
The HTS380 can be equipped with trencher, brush cutter, concrete mixer, lawn mower, wood chipper, sweeper, breaker hammer, grapple, backhoe digger, snow blade, pallet fork, stump grinder, log crusher, tiller, snow sweeper, sand bucket, auger, leveler and 4-in-1 bucket. Contact sales for the full attachment list.
Landscaping: soil moving, garden renovation, site preparation and grading
Construction: material handling, debris removal and narrow-site cleanup
Agriculture: farm maintenance, loose material handling and barn cleanup
Property Maintenance: yard cleanup, grounds care, leaf and snow management
