HTS65

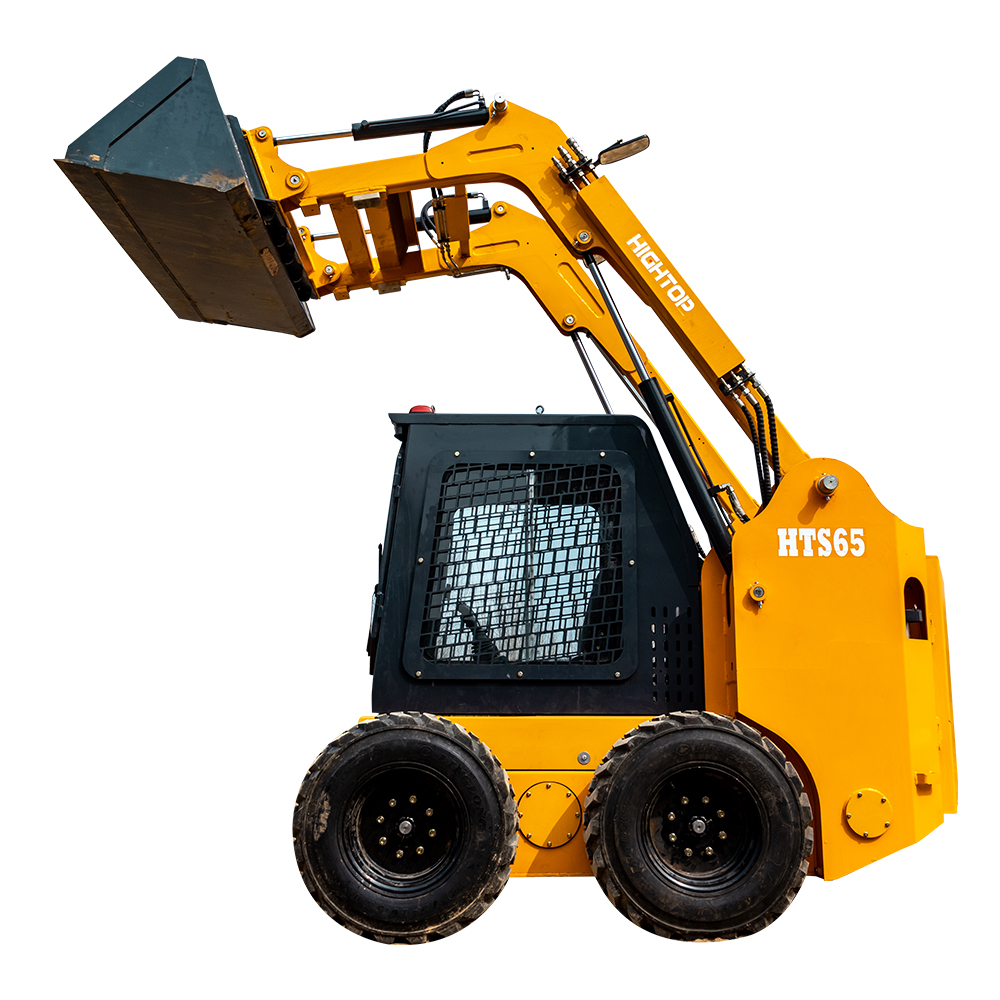

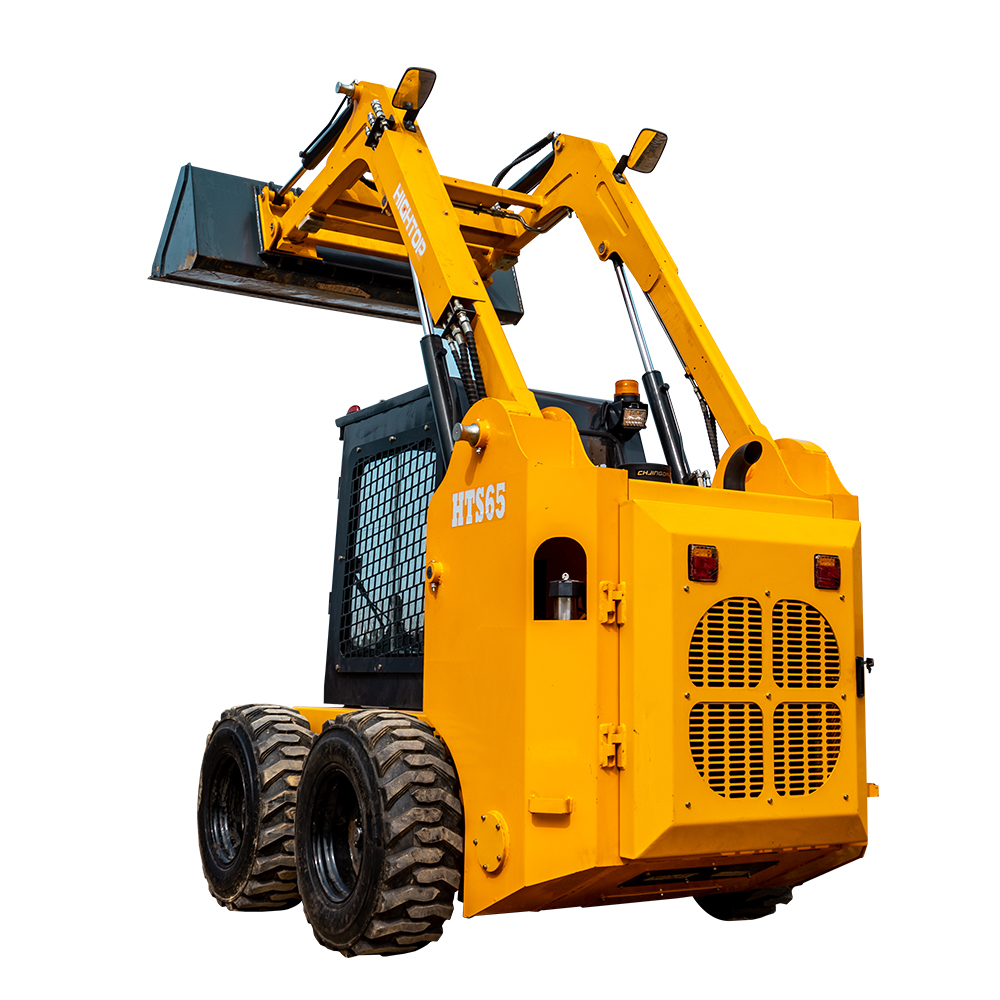

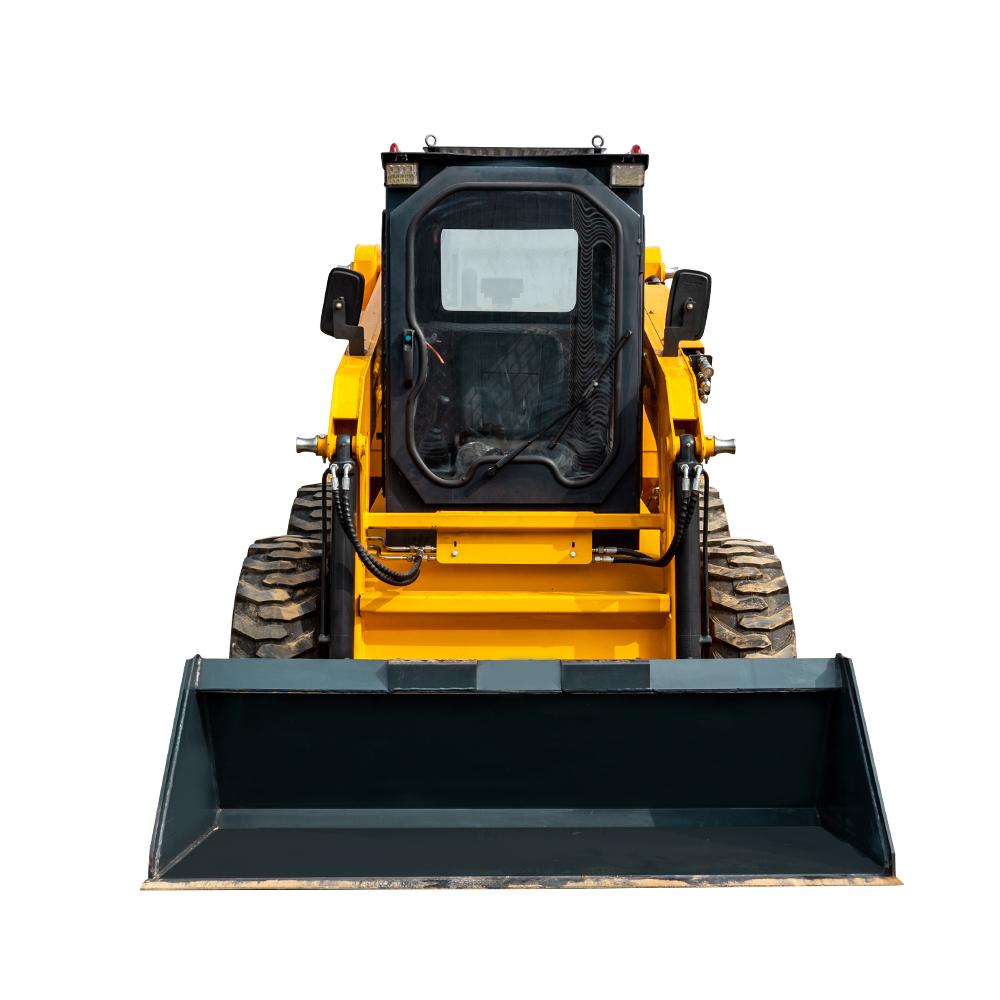

The HTS65 Wheel Skid Steer Loader is a high-efficiency compact construction machine developed by HIGHTOP Group, specially engineered for narrow alleys, indoor renovation, garden landscaping, farm handling and municipal small-scale engineering. With ultra-short turning radius, powerful Yanmar original diesel power and expandable multi-attachment system, this 3450kg whole weight skid steer can finish loading, digging, sweeping, crushing and fork lifting work, widely favored by construction contractors, farm operators and equipment rental companies globally.
Equipped with authentic Yanmar 4TNV98 diesel engine, rated power 49.9kW, mature imported power unit features stable output, low noise, low fuel consumption and excellent cold-start performance in high/low temperature environment. Matched with dual-speed independent hydraulic system, standard hydraulic flow 75L/min, high-flow hydraulic option available to meet high-demand attachment working; sensitive hydraulic control ensures smooth boom lifting and bucket dumping action.
Compact overall dimension design, bucket width only 1880mm, front turning radius without bucket just 1375mm. Unique skid steer zero-turn structure allows the machine to pivot in-situ, freely access narrow residential alleys, basement, green belt gaps where large loaders cannot enter. Max driving speed reaches 12km/h to improve site transfer efficiency, 12-16 inch thick anti-abrasion off-road tires adapt gravel, mud, lawn and uneven construction ground.
Full sealed closed cab with all-round protective safety frame, equipped with LED work lights, adjustable indicator lamps, comfortable operating layout to realize all-weather construction under rainy, windy or cold weather. Large capacity 0.5m³ standard bucket with high dumping height 2370mm, max overall working height 3990mm, high-position dumping avoids residue leftover and improves loading efficiency for trucks and containers.
One machine realizes dozens of working functions by replacing attachments: 4-in-1 combination bucket, hydraulic breaker, mechanical road sweeper, snow blower, trencher, pallet fork, mulcher, grass trimmer, concrete mixer bucket etc. Support OEM custom color, LOGO printing and personalized configuration upgrade according to customers’ local application demands.
Parameter Item | Specific Data |
|---|---|
Rated Load | 900kg |
Operating Weight | 3450kg |
Max Travel Speed | 12km/h |
Standard Hydraulic Flow | 75L/min |
Engine Model | Yanmar 4TNV98 |
Rated Power | 49.9kW |
Standard Bucket Capacity | 0.5m³ |
Max Dumping Height | 2370mm |
Overall Working Height | 3990mm |
Front Turning Radius(No Bucket) | 1375mm |
Bucket Width | 1880mm |
Tire Spec | 12-16.5 inch abrasion-resistant tire |
Cab Type | Enclosed closed cab |
✔ Municipal road maintenance, trench digging and pavement cleaning
✔ Residential community renovation, narrow courtyard earthmoving & garbage clearing
✔ Golf course, park landscaping, lawn trimming and material transport
✔ Farm feeding, hay forking, farmland renovation and barn cleaning
✔ Small demolition project, concrete breaking and waste hauling
Direct Factory Supply: HIGHTOP owns over 60000㎡ production workshop with more than 10 years construction machinery manufacturing experience, eliminate intermediate links to offer competitive ex-factory price.
Full Global Certification: All HTS65 skid steer loaders pass CE/ISO certification, fully satisfy import customs requirement for EU, USA, Canada, Southeast Asia markets.
Strict Pre-delivery QC: Every machine undergoes full hydraulic, engine and running test before shipment to guarantee stable quality.
Global After-sales Service: Complete spare parts supply system + online remote technical guidance for global distributors and end buyers.
If you need customized quotation, full specification catalog or bulk wholesale discount of HTS65 skid steer loader, please contact our professional sales team immediately. We can match suitable attachments and shipping plan based on your local working conditions!
