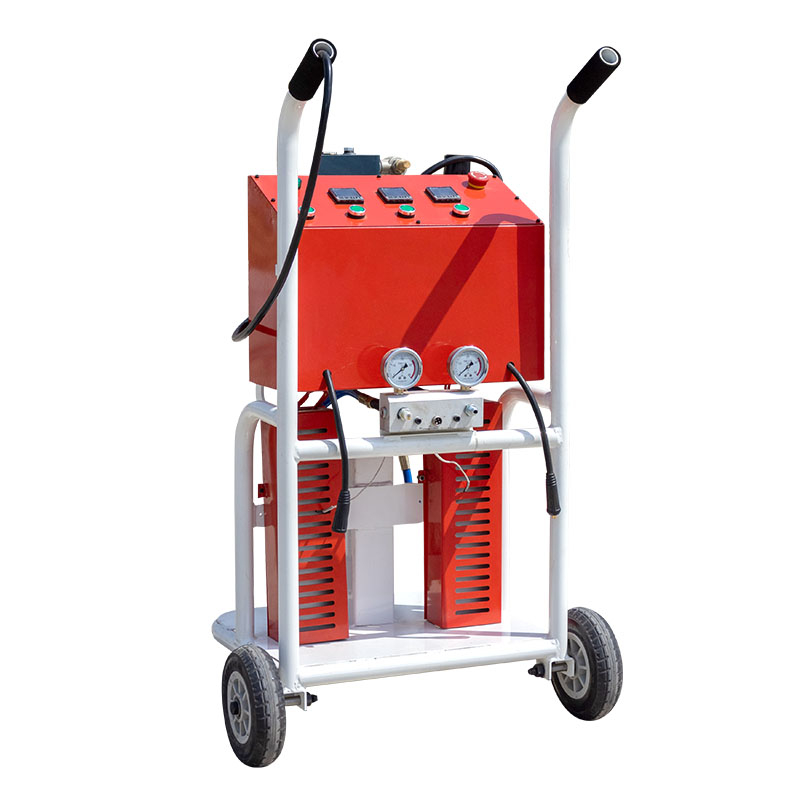

CNMC-E4 Polyurethane Spray Foam Machine

CNMC-E4 Pneumatic Polyurethane Spray Foam Machine Instruction

Power form: pneumatic type, using air as the power source, featuring simple structure, reliable work, and can work in the environment without electricity.

Main parameters: the total power is 7.5kW, which can meet the stable operation of the equipment; the maximum working pressure is 11MPa, which can ensure that the raw materials in the spraying process have enough pressure; the air source requires 32cfm, 8bar, in order to provide a stable air source; the flow rate is 2 - 12kg/min, which can be adjusted according to different construction needs; the power supply is 220V or 110V, 50/60Hz, which can adapt to a variety of electrical environments; the weight of the equipment is 120kg, which is relatively lightweight, and can work without electricity. The power supply is 220V or 110V, 50/60Hz, which is suitable for various electric environments; the weight of the equipment is 120kg, which is relatively light and easy to move and operate; the length of the heating hose is 15 meters, which can effectively heat the raw materials and keep them warm to ensure the stable performance of the raw materials.

Application areas: The equipment can be widely used in building thermal insulation, waterproofing, anticorrosion and other fields, such as roofs, walls, thermal insulation spraying, as well as cold storage, thermal insulation piping and other manufacturing. Meanwhile, it can also be used for the processing of polyurethane foam in the industries of automobile interior decoration and furniture manufacturing.

CNMC-E4 Pneumatic Polyurethane Spray Foam Machine Parameter

Total power ：7.5kw ,
Max working pressure ：11mpa,
Air source ：32cfm,8 bar,
Flow rate：2-12kg/min
Power source：220v or 110v 50/60HZ
weight：120kg
Heating hose： 15 meters

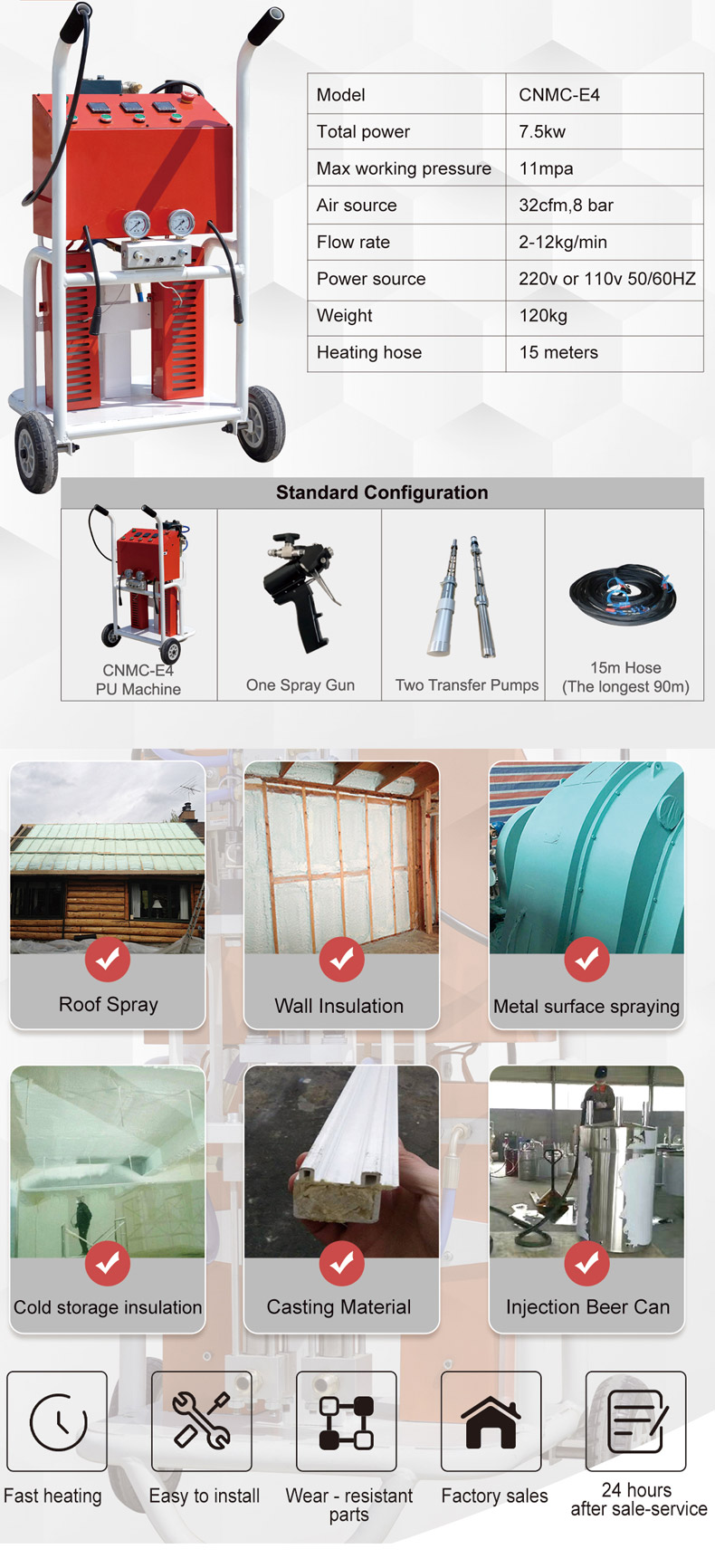

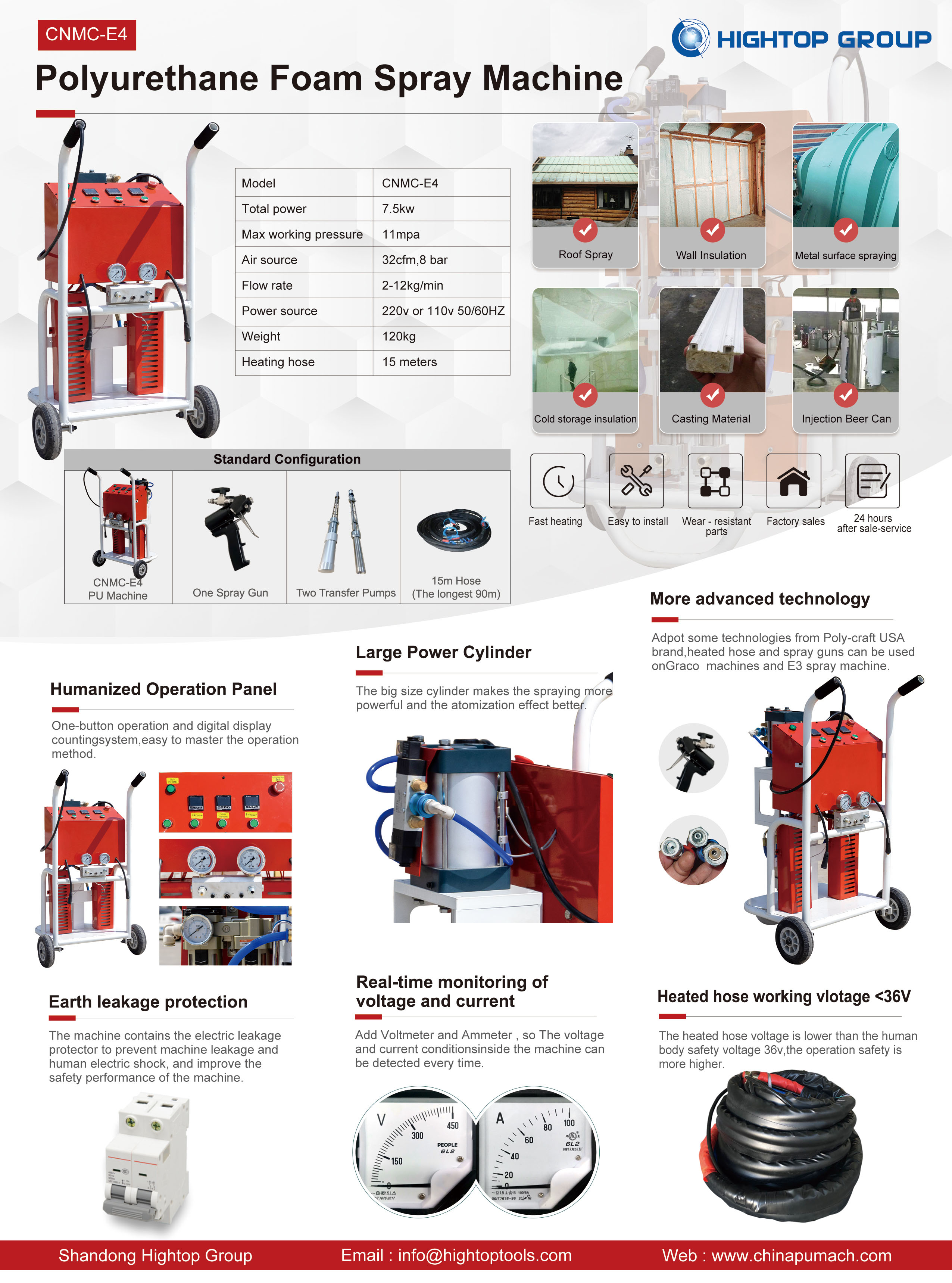

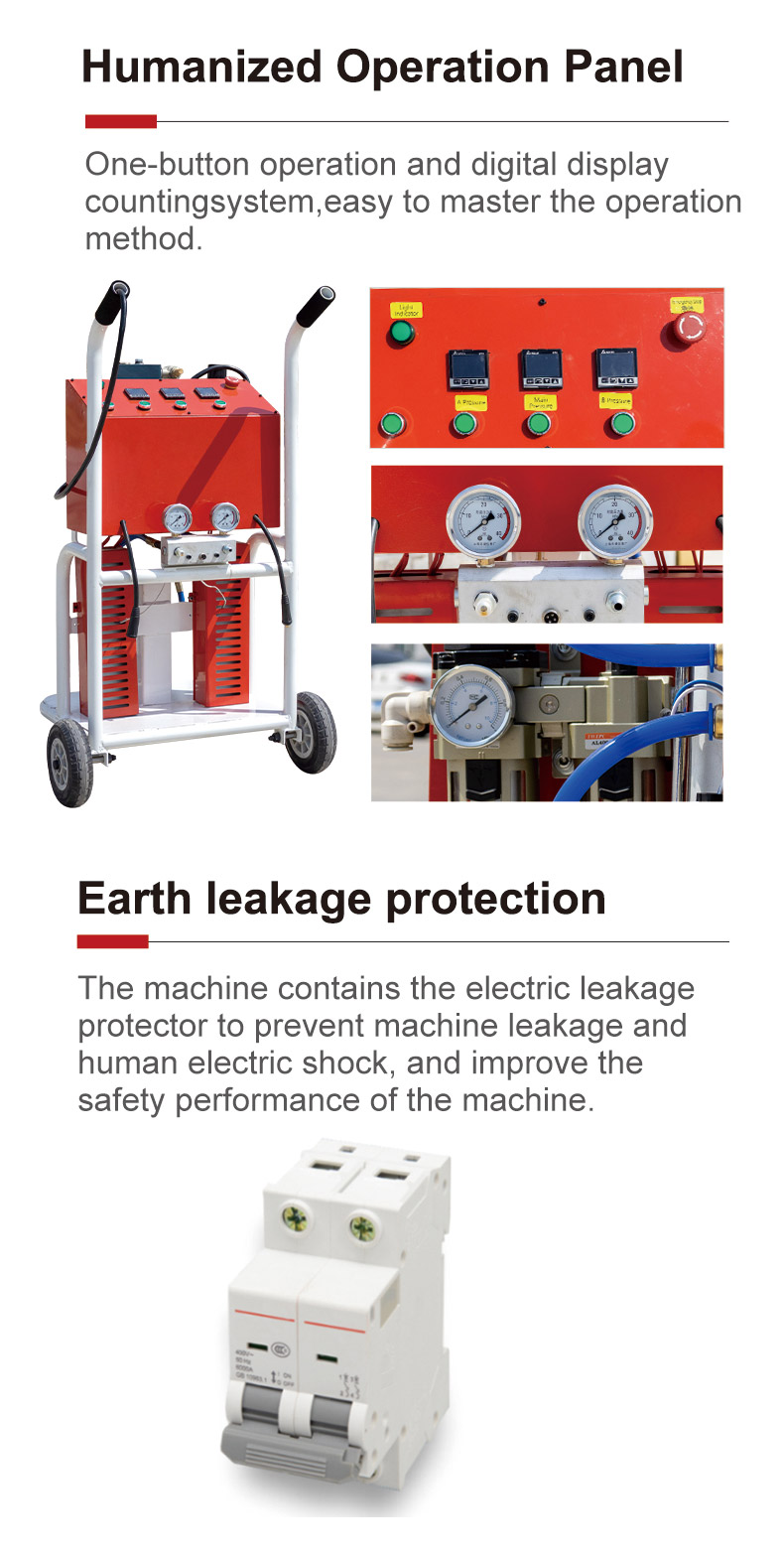

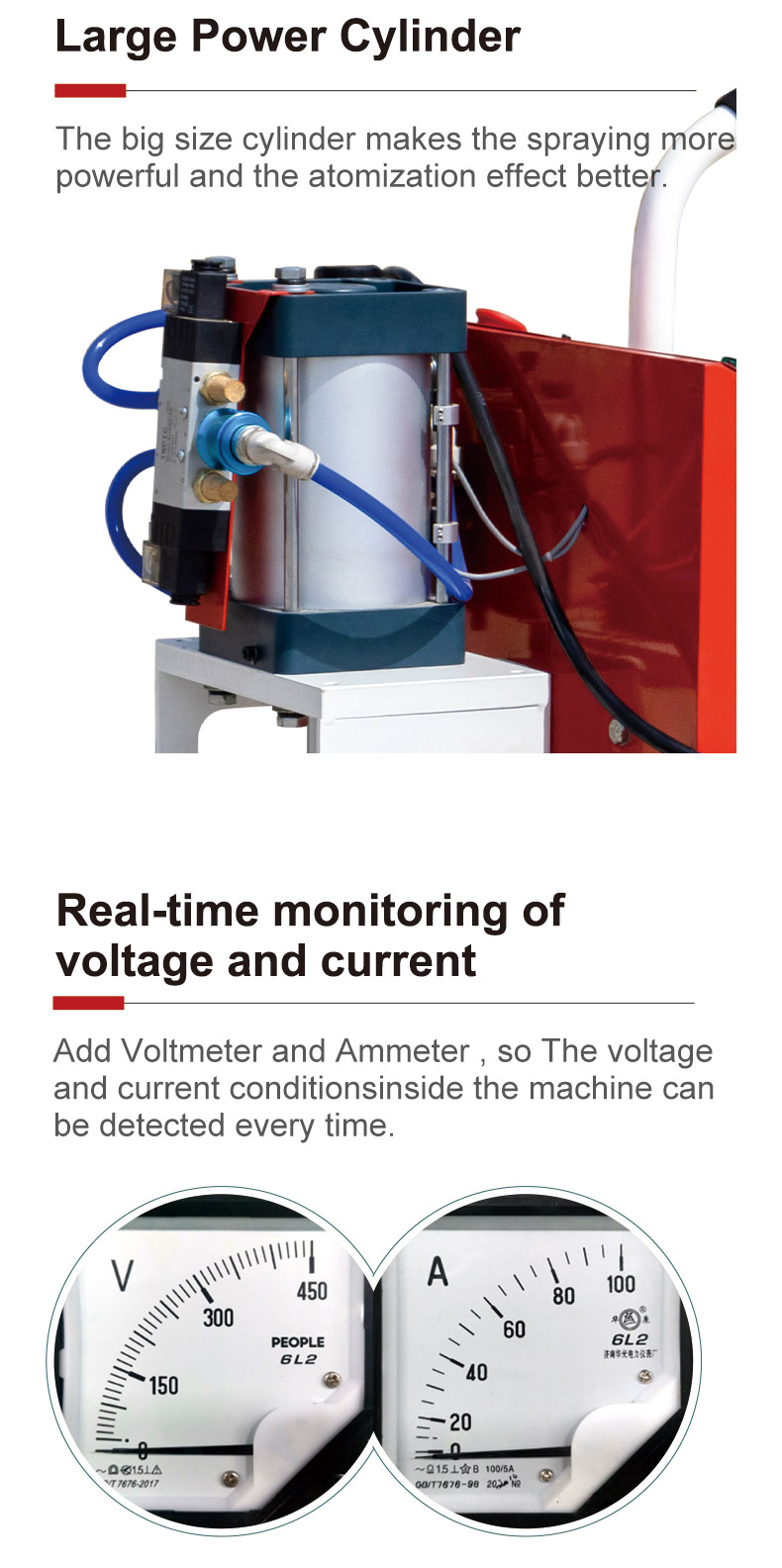

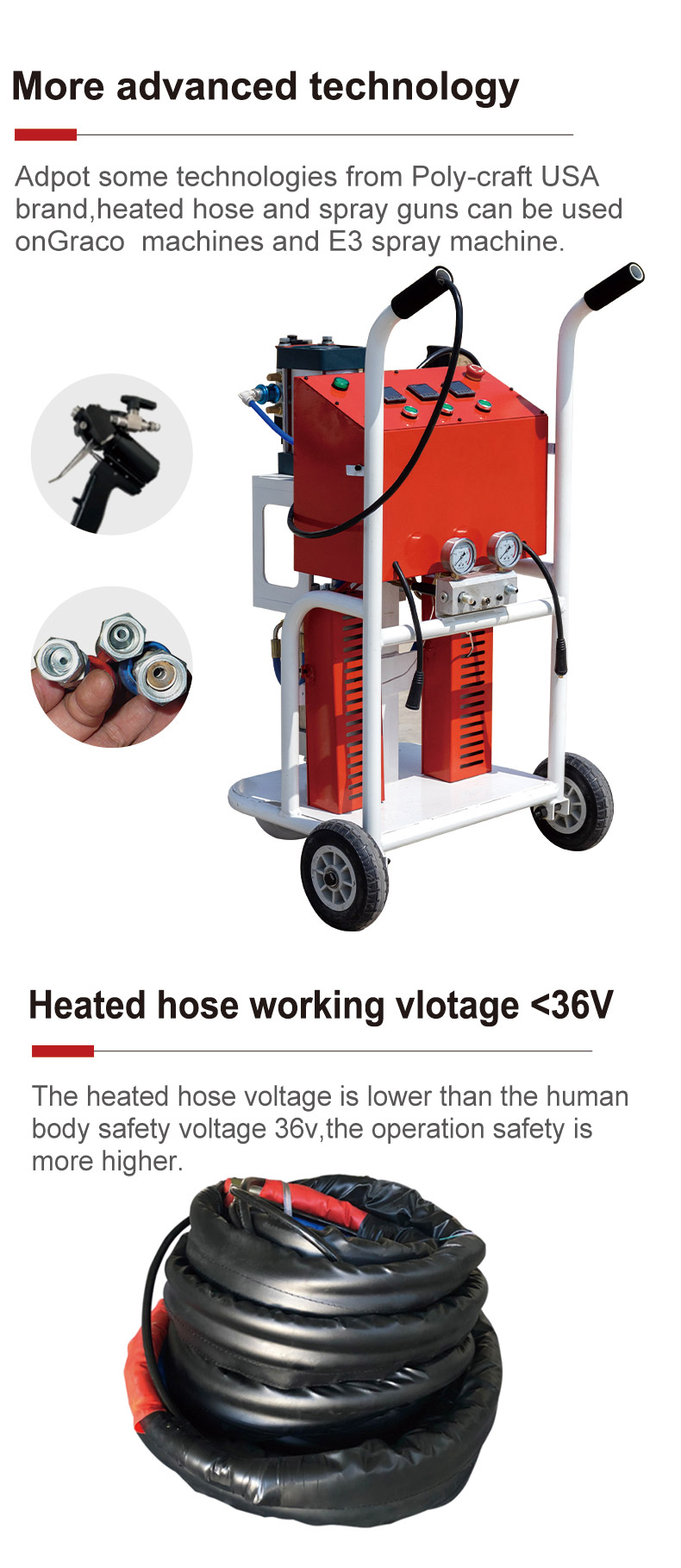

CNMC-E4 Pneumatic Polyurethane Spray Foam Machine Images
