CNMC-H800

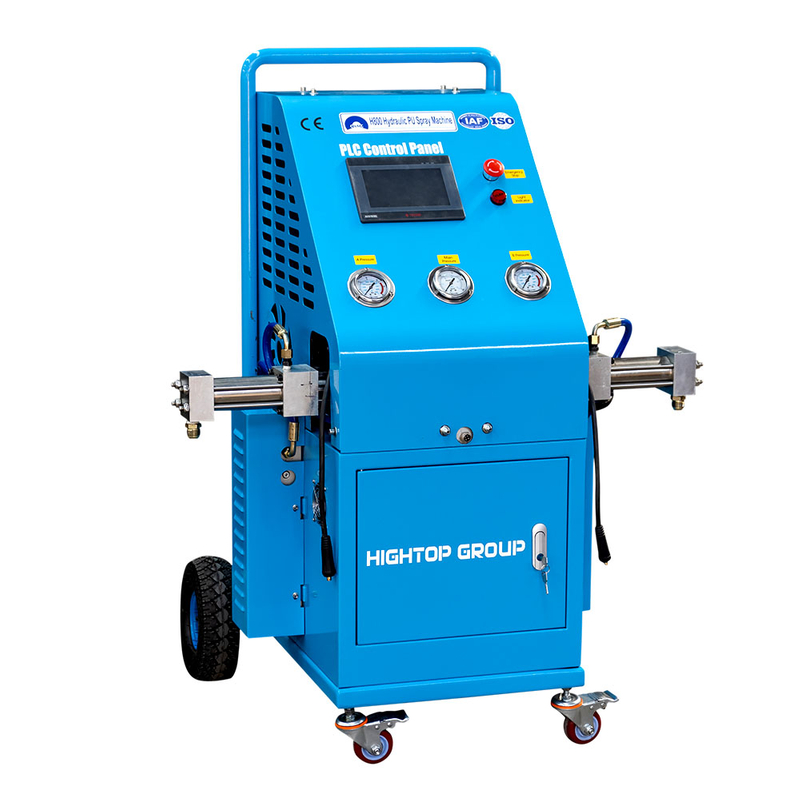

CNMC-H800 PU spray machine
Material use : closed cell and open cell 1:1 ratio ，polyurea waterproof material 1:1
Machine Power 18kw in total
Max pressure :25MPA
Power source :380V 50/60HZ
Air source:no less than 10 cfm,8 bar .
Net weight: 200kg Machine Size :70*100*130cm .
HS:8477800000
Remark :Standard machine include15 meters heated hose
Max support 120 meters heated hose
PLC liquid crystal display, showing working status from time to time.
The booster pump is horizontally pressurized, booster faster and stable.
3.75KW electric motor from Taiwan ,hydraulic station drive,working more stable ,no affected by season.
Itlay brand plunger pump and solenoid valve, high kinetic energy conversion and stable performance.
The static and dynamic pressure difference is slight ,the hydraulic station and the raw material pressure are designed with 1:1, the pressure is stable, and the raw material output is large flow.
Works normally in cold season, the main unit is heated by 6kw on one side, the total heating power is 12kw, the heating speed is fast, and the heating is evenly.
