Low Pressure Spray Foam Machine CNMC-600

CNMC-600 Low Pressure Spray Foam Machine Instruction

CNMC-600 low pressure spraying foam machine, with its excellent performance, occupies an important position in the field of polyurethane foam material spraying.

From the perspective of power configuration, it uses a 3-phase 4-wire 380v 50hz power supply with 1.5kw heating power to ensure uniform and stable material heating, laying the foundation for good foaming effect. The equipment is driven by pneumatic mode, which runs stably and ADAPTS to a variety of working environments. The required air source is 0.5-0.8mpa ≥ 0.6m ³, which can ensure the efficient operation of the equipment under the condition of the air source.

Its chemical output performance is excellent, the output range is 2-9 kg/min, can be flexibly adjusted according to different construction needs, whether it is fine work of small projects, or large-scale spraying of large projects, can calmly cope with. At the same time, the chemical output ratio of A and B materials can be accurately regulated between 1:1-1:3 to ensure that the mixing ratio of the two raw materials is just right, so that the polyurethane foam material is fully reacted, and the foam layer with stable performance and reliable quality is formed.

This equipment by CE, EPA, ISO, TUV and other authoritative certification, quality assurance. It is suitable for building insulation, sound insulation and noise reduction, packaging protection and other fields. In the construction of external wall insulation, polyurethane foam can be quickly and evenly sprayed on the wall to form a continuous and airtight insulation layer, which effectively improves the energy-saving effect of the building; When used for sound insulation and noise reduction projects, it can be sprayed on indoor walls, ceilings and other parts to reduce noise transmission and create a quiet and comfortable space; In the field of packaging protection, it can provide buffer protection for fragile and valuable items to prevent damage during transportation.

CNMC-600 Low Pressure Spray Foam Machine

Technical Parameters:

Power source:3- phase 4 wires 380v 50HZ

Heating power:1.5KW

Driven mode:Pneumatic

Air source:0.5-0.8MPa≥0.6m³

Chemical output:2-9kg/min

A and B chemical output ratio:1:1-1:3

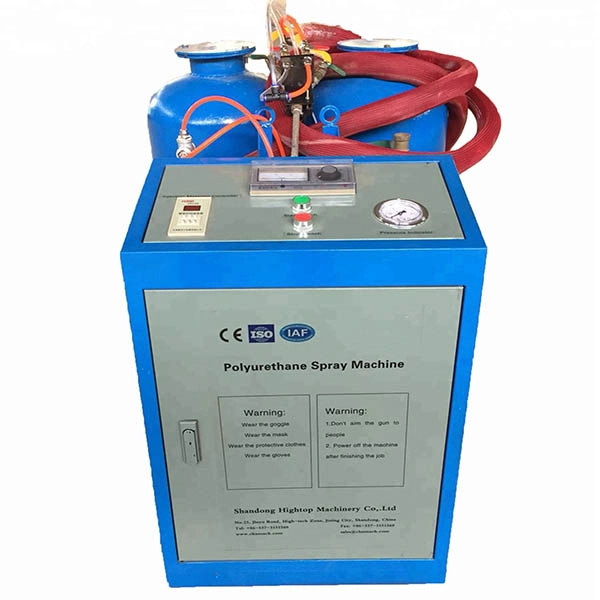

CNMC-600 Low Pressure Spray Foam Machine Images
