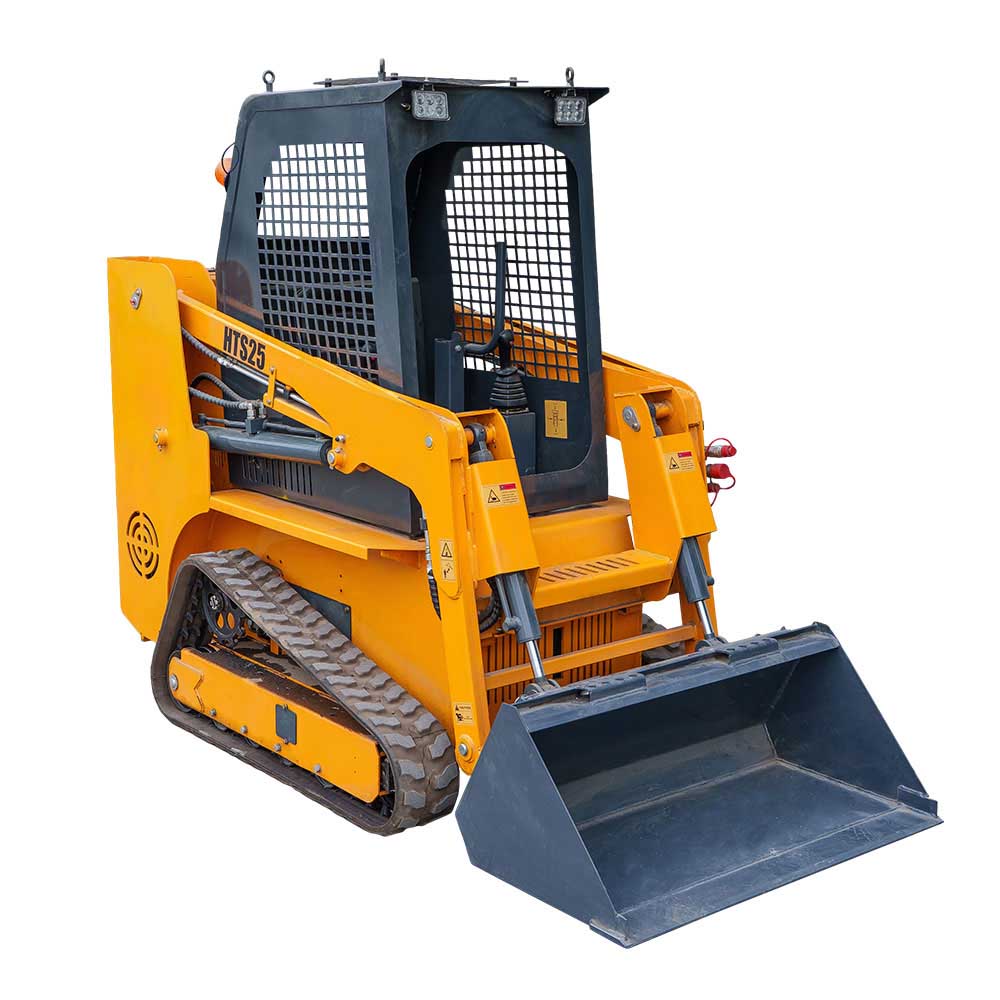

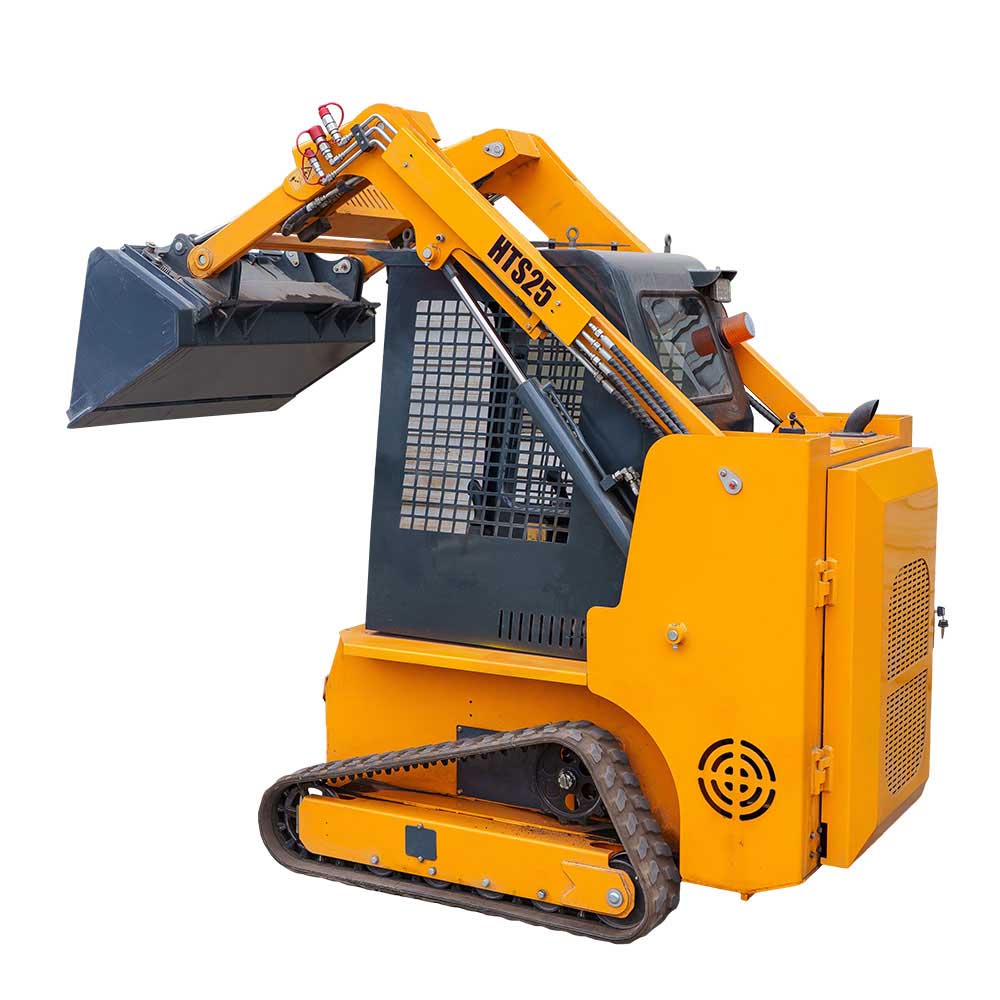

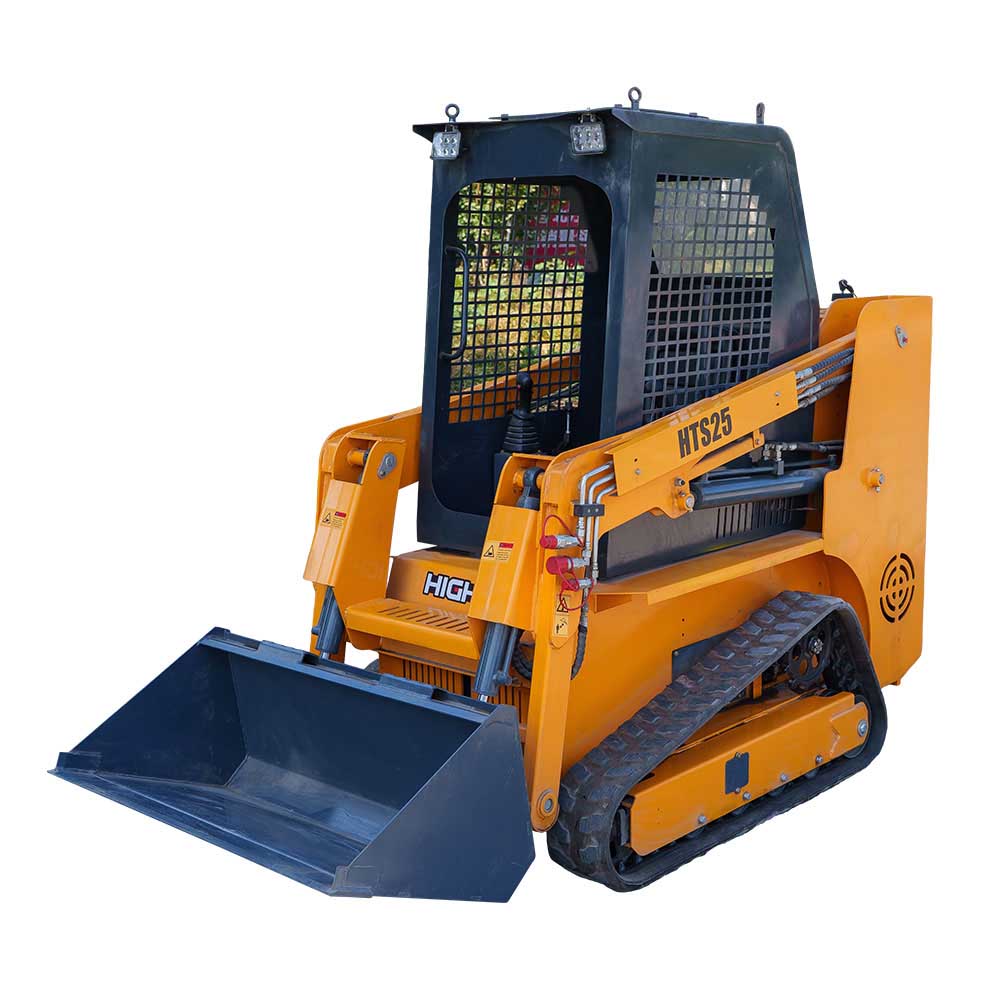

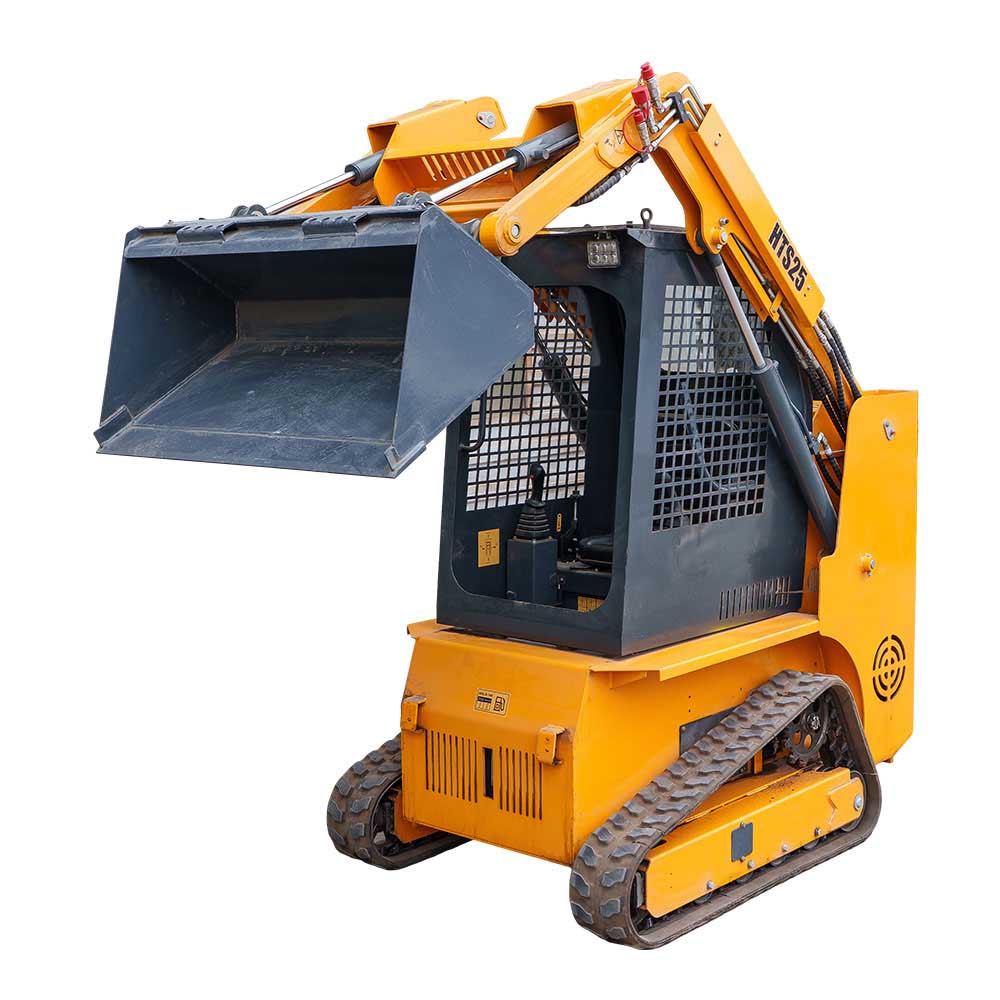

HTS25
Our HTS25 compact tracked skid steer loader is engineered to deliver stable working performance within tight and limited working areas. Equipped with rubber track undercarriage, this crawler skid steer works well on muddy, sloped and uneven ground, ideal for landscaping, small construction and farm projects.
This HTS25 mini tracked skid steer comes with two optional diesel engine choices, providing reliable power, low noise and good fuel economy for long-time continuous operation. The high-quality hydraulic system adopts pilot control and multi-function electronic control, bringing smooth, precise and easy operation experience.
The operator cabin is ergonomically designed with wide vision view. It is fitted with protective frame, working lamp, horn and safety belt to guarantee operator safety. The cabin can tilt backward at a large angle, allowing convenient access for inspection and maintenance of core components.
Thanks to the quick-attach system and auxiliary hydraulic circuit, the HTS25 skid steer can be matched with different attachments including standard bucket, hydraulic breaker, wood grapple, snow blower, dozer blade and pallet fork. It greatly expands the machine’s functions for earthmoving, demolition, material handling, snow removal and yard renovation.
Item | Specification |
|---|---|
Model | HTS25 Tracked Skid Steer Loader |
Engine Option 1 | Kubota D1105 |
Rated Power (Option1) | 18.2 kW |
Engine Option 2 | Laidong 385 |
Rated Power (Option2) | 18.5 kW |
Fuel Tank Capacity | 23 L |
Operating Load | 300 kg |
Control Method | Pilot Control & Multi-function Electronic Control |
Rated Flow | 36 L/min |
Hydraulic Pressure | 160 Bar |
Bucket Capacity | 0.20 m³ |
Height to Top of Cab | 1990 mm |
Overall Length with Bucket | 2730 mm |
Dumping Angle at Maximum Height | 21° |
Rollback of Bucket at Full Height | 34° |
Rollback of Bucket on Ground | 109° |
Overall Width | 1180 mm |
Bucket Width | 1130 mm |
Max Travel Speed | 3 km/h |
Track Model | 2007245 |
Overall Operating Height | 3380 mm |
Height to Bucket Hinge Pin | 2610 mm |
Overall Length without Bucket | 2130 mm |
Dumping Height | 2130 mm |
Dumping Reach | 510 mm |
Wheelbase | 1080 mm |
Ground Clearance | 165 mm |
Angle of Departure | 25° |
Rear Axle to Bumper | 660 mm |
Rubber Track Chassis Engineering rubber tracks feature strong traction and climbing performance. Low ground pressure protects lawn and pavement, suitable for muddy, wet and sloped terrain.
Dual Optional Diesel Engines Two mature engine options for customers. Stable power output, low emission and low fuel consumption, fit for long-hour outdoor work.
Precision Hydraulic System Premium hydraulic core components with stable pressure output. Pilot control system makes operation sensitive and easy for operators.
User-friendly Maintenance Design Tiltable cabin structure. Users can quickly access engine and hydraulic parts for routine inspection and repair, saving service time.
Multi-attachment Compatibility Quick change attachment system allows fast switch between working tools. One machine can complete multiple kinds of jobs.
Landscaping, garden renovation and yard construction
Farm material handling, barn cleaning
Urban narrow site construction, indoor demolition
Backyard excavation, small earth moving project
Snow removal, waste and debris cleanup
Contact our sales team to get the latest quotation, operation manual and working videos of the HTS25 tracked skid steer loader.
