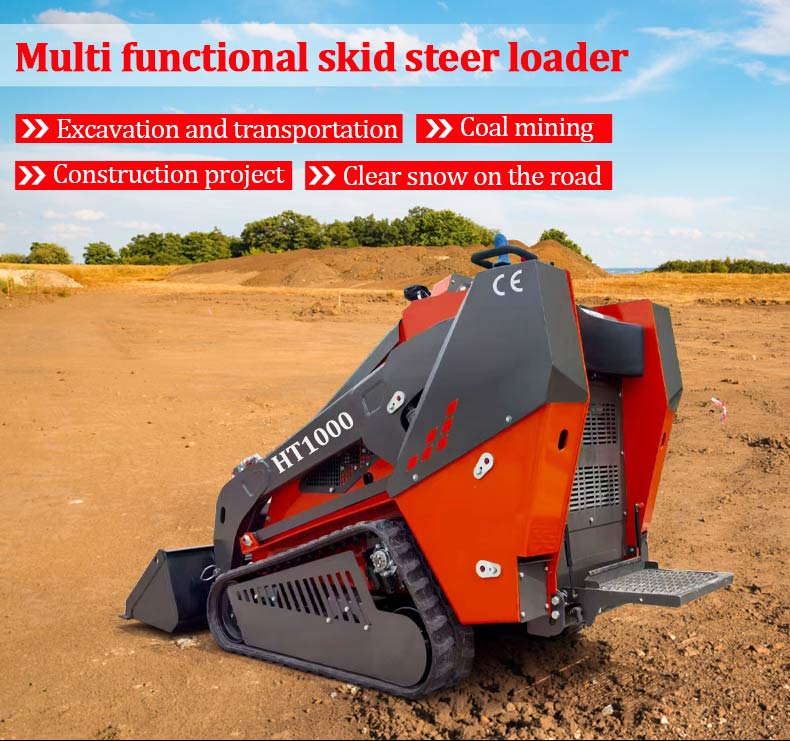

Skid steer loaders, also known as skid steer loaders or multi-purpose utility vehicles, are specialized wheeled chassis equipment that utilize the difference in linear speed between the wheels on opposite sides to achieve vehicle steering. Their features include compact overall dimensions, the ability to turn on the spot, and the capability to quickly swap or attach various attachments on-site. They are suitable for confined workspaces, uneven terrain, and situations requiring frequent changes in task requirements.
| Quantity: | |
|---|---|

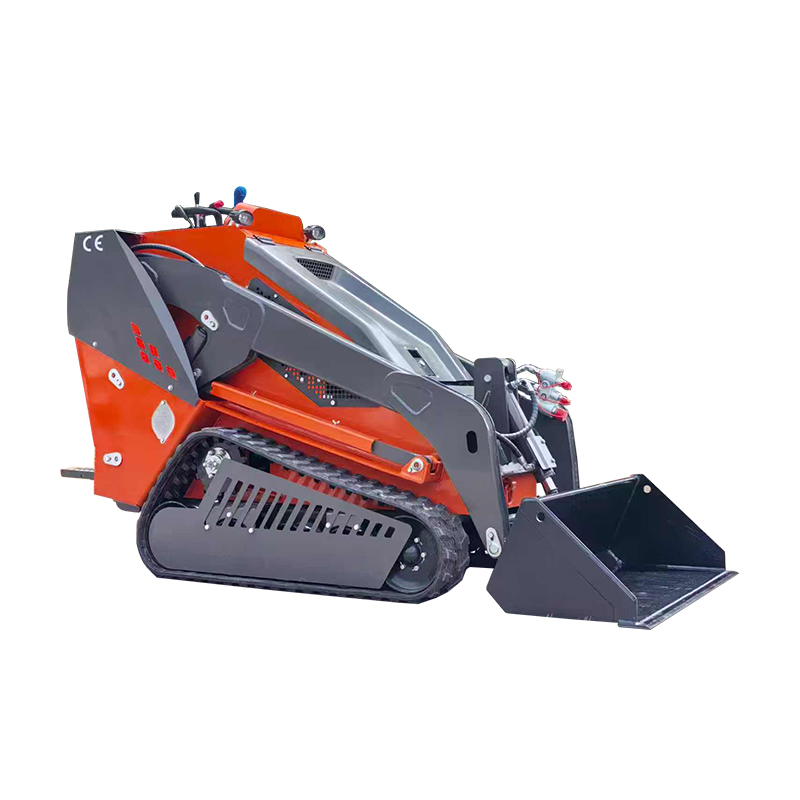

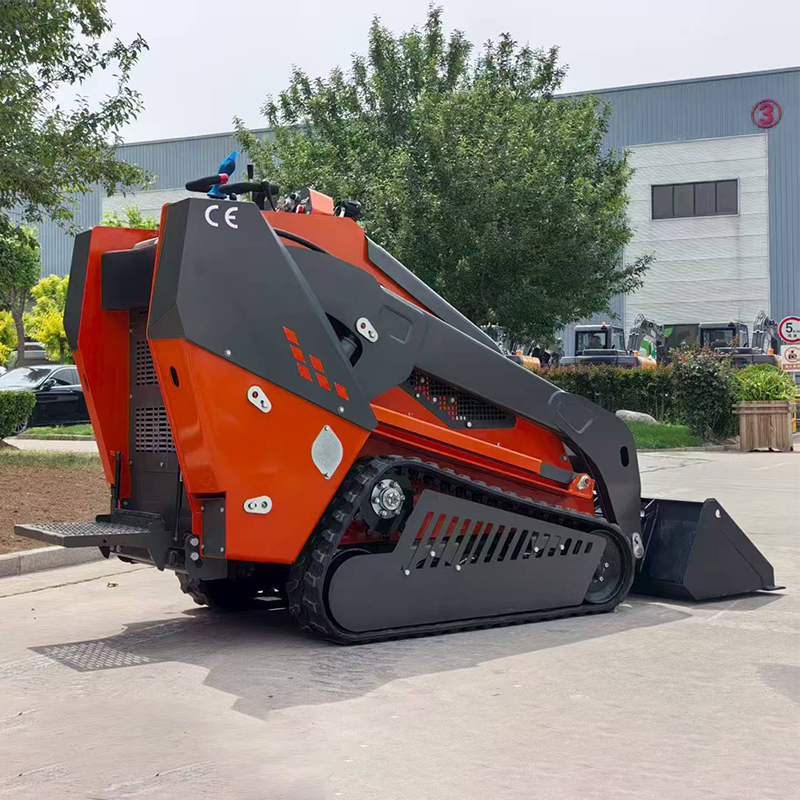

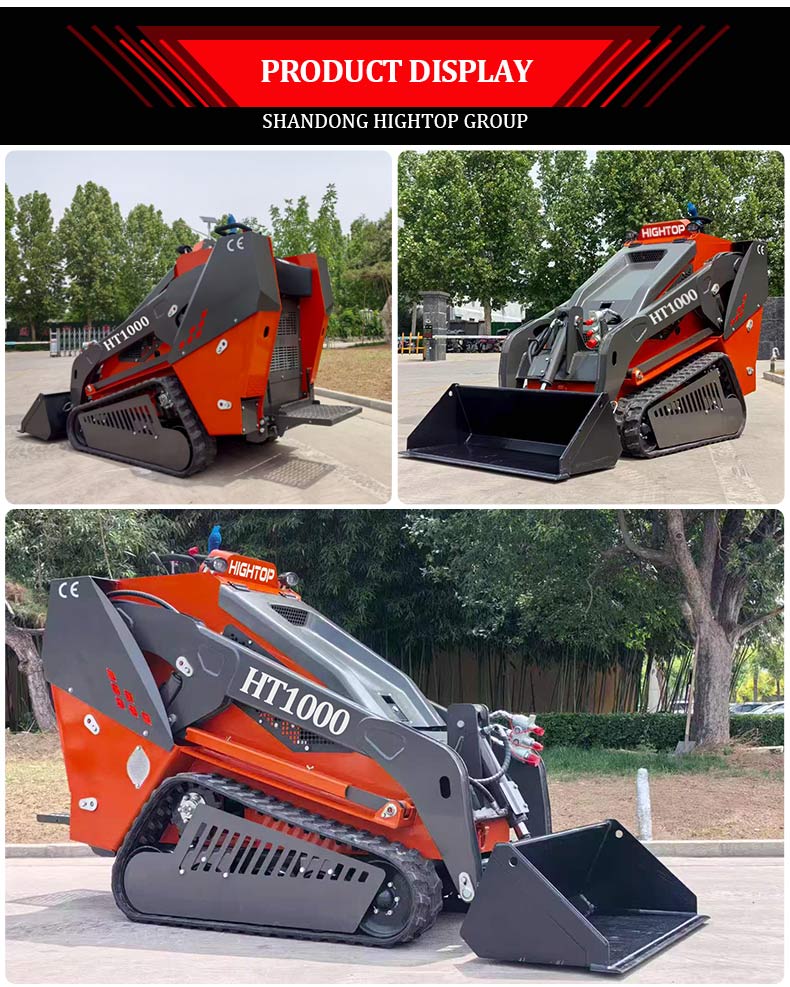

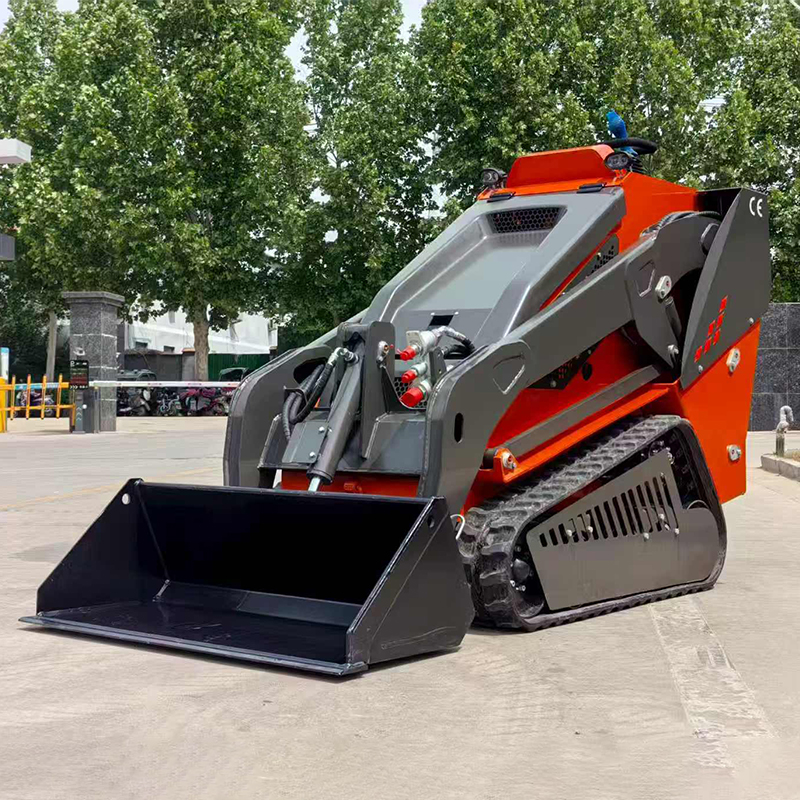

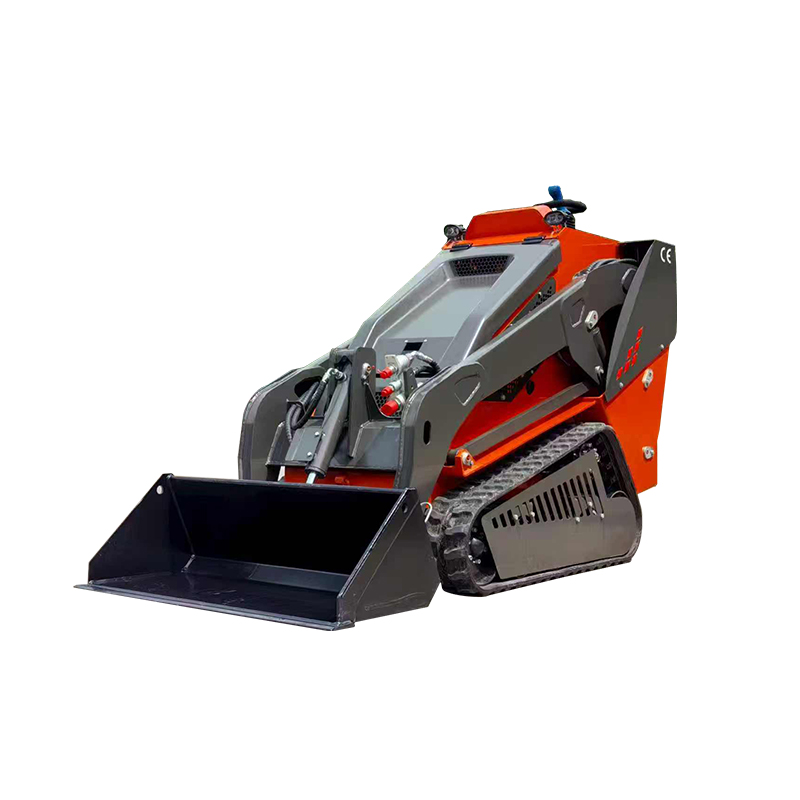

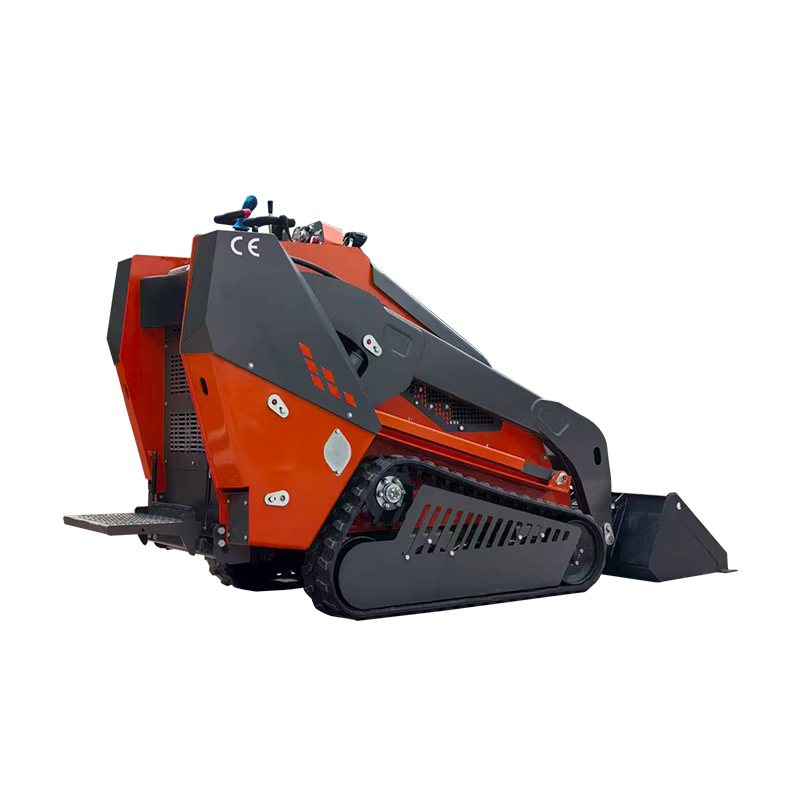

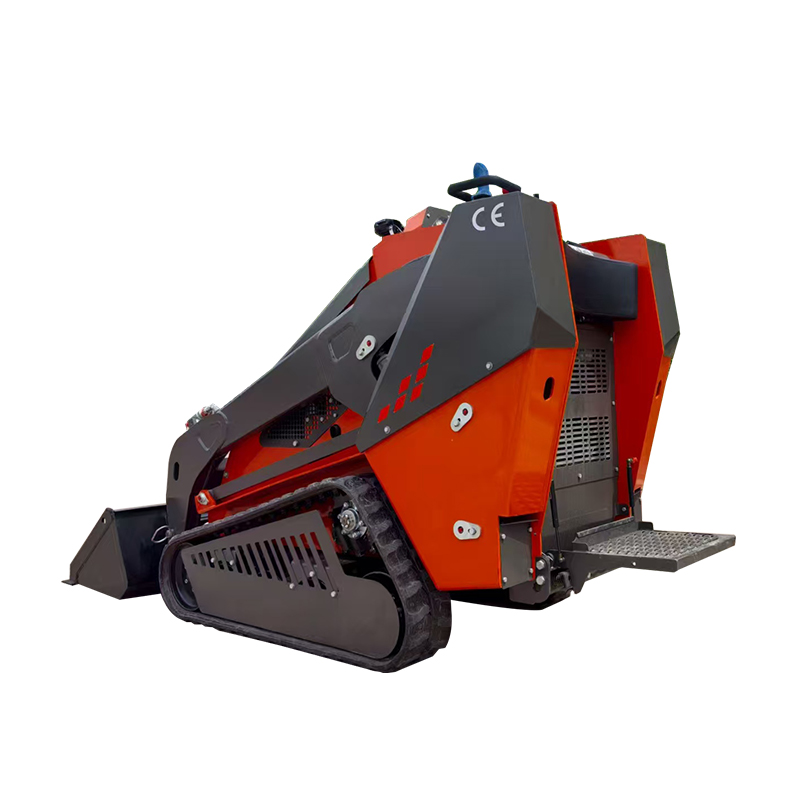

HT1000
Application Areas
Construction: Capable of transporting construction materials such as sand and cement, performing small-scale foundation excavation, trench digging, and construction waste cleanup.
Agricultural Production: Suitable for transporting feed and fertilizer, stacking hay, leveling farmland, and clearing manure and debris from livestock farms.
Landscaping: Capable of transplanting greenery, digging tree pits, leveling land, clearing dead branches and fallen leaves, as well as transporting stones and landscape features.
Municipal Engineering: In urban road maintenance, it can be used for material transport and paving, road compaction, and also participates in trench excavation and backfilling during underground pipeline construction.
Advantages

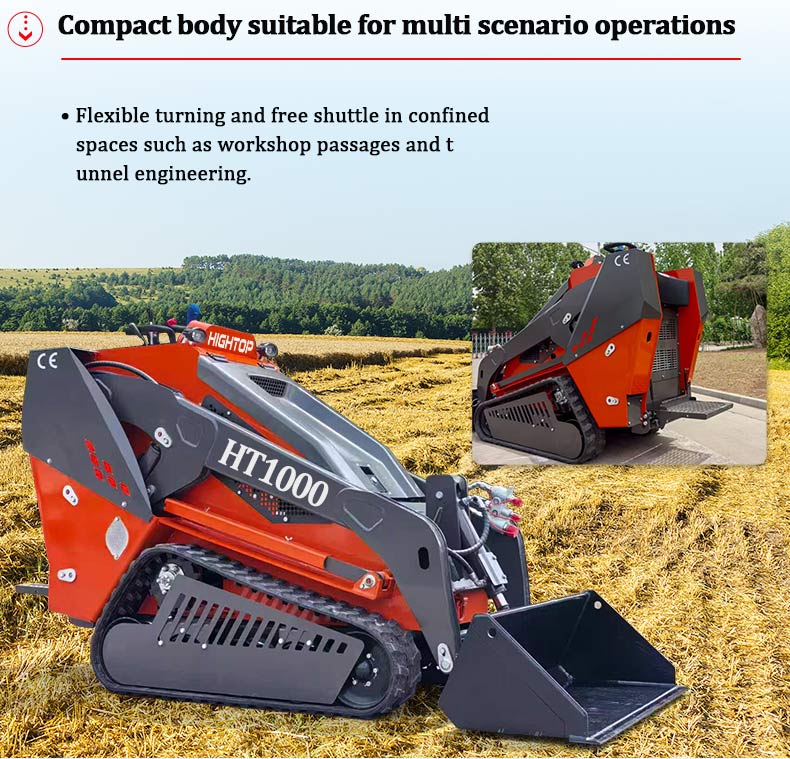

Compact and Agile: Its small footprint and nimble maneuverability enable it to operate in areas inaccessible to larger equipment, significantly expanding its operational reach.

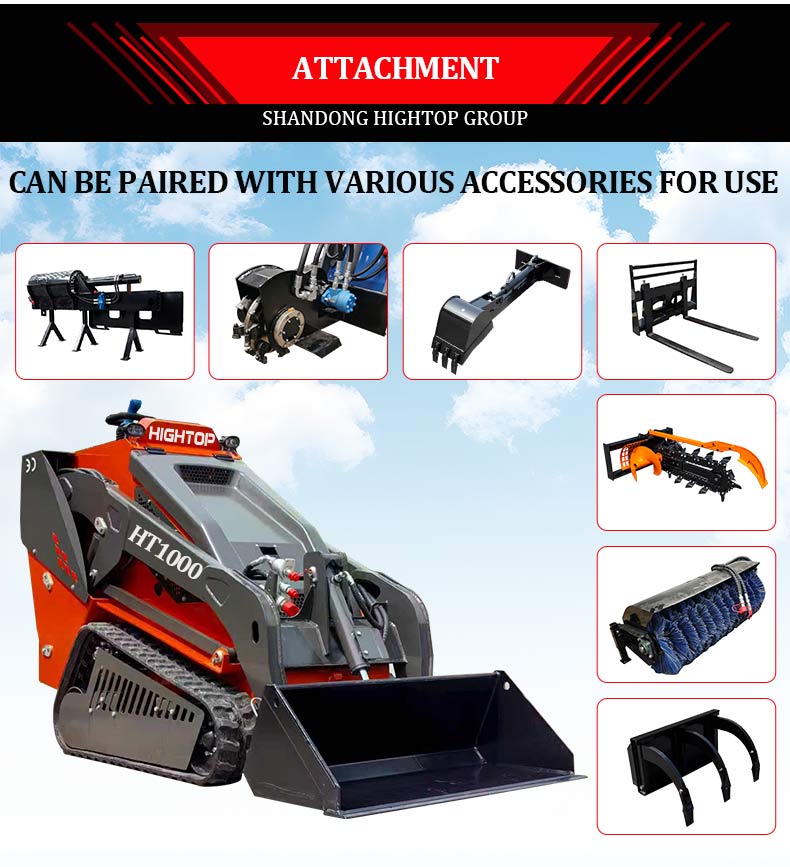

Multi-Functional: By quickly swapping out different attachments, it can swiftly switch between work modes to perform multiple functions, reducing equipment procurement costs and enhancing utilization rates.

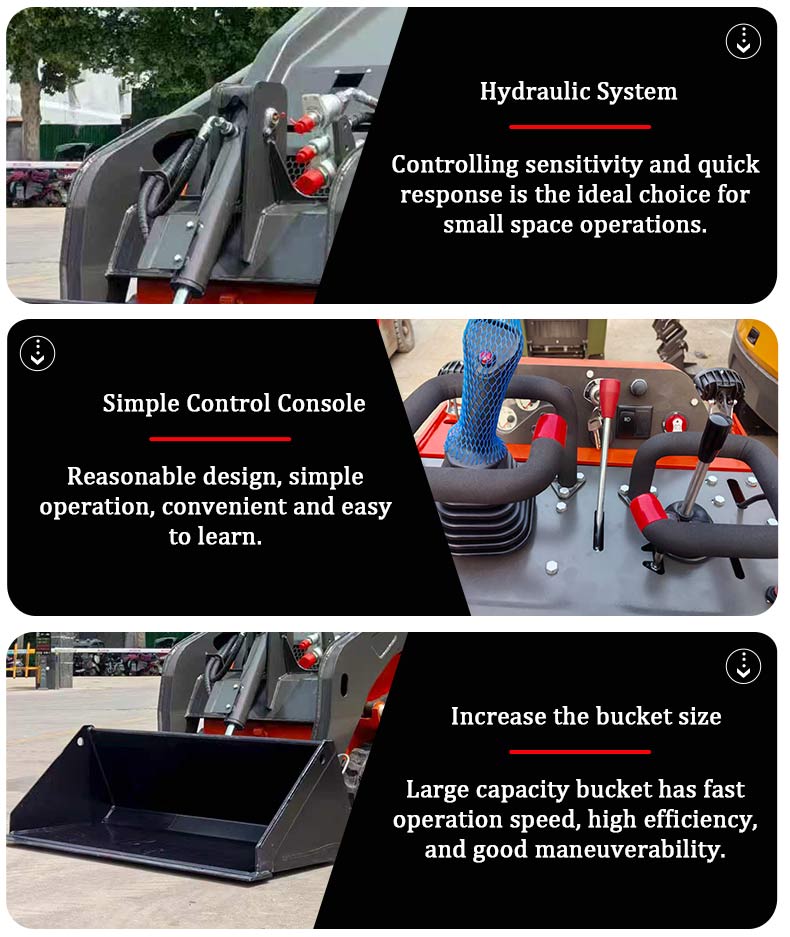

Easy to Operate: Operators can master its controls after minimal training, lowering labor and training expenses.

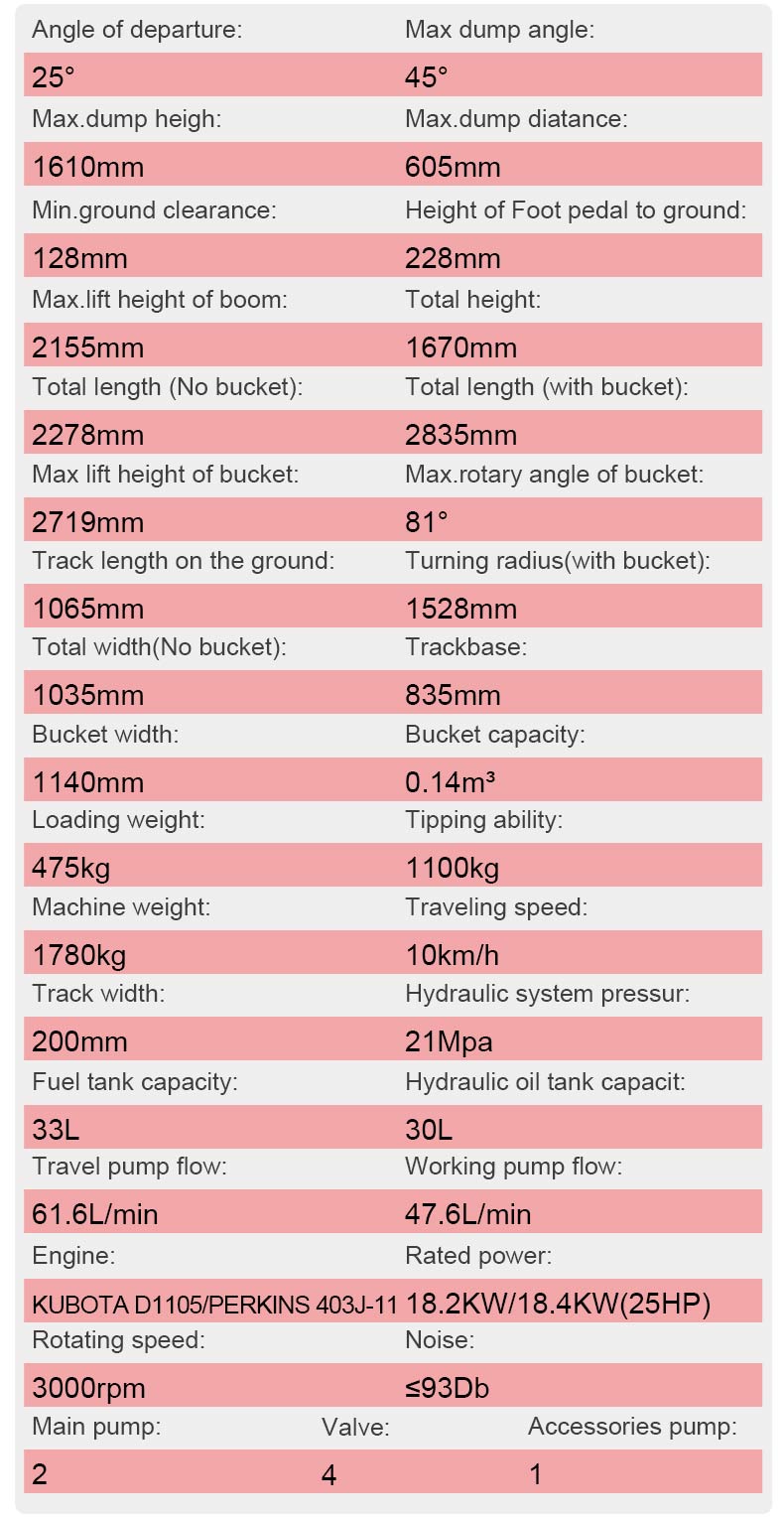

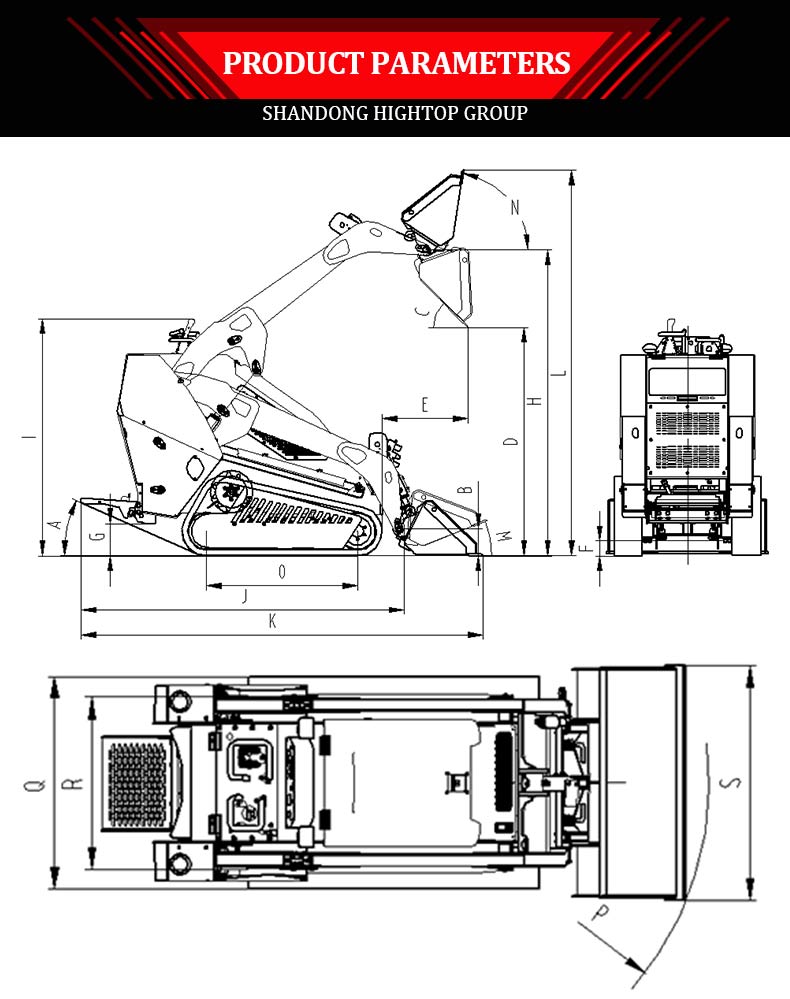

Angle of departure | 25° |
Max.dump heigh | 1610mm |
Min.ground clearance | 128mm |
Max.lift height of boom | 2155mm |
Total length (No bucket) | 2278mm |
Max lift height of bucket | 2719mm |
Track length on the ground | 1065mm |
Total width(No bucket) | 1035mm |
Bucket width | 1140mm |
Loading weight | 475kg |
Machine weight | 1780kg |

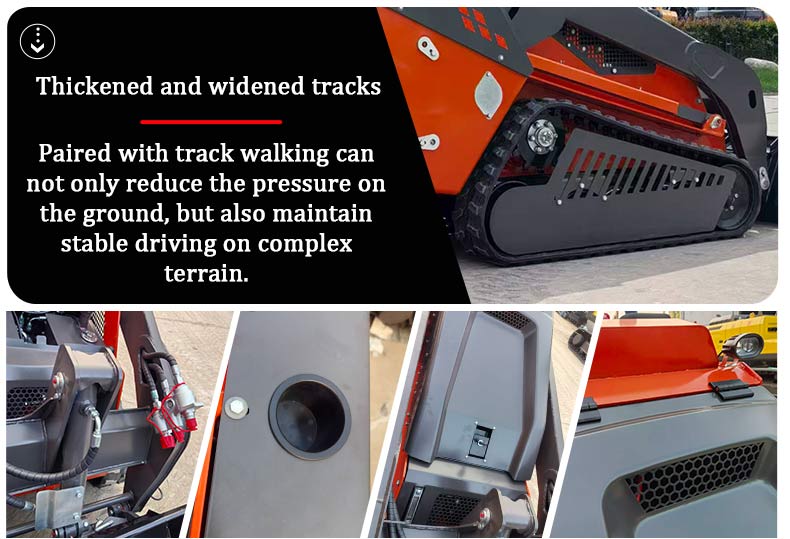

Track width | 200mm |
Fuel tank capacity | 33L |
Travel pump flow | 61.6L/min |

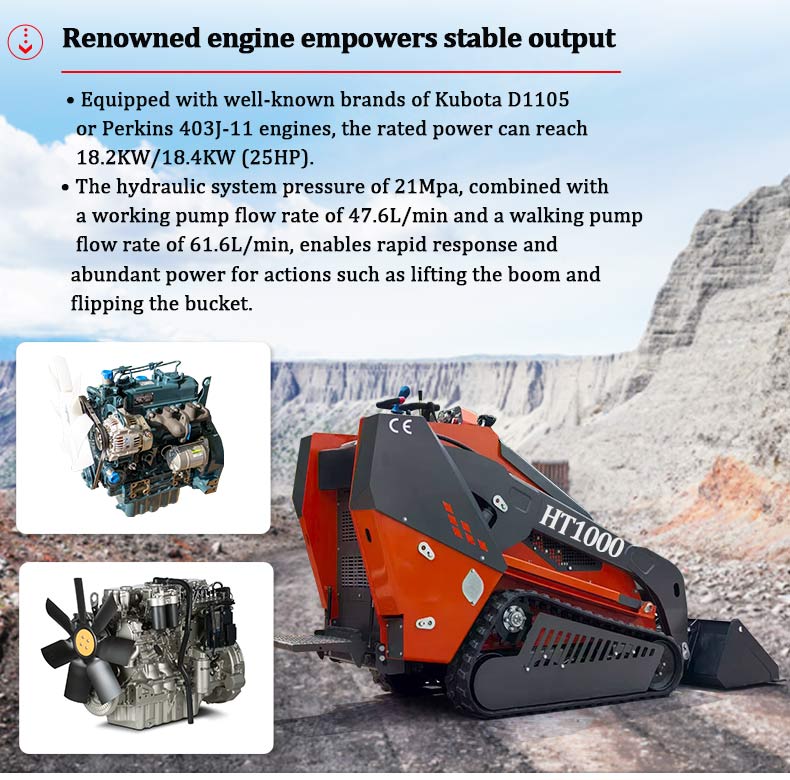

Engine | KUBOTA D1105/PERKINS 403J-11 |
Rotating speed | 3000rpm |
Main pump | 2 |
Max dump angle | 45° |
Max.dump diatance | 605mm |
Height of Foot pedal to ground | 228mm |
Total height | 1670mm |
Total length (with bucket) | 2835mm |
Max.rotary angle of bucket | 81° |
Turning radius(with bucket) | 1528mm |
Trackbase | 835mm |
Bucket capacity | 0.14m³ |
Tipping ability | 1100kg |
Traveling speed | 10km/h |
Hydraulic system pressur | 21Mpa |
Hydraulic oil tank capacit | 30L |
Working pump flow | 47.6L/min |
Rated power | 18.2KW/18.4KW(25HP) |
Noise | ≤93Db |
Valve | 4 |
Accessories pump | 1 |
