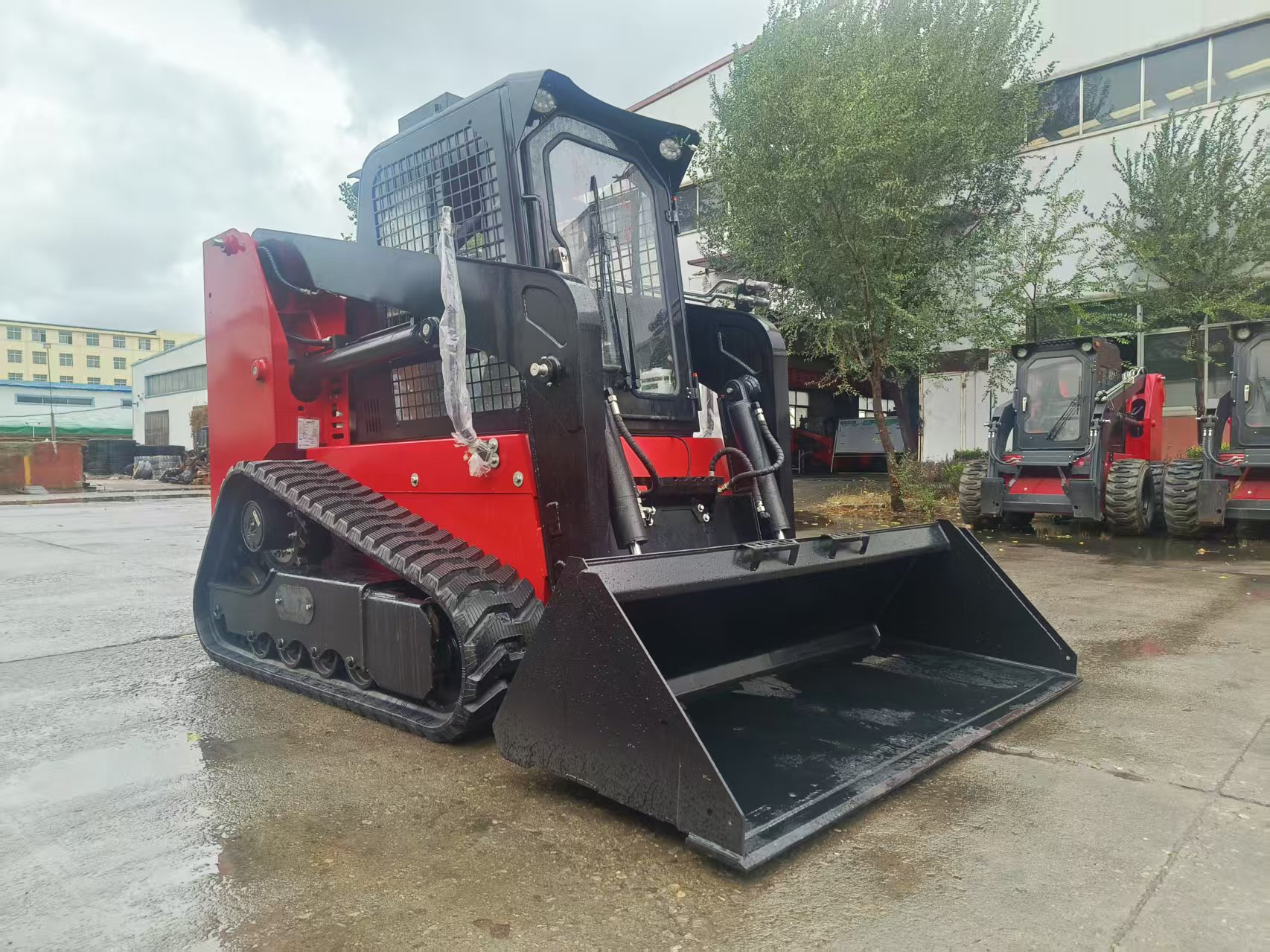

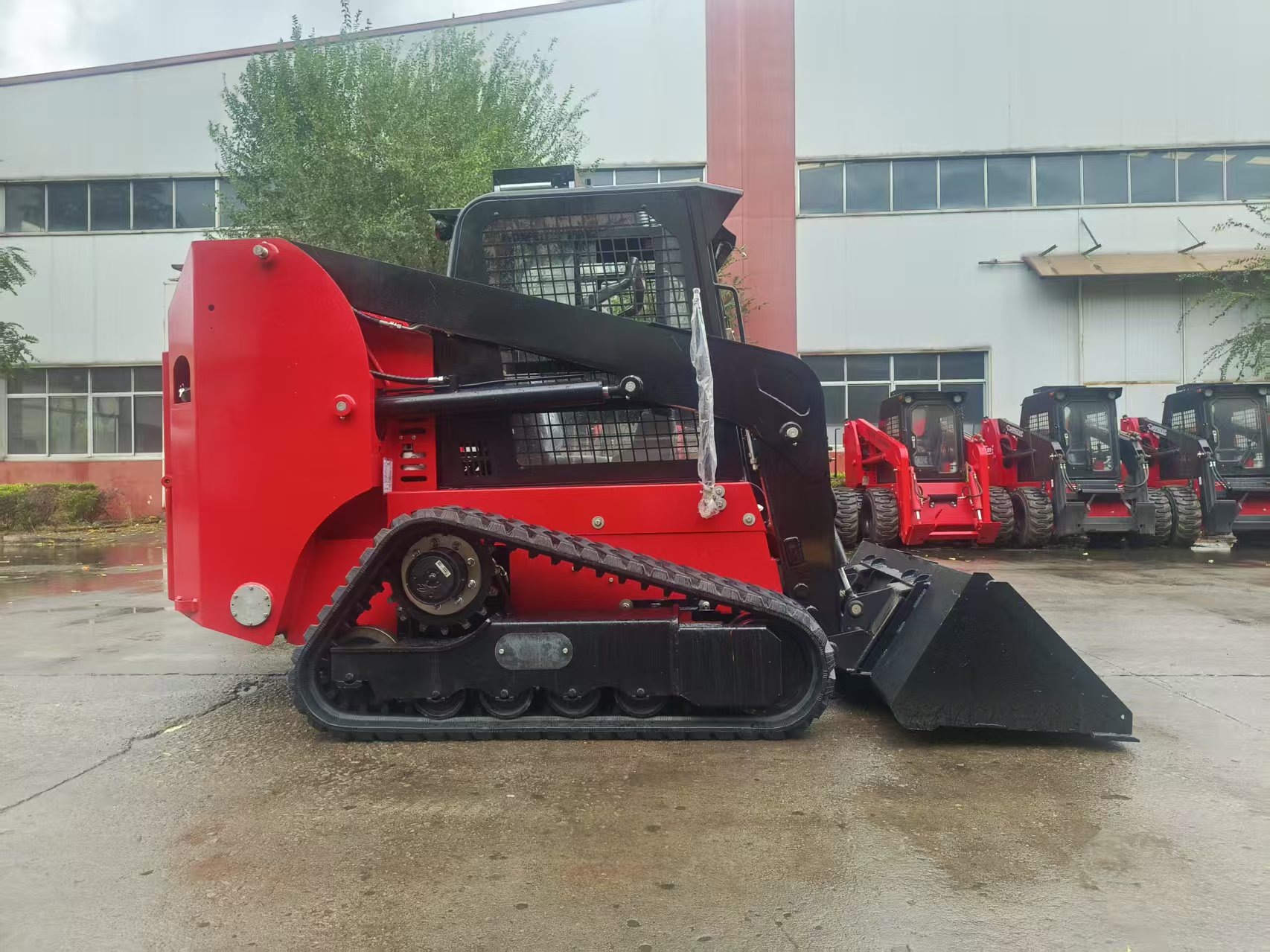

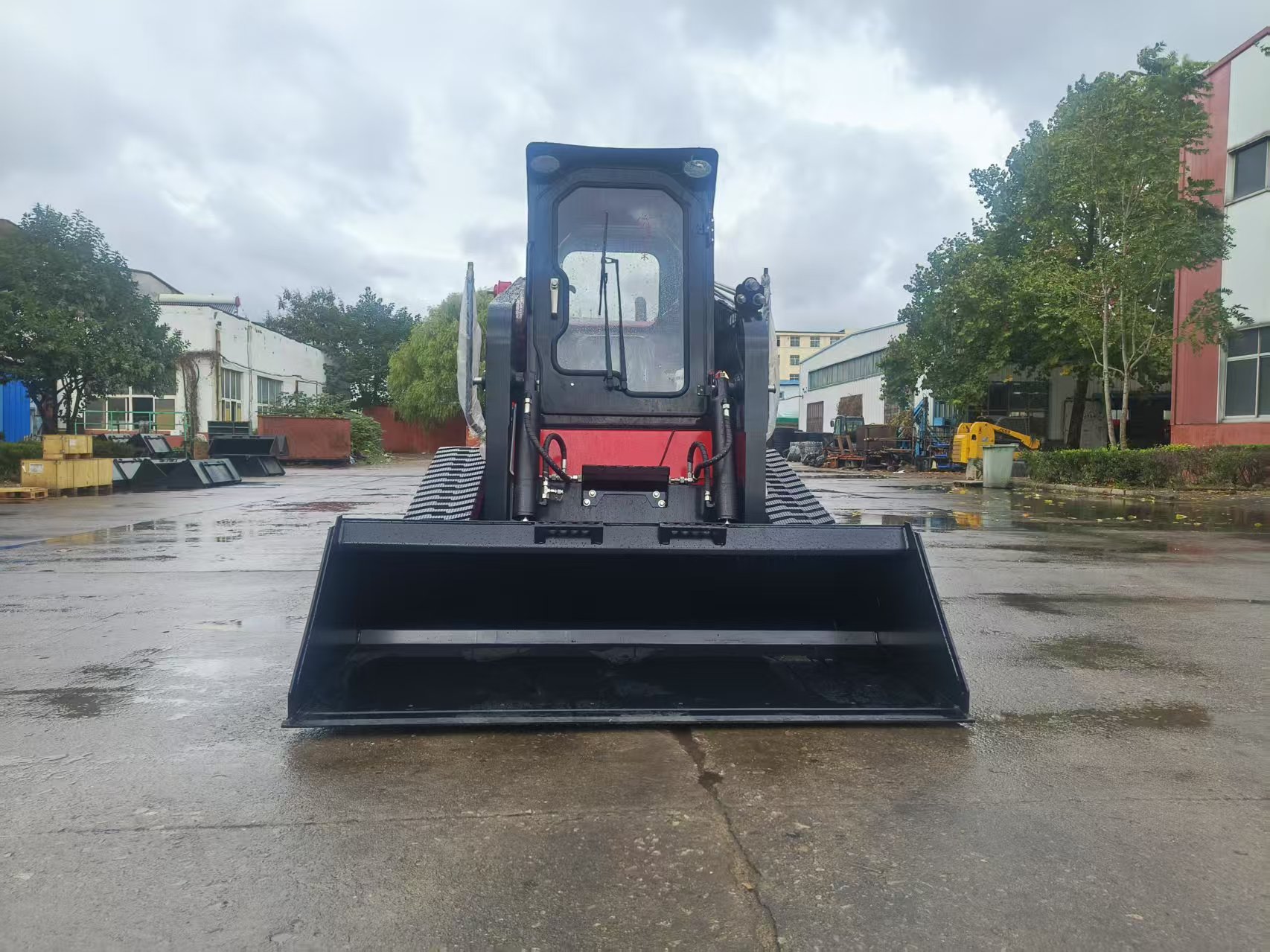

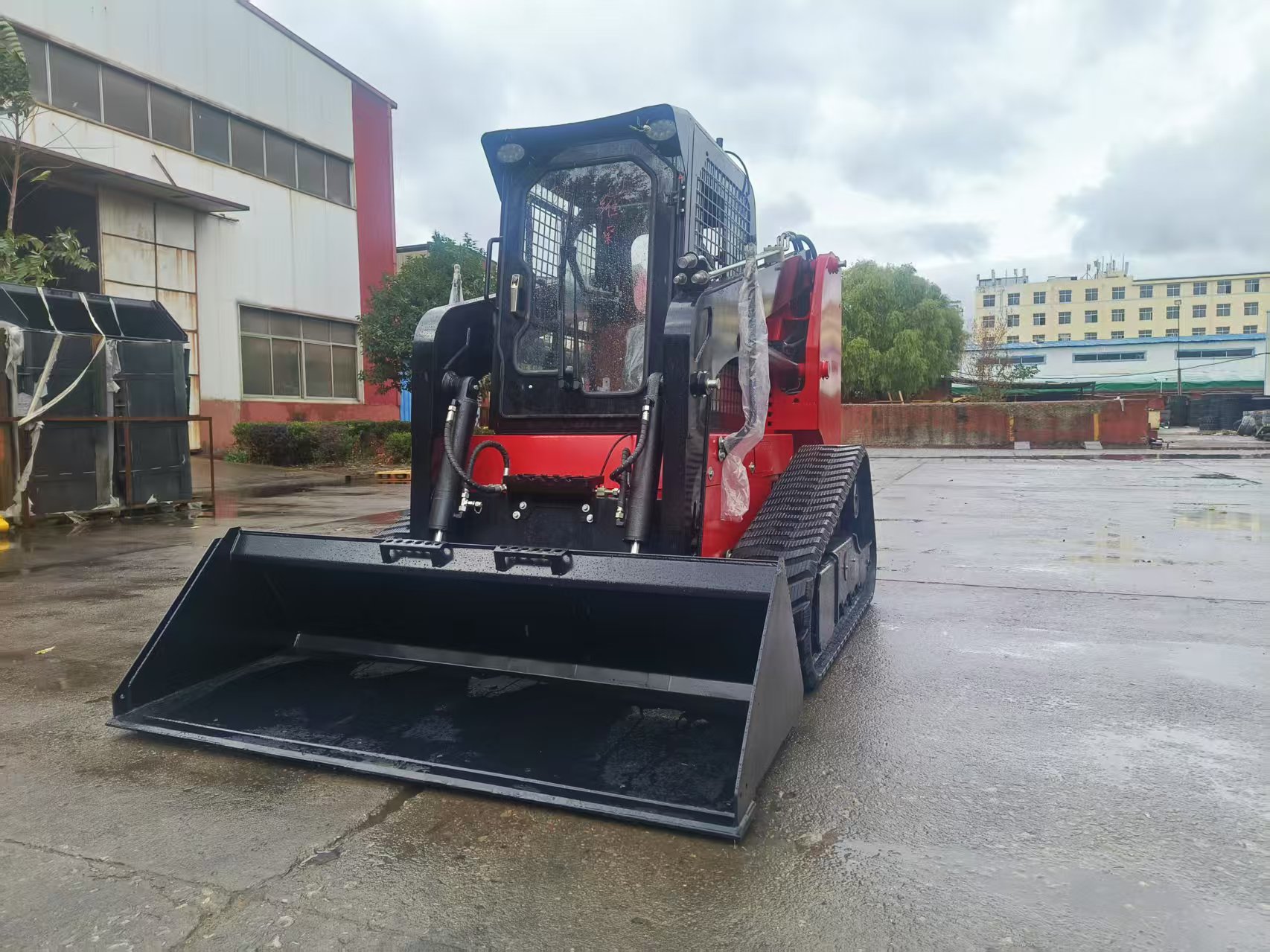

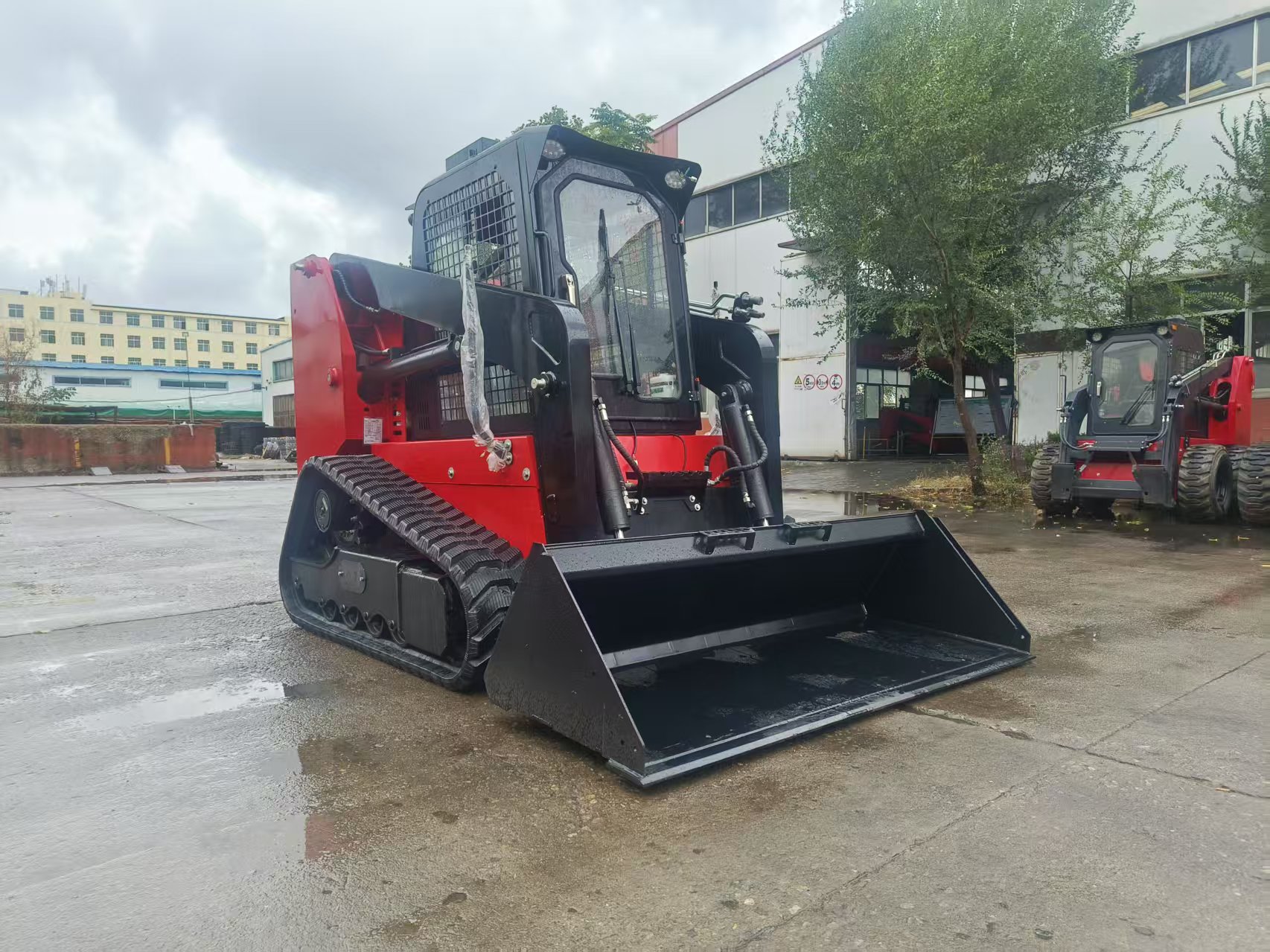

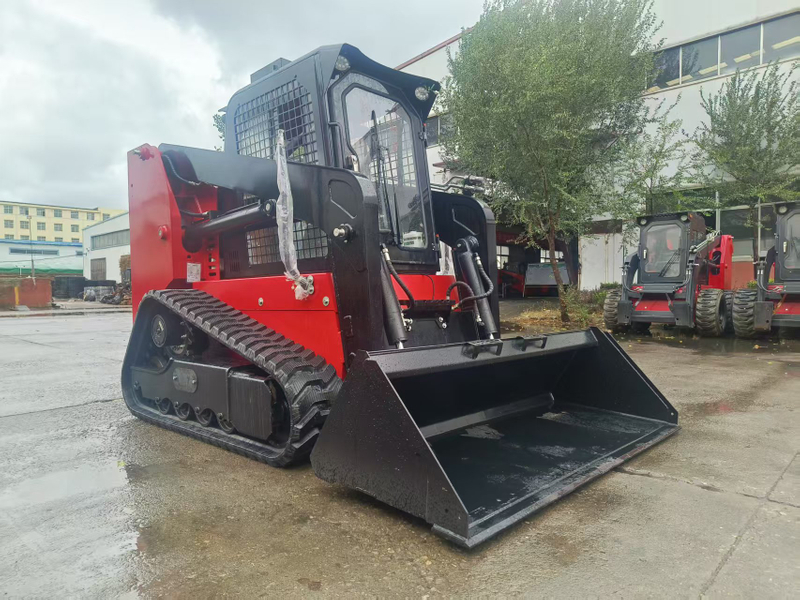

HTS100
The HTS100 is an engineering work machine suitable for a variety of work scenarios. With reasonable performance parameters and stable power configuration, it can perform well in different work scenarios.
In terms of work performance, the HTS100 has stable work performance. It has a working weight of 4800kg, a rated load of 1200kg, and a bucket capacity of 0.6m³, which can handle medium-scale material loading tasks. With a maximum travel speed of 12/18 km/h, it can efficiently move between work sites, reducing non-working time. Its maximum traction force exceeds 30 kN, and its maximum digging force is ≥20 kN. Combined with a boom lifting time of 7 seconds, it maintains a stable rhythm in various operations, helping to improve overall work efficiency.
In terms of the engine, the HTS100 is equipped with a Weichai WP4.1 engine, with a rated power of 74 kW/rpm (at 2,200 rpm) and a displacement of 4.088 L, meeting National III emission standards. This power combination provides the equipment with continuous and stable power output, ensuring smooth operation while meeting environmental requirements and adapting to different operational standards in various environments.
In terms of dimensions and specifications, the HTS100 offers good adaptability and operational convenience. With a maximum operating height of 4,800 mm, a bucket pivot height of 3,150 mm, and a cab top height of 2,160 mm, it provides operators with a comfortable working environment and an unobstructed view of the work area. Without the bucket, the total length is 3000mm, and with the bucket, it is 3795mm. The wheelbase is 1500mm, and the turning radius is 1365mm (without the bucket), 2439mm (front), and 1617mm (rear), enabling it to maneuver flexibly in narrow spaces and handle complex operational environments. Additionally, parameters such as a 2,450mm unloading height, 700mm unloading distance, and a maximum unloading angle of 40° enhance operational precision and convenience, meeting diverse unloading requirements.
In applications such as municipal engineering, small-scale mining, and agricultural operations, the HTS100 delivers balanced performance, making it a reliable partner for users' operations.
Model | HTS100 | |
Performance | Operating weight（kg） | 4800 |
Rated load（kg） | 1200 | |
Bucket capacity（m³） | 0.6 | |
Max Speed（km/h） | 12/18 | |
Max traction（kN） | ＞30 | |
Max breakout（kN） | ≥20 | |
Lifting time of boom（s） | 7 | |
Engine | Manufacturer | Weichai |
Model | WP4.1 | |
Rated power（kW/rpm） | 74/2200 | |
Engine displacement（L） | 4.088 | |
Emission Standard | National Standard III | |
Dimension | Overall operating height（mm） | 4800 |
Height to bucket hinge pin（mm） | 3150 | |
Height to top of cab（mm） | 2160 | |
Height to bottom of level bucket（mm） | 2983 | |
Without bucket length（mm） | 3000 | |
Overall length with bucket（mm） | 3795 | |
Dumping angle at maximum height（°） | 40 | |
Dumping height（mm） | 2450 | |
Dumping reach（mm） | 700 | |
Rollback of bucket on ground（°） | 30 | |
Rollback of bucket at full height（°） | 104 | |
Wheelbase（mm） | 1500 | |
Ground clearance（mm） | 200 | |
Angle of departure（°） | 20 | |
Front turning radius without bucket（mm） | 1365 | |
Front tuning radius（mm） | 2439 | |
Rear tuning radius（mm） | 1617 | |
Rear axle to bumper（mm） | 938 | |
Tread width（mm） | 1654 | |
Width（mm） | 1994 | |
Bucket width（mm） | 2030 |
