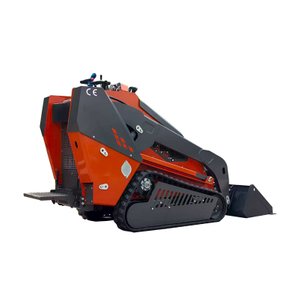

HT-V1000
CNMC
1. The width of the body is only 900, so it can work freely in and out of some narrow space (the back door of the yard).
2. The vertical lifting design of big arm and the maximum height of bucket pin is 2350 (only 2100 for the same product), which can be loaded on high board trucks.
3. The engine adopts EPA and Euro 5 dual-certified diesel power (Perkins 403J-18.5KW or Kubota D902-18.5KW), the hydraulic system adopts the Italian Hansa closed system (the mainstream configuration of foreign brands of skid steer loaders), and the operation mode is pilot handle (one-handed control of walking), which enables the operation of the big arm and the bucket in the process of walking.
4. Big arm standard with levitation function (using the sweeper can follow the ground ups and downs)
5. The operation position is equipped with sponge pads.
6. The height of the chassis from the ground is 185.
7. Designed with the convenience of maintenance in mind.
Translated with DeepL.com (free version)
| Ltem | HT-V1000 | |
| With Rubber Track | ||
| Perkins 403J-11 | ||
| Metric | U.S. | |
| Key Specifications | ||
| Rated Power (KW) | 18.4(25Hp) | |
| Operating Weight | 1538 Kg | 3390 Lb |
| Rated Operating Capacity | 454 kg | 1000 Lb |
| Ground Pressure (Rubber) | 2800 Kg/ | 3.98 Psi |
| Auxiliary Std Flow | 45 L/Min | 12 Gal/Min |
| Rotating speed (Rpm) | 2800 | |
| Noise (Db) | ≤95 | |
| Engine | ||
| Emissions Tier | EU NRM 97/68/EC Stage 5 | |
| EPA Tier 4 Final | ||
| Engine Cooling | Liquid | |
| Engine Fuel | Diesel | |
| Displacement | 1.131 L | 69 in³ |
| Number of Cylinders | 3 | |
| Performance | ||
| Tipping Load | 1315 KG | 2898 Lb |
| Travel Speed | 5.8 Km/h | 3.52 Mph |
| Travel Speed - Reverse | 3.9 Km/h | 2.4 Mph |
| Capacities | ||
| Fuel Tank | 25 L | 6.6 Gal |
| hydraulic system | ||
| Hydraulic oil tank capacity | 22 L | 5.8 Gal |
| Pump Capacity | 45 L/ Min | 12 Gal/Min |
| System Relief @ Quick Couplers | 200 Bar | 2900 Psi |
