HT-16
CNMC

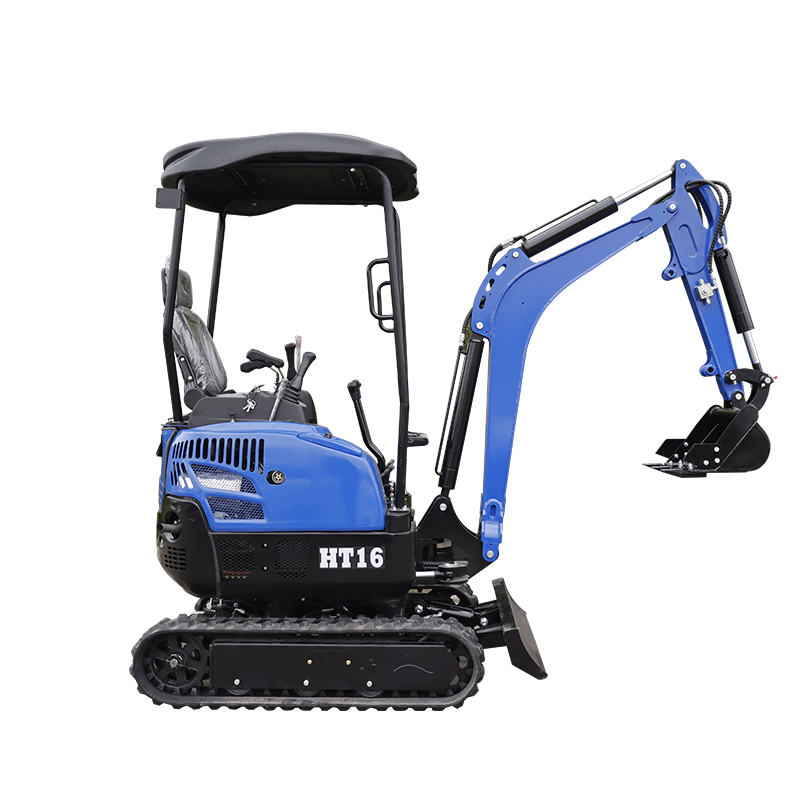

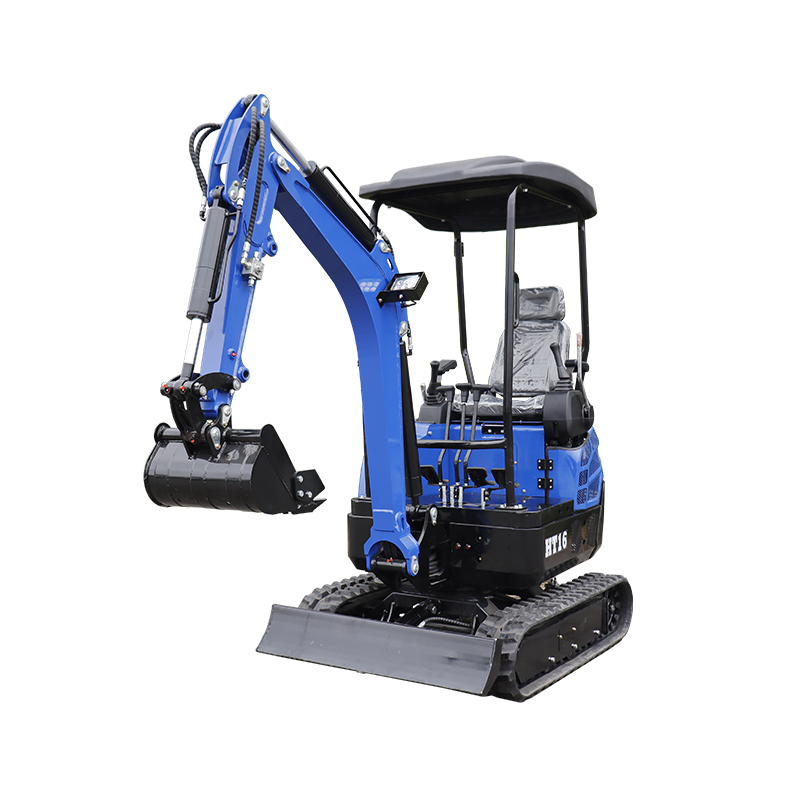

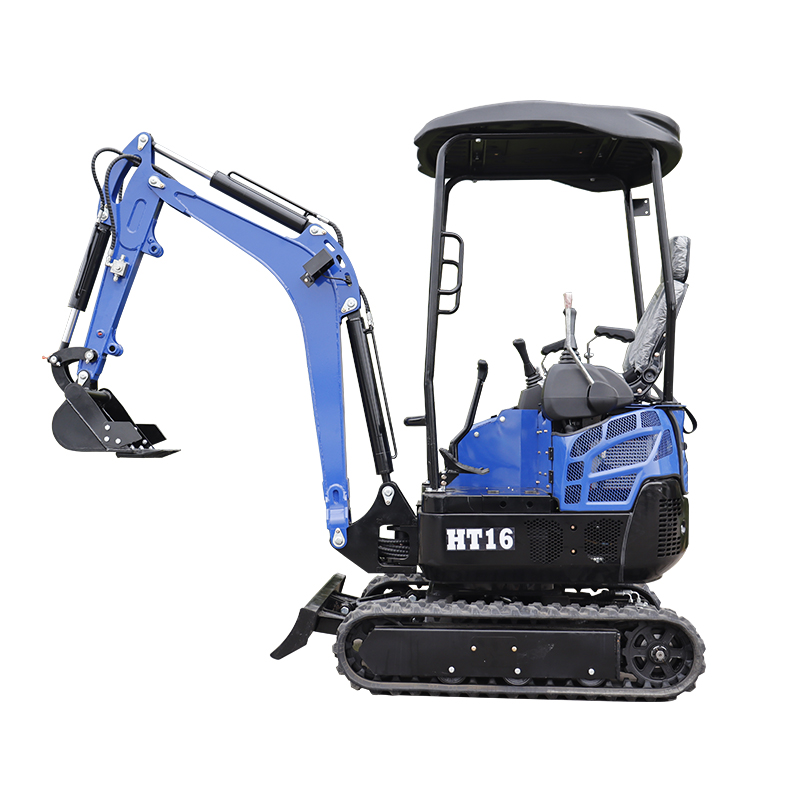

Meet the HT-16 Multi Functional Crawler Excavator – the ultimate compact workhorse designed for power, efficiency, and versatility. Built for tight spaces and diverse applications, this 1.6-ton mini excavator combines robust performance, flexible operation, and a full range of attachments to tackle construction, landscaping, and agricultural tasks with ease.
With a narrow 1100mm overall width and a tight 1655mm minimum turning radius, the HT-16 easily navigates confined spaces like residential yards, indoor demolition sites, and narrow alleys. The 2450mm transport length and 1600kg working weight make it perfect for quick relocation on standard pickup trucks, saving time on job site transitions.
Choose between Briggs & Stratton or Koop engines for dependable power and low fuel consumption. The HT-16 delivers a 2050mm maximum digging depth, 2785mm digging height, and 3130mm max excavation distance, with a 30° gradeability to handle steep slopes without frequent repositioning. The 12RPM swing speed ensures smooth, controlled operation.
The HT-16 features a 75° left / 45° right boom swing, allowing you to work efficiently around obstacles. It supports a full lineup of attachments to transform into a multi-tasking tool:
Buckets: Narrow, plain, tilting, and sand buckets
Hydraulic tools: Thumb clips, augers, break hammers, rakes, hedge trimmers, and log splitters
Quick hitch systems for fast tool changes
Specialized tools like grapples, grass trimmers, fork pallets, and root toppers
Rubber Tracks: Provide strong grip while protecting ground surfaces, reducing pressure and minimizing damage
Comfortable Cab: Ergonomic seat, clear instrument panel, and LED lighting for all-day comfort and visibility
Easy Maintenance: Quick access to key components simplifies routine upkeep
Inverted Arm Structure: Enhanced strength and performance for demanding tasks
表格
Category | Specification |
|---|---|
Dimensions | |
Overall Length | 2450mm |
Overall Width | 1100mm |
Upper Width (with cab roof) | 990mm |
Standard Track Shoe Width | 220mm |
Track Gauge | 920mm |
Blade Bulldozing Ground Clearance | 105mm |
Tail Turning Radius | 795mm |
Track Ground Length | 1050mm |
Working Range | |
Max Digging Height | 2785mm |
Max Unloading Height | 1860mm |
Max Digging Depth | 2050mm |
Max Excavation Distance | 3130mm |
Min Turning Radius | 1655mm |
Max Height at Max Radius | 2205mm |
Performance | |
Working Weight | 1600kg |
Bucket Capacity | 0.02m³ |
Gradeability | 30° |
Swing Speed | 12RPM |
Engine Options | Briggs & Stratton / Koop |
The HT-16 excels in diverse environments:
Municipal construction and road maintenance
Landscaping, gardening, and yard renovation
Agricultural water conservancy and orchard maintenance
Indoor demolition and small construction projects
Rural construction and utility installation
Material handling and trenching tasks
Customization Options: Support for color, engine, logo, and functional modifications
Factory Direct Pricing: Competitive rates with no middleman markup
International Certifications: CE and other standards compliant for global markets
Comprehensive Attachments: Ready-to-use tool kit included for diverse tasks
Reliable After-Sales Support: Technical guidance and maintenance assistance
Ready to upgrade your fleet with the versatile HT-16 Mini Excavator? Contact our sales team today for a personalized quote, full product catalog, and shipping details. We’re here to help you find the perfect solution for your business needs.
