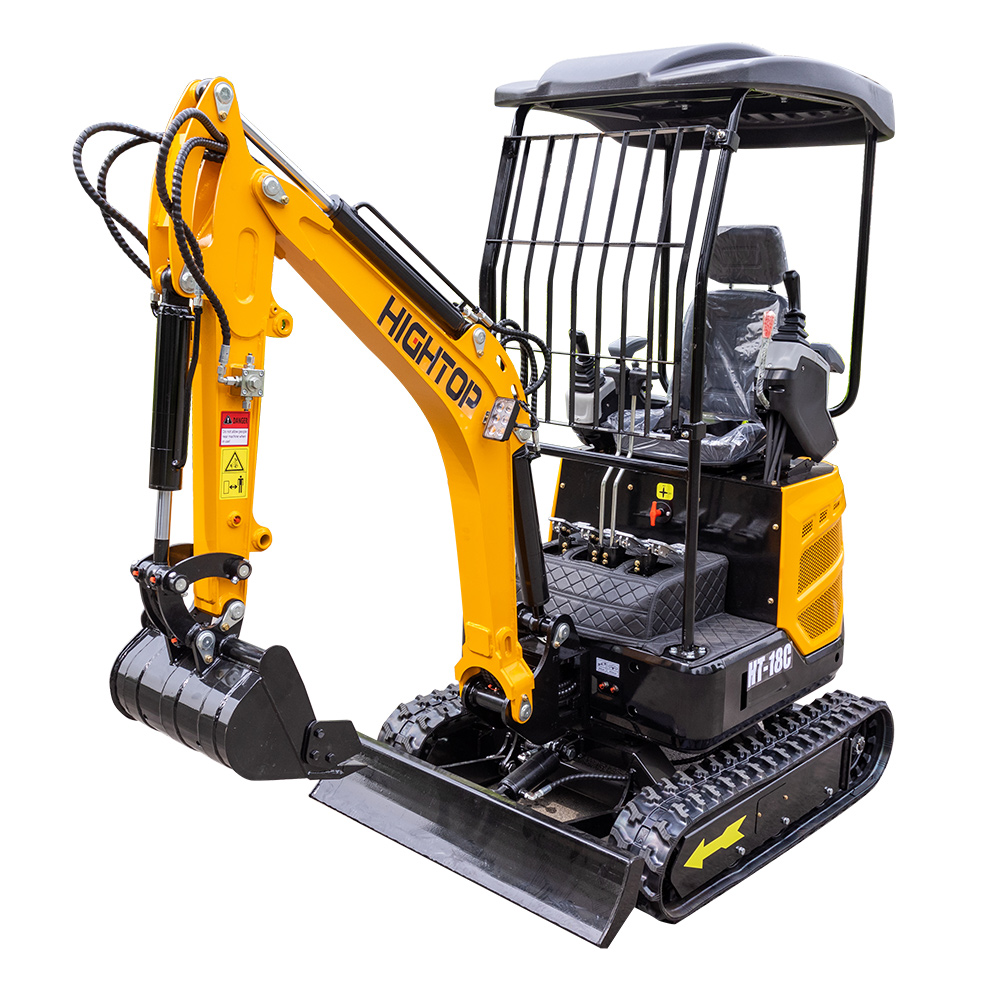

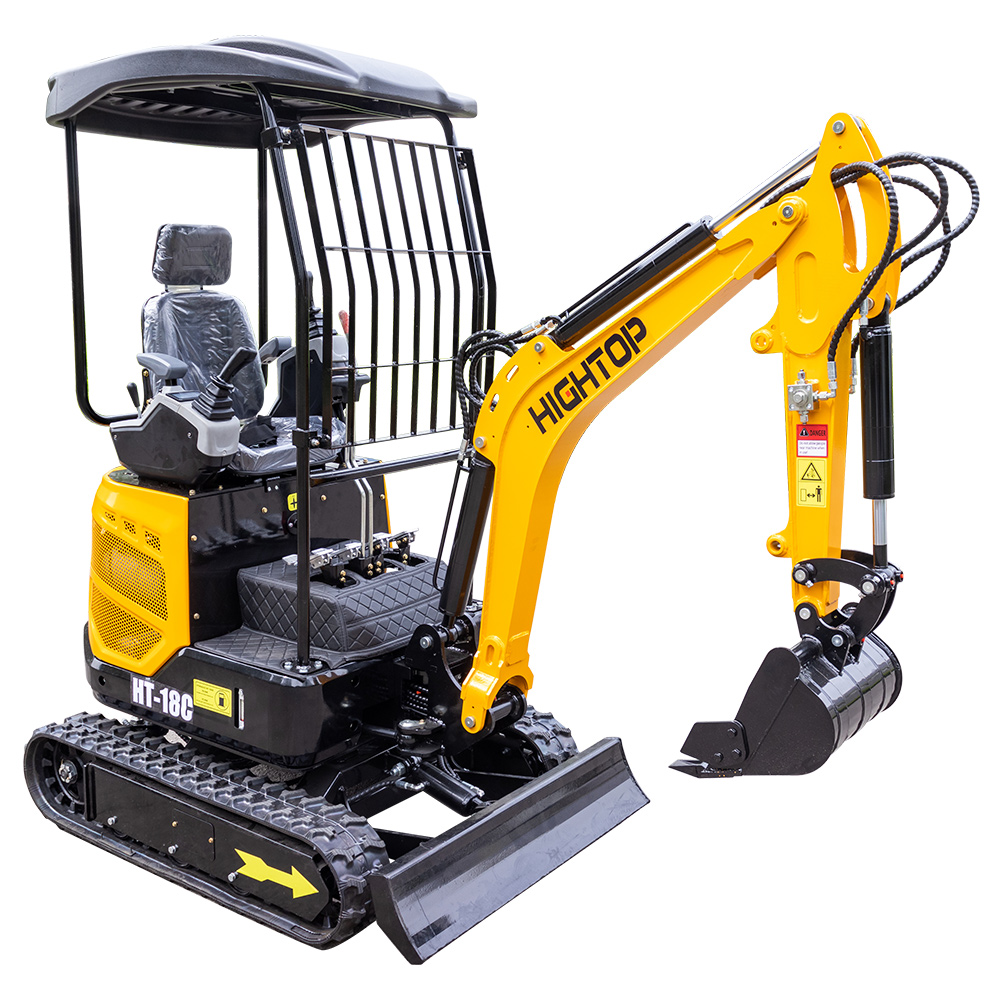

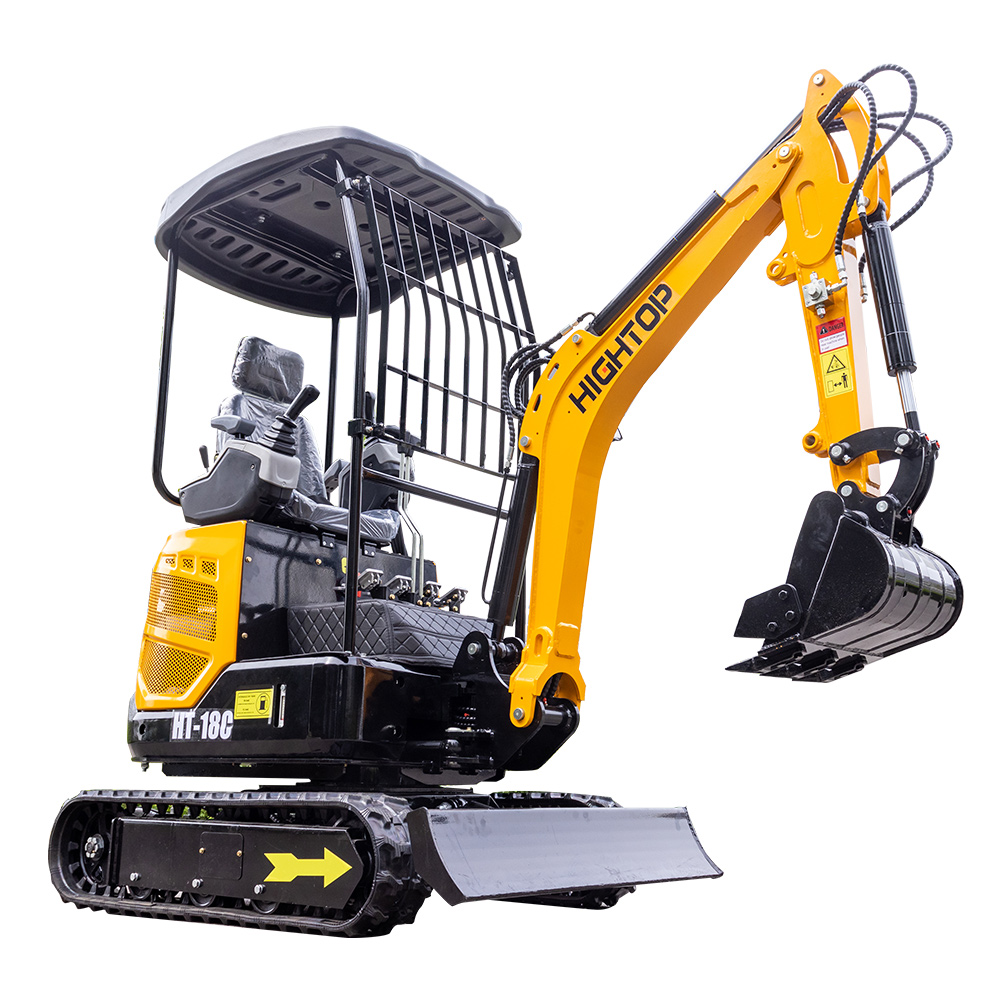

The HT-18C features an ultra-narrow 1100mm body width and a tight 1580mm minimum turning radius, allowing it to easily navigate and work in confined spaces like indoor sites, patios, and alleys. At just 1400kg operating weight and 2350mm transport length, it fits on standard pickup trucks for quick, hassle-free relocation between job sites.
Equipped with a Runtong 739CC twin-cylinder gasoline engine delivering 17kW rated power, the HT-18C handles continuous operation and complex working conditions with ease. It offers a maximum digging height of 2490mm and digging depth of 1950mm, with a 30° slope climbing capability to tackle hilly and mountainous terrain without frequent repositioning.
This mini excavator is compatible with a full lineup of attachments to transform it into a multi-tool workhorse:
Buckets: Narrow, plain, tilting, and sand buckets
Hydraulic tools: Thumb clips, augers, break hammers, rakes, hedge trimmers, log splitters, and grass trimmers
Quick hitch systems for fast tool changes
Fork pallet and root topper for specialized tasks
Safety Cabin: High-strength frame design provides robust protection with a wide field of vision
Precision Hydraulics: Responsive valves deliver smooth, stable control for digging, lifting, and swinging
Easy Maintenance: Quick disassembly of key service parts simplifies daily upkeep
Rugged Travel System: 180mm track width with 920mm contact length ensures low ground pressure and excellent traction on soft terrain
Category | Specification |
|---|---|
Dimensions | |
Total Length (Transport) | 2350mm |
Total Width | 1100mm |
Upper Width (Cab) | 960mm |
Standard Track Width | 800mm |
Tail Swing Radius | 760mm |
Track Ground Contact Length | 1400mm |
Minimum Ground Clearance | 119mm |
Working Range | |
Max Digging Height | 2490mm |
Max Digging Depth | 1950mm |
Max Digging Radius | 2880mm |
Max Dumping Height | 1635mm |
Min Turning Radius | 1580mm |
Performance | |
Operating Weight | 1400kg |
Bucket Capacity | 0.02m³ |
Rated Power | 17kW |
Swing Speed | 12 RPM |
Climbing Capacity | 30° |
Key Components | |
Engine | Runtong 739CC Twin-Cylinder Gasoline Engine |
Main Valve | Tenfei |
The HT-18C is ideal for:
Municipal engineering and road maintenance
Building demolition and renovation
Agricultural orchard maintenance
Landscaping, gardening, and yard work
Small construction projects and utility installation
Farm work, trenching, and material handling
Factory Direct Pricing: Competitive rates without middleman markup
Customization Support: Multiple color options and logo customization available
Full Certifications: CE and other international standards compliant
Comprehensive Attachments: Ready-to-use tool kit for diverse tasks
Reliable After-Sales Service: Technical support and maintenance guidance included
Ready to upgrade your fleet with the versatile HT-18C Mini Excavator? Contact our sales team today for a personalized quote, full product catalog, and shipping details. We’re here to help you find the perfect solution for your business needs.
