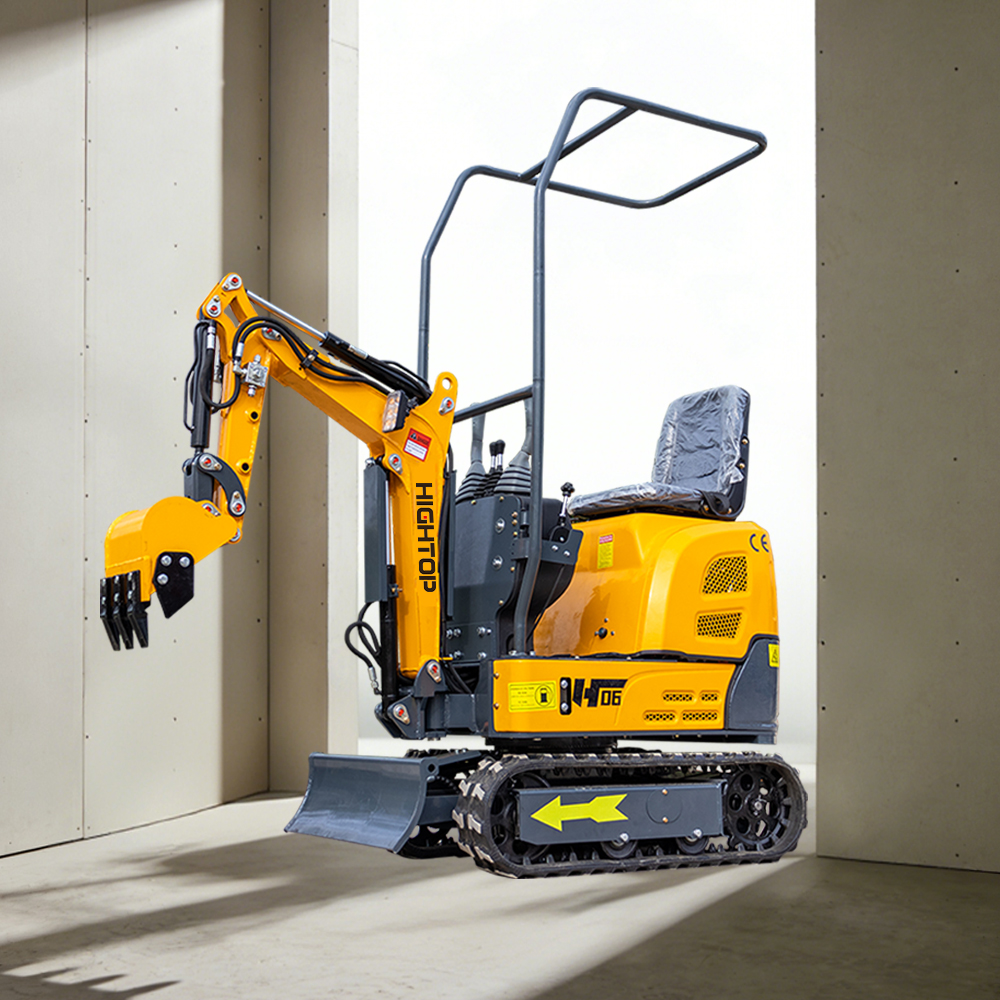

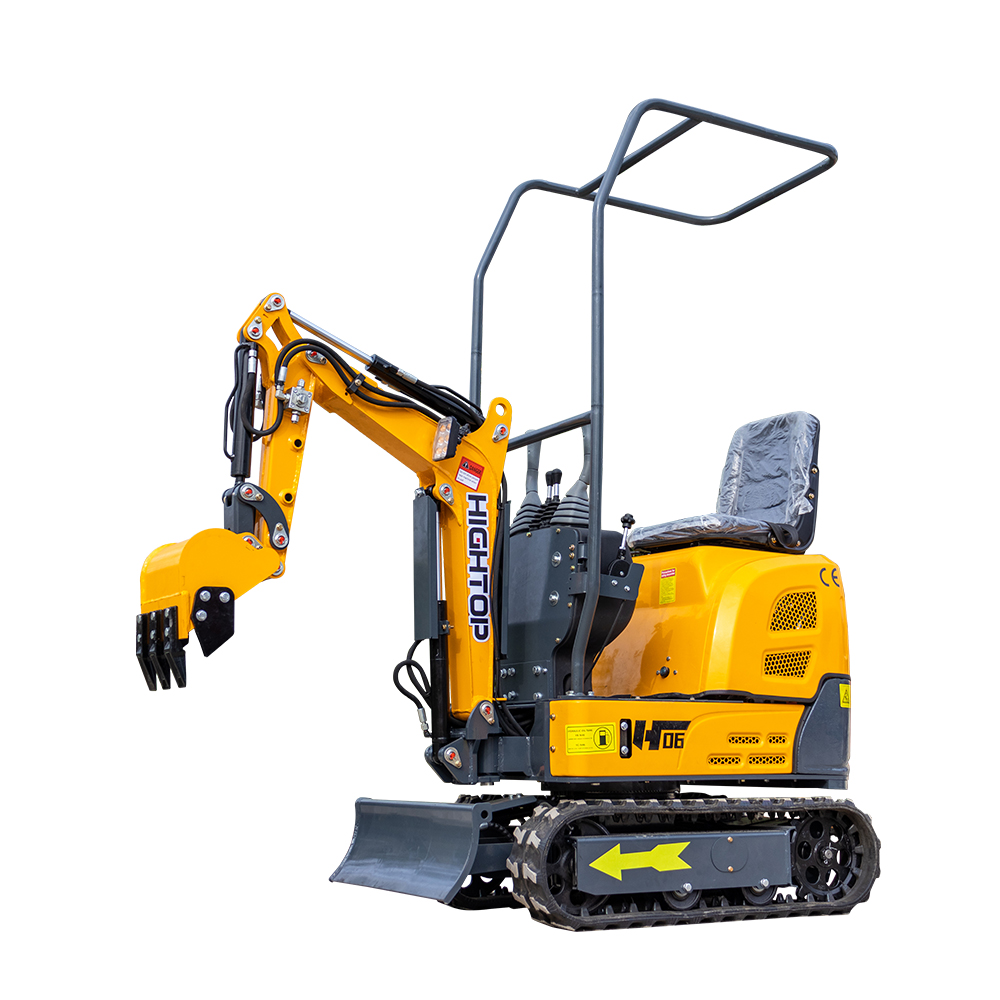

HT-06

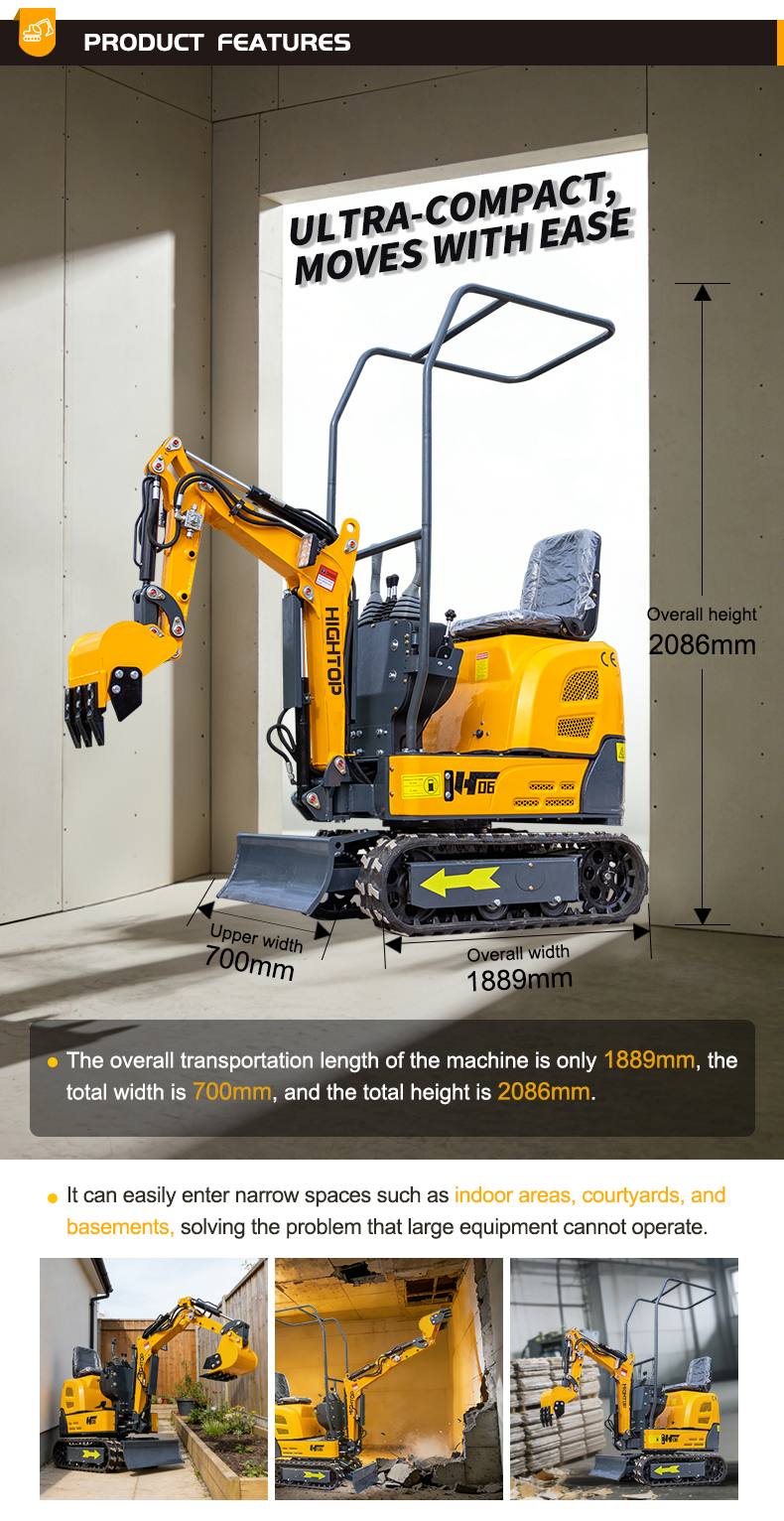

Overall transport dimensions: 1,889 mm length * 700 mm width * 2,086 mm height

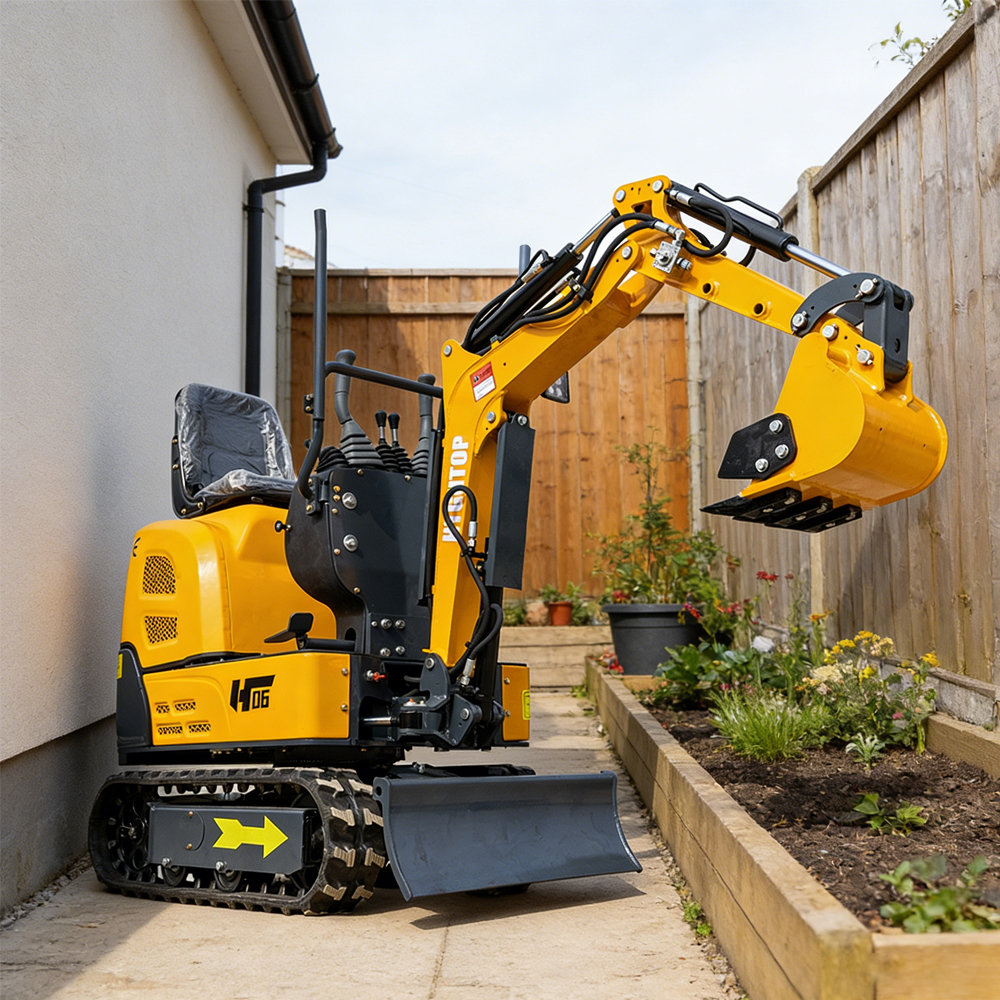

Accesses confined spaces including indoor areas, gardens, and basements
650 mm rear turning radius prevents collisions during precision operations

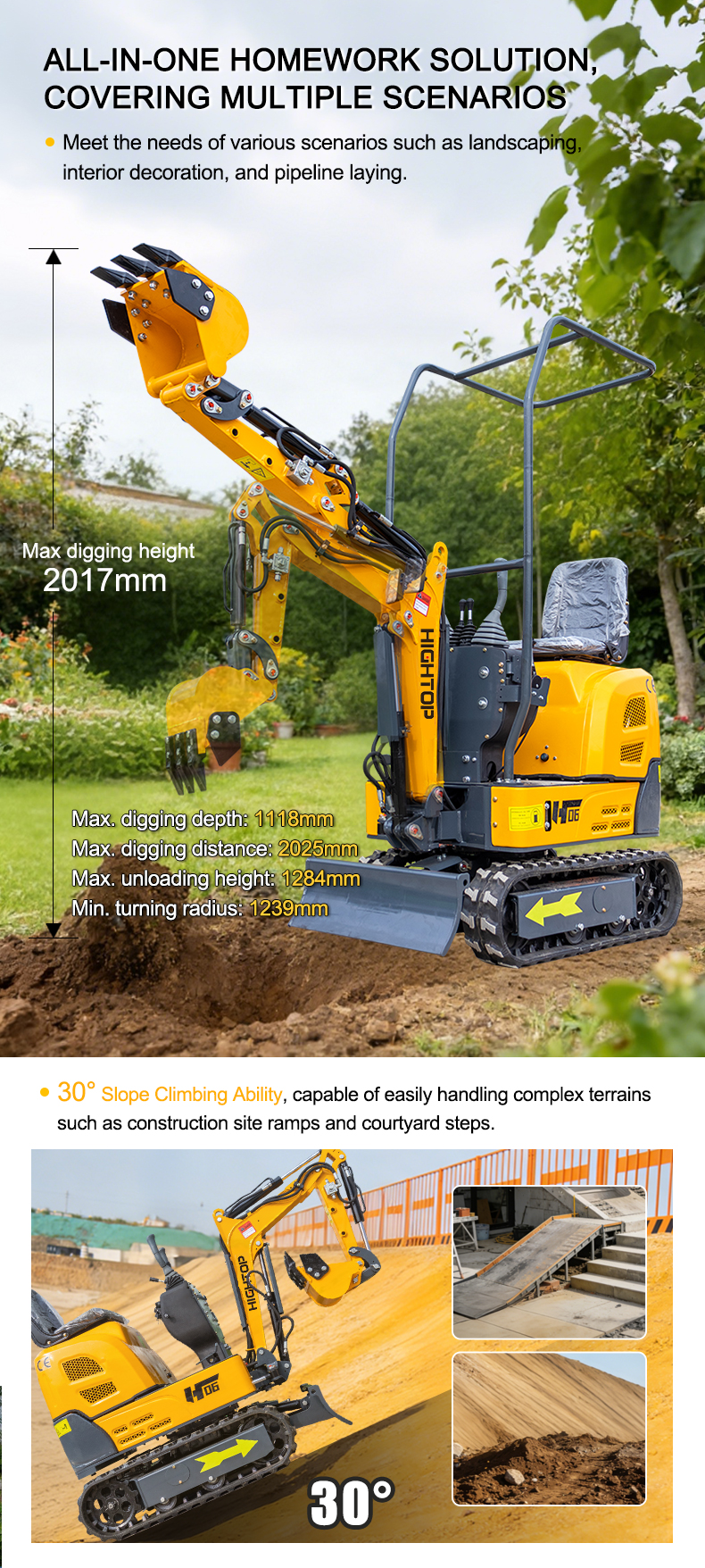

Maximum digging height: 2,017 mm | Maximum digging depth: 1,118 mm | Maximum digging reach: 2,025 mm
Maximum dumping height: 1,284 mm | Minimum swing radius: 1,239 mm
30° climbing ability handles construction site ramps and garden steps

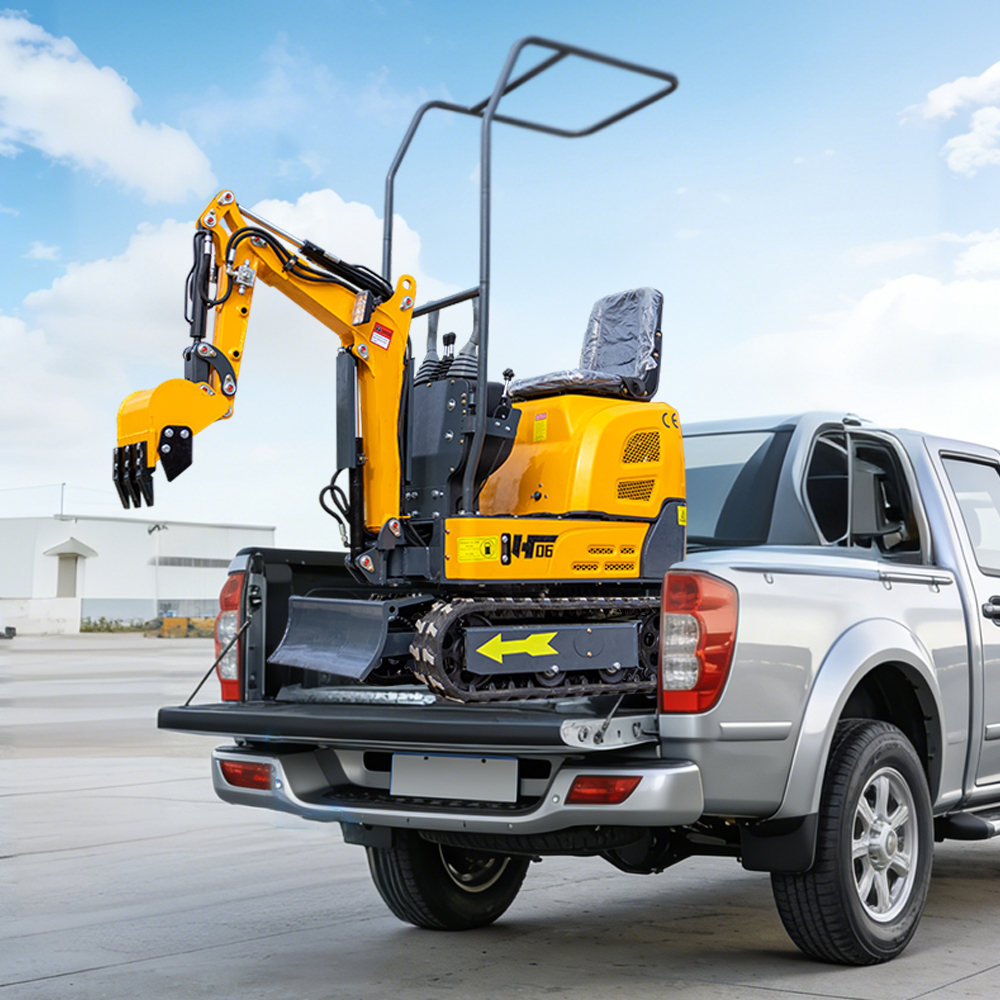

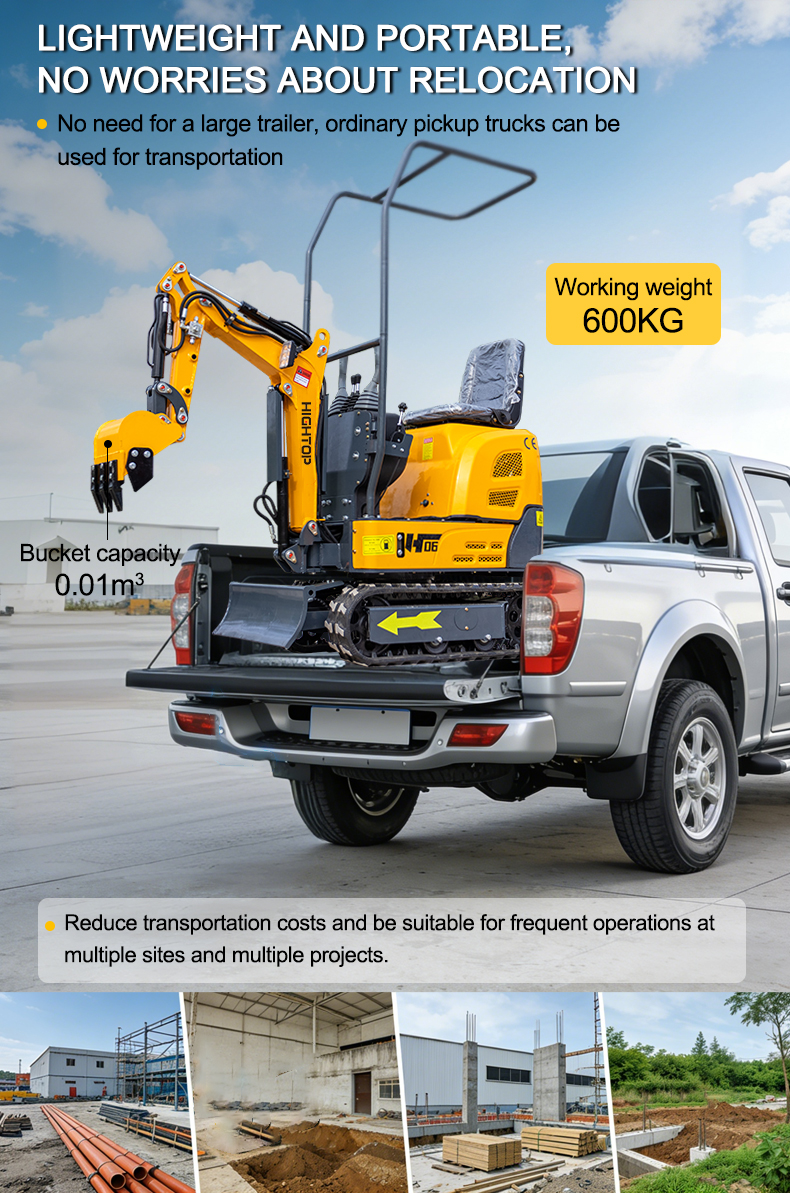

600 kg operating weight transports easily with standard pick-up trucks
Reduces transport costs and simplifies site relocation
0.01 m³ bucket capacity provides precise material control

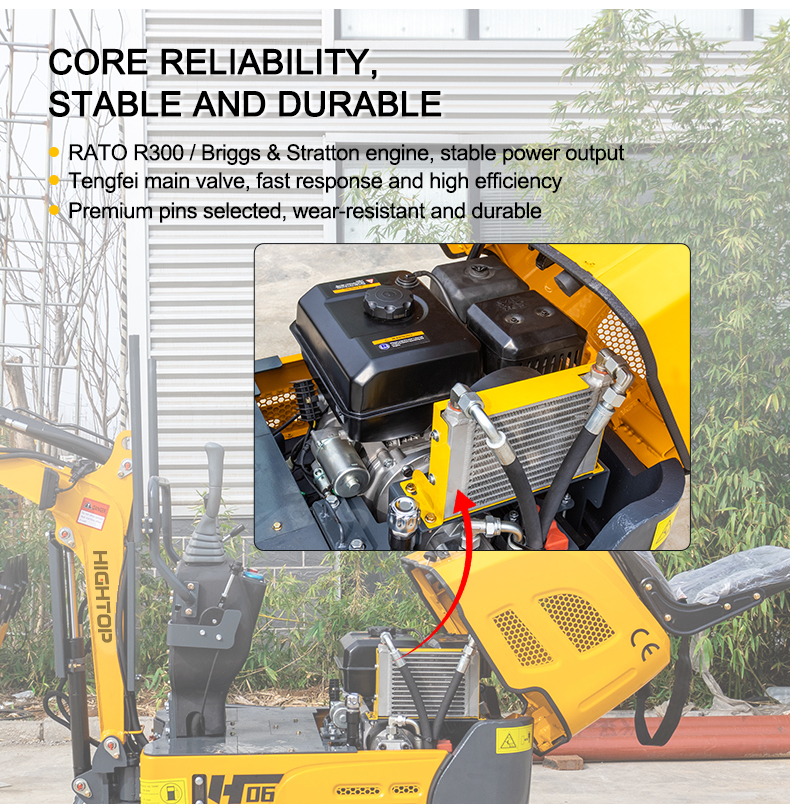

Runtong R300 or Briggs & Stratton engine for stable power and fuel efficiency
Tengfei main valve ensures precise hydraulic control and rapid response
High-quality pins with excellent wear resistance extend service life
Dozer blade clearance: 92 mm | Digging depth: 93 mm
150 mm standard track plate width with low ground pressure
Track contact length: 782 mm | Track length: 1,126 mm for stable travel

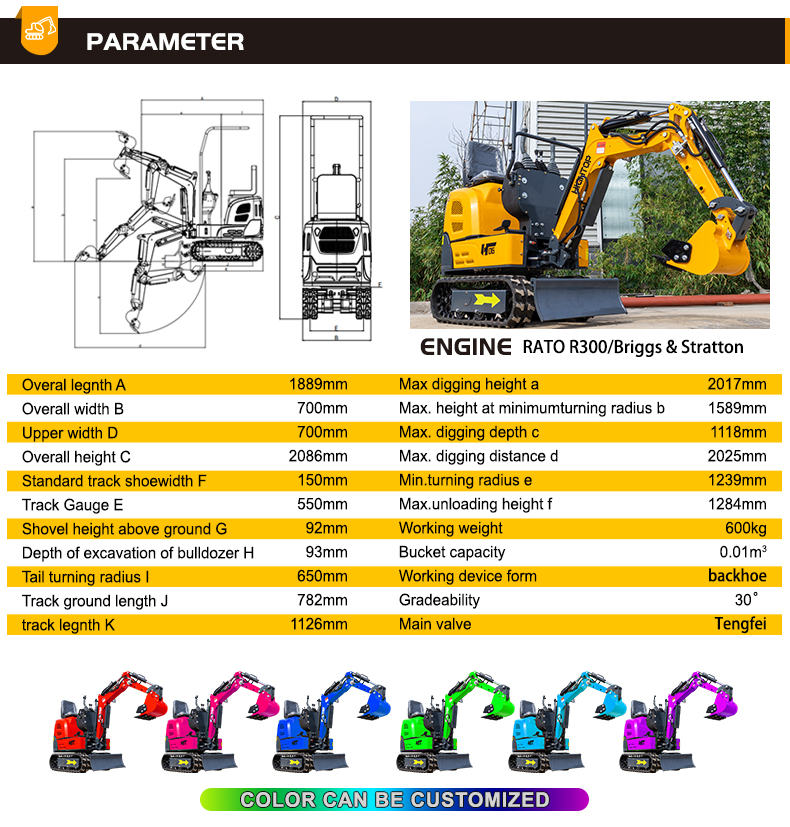

Technical Specifications
Overal legnth A | 1889mm |
Max digging height a | 2017mm |
Overall width B | 700mm |
Max. height at minimumturning radius b | 1589mm |
Upper width D | 700mm |
Max. digging depth c | 1118mm |
Overall height C | 2086mm |
Max. digging distance d | 2025mm |
Standard track shoewidth F | 150mm |
Min.turnina radius e | 1239mm |
Track Gauge E | 550mm |
Max.unloading height f | 1284mm |
Shovel height above ground G | 92mm |
Working weight | 600kg |
Depth of excavation of bulldozer H | 93mm |
Bucket capacity | 0.01m³ |
Tail turning radius I | 650mm |
Working device form | backhoe |
Track ground length J | 782mm |
Gradeability | 30° |
track legnth K | 1126mm |
Main valve | Tengfei |
