HT-20U

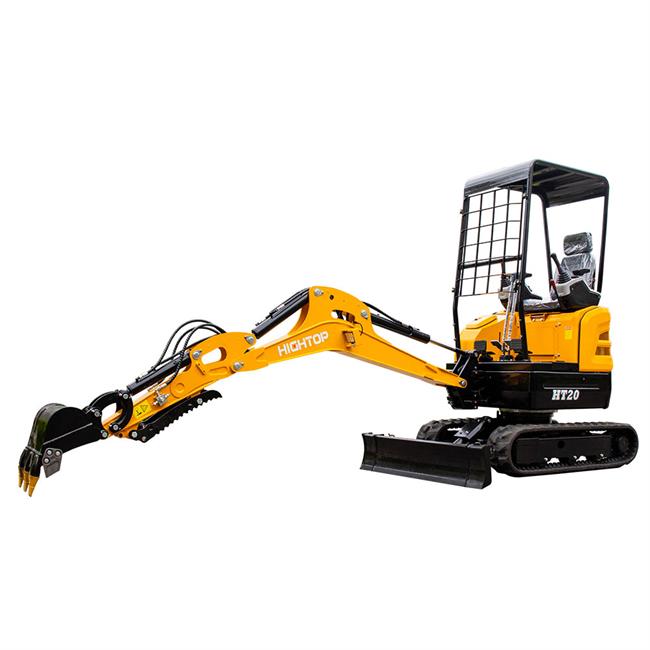

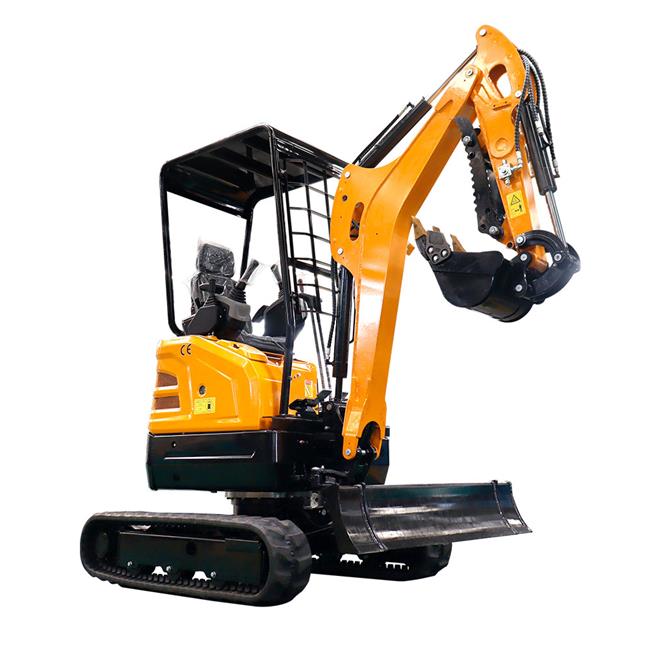

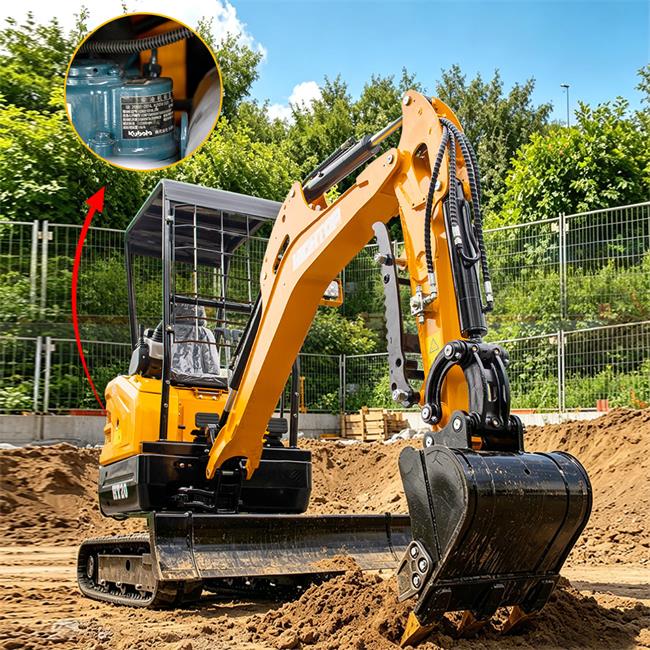

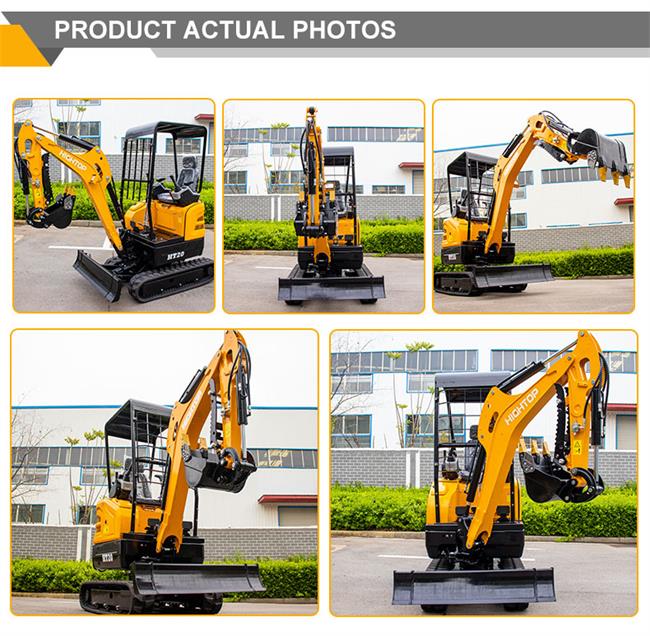

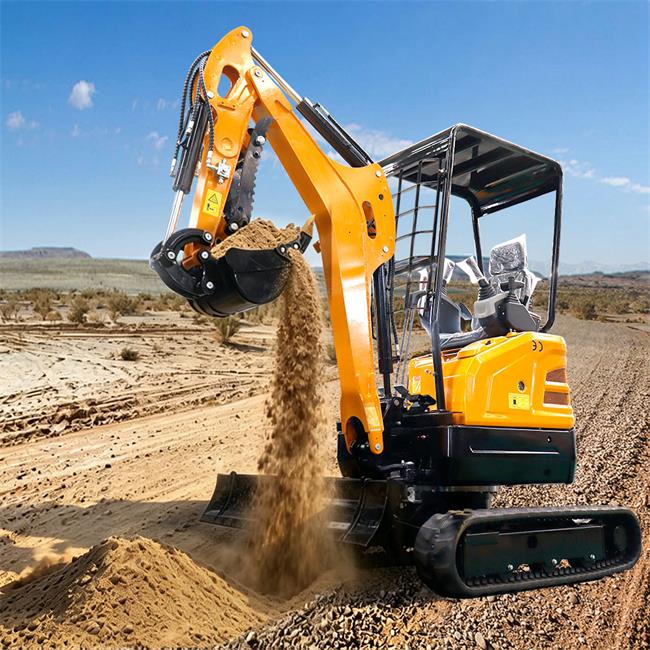

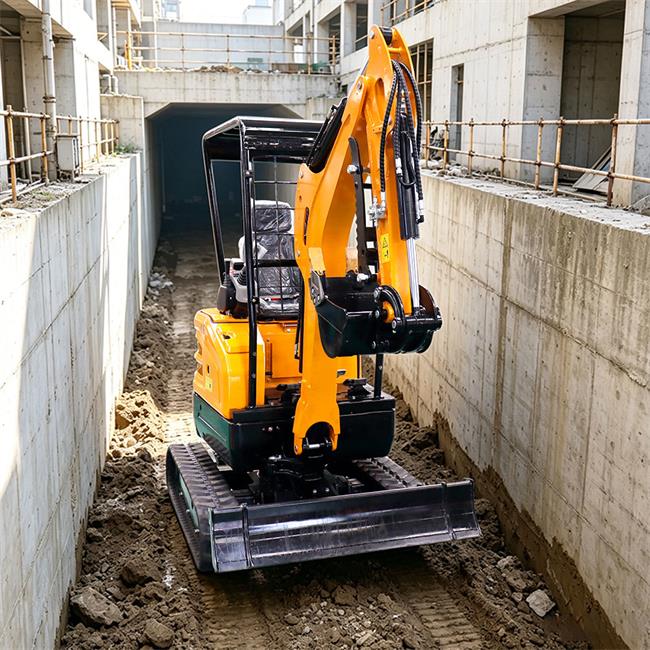

HT-20U Mini Excavator

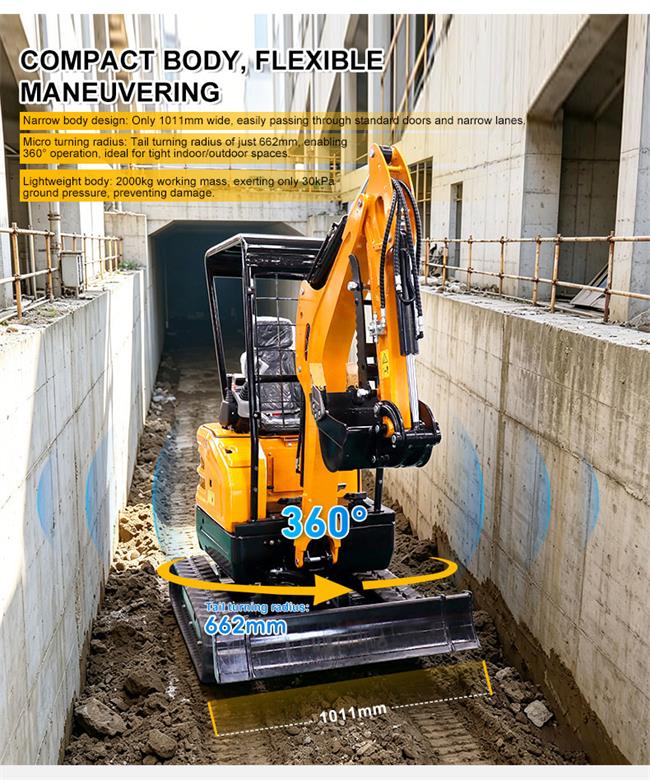

The HT-20U is a highly reliable 2-ton mini excavator designed for versatility and efficiency in small-scale construction projects. Featuring a zero-tail-swing structure, it performs excellently in confined spaces such as urban construction, garden landscaping, farm maintenance, and municipal engineering. Powered by a stable engine and matched with a precise hydraulic system, the machine delivers strong digging force, smooth operation, and low fuel consumption. With a retractable undercarriage, ergonomic controls, and wide compatibility with various attachments, it ensures easy operation, high flexibility, and multifunctional application. Sturdy in structure, durable in use, and cost-effective in performance, the HT-20U mini excavator is an ideal choice for construction contractors, rental companies, and agricultural users.
Technical Specifications
Rated power | 11.8/2300 |

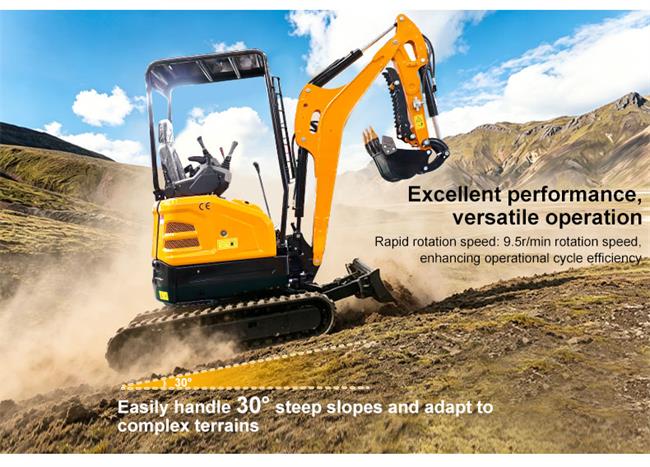

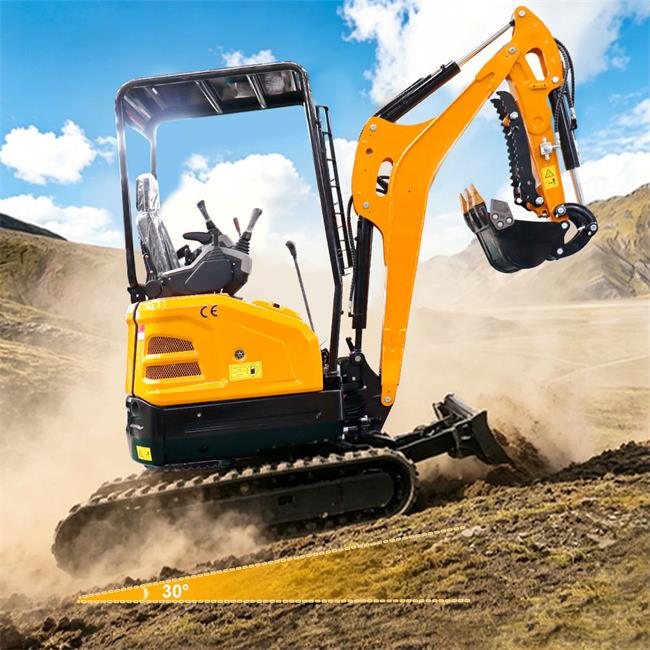

Hill-climbing ability | 30° |

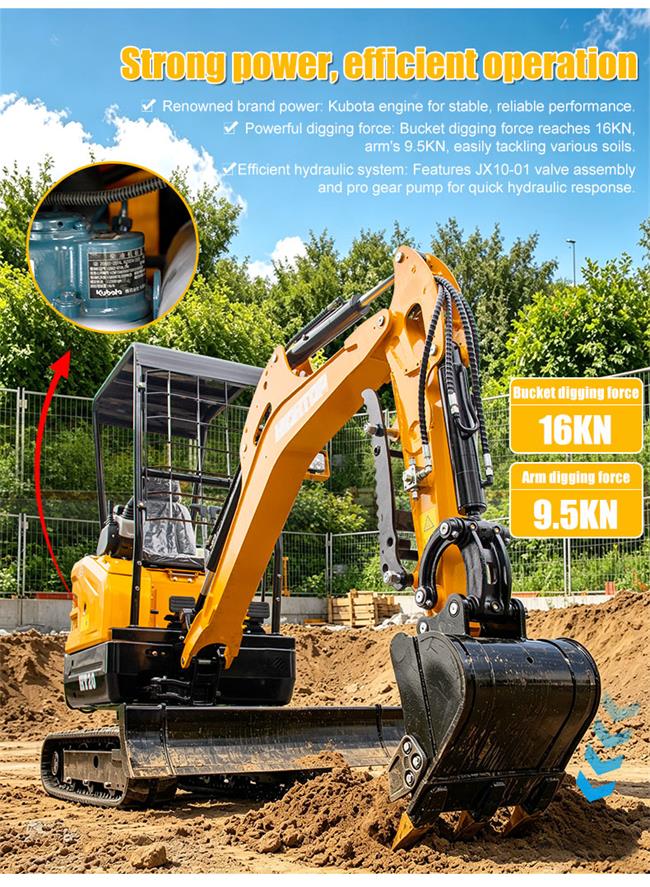

Bucket digging force (kN) | 16 |
Digging force at the boom tip (kN) | 9.5 |
Soil pressure kPa | 30 |
Rotational speed (r/min) | 9.5 |

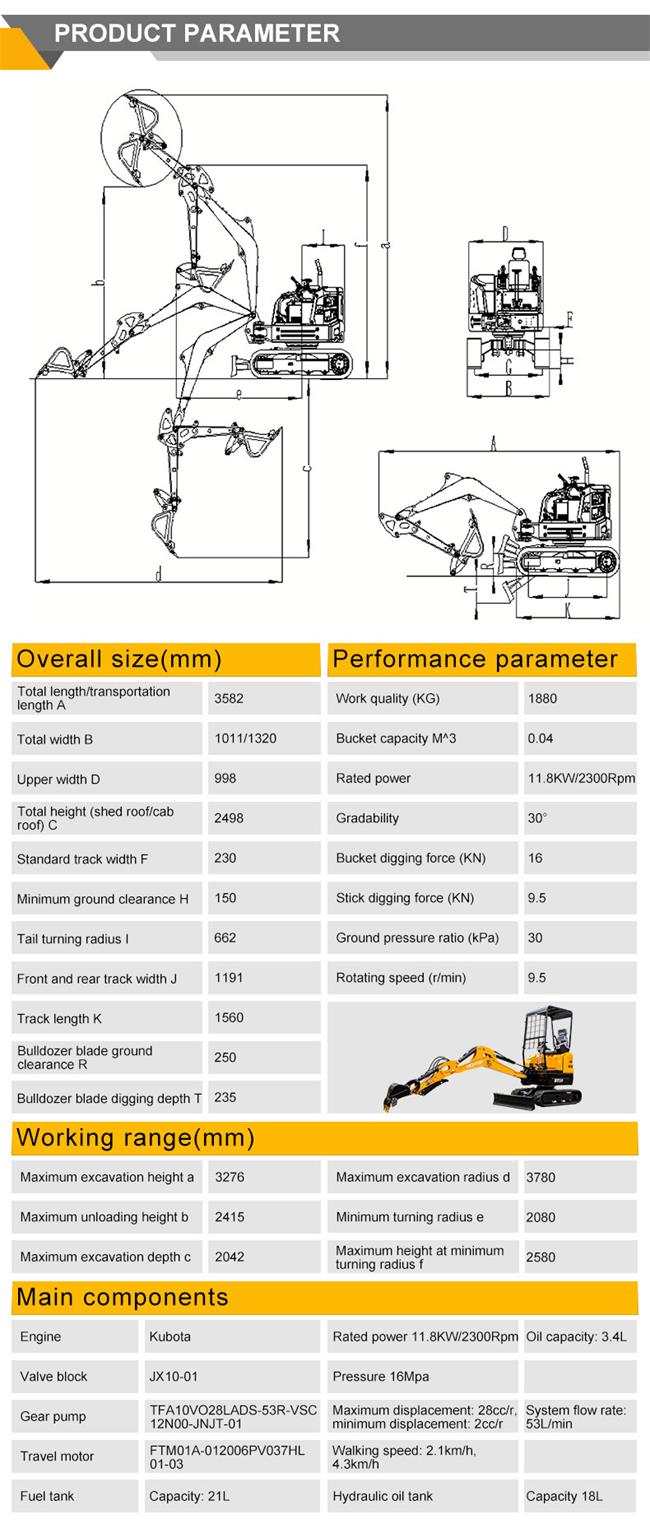

Overall Dimensions (mm)
Dimension | Value |
|---|---|
Overall length/Shipping length A | 3582 |
Total width B | 1011/1320 |
Upper width D | 998 |
Overall height (roof/cab roof) C | 2498 |
Standard track width F | 230 |
Minimum ground clearance H | 150 |
Turning radius at the rear I | 662 |
Front and rear track width J | 1191 |
Track length K | 1560 |
Height of the dozer blade above the ground R | 250 |
Bucket digging depth T | 235 |
Working Range (mm)
Parameter | Value |
|---|---|
Maximum digging height a | 3276 |
Maximum unloading height b | 2415 |
Maximum digging depth c | 2042 |
Maximum digging radius d | 3780 |
Minimum turning radius e | 2080 |
Maximum height f at the minimum turning radius | 2580 |
Key Components
Component | Specification |
|---|---|
Engine | Kubota |
Valve assembly | JX10-01 |
Gear pump | TFA10VO28LADS-53R-VSC12N00-JNJT-01 |
Travel motor | FTM01A-012006PV037HL01-03 |
