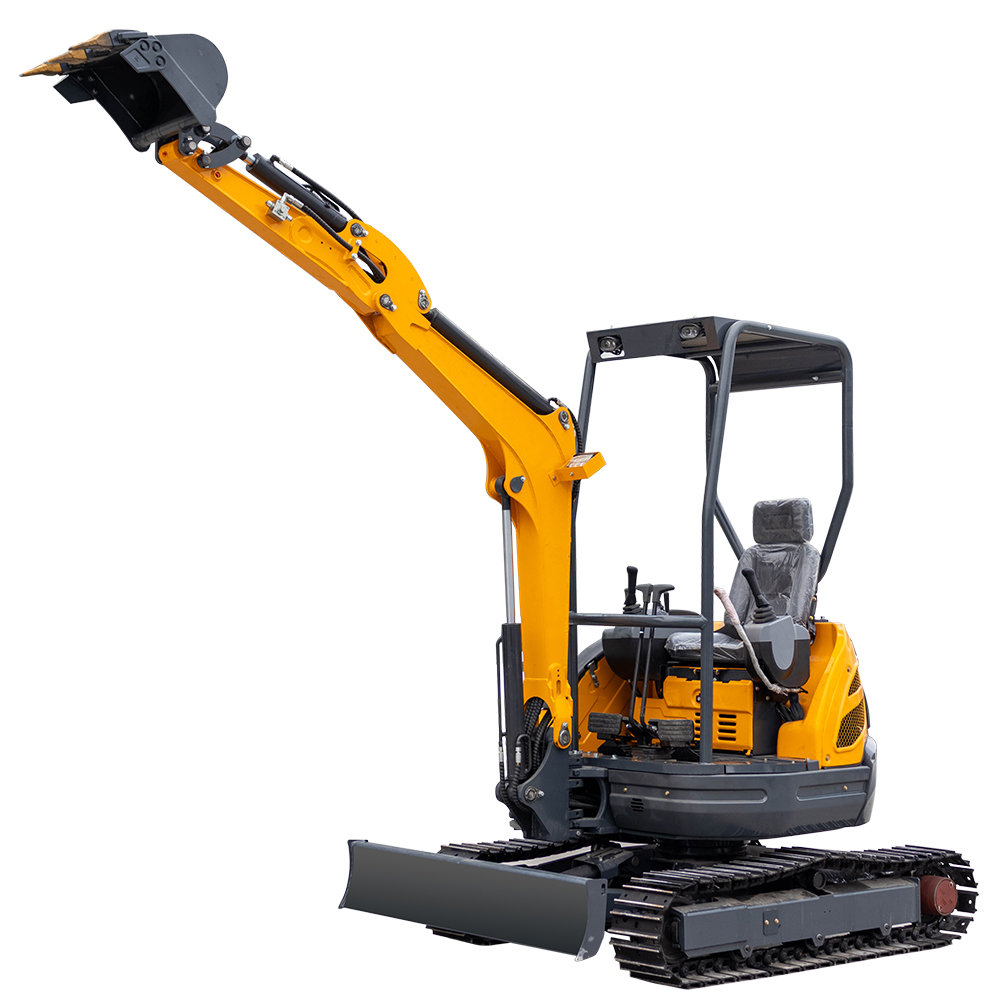

HT25
CNMC
The HT25 mini excavator redefines compact earthmoving with a factory-integrated full-scale upgrade. At its core lies the proven Kubota D1105 diesel engine (14.2 kW / 19 HP) , delivering more power, longer service life, and superior fuel efficiency compared to conventional mini excavators in its class. Every structural and hydraulic detail has been engineered to maximize uptime and minimize maintenance—making the HT25 the go-to machine for landscaping, construction, utilities, and agricultural applications.

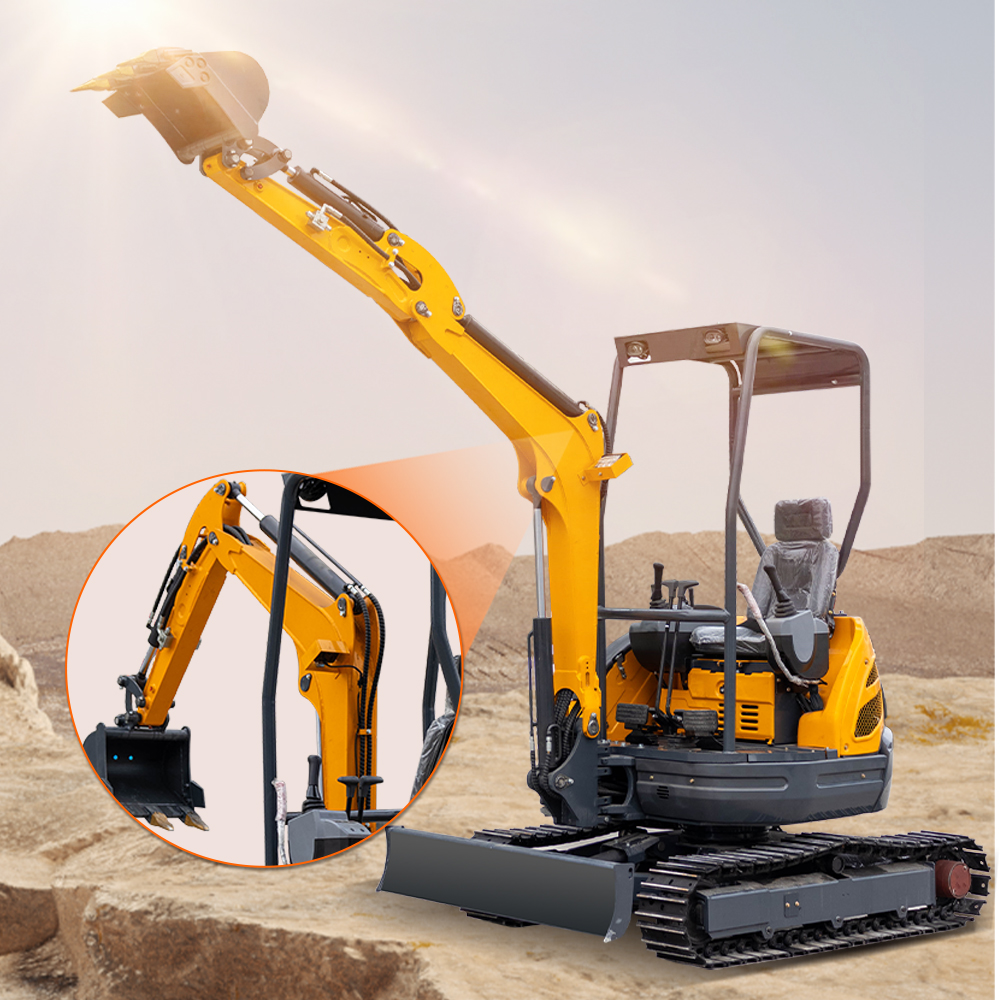

The hallmark of the HT25 upgrade philosophy is its concealed hydraulic hose system. All standard hydraulic hoses are threaded through the internal structure of the boom and arm, completely shielding them from direct sunlight, oxidation, debris impact, and accidental snagging. This design more than doubles hose service life and keeps the machine looking clean.
A hydraulic three-way shut-off valve comes as standard, allowing the operator to quickly switch auxiliary hydraulic circuits—perfect for running multiple attachments without re-plumbing.
Out of the box, the HT25 is equipped with a one-piece hydraulic thumb clamp, exponentially increasing material handling capability. The standard attachment package includes:
Grip (Clamp) – For sorting, placing, and demolition tasks
Ripper – Breaks up hard soil, frost, and asphalt
Auger – Drills precise holes for fencing, footings, and tree planting
Switching attachments is fast, safe, and tool-free thanks to quick-coupler ready architecture. Whether you are digging trenches, removing stumps, or handling pipes, the HT25 adapts instantly.
Parameter | Value |
|---|---|
Total length/transportation length | 2870mm |
Working mass | 2500kg |
Total width | 1400mm |
Bucket capacity | 0.07m³ |
Upper width | 1320mm |
Rated power | 14.2KW/2200RPM |
Overall height (cab roof) | 2440mm |
Slewing speed | 12RMP |
Standard track plate width | 250mm |
Climbing capacity | 40° |
Track gauge | 1150mm |
Maximum digging height | 3365mm |
Minimum ground clearance | 145mm |
Maximum unloading height | 2610mm |
Tail turning radius | 700mm |
Maximum digging depth | 2045mm |
Track ground length | 1480mm |
Maximum digging distance | 3430mm |
Track length | 1858mm |
Minimum turning radius | 1955mm |
Maximum height at minimum turning radius | 2740mm |
Engine | Kubota D1105 three-cylinder direct injection | |
Rated power | 14.2KW/2200 | |
Oil capacity | 5.1L | |
System flow | 61.6L/min | |
Flow Sharing Main Valve | TRM10-BX-09-JNJT20-01 | |
pressure | 22MP | |
Swash plate type axial piston variable pump | TFA10VO28/53R | |
displacement | 28ml | |
Maximum speed of revolution | 3000r/min | |
Traveling motor | Axial variable piston motor | |
displacement | 6/12.5ml | |
traveling speed | 2.85/6.45km/h | |
traction | 32KN | |
Fuel tank capacity | capacity | 30L |
Cooling system capacity | capacity | 5.05L |
Hydraulic oil tank | capacity | 29L |
Kubota Reliability – The D1105 engine starts in any weather and sips fuel under load.
Zero-Exposed Hoses – Less sun damage, fewer replacements, more money saved.
Ultra-Compact – At just 1,142 mm upper width and a 700 mm tail swing, you can dig tight against walls and fences.
Attachment Versatility – The standard thumb, ripper, and auger bundle eliminates the need to buy aftermarket kits.
Operator Friendly – Ergonomically positioned controls, smooth pilot joysticks, and excellent all-around visibility.
Standard Equipment: Enclosed ROPS/FOPS canopy, work lights, auxiliary hydraulic plumbing, hydraulic thumb, grip, ripper, auger, rubber tracks.
Optional Equipment: Closed cab with heater, steel tracks, angle blade, quick hitch, additional buckets (trenching, grading, tilting).
Optimize your next project with the HT25—a mini excavator that truly lives up to its “full-scale upgrade” promise. For pricing, shipping details, or a live demo, contact our sales team today.
