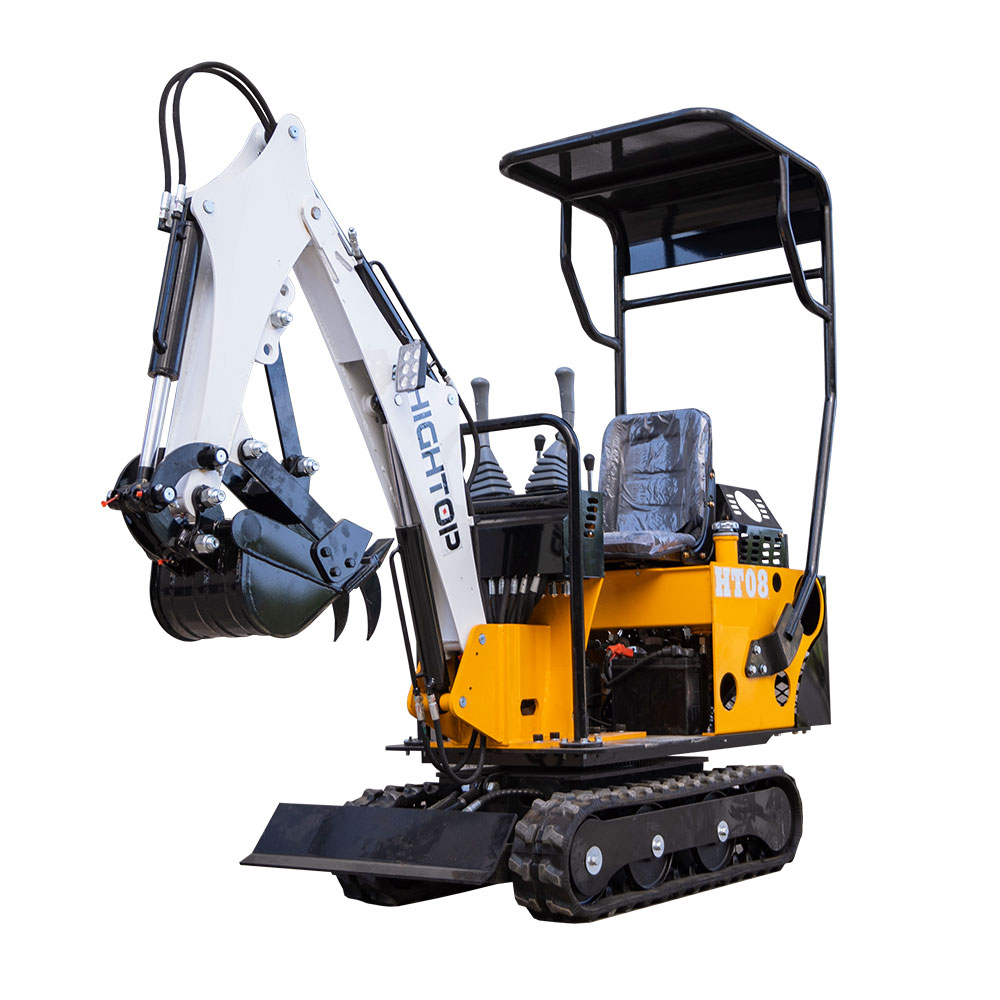

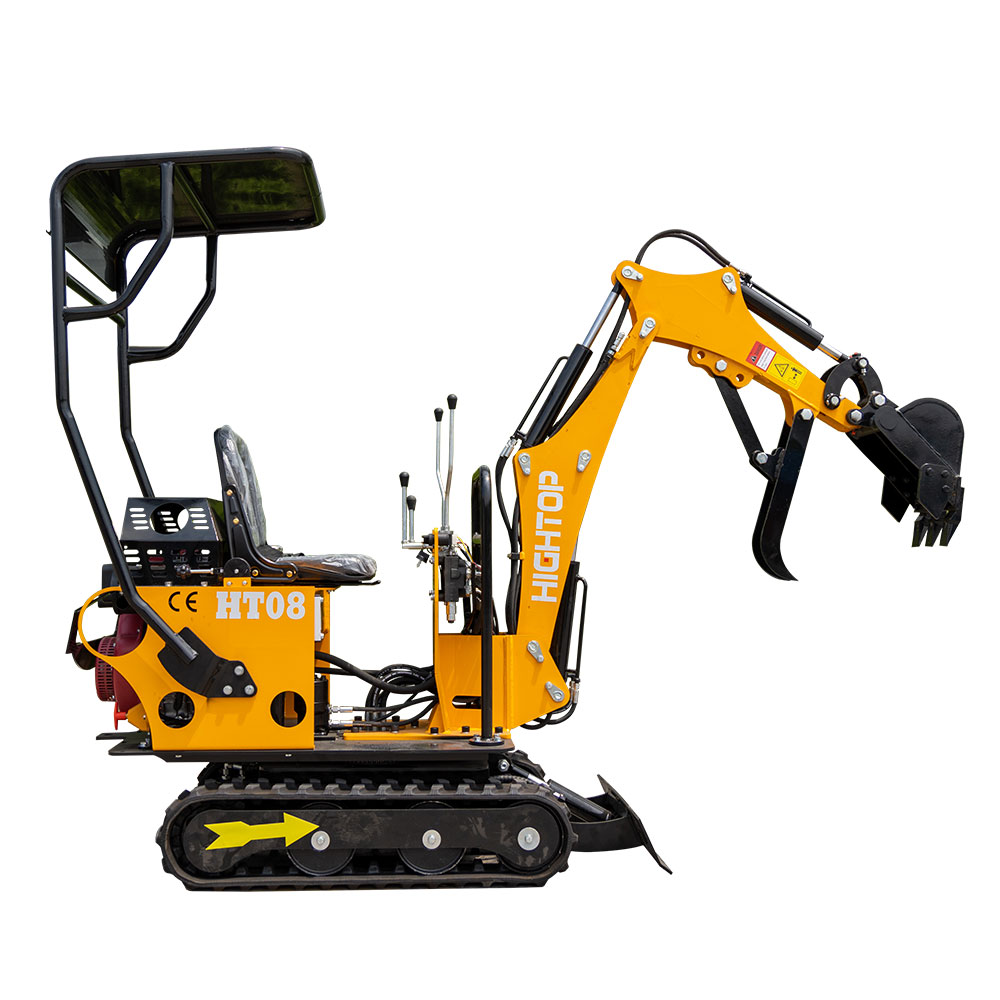

HT08
The HT08 0.8 Ton Compact Mini Crawler Excavator is named "The King of Tight Spaces", independently manufactured by HIGHTOP Group. This ultra-light 800kg micro excavator is specially engineered for narrow, confined working environments that large excavators cannot access.
It adopts retractable rubber crawler tracks, single gear hydraulic pump system and reliable Koop 192F diesel power unit, meeting Euro V & US EPA emission standards. With flexible 360° rotation, stable 30° gradeability and rich interchangeable attachments, it widely serves residential garden renovation, agricultural orchard farming, indoor basement demolition, municipal pipeline laying and small landscape engineering. Full international certifications and OEM custom service support global wholesale dealers.
Adjustable track width from 720mm to 780mm. Shrink tracks to pass through narrow garden gates, house doorways and fence gaps, expand tracks to widen ground contact for stable climbing. Low ground pressure only 19KPa, will not damage lawns, brick roads and pavement.
Automotive Grade Electrophoresis Paint: Full steel structural sandblasting + electrophoresis anti-rust pretreatment + high-temperature baking finish, scratch-resistant, anti-rust, long service life outdoors, no quick fading like ordinary spray paint.
Integrated CNC Cast Hydraulic Cylinders: Precision machined one-piece boom cylinders, zero oil leakage under high working pressure, stable hydraulic output, eliminate weak digging force issues of ordinary welded cylinders.
Reinforced Heavy-Duty Boom: Extra thick cast steel boom structure, absorbs heavy load impact without structural deformation or crack, suitable for long-term heavy-duty digging work.
Rated power 7-7.5kW, low fuel consumption, strong low-speed torque. Optional Euro V / EPA compliant versions to meet import regulations of Europe, USA and other global markets. Single gear pump hydraulic system provides smooth digging action, max digging force reaches 7.5KN for efficient earthmoving, trenching and breaking.
Max digging depth: 1200mm, max digging reach: 2450mm, max dumping height: 2350mm
Max climbing angle up to 30°, stable uphill/downhill operation without slipping
Travel speed 2.2km/h, flexible 360° full rotation, no dead angle in small yards
Compact overall length 2430mm, minimum ground clearance 80mm, easy to transport on small trailers
Compatible with dozens of interchangeable working attachments to realize diversified operations: standard digging bucket, narrow bucket, tilting bucket, hydraulic breaker hammer, auger drill, log splitter, root ripper, hedge trimmer, pallet fork, thumb grabber, quick hitch coupler and more. Perfectly match gardening, agriculture, demolition and landscaping demands.
Full set CE, ISO, BV certification, smooth customs clearance worldwide. Customizable engine brands (Changchai, Cooper, Briggs & Stratton), body color, brand LOGO printing, sunshade canopy upgrade and accessory combinations to fit regional market needs.
Parameter Category | Item | Standard Specification |
|---|---|---|
Basic Performance | Rated Power | 7-7.5kW |
Bucket Capacity | 0.025 m³ | |
Engine Model | Koop 192F Diesel Engine | |
Total Machine Weight | 800 Kg | |
Max Digging Force | 7.5 KN | |
Hydraulic Pump | Single Gear Pump | |
System Working Pressure | 14 Mpa | |
Travel Speed | 2.2 Km/h | |
Max Gradeability | 30° | |
Ground Pressure | 19 KPa | |
Working Range | Max Digging Reach | 2450 mm |
Max Digging Depth | 1200 mm | |
Max Digging Height | 2350 mm | |
Max Dumping Height | 1600 mm | |
Min Swing Radius | 1100 mm | |
Max Blade Digging Depth | 200 mm | |
Overall Dimensions | Total Width (Retractable Track) | 720~780 mm |
Total Height | 1300 mm | |
Total Length | 2430 mm | |
Minimum Ground Clearance | 80 mm | |
Track Ground Contact Length | 1140 mm | |
Single Track Width | 150 mm |
✔ Private villa residential garden DIY renovation, flower bed digging, tree pit excavation, fence foundation trenching
✔ Small-scale agriculture, fruit orchard soil loosening, fertilization trenching, farm land tidying
✔ Indoor house demolition, basement reconstruction, narrow space waste removal
✔ Municipal engineering, cable pipeline laying, roadside green belt renovation
✔ Landscape construction, park small earthwork, slope trimming, pond digging
60,000㎡ Large Factory Strength: 850+ professional team, products exported to over 100 countries, stable mass production capacity, factory direct price without middlemen markup.
Strict Full Inspection Before Shipment: Every HT08 micro excavator passes hydraulic, power, climbing and full load durability testing before delivery, consistent stable quality.
Advanced Anti-Rust & Reinforced Structure: Electrophoresis painting + integrated cast hydraulic cylinders + thickened boom, longer service life than generic cheap mini diggers.
Global Emission Standard Options: Euro V and EPA engine versions available to satisfy different national import rules.
All-Round After-Sales Support: Complete spare parts inventory, remote online technical training & fault troubleshooting, long-term spare parts supply for global agents and distributors.
If you need HT08 0.8 ton mini excavator customized quotation, full technical datasheet, bulk wholesale discount or global agent cooperation policy, contact our international sales team. We will recommend matched engine emission versions and supporting attachments according to your local working conditions and market standards!
