HT25J
CNMC

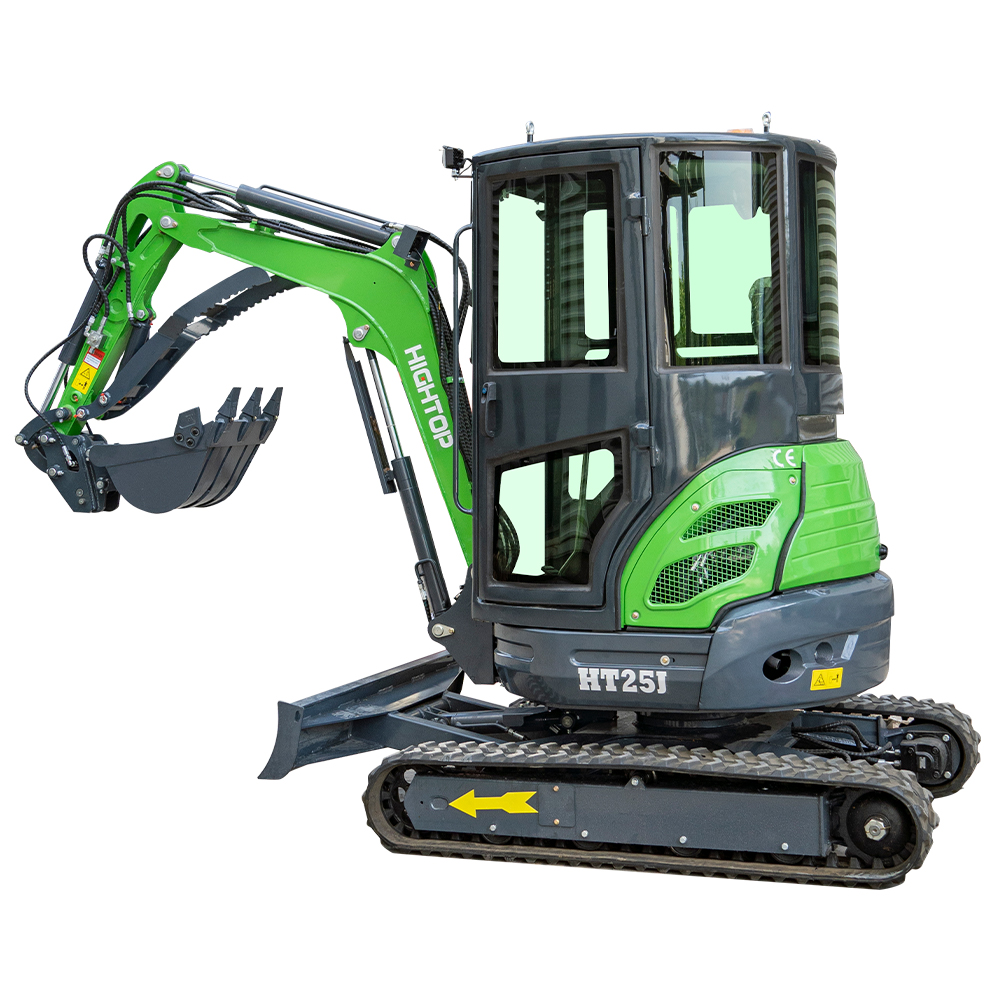

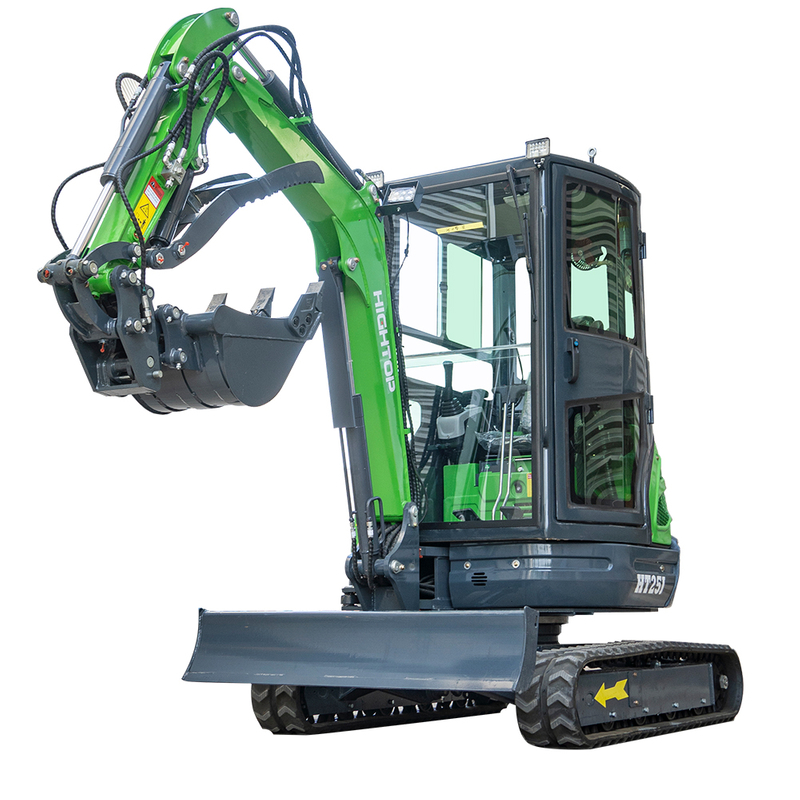

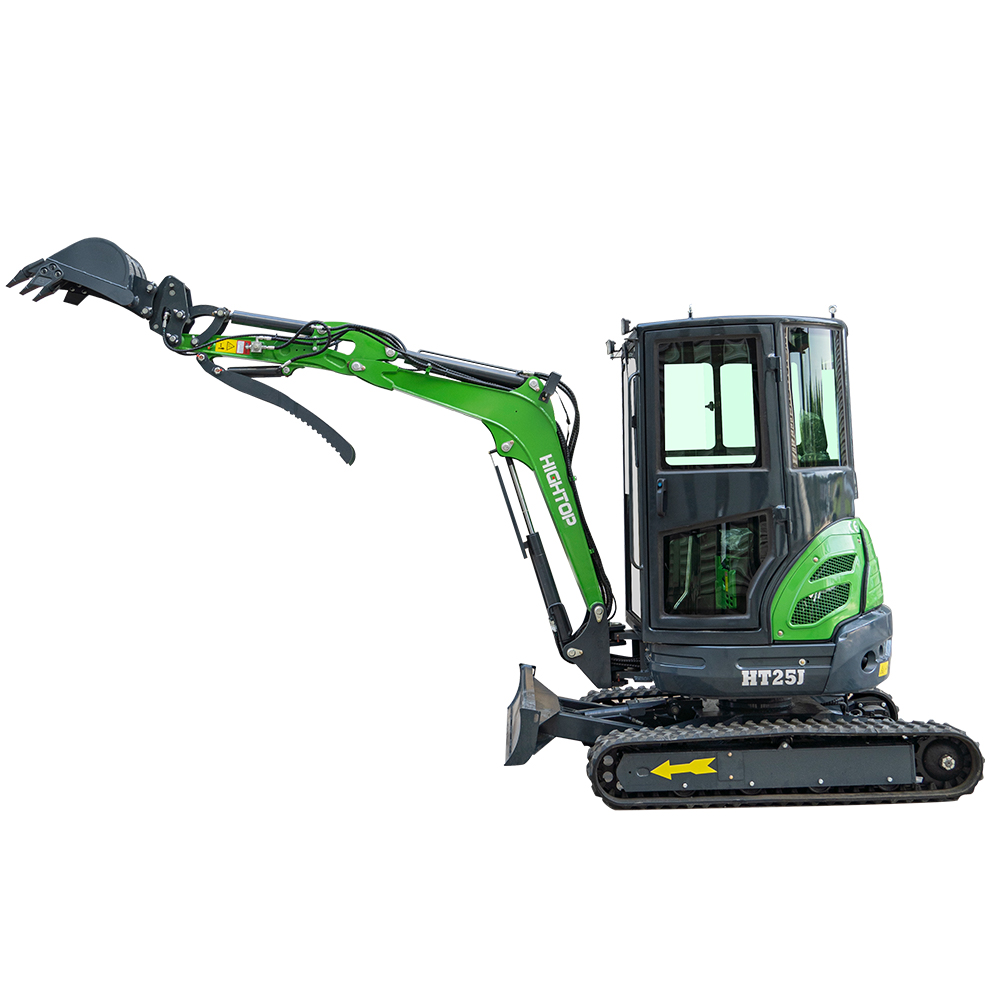

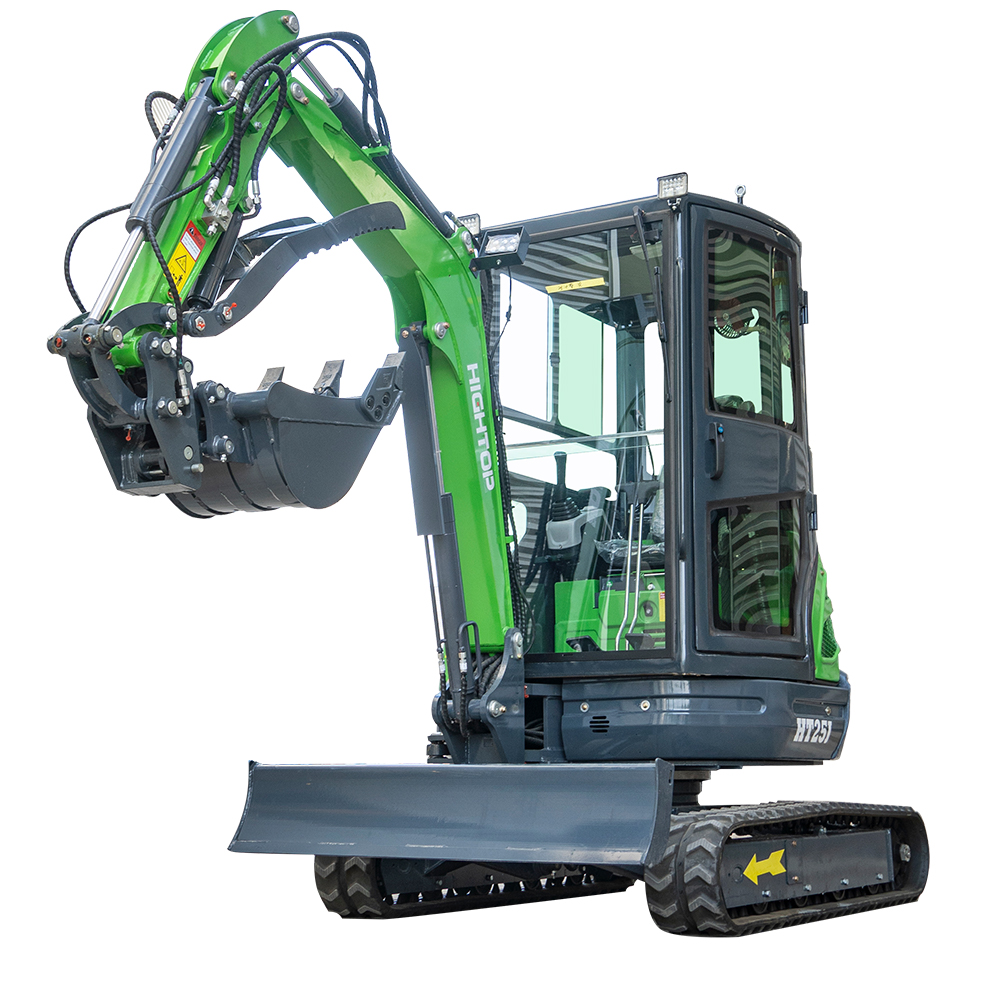

The HT25J 2.5 Ton Mini Excavator is a premium compact construction machine engineered for narrow-space construction, landscaping renovation, municipal engineering and indoor demolition works. Available in two configurations: fully enclosed air-conditioned cab version and economical open canopy version, this 1850kg-class mini digger balances powerful diesel power, flexible 360° revolving chassis and complete multi-attachment compatibility. It has become a mainstream hot-selling model for global construction contractors, garden companies and rental businesses.

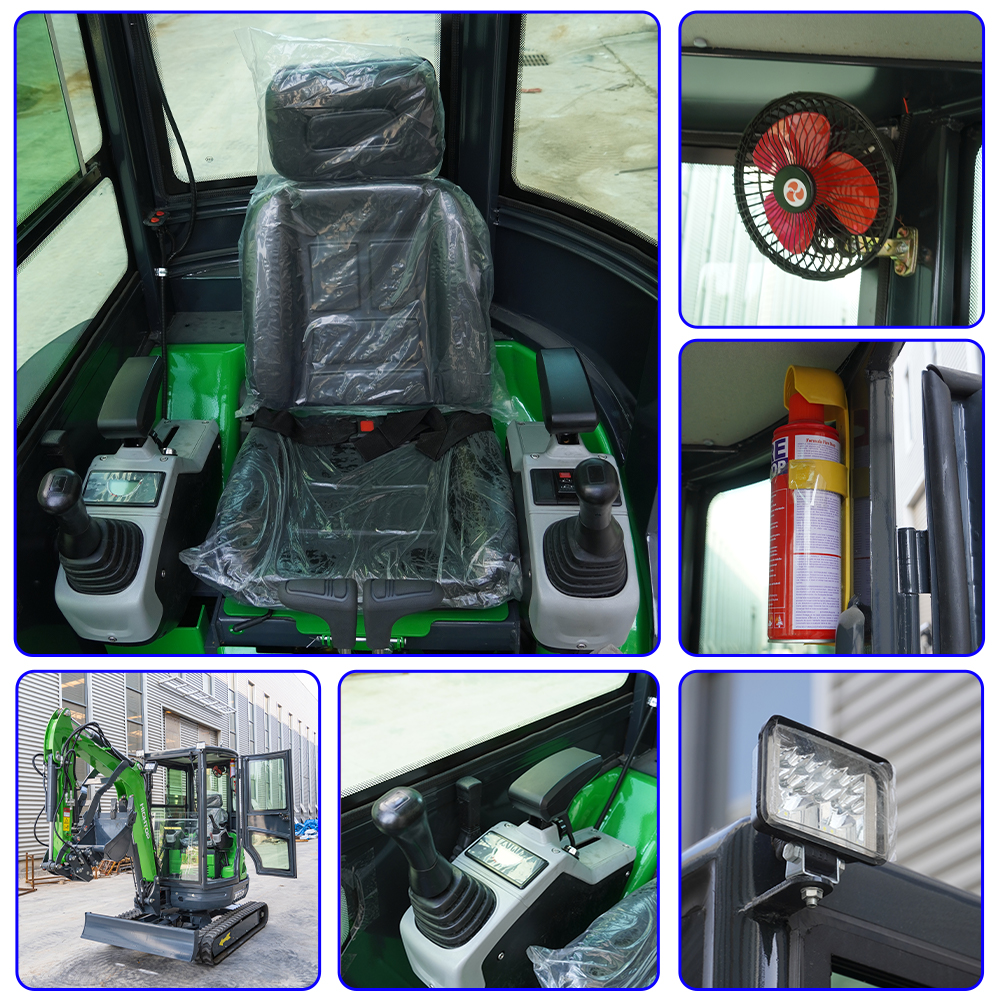

Closed Cab Model: Equipped with full sealed air-conditioning system, heat insulation, soundproof glass and anti-collision protective net, enabling all-season operation under high-temperature summer and cold winter, greatly improving driver comfort for long-hour work.
Open Canopy Model: Lightweight cost-effective design with foldable sunshade canopy, easy daily maintenance and low procurement cost, perfect for seasonal outdoor construction and small-scale private projects.

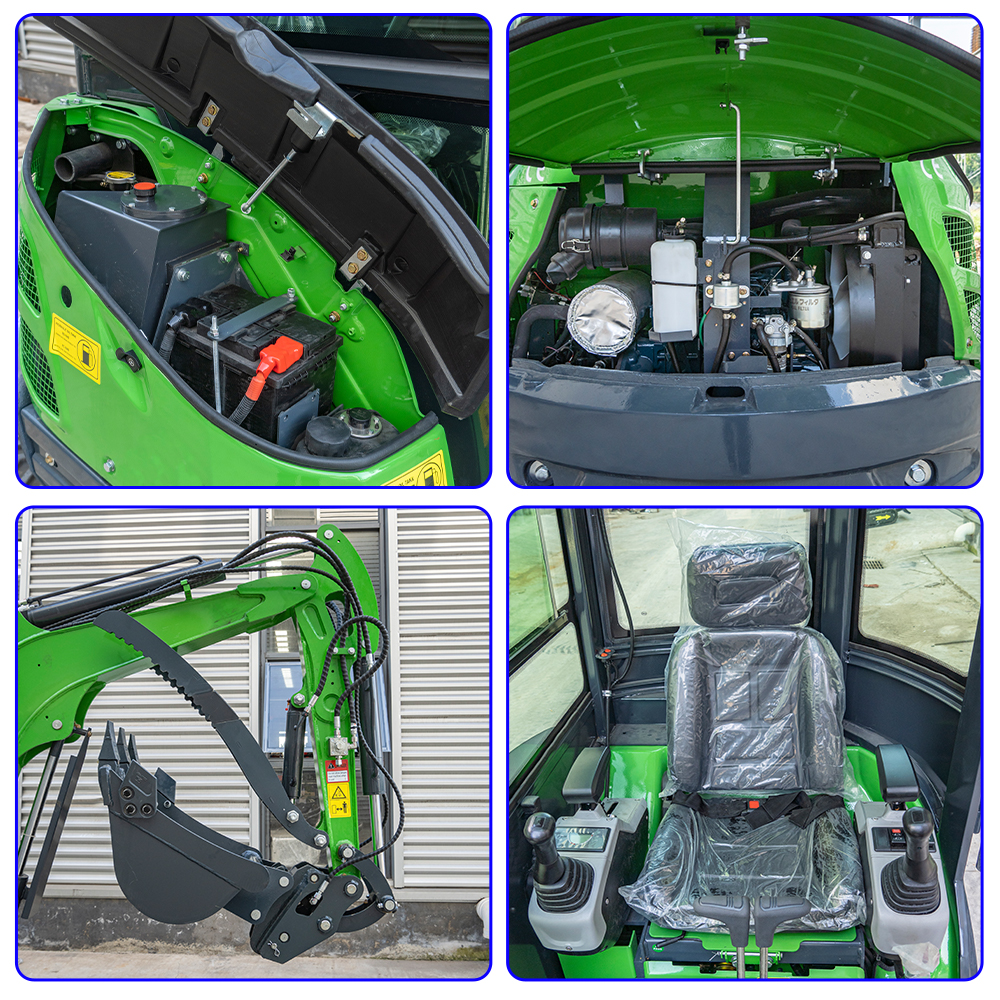

Users can choose between Quanchai three-cylinder direct injection engine or imported Kubota engine: rated power 18.9kW/2200rpm, large displacement delivers strong torque with low fuel consumption and stable cold-start performance. Matched with high-efficiency main hydraulic valve, system flow reaches 33L/min for smooth boom, arm and bucket action.
Equipped with Eaton brand travel motor, stable traveling speed up to 2.9km/h, maximum climbing gradient reaches 30%, effortlessly conquer rugged slopes, uneven mud and hilly construction sites.
Overall machine width only 1400mm, total transport length 2895mm, compact dimension allows easy access into courtyard alleys, indoor basements and narrow green belts where large excavators cannot enter. Short tail swing design avoids collision with surrounding walls during revolving; the whole machine can be loaded on standard pickup trucks directly without large trailers to cut transfer cost.
Core working data: Max digging height 3572mm, max digging depth 2276mm, max horizontal digging reach 3795mm, meets most small earthmoving and trenching demands.
Rich optional attachments: narrow bucket, plain bucket, tilt bucket, auger drill, hydraulic breaker, thumb grapple, log splitter, hedge trimmer and other over 20 kinds of working tools to realize multi-purpose of one machine.
Comprehensive OEM customization: customizable body color, engine brand, body LOGO printing, seat style and extra accessories as client’s requirement, we support exclusive private label for global distributors.
Item | Specific Parameter |
|---|---|
Operating Weight | 1850KG |
Overall Dimension(L×W×H) | 2895mm×1400mm×2450mm |
Max Digging Height | 3572mm |
Max Digging Depth | 2276mm |
Max Digging Reach | 3795mm |
Gradeability | 30% |
Engine Option | Quanchai 3-cylinder / Kubota Diesel Engine |
Rated Power | 18.9kW/2200rpm |
Hydraulic System Flow | 33L/min |
Travel Speed | 2.9km/h |
Configuration Option | Closed Air-Condition Cab / Open Canopy |
Standard Bucket Capacity | 0.07m³ |
✔ Garden planting, nursery ditching & orchard renovation
✔ Municipal pipeline laying, road maintenance and trench digging
✔ Indoor house demolition, basement renovation
✔ Farmland land consolidation, trenching for irrigation
✔ Small villa construction, courtyard landscaping works
Factory Direct Supply: Over 10 years professional mini excavator manufacturing experience, own standardized production workshop, no middleman markup for competitive ex-factory price.
Strict QC & Global Certifications: Every machine passes full load running test before delivery, all HT25J series get CE certification to smoothly clear customs for EU, North America, Southeast Asia markets.
Complete After-Sales Support: Global spare parts supply system + remote online technical guidance, quick after-sale response for overseas dealers and end customers.
If you need customized quotation, full product catalog or bulk wholesale discount for HT25J mini excavator, please get in touch with our professional sales team immediately. We will customize engine, configuration and shipping plan according to your local market demand!
