HT210

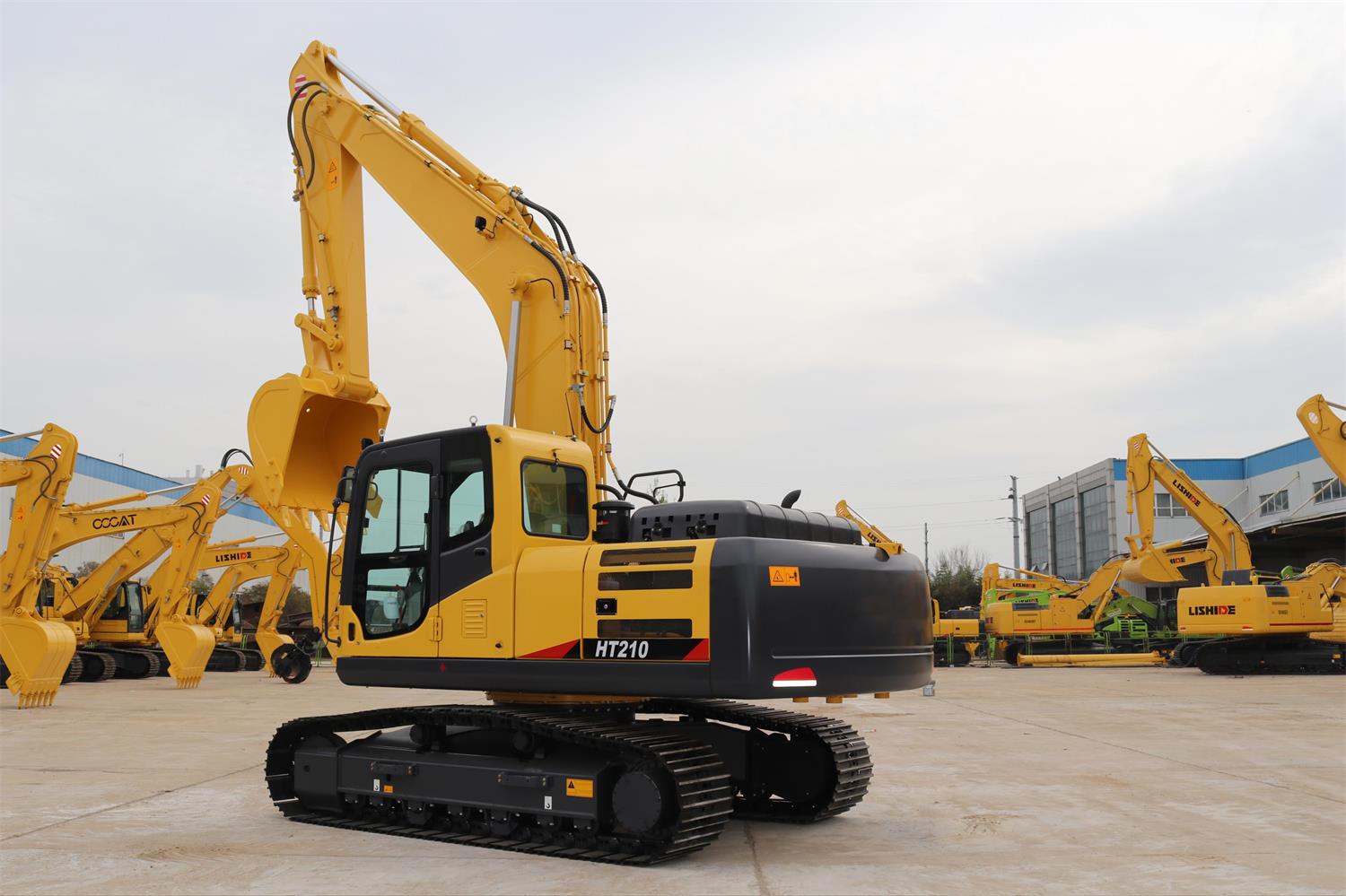

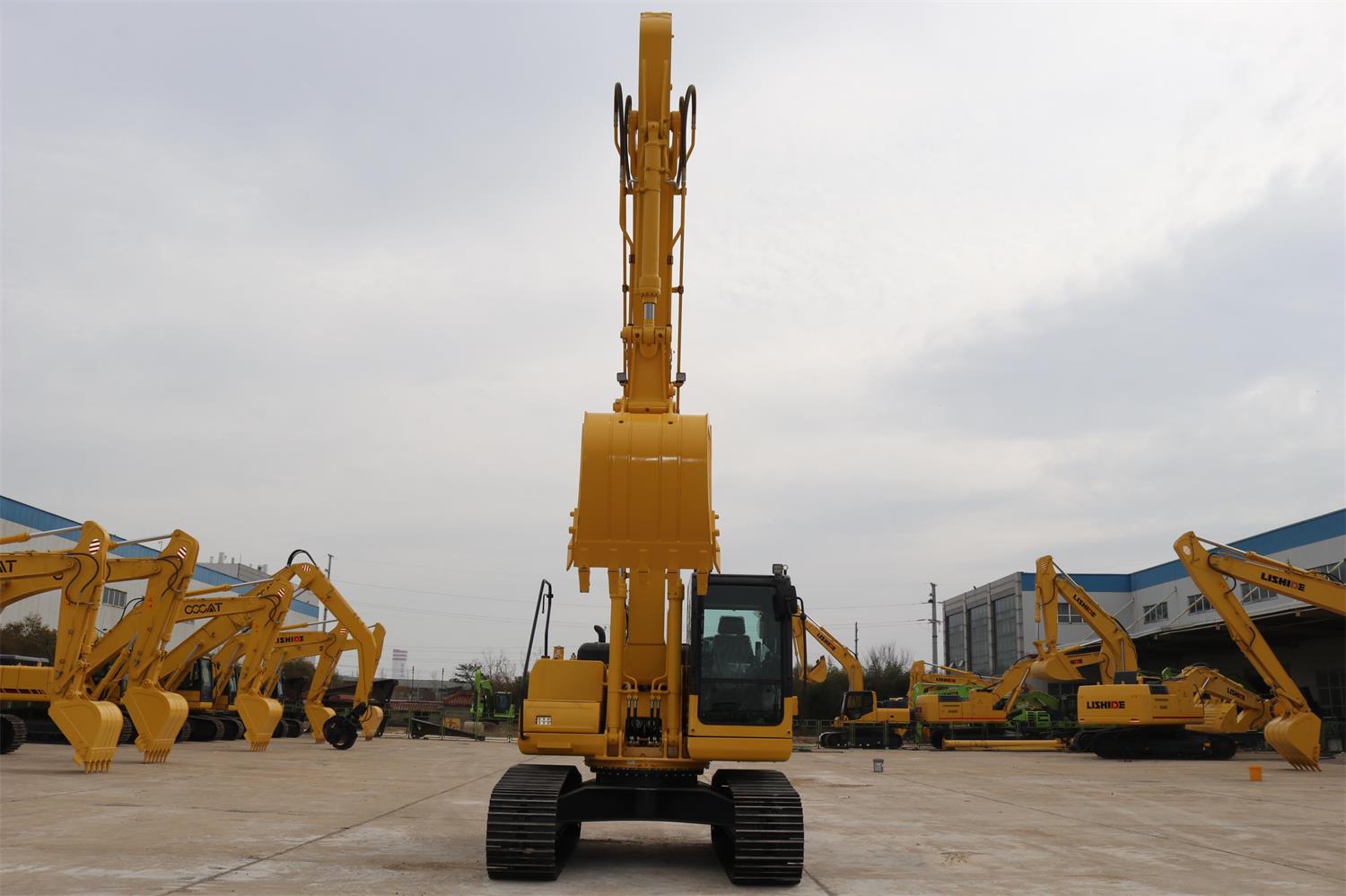

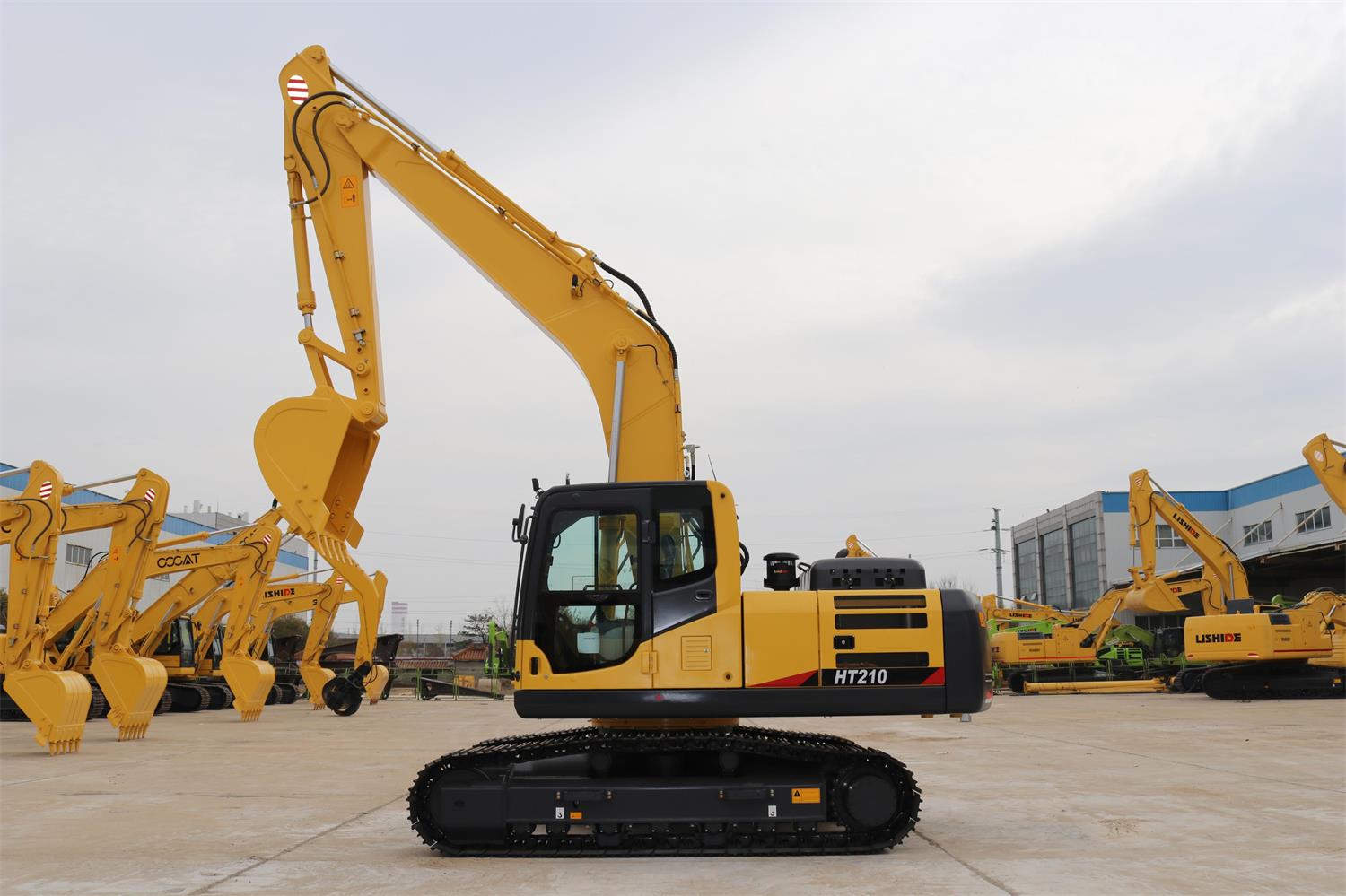

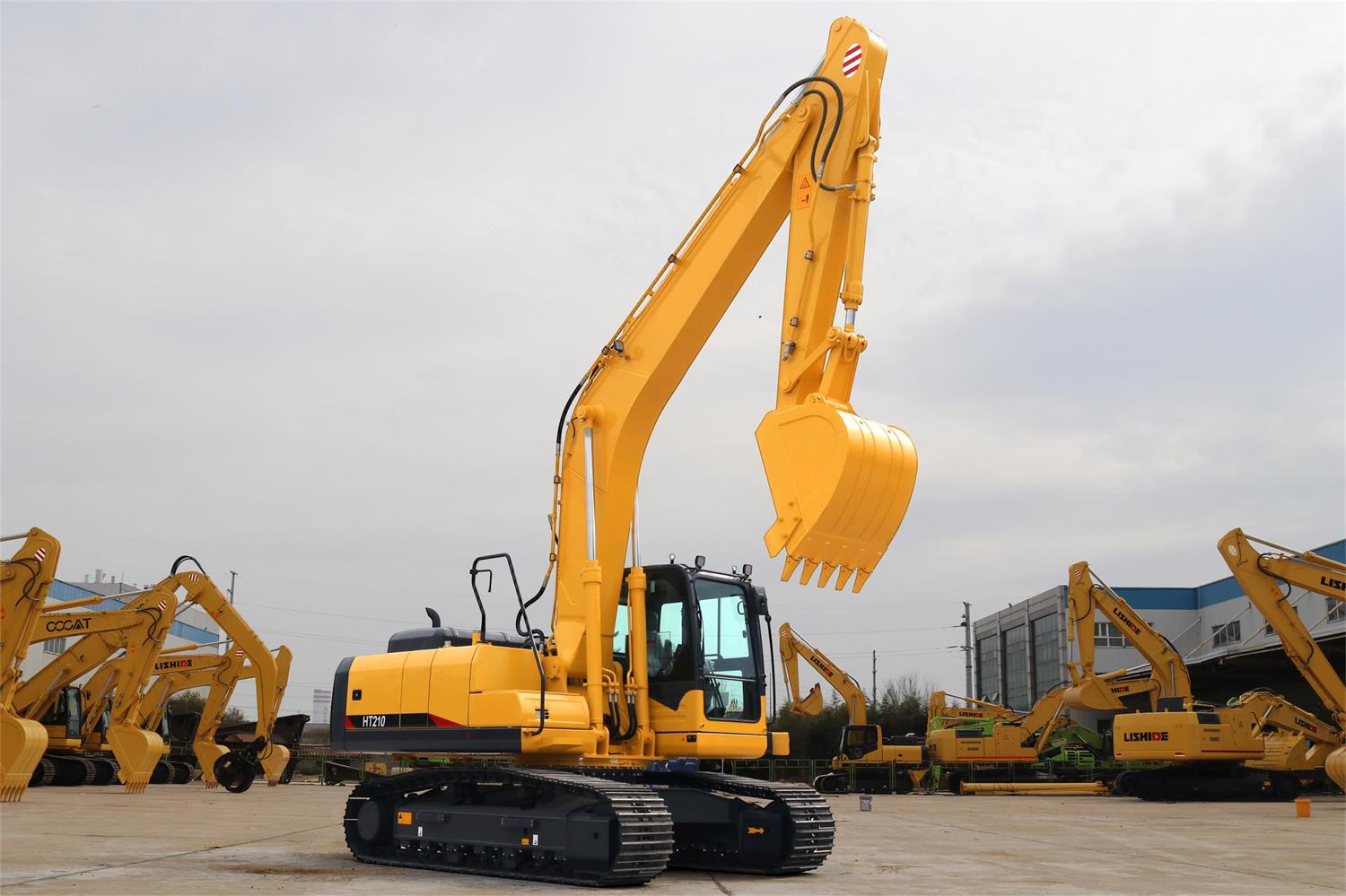

HT210 Large Excavator Instruction
SUPERIOR USE
Heavy Duty Boom and Arm
New Variable Power Control
6BTAA-5.9 (HM5.9)
Reinforced Bucket and Link Bucket Powerful
and Preciser Swing Control
Strong and Stable Bottom Frame
Single Layer Cooling System
Minimize Shock and Vibration Through Mounting cab system
COMFORTABLE OPERATION
· New Front Side Air Conditioning System
· Smooth Travel Pedal and Footrest
· Improved Smart Display
· Lightweight Control Panels
· Wide Cab with Excellent Visibility
· Highly Sensitive Joystick and Easy Entry
· Wide, Comfortable Operating Space
MAINTENANCE AND EASY MAINTENANCE
· Easy to maintain engine components
· Centralized electrical control unit and easy to change air cleaner assembly
· Side cover with left and right swing open type
· Large tool box for extra storage
· High efficiency hydraulic pump
· Hi-MATE (remote system management)
| Model:HT210 | |||
| Total Weight | 21t | Track grounding length | 3445mm |
| Bucket capacity | 0.9-1.2m³ | Track length | 4250mm |
| Engine model | Cummins 6BTAA5.9 | Rail guage | 2180mm |
| Rated power | 133kw/2000r/min | Track width | 2780mm |
| Fuel tank volume | 350L | Track shoe width | 600mm |
| Walking speed | 5.2/3.5km/h | Turntable width | 2700mm |
| Swing speed | 11.7r/min | Distance from the center of rotation to the rear end | 2720mm |
| Climbing ability | 35° | Track tooth thickness | 26mm |
| Bucket digging force | 138kn | Counterweight height | 2045mm |
| Arm digging force | 99kn | Grounding length during transportation | 4940mm |
| Ground pressure | 44kpa | Arm length | 2900mm |
| Traction | 174kn | Boom length | 5700mm |
| Hydraulic pump model | K3V112DT | Max.excavation height | 8630mm |
| Max.flow rate | 223*2L/min | Max.unloading height | 6180mm |
| Work pressure | 34.3/37.3mpa | Max.digging depth | 5501mm |
| Hydraulic tank volume | 246L | Max.vertical digging depth | 4940mm |
| Total length | 9390mm | Max.digging depth when digging out 2.5m level | 5287mm |
| Overall width | 2780mm | Max.digging distance | 8305mm |
| Total height (boom top) | 3040mm | Max.excavation distance on the ground | 8180mm |
| Overall height(top of cab) | 3114mm | Min.turning radius | 2495mm |
| Counterweight ground clearance | 1065mm | Max.height at minimum turning radius | 6430mm |
| Minimum ground clearance | 468mm | Tail turning radius | 2720mm |
