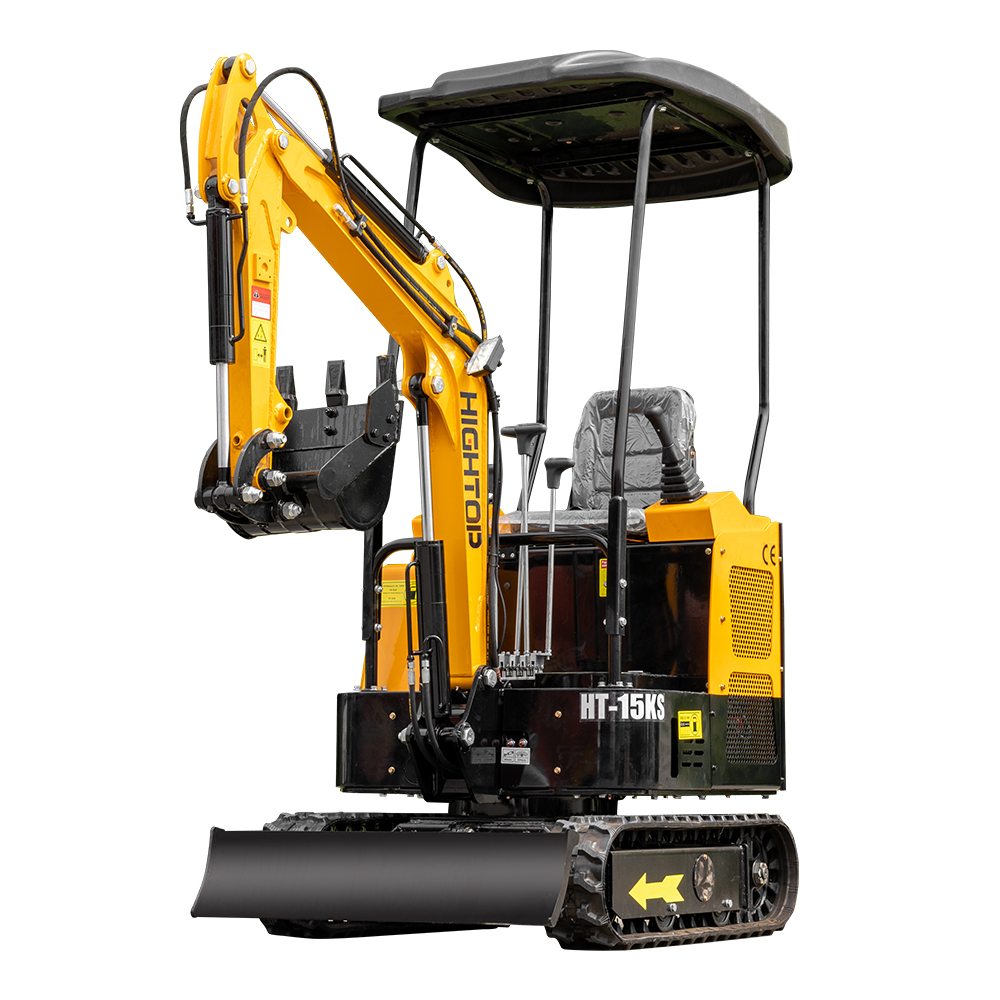

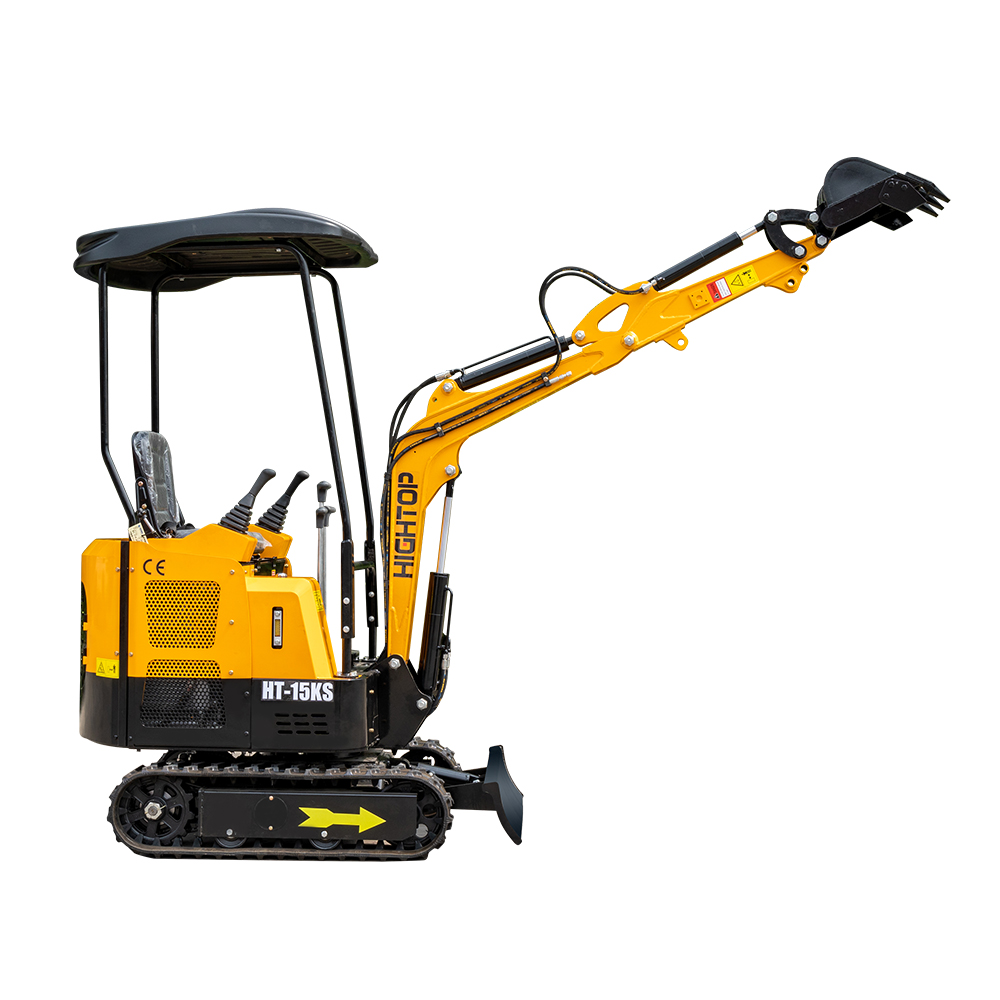

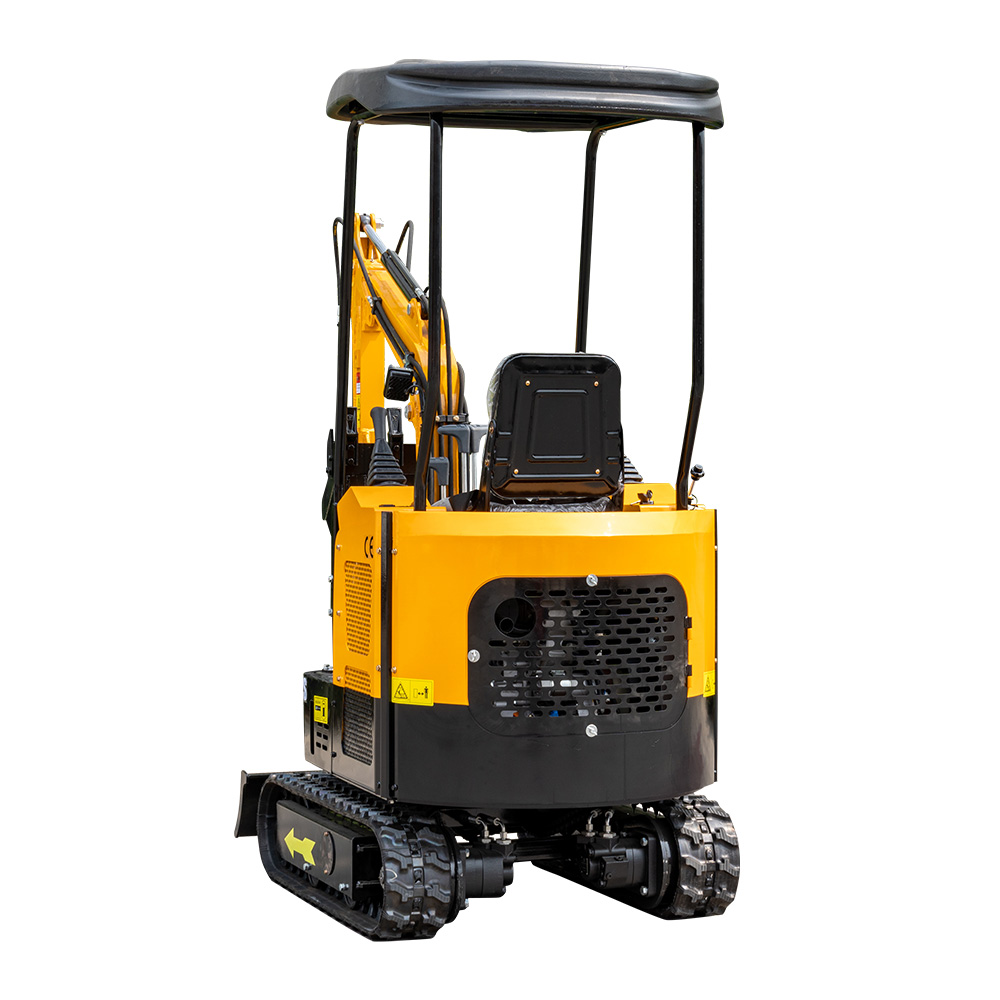

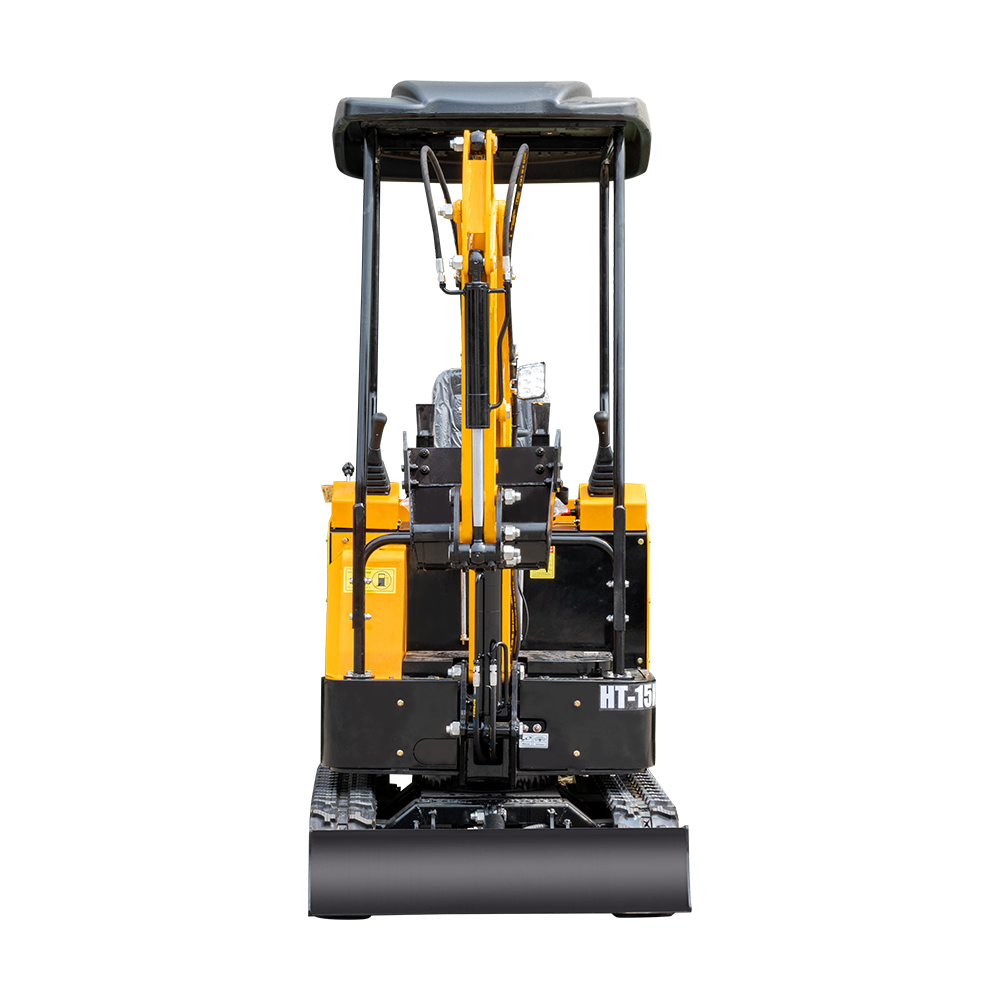

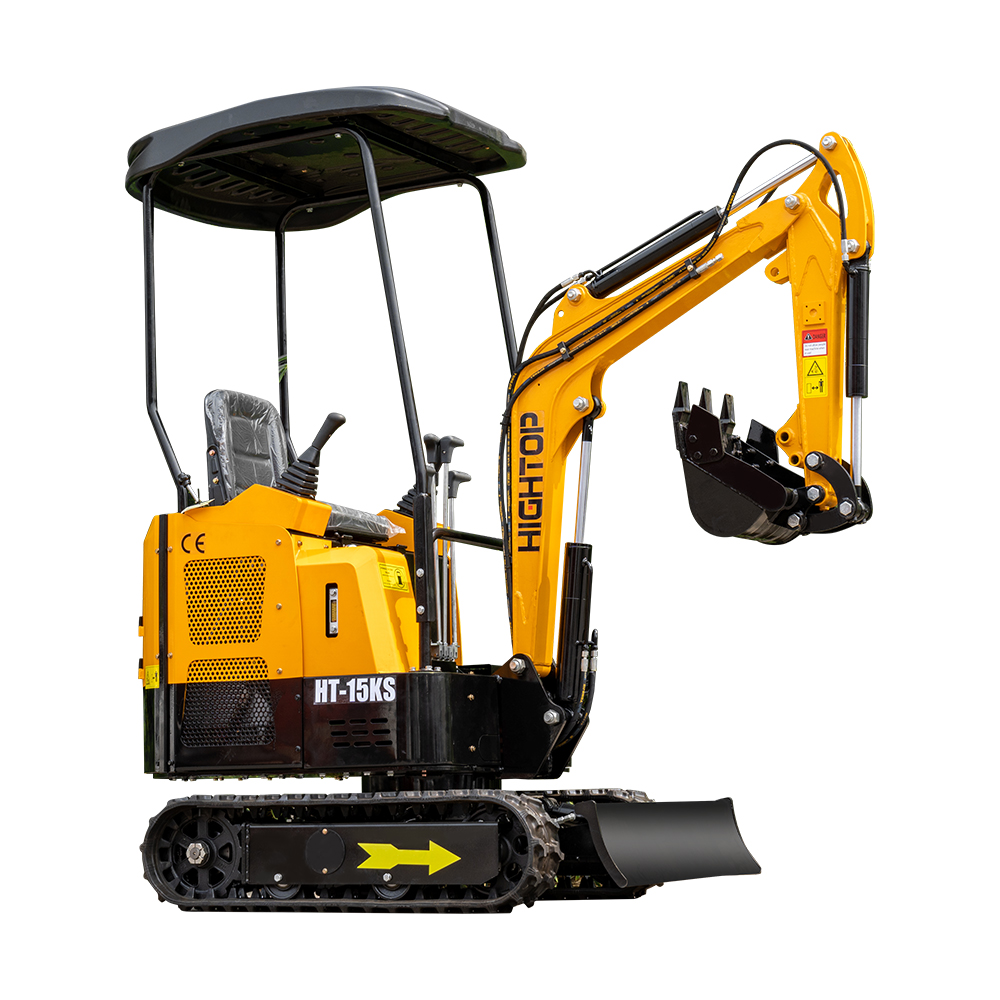

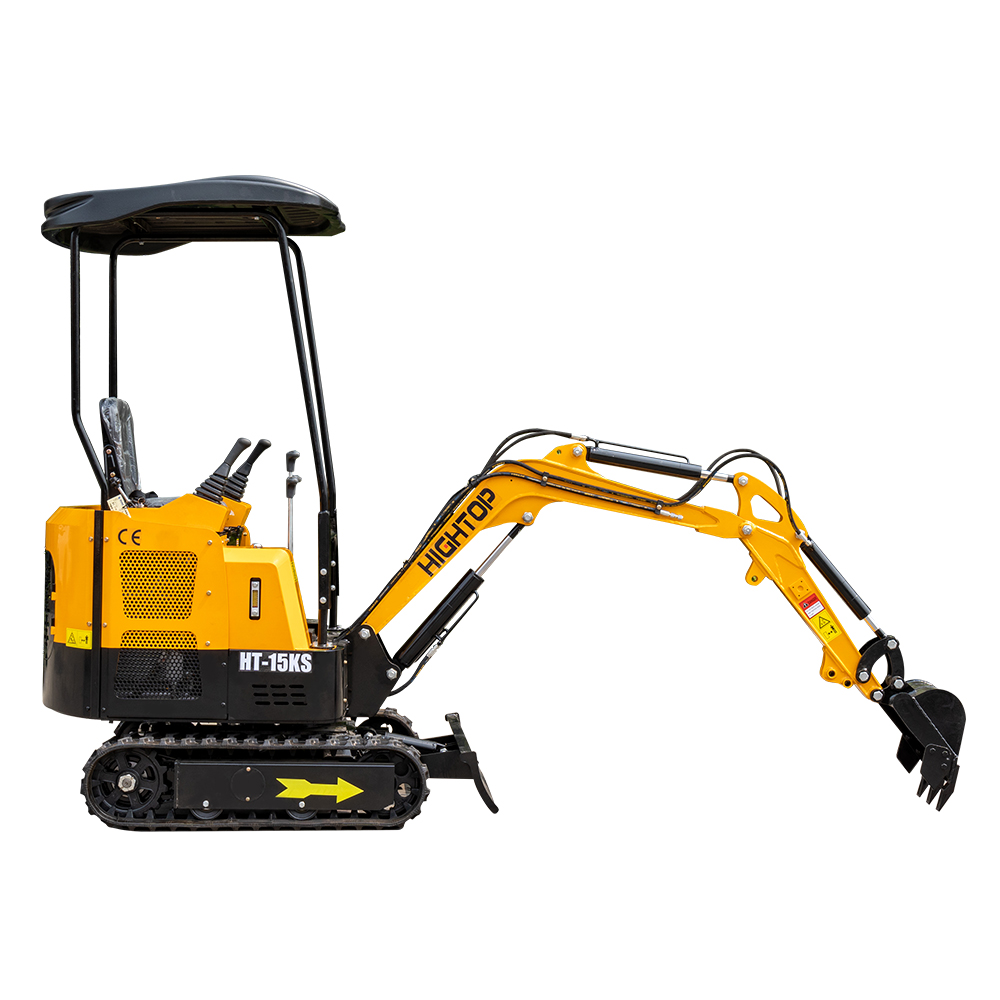

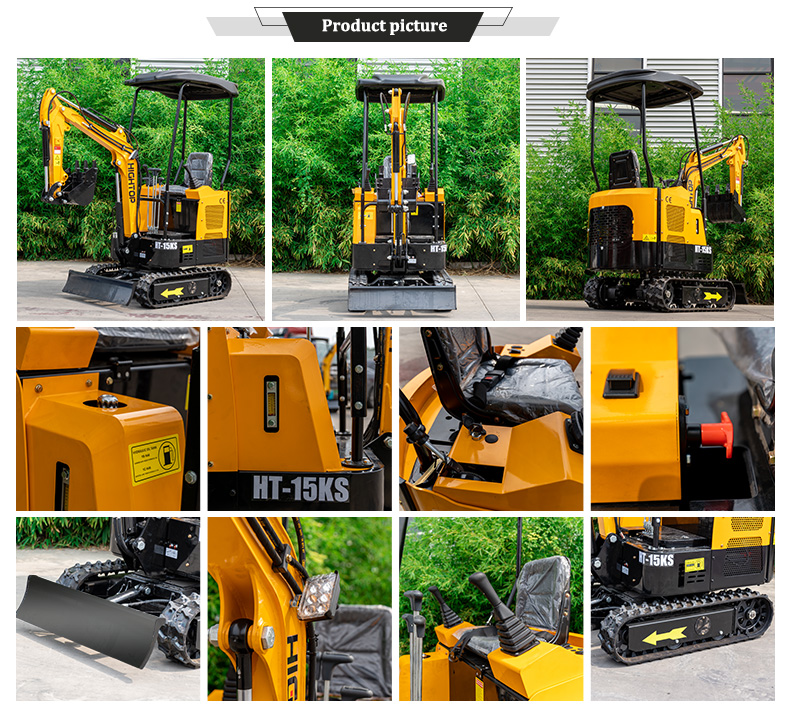

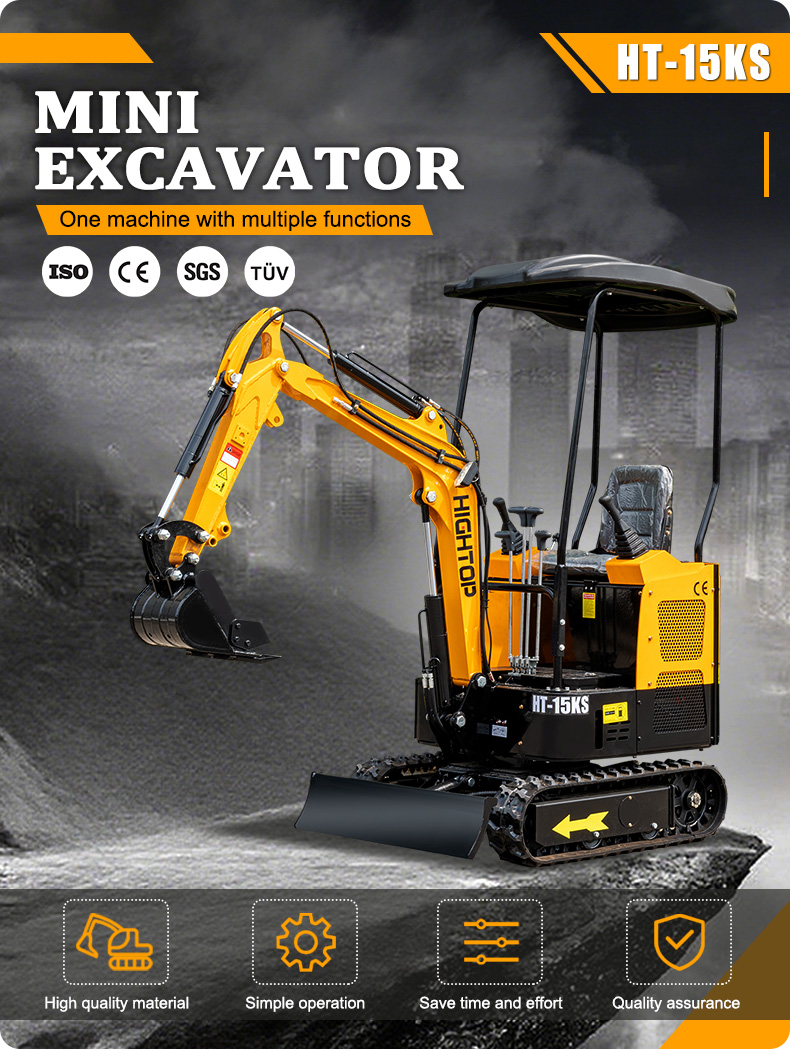

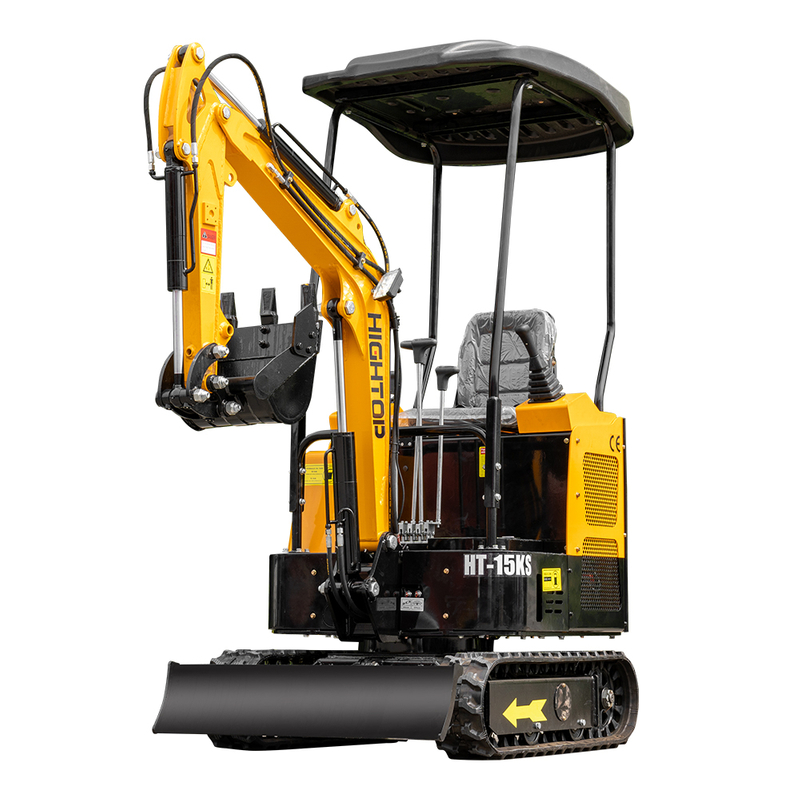

HT-15KS
Advantages of excavators:
1. High operational efficiency, significantly reducing labor costs
Powerful power output: Equipped with high-power engines and hydraulic systems, it can quickly complete tasks such as earth excavation, transportation, and loading. For example, a medium-sized excavator can excavate 80-150 cubic meters of earth per hour, equivalent to the work of dozens of manual laborers, significantly shortening the project timeline.
Continuous operation capability: It can operate stably for extended periods under high-intensity conditions without being constrained by human physical limitations, making it particularly suitable for the urgent demands of large-scale projects.
2. Highly versatile, suitable for multiple applications

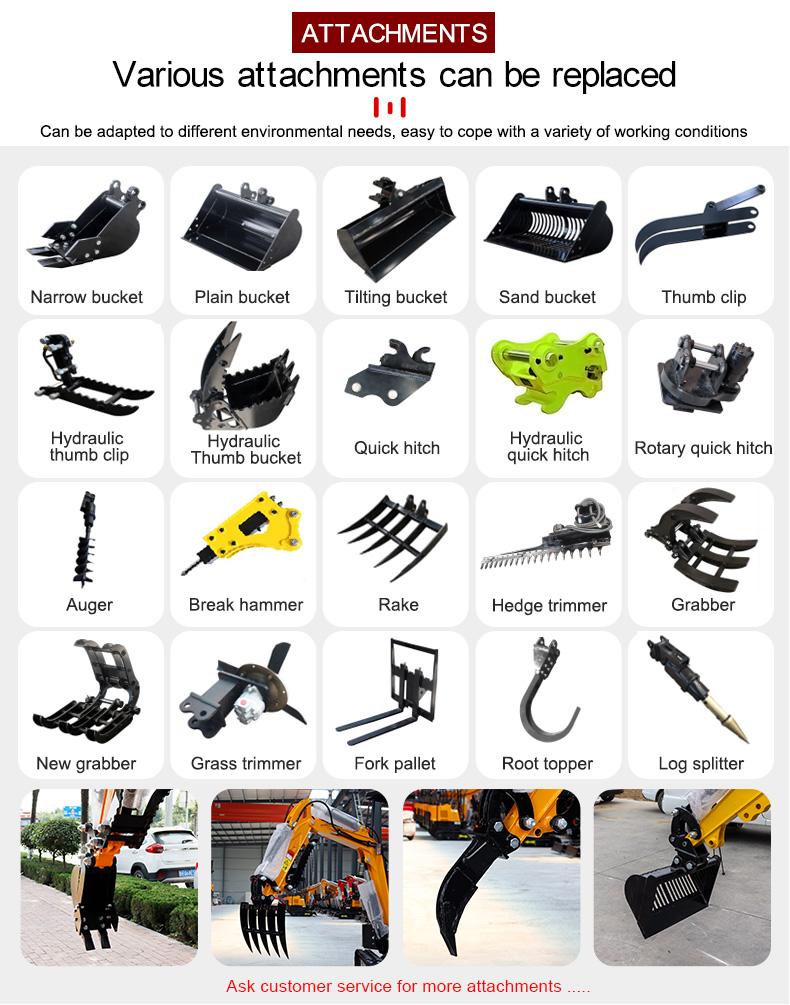

By replacing different attachments, the excavator can perform a variety of functions:
Standard bucket: Used for earthmoving, site leveling, and material loading.
Special attachments: such as a hydraulic hammer (for breaking concrete and rock), hydraulic shears (for cutting steel and demolishing buildings), a log grapple (for grabbing wood and steel), and a soil loosener (for loosening hard soil and rock layers), etc.
Application scenarios include: construction, mining, road construction, agricultural and water conservancy projects, municipal engineering, emergency rescue, and more, achieving “one machine for multiple uses” and reducing equipment procurement and maintenance costs.
3. Flexible operation, suitable for complex environments
Traveling and steering: Tracked excavators have low ground pressure and can travel on muddy, soft ground (such as farmland and marshes) with strong climbing ability; wheeled excavators are suitable for highway travel and are more convenient for moving between sites.
Working Radius: The boom and dipper arm can be flexibly extended, retracted, and rotated, enabling operation in narrow spaces (such as urban building complexes or indoor demolition) while also covering larger areas (such as foundation pit excavation or high-altitude demolition).
Precise Control: The hydraulic system responds swiftly, enabling precise operations (such as slope grading or accurate positioning during pipeline laying).
4. High safety, reducing operational risks
Cab design: The cab is made of reinforced steel and equipped with rollover protection (ROPS) and falling object protection (FOPS) devices to protect operators from falling objects, rollovers, and other dangerous hazards.
Optimized visibility: Large glass area, rearview mirrors, and cameras (on some models) reduce blind spots and improve operational safety.

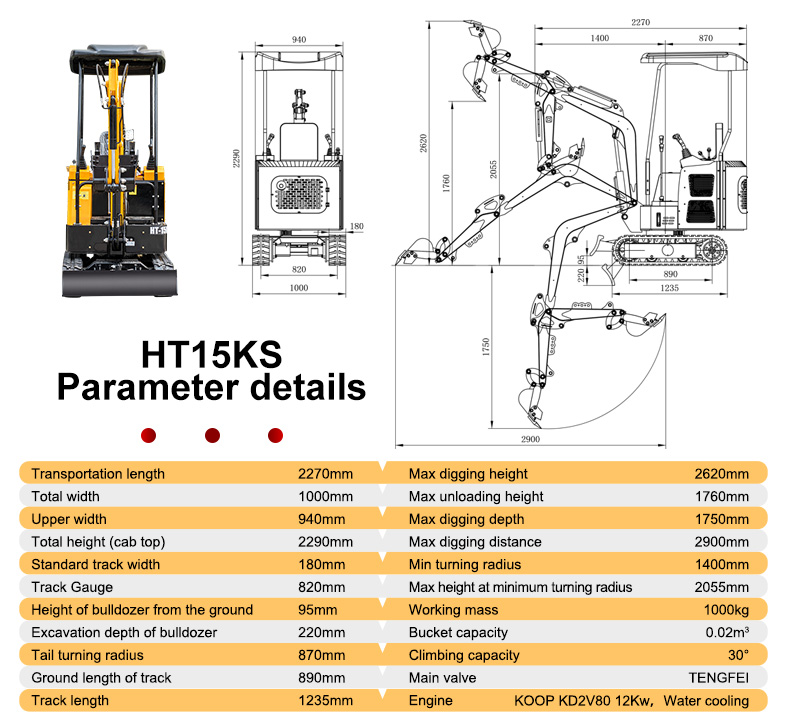

| Transportation length | 2270mm |
| Total width | 1000mm |
| Upper width | 940mm |
| Total height(cab top) | 2290mm |
| Standard track width | 180mm |
| Track Gauge | 820mm |
| Height of bulldozer from the ground | 95mm |
| Excavation depth of bulldozer | 220mm |
| Tail turning radius | 870mm |
| Ground length of track | 890mm |
| Track length | 1235mm |
| Max digging height | 2620mm |
| Max unloading height | 1760mm |
| Max digging depth | 1750mm |
| Max digging distance | 2900mm |
| Min turning radius | 1400mm |
| Max height at minimum turning radius | 2055mm |
| Working mass | 1000kg |
| Bucket capacity | 0.02m³ |
| Climbing capacity | 30 |
| Main valve | TENGFEI |
| Engine | KOOP KD2V80 12Kw, Water cooling |
