HT12
1.2ton Mini Excavator Instruction

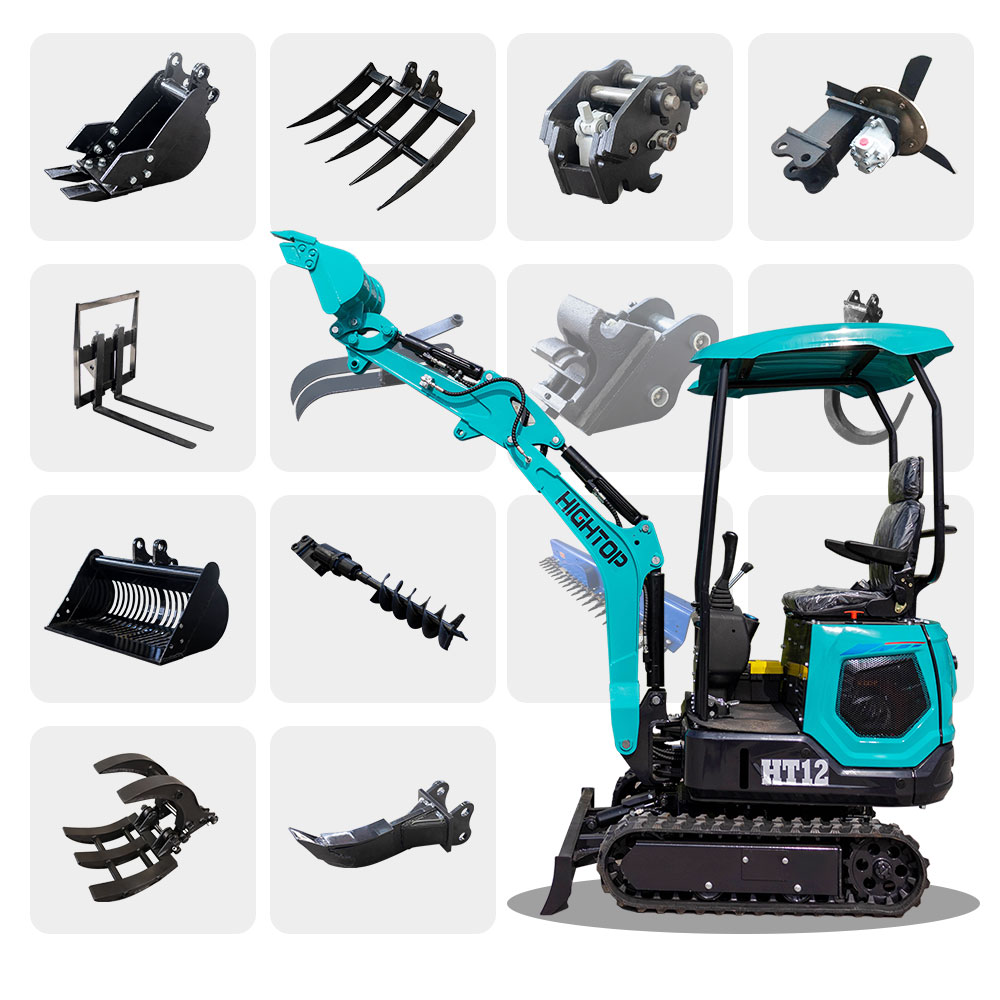

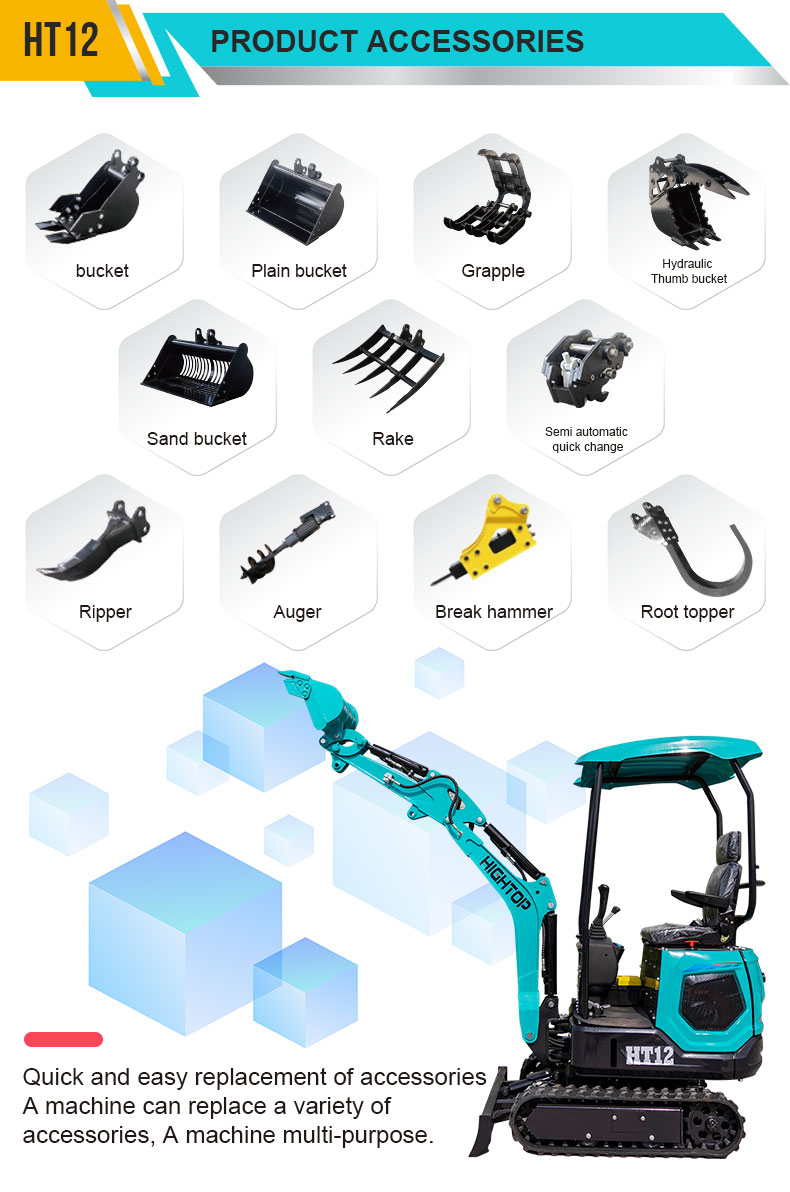

1.2 ton mini excavator is a compact engineering equipment designed for narrow space and fine work, the whole machine weights 1200kg, adopts low noise diesel engine and full hydraulic control system, combining flexibility and high efficiency. Its ultra-narrow body of 980mm can easily pass through standard door frames (such as rural alleyways and indoor construction scenes), and with a 0.04m³ bucket and attachments such as crushing hammers and augers, it can be widely used in home renovation, vegetable gardening, municipal pipeline network maintenance and small-scale engineering projects.
HIGH-PERFORMANCE ENGINE
Use domestic well-known brand KOOP 192F engine, strong power and stable working,or popular Koop Engine to meet Europe emission demand.

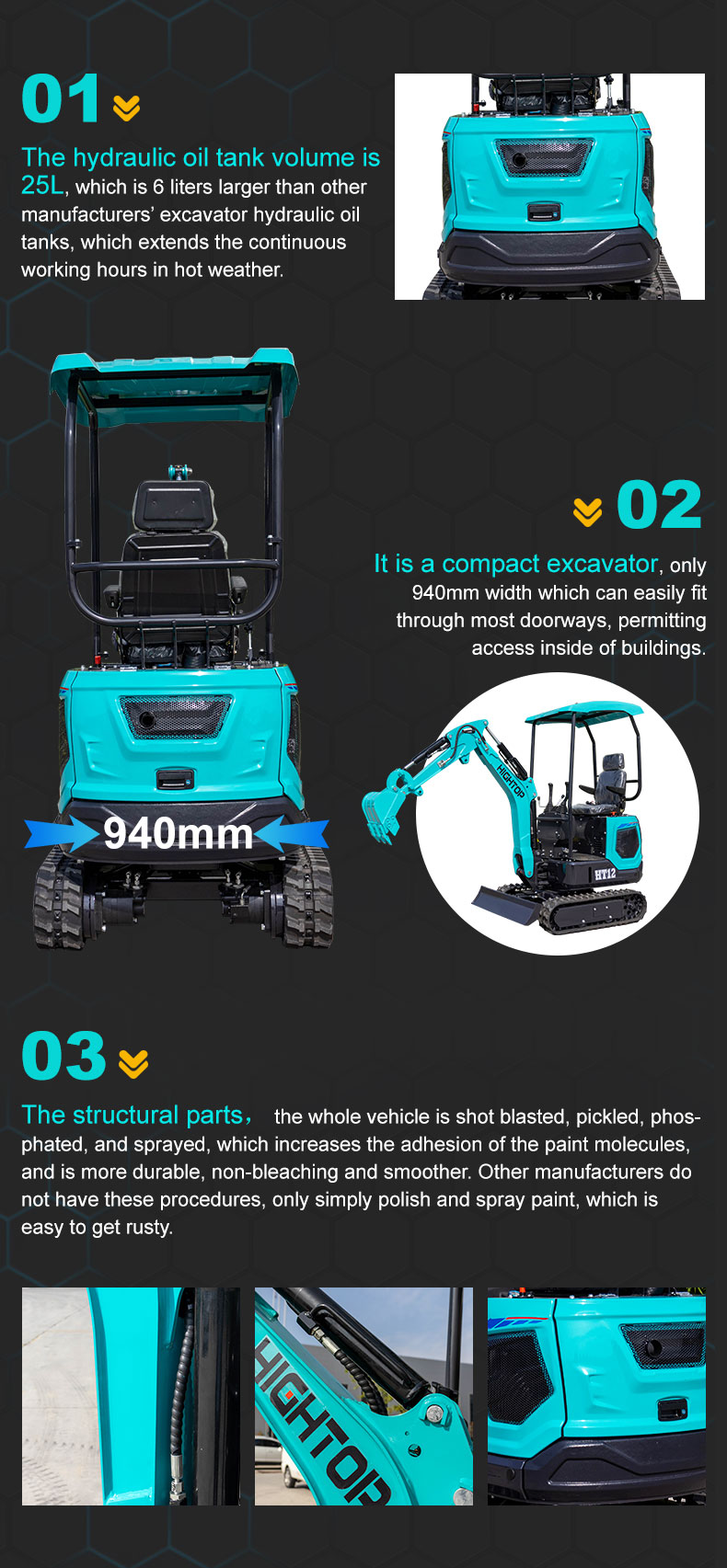

25L HYDRAULIC TANK
The hydraulic oil tank volume is 25L, which is 6 liters larger than other manufacturers’excavator hydraulic oil tanks, which extends the continuous working hours in hot weather.
DURABLE DESIGN
The structural parts, the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the adhesion of the paint molecules,and is more durable, non-bleaching and smoother.
FLEXIBLE BODY AND COMPACT DESIGN
It is a compact excavator, only 940mm width which can easily fit through most doorways, permitting access inside of buildings.

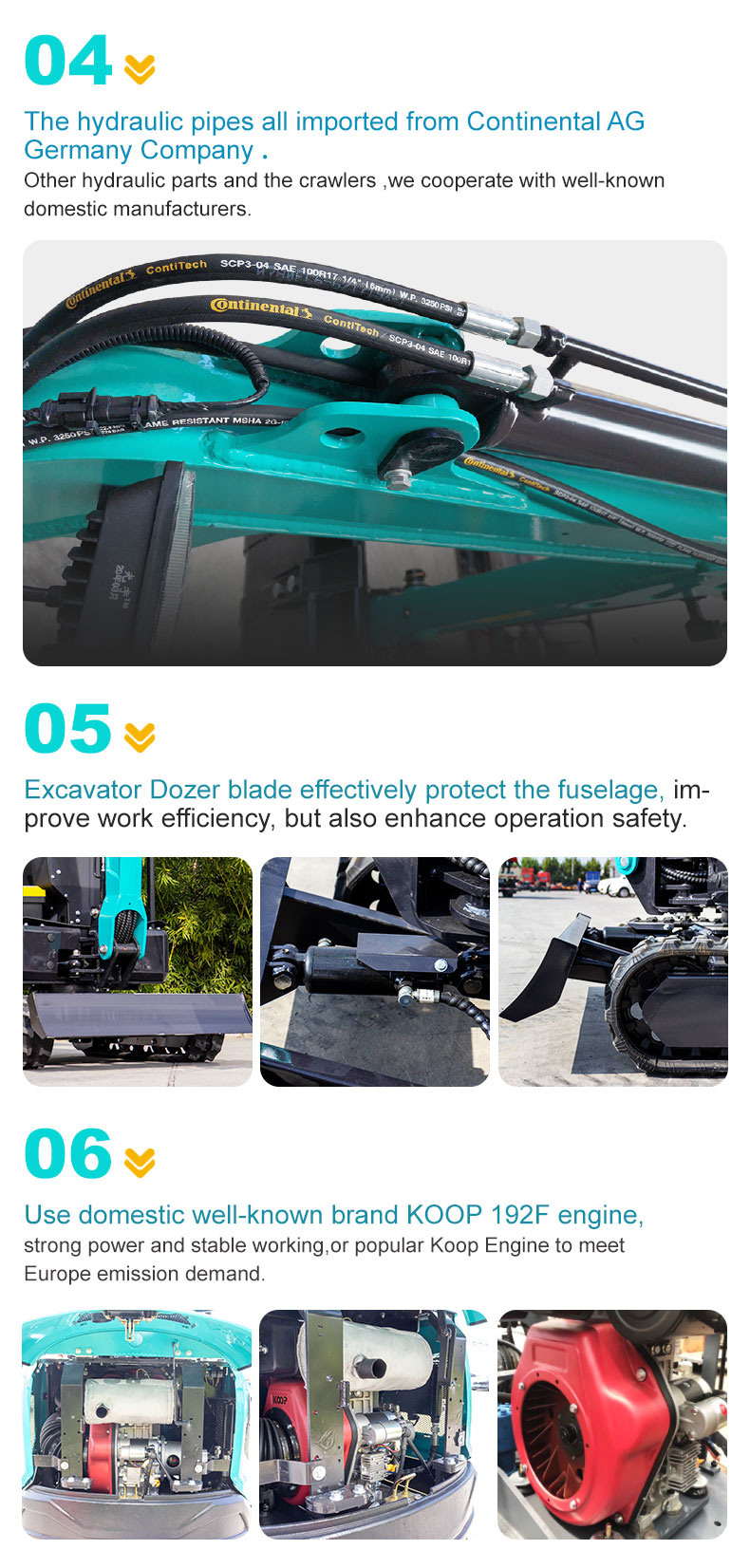

IMPORTED BRAND HYDRAULIC TUBING
The hydraulic pipes all imported from Continental AG Germany Company .
Other hydraulic parts and the crawlers ,we cooperate with well-known domestic manufacturers.
WIDENING AND THICKENING DOZER
Excavator Dozer blade effectively protect the fuselage, improve work efficiency, but also enhance operation safety.

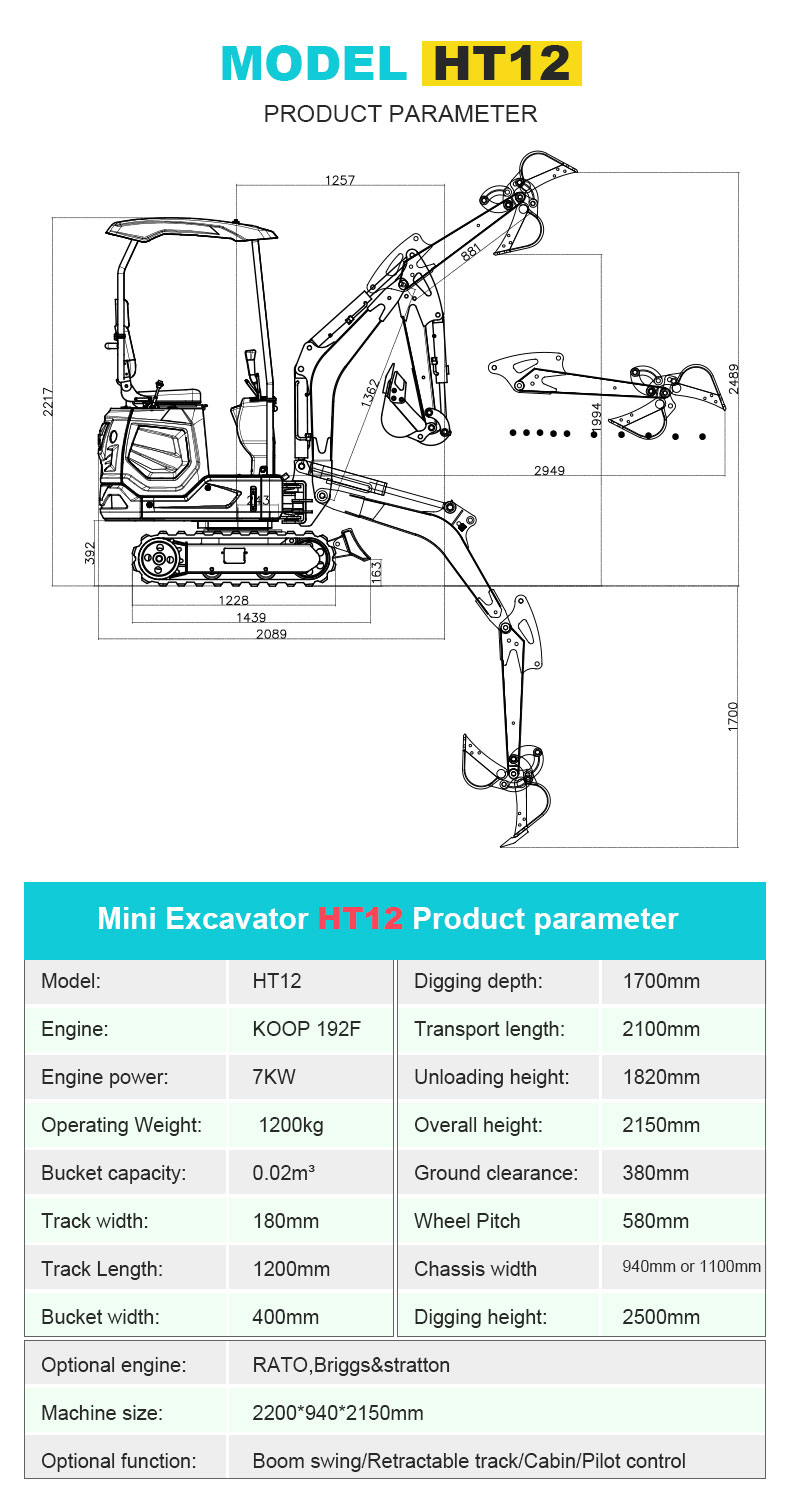

1.2ton Mini Excavator Parameter
| Model: | HT12 |
| Engine: | KOOP 192F |
| Optional engine: | RATO,Briggs&stratton |
| Engine power: | 7KW |
| Operating Weight | 1200kg |
| Bucket capacity: | 0.02m³ |
| Track width: | 180mm |
| Track Length: | 1200mm |
| Bucket width: | 400mm |
| Digging height: | 2500mm |
| Digging depth: | 1700mm |
| Transport length: | 2100mm |
| Unloading height: | 1820mm |
| Overall height: | 2150mm |
| Ground clearance: | 380mm |
| Wheel Pitch | 580mm |
| Chassis width | 940mm or 1100mm |
| Machine size: | 2200*940*2150mm |
| Optional function: | Boom swing |
| Retractable track | |
| Cabin | |
| Pilot control |

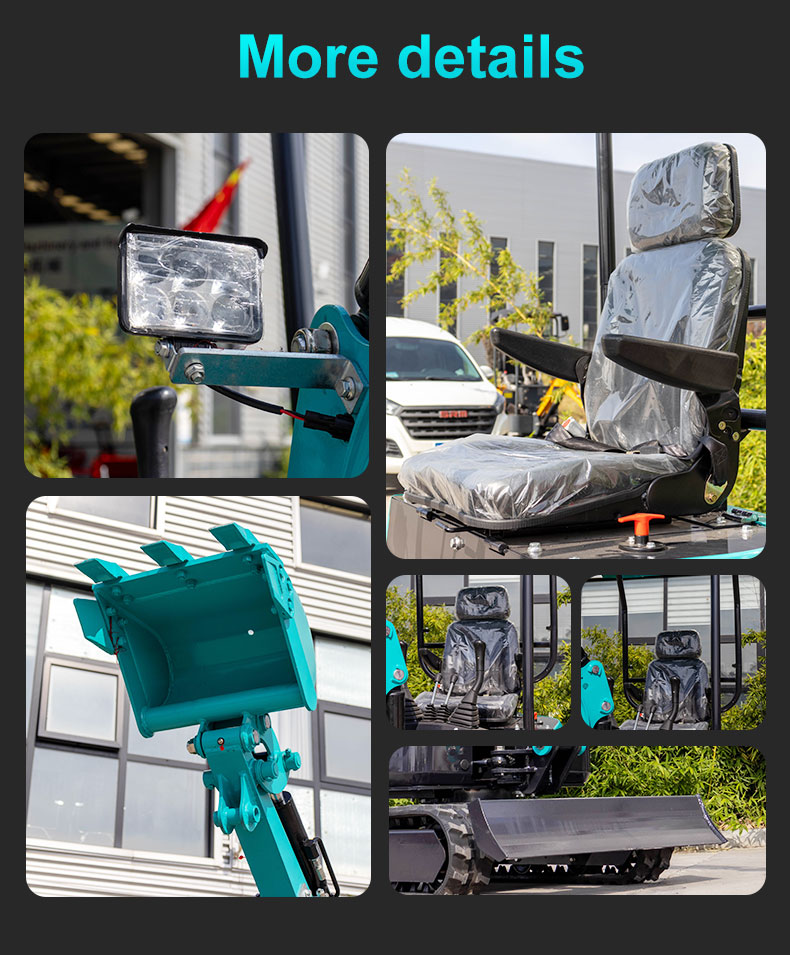

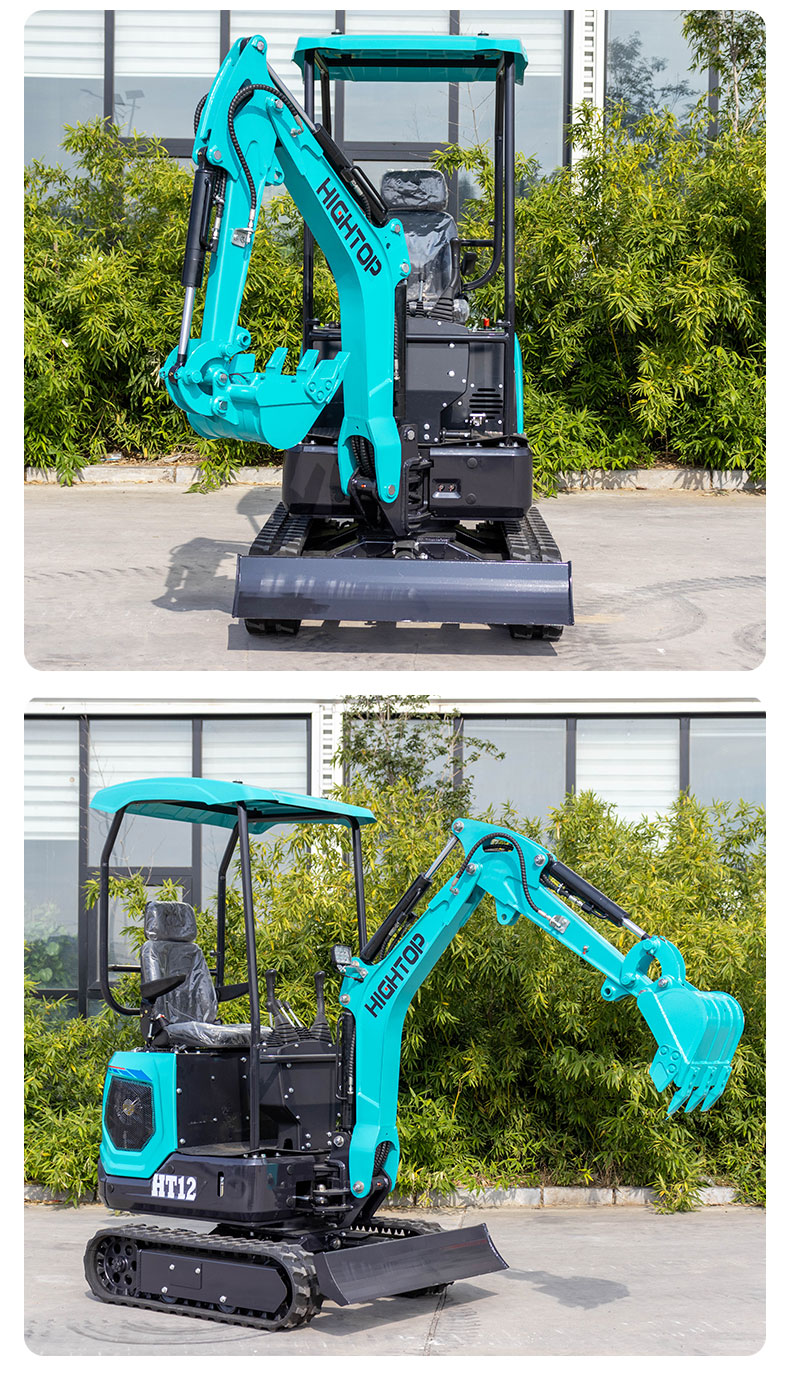

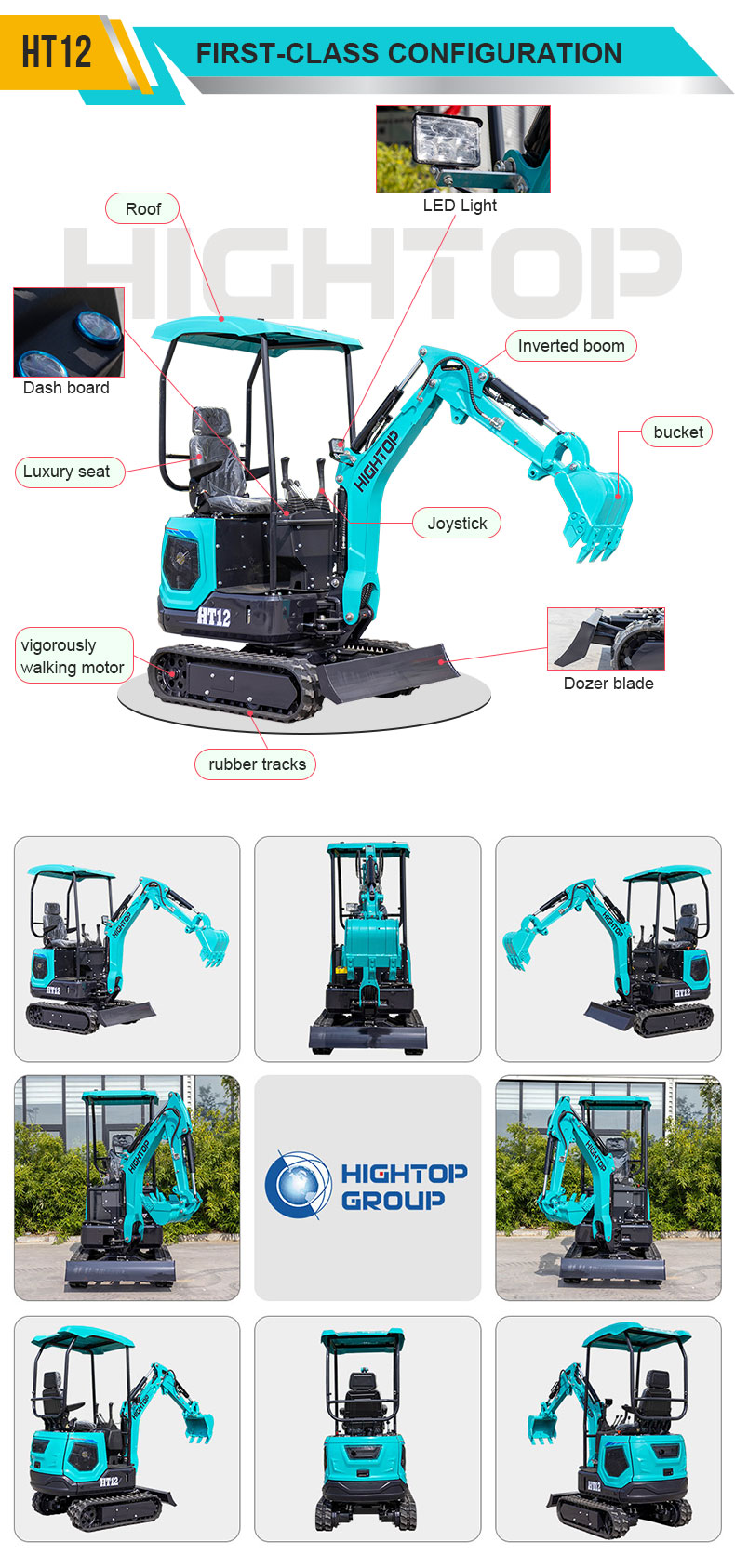

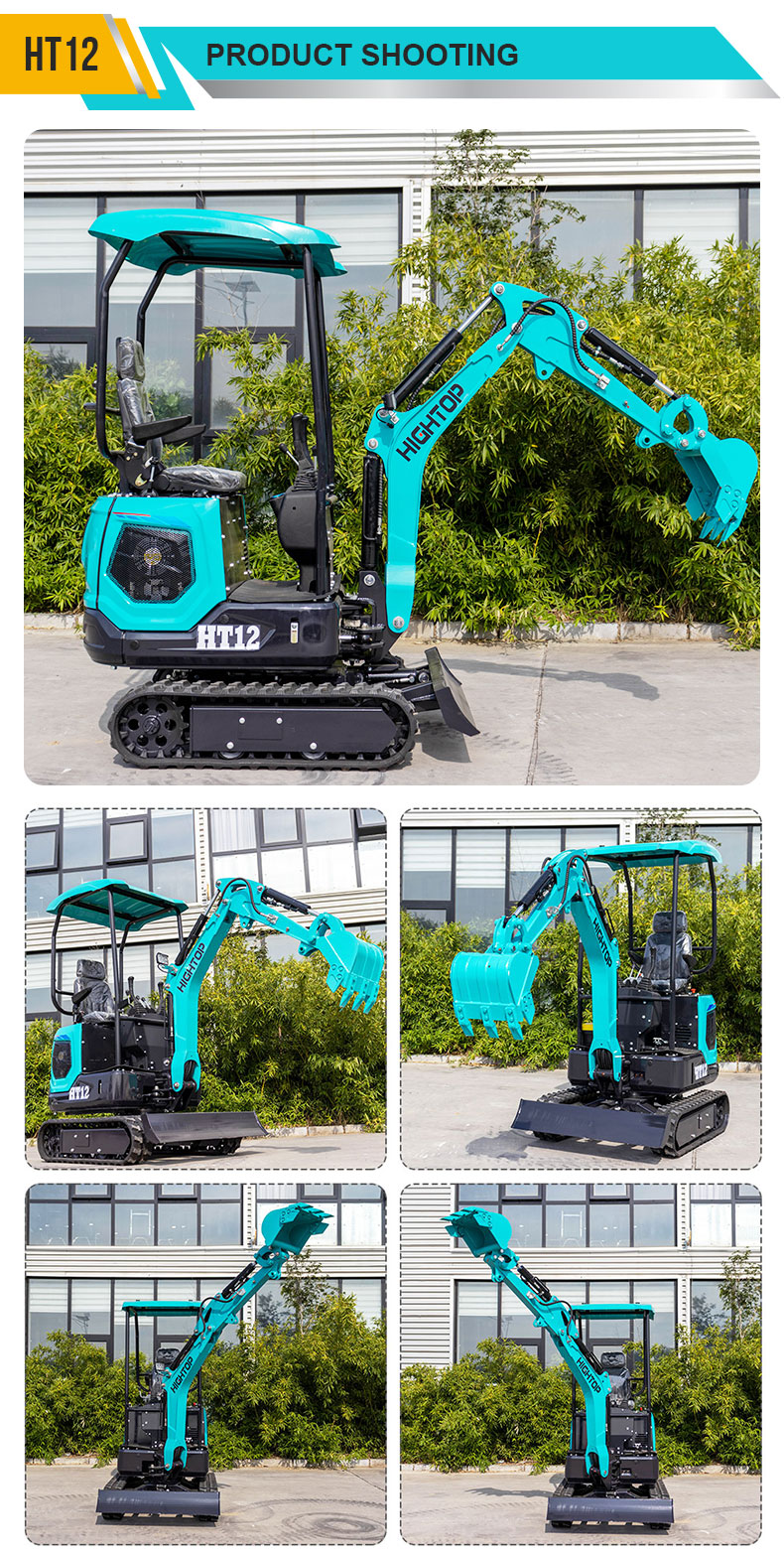

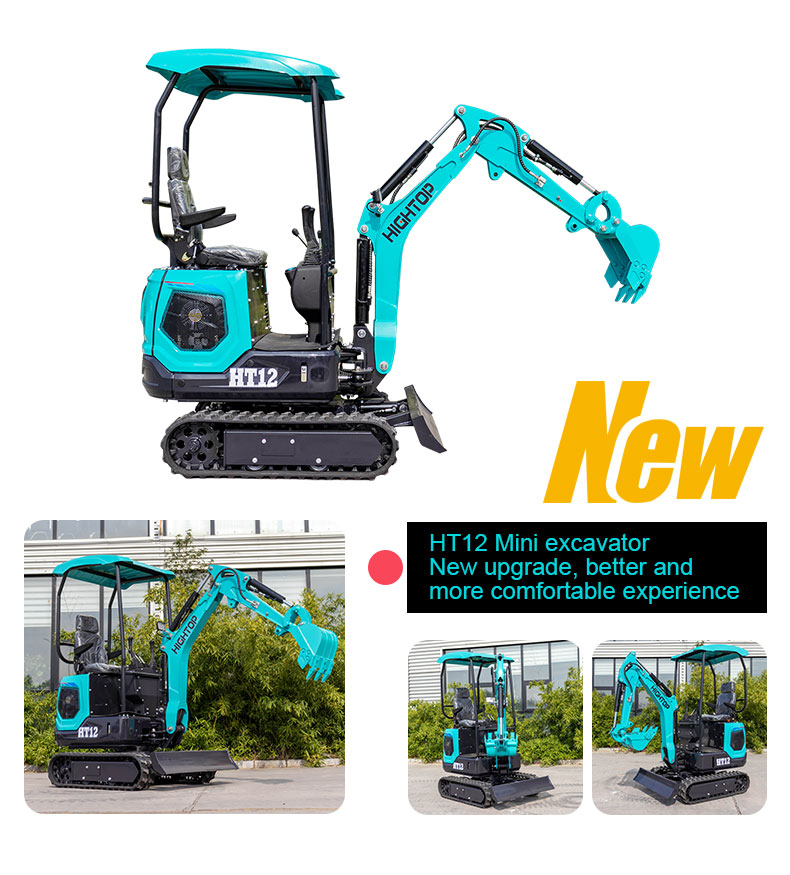

1.2ton Mini Excavator Images
