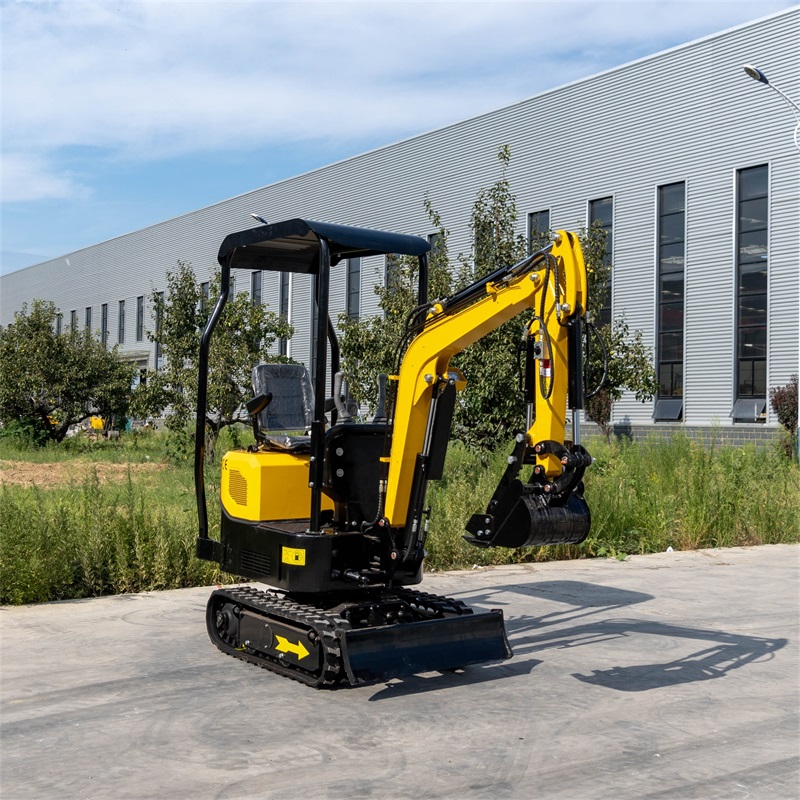

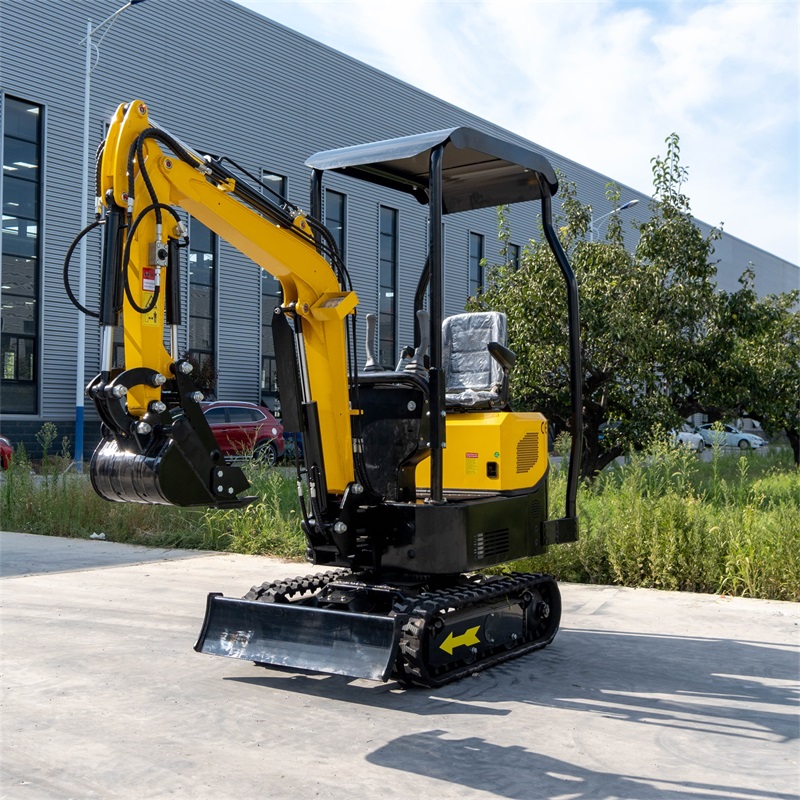

HT-10CZ

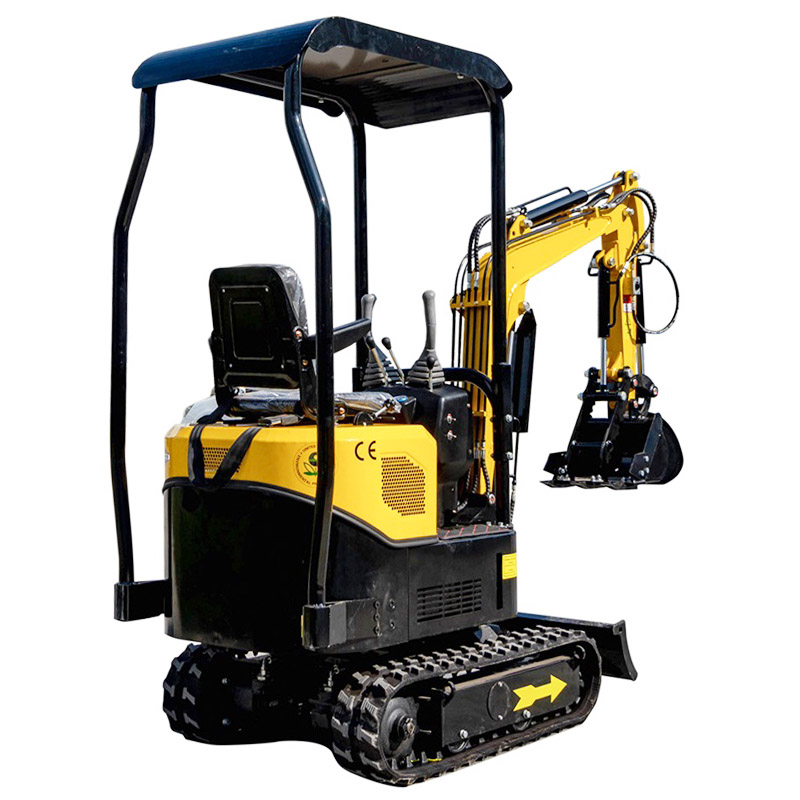

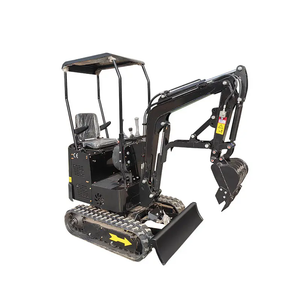

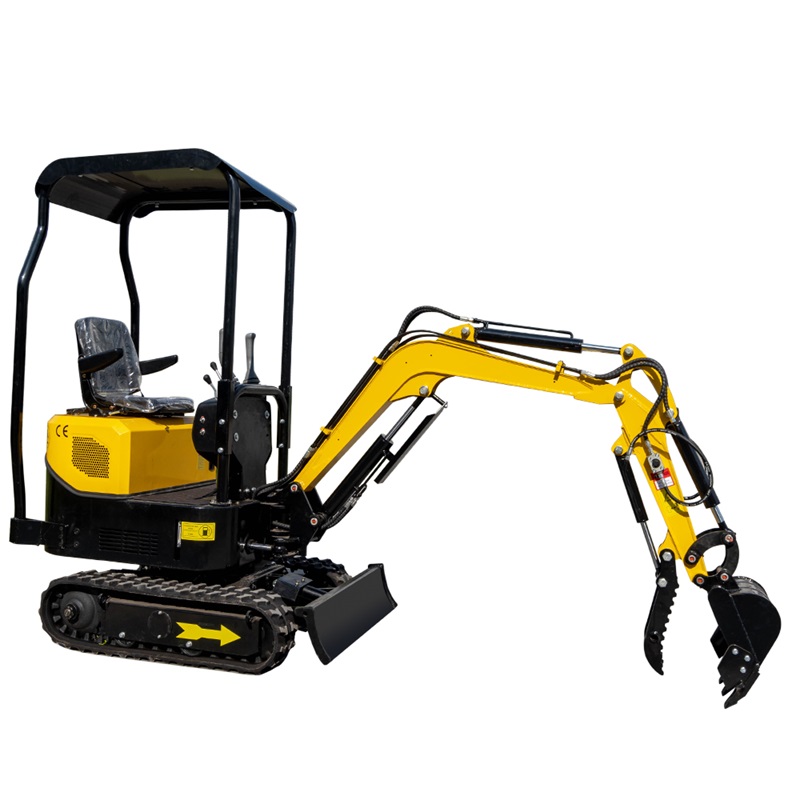

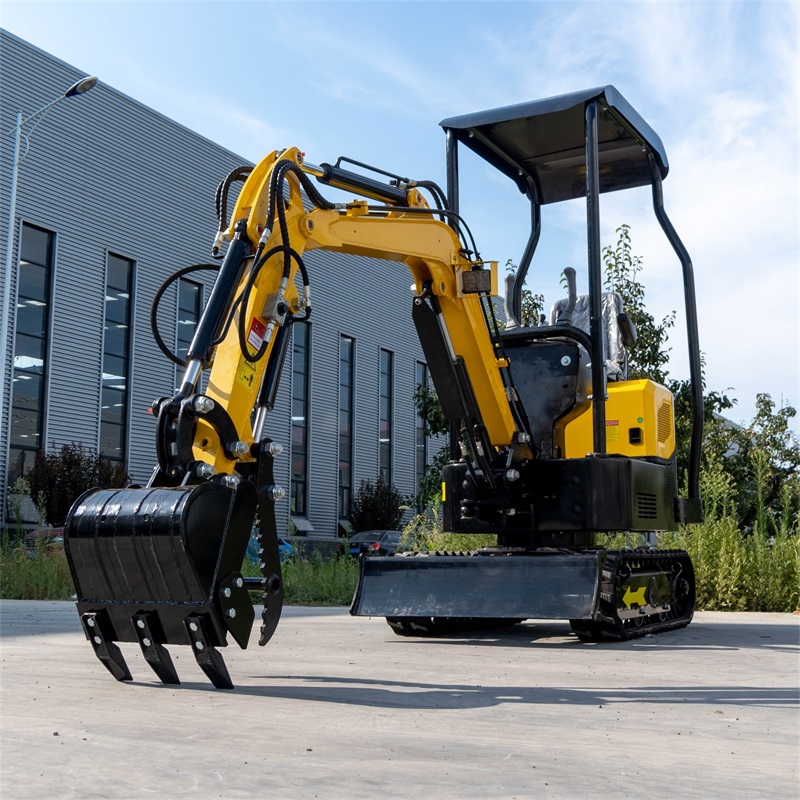

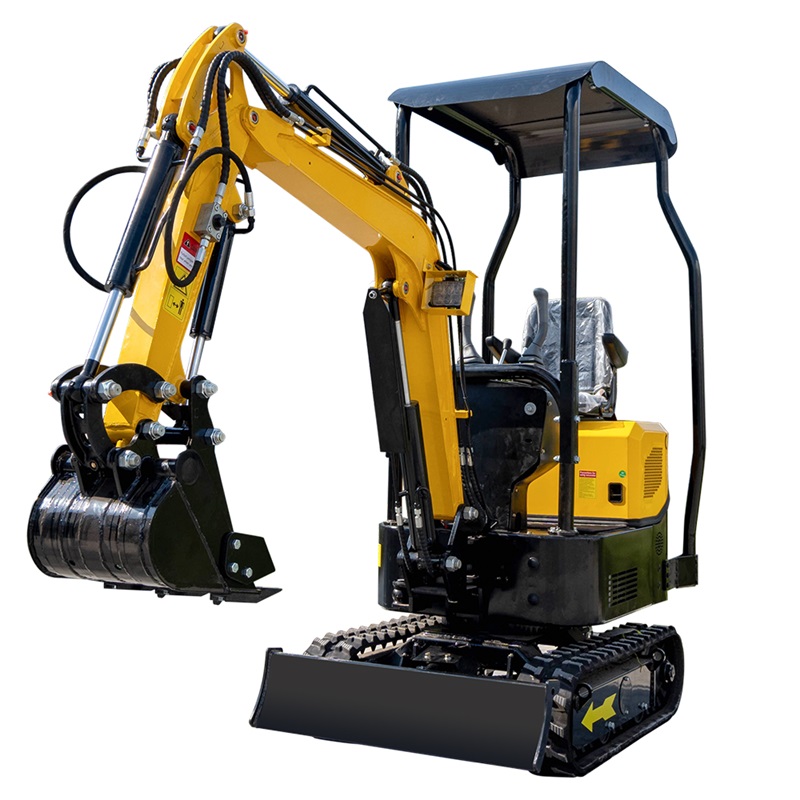

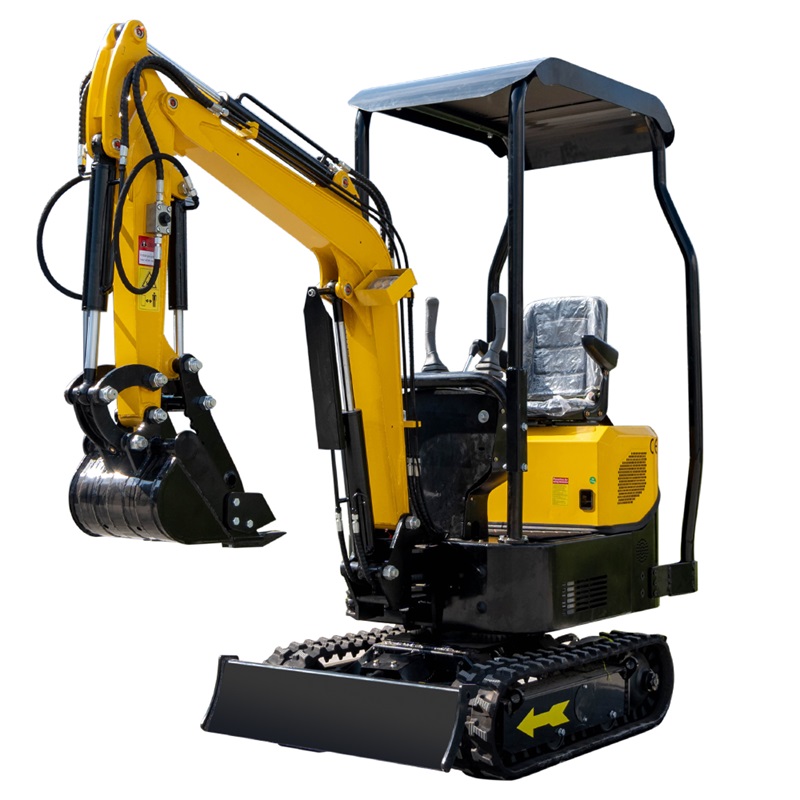

HT10CZ hydraulic crawler mini excavator with BRIGGS & STRATTON engine, super power, energy saving. Optional boom deflection, telescopic track, closed cab. Color optional yellow, red, blue, white, black, etc., support customization, with EPA, Euro 5, CE, ISO certification.

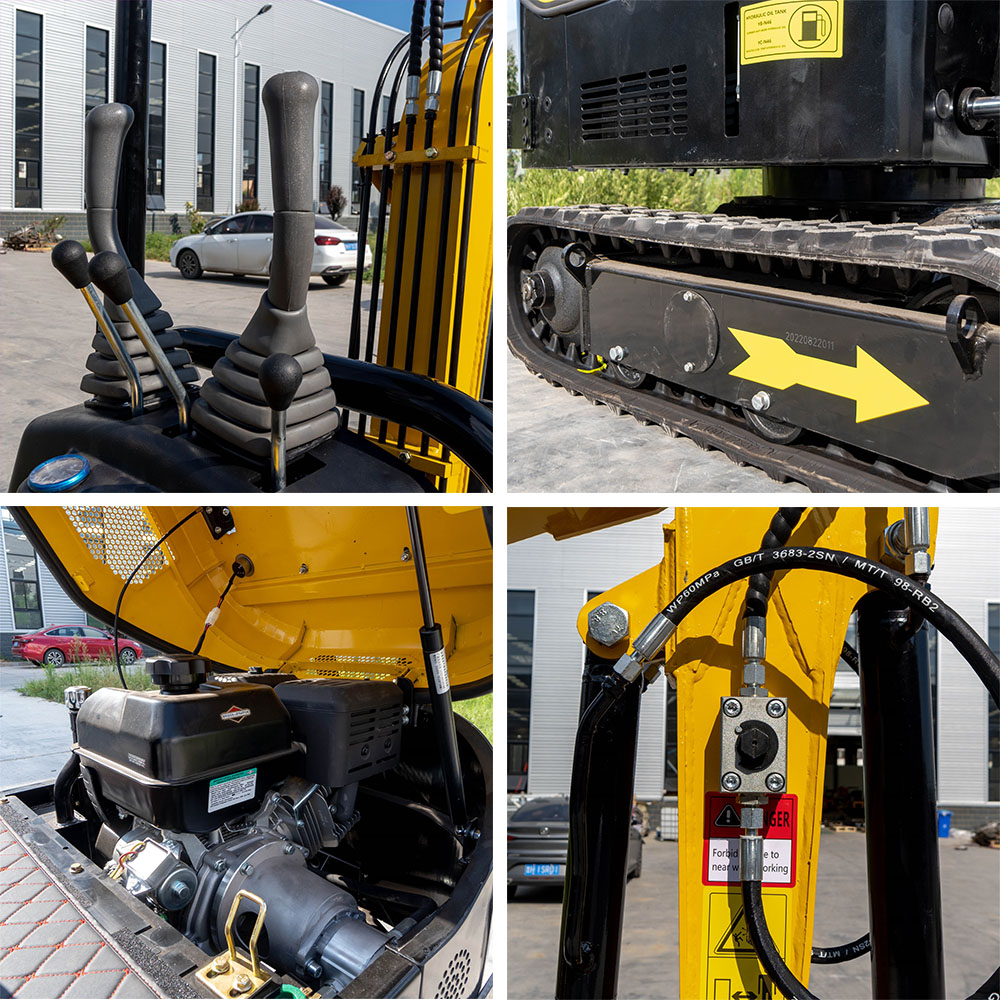

1.The back cover of HT10CZ Reliable Mini Excavator can be opened, and the internal engine and other accessories can be seen at a glance, which is convenient for customers to refuel and maintain.
2.HT10CZ 1000kg Crawler Mini Excavator is able to rotate 360 degrees without tail.
3.This Durable Crawler Mini Excavator is installed with Bailiton engine, which meets the U.S. EPA environmental requirements, and can ensure the machine to work stably in the harsh environment.
4. The bucket of the hydraulic excavator can be replaced with sieve hopper, narrow bucket with teeth, tilting bucket, flat bucket, rake, hydraulic thumb clamps, looseners, crushing hammer and other attachments.
5.HT10CZ compact excavator is equipped with red flexible coupling, which can play the role of shock absorption.
6. The oil supply system of theReliable Crawler Mini Excavator is equipped with high-precision air and oil filters, with a filtration precision of 1μm and a filtration rate of over 99.9%. Installation of oil pressure alarm system, the lack of oil will automatically alarm, play a role in protecting the machine. Hydraulic oil tank breather valve with pressure compensation valve and air filtration function, other manufacturers' machines are only a cover, no pressure.
7. This compact crawler hydraulic excavator is equipped with a heat dissipation system, built-in built-in sealed exhaust fan and good heat dissipation system to ensure that the machine does not heat up and its service life is extended.
8. Three pipelines of the traveling motor, one of which is the oil unloading pipe, preventing the motor internal pressure from being too high, the internal high temperature oil will be unloaded in the oil unloading pipe to improve the service life of the traveling motor.
9. Stabilizing and balancing system, thickened four-legged roof structure, high stability, safety and reliability.
Model | HT10CZ |
Weight | 1000kg |
Digging bucket capacity | 0.025cbm/120kg |
Bucket width | 380mm |
Engine | Koop Engine（192F) |
Optional Engine | BRIGGS & STRATTON Yanmar Engine |
Bore stroke | Single cylinder, fan cool |
Rated power | 7kw/3000r/min |
Main pump | G5-6 |
Displacement | 6.8ml/r |
Swing motor | SANYANG (BMRS-250) |
Traveling motor | SANYANG (BMT-245) |
Travel speed | 1.5km/h |
Main Demensions | |
Overall dimension( LxWxH) | 2775 x 930 x 2219 mm |
Wheelbase | 910 mm |
Total length of track | 1230mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 784 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
Main Demensions | |
Max. Digging depth | 17`50 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |
