HT10B
1T Crawler Mini Excavator FEATURES & BENEFITS KOOP EFFICIENT ENGINE
This mini-excavator is powered by a premium KOOP 192F engine with up to 8.2KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.
DURABLE DESIGN

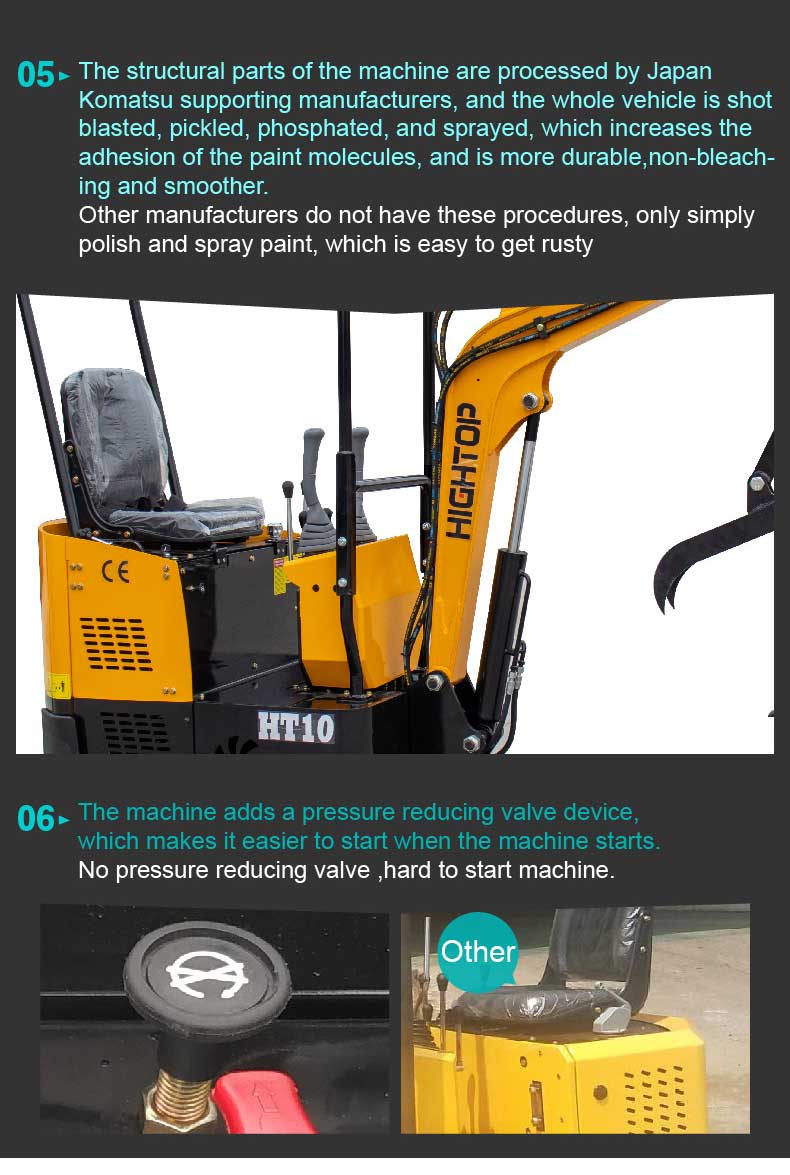

The structural parts of the machine are processed by famous supporting manufacturers, and the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the adhesion of the paint molecules, and is more durable, non-bleaching and smoother.
HIGH EFFICIENCY
The machine adds a pressure reducing valve device,which makes it easier to start when the machine starts.
OPTIONAL SWING BOOM
Optional swing boom
The boom can be deflected by 60 degrees turning left and right, making the job more flexible.
OPTIONAL TRACK TELESCOPING
Optional track telescoping
The crawler can be stretched from minimum 830mm to maximum 1000mm which and can pass through more narrow places.
FLEXIBLE BODY AND COMPACT DESIGN
Flexible body and compact design
With a maximum digging depth of 1,650 mm, Hightop’s HT10 mini excavator is easy to maneuver and can work in limited locations such as backyards, gardens, alleys and narrow driveways.

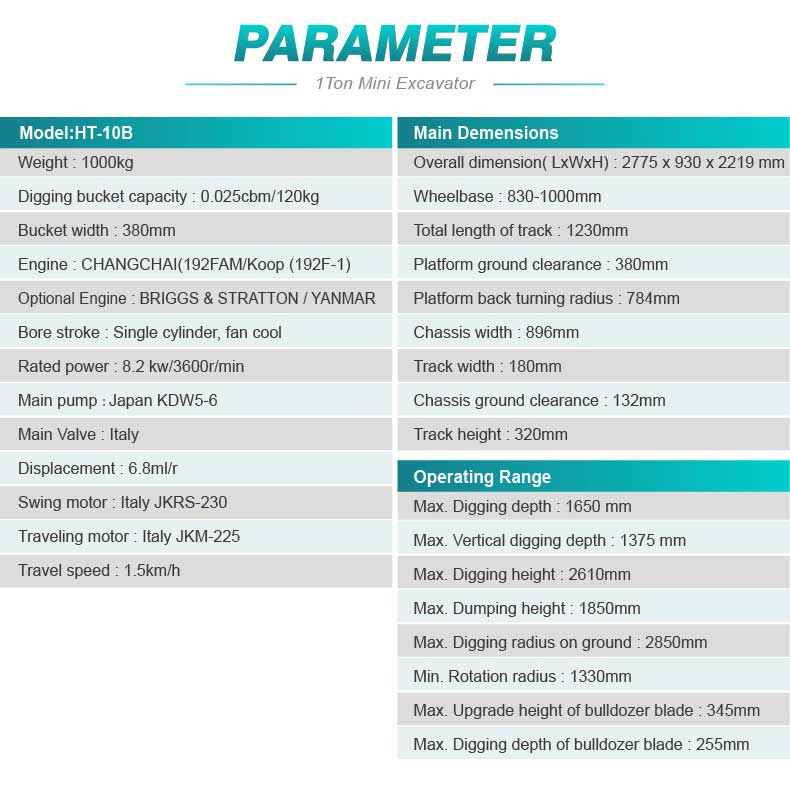

Model:HT10B
Weight:1000kg
Digging bucket Capacity:0.025cbm/120kg
Bucket width:380mm
Engine:koop 192F
Optional engine:briggs & stratton yanmar
Bore stroke:ingle cylinder, fan cool
Rated power:8.2kw/3600r/min
Displacement:6.8ml/r
travel speed:1.5km/h
Main demensions
Overall dimension( lxwxh):2900x 930 x 2180 mm
Wheelbase:910mm
Total length of track:1230mm
Platform ground clearance:380 mm
Platform back turning radius:784 mm
Chassis width :897 mm
Track width:180 mm
Chassis ground clearance:132 mm
Track height:320 mm
Operating range
Max. digging depth:1750 mm
Max. vertical digging depth:1375 mm
Max. digging height:2610 mm
Max. dumping height:1850 mm
Max. digging radius on ground:2850 mm
Min. rotation radius:1330 mm
Max. upgrade height of bulldozer blade:345 mm
Max. digging depth of bulldozer blade:255 mm
